◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11304 - FVM AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#60450) — 99 parça

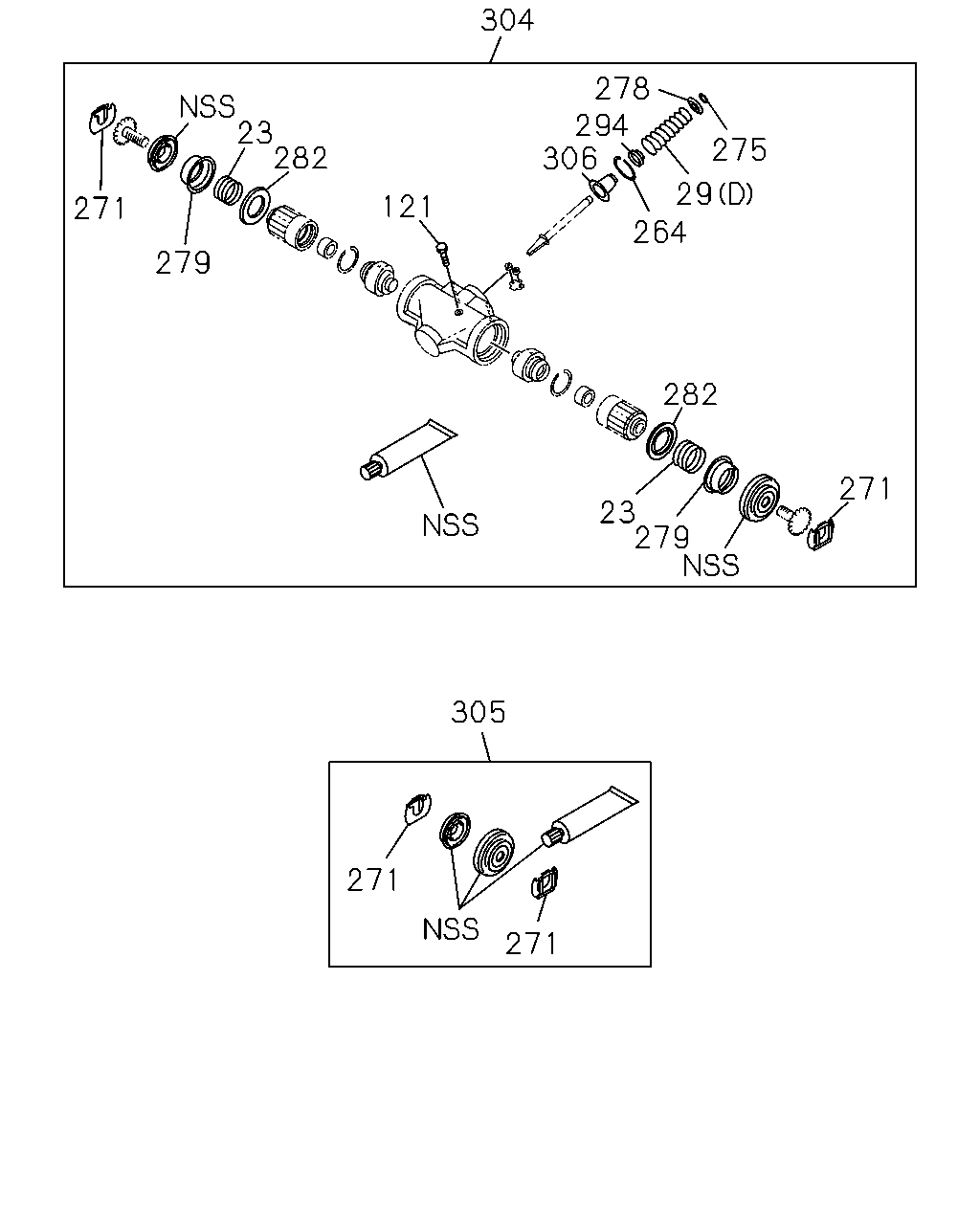

çizim 169143
271 271 305 279 271 282 264 29 275 278 306 294 304 121 282 23 279 271 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 SPRING; COIL 1-47629-196-0 04 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 04 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(D) 		1-47649-041-0 02 1 1010- ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1010- ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1010- ●
271 CLIP; ADJ 1-47621-017-0 04 1 1010- ●
275 RING; RETAINER 1-47649-031-0 02 1 1010- ●
278 RETAINER; SPRING 1-47649-020-0 02 1 1010- ●
279 CAGE; SPRING 1-47629-192-0 04 1 1010- ●
282 RING; DRIVE 1-47629-200-0 04 1 1010- ●
294 BOOT; WEDGE 1-47649-042-0 02 1 1010- ●
304 REPAIR KIT; EXPANDER 1-85576-403-0 02 1 1010- ●
305 REPAIR KIT; BOOT,EXPANDER 1-85576-404-0 02 1 1010- ●
306 CAP; EXPANDER 1-47649-044-0 02 1 1010- ●

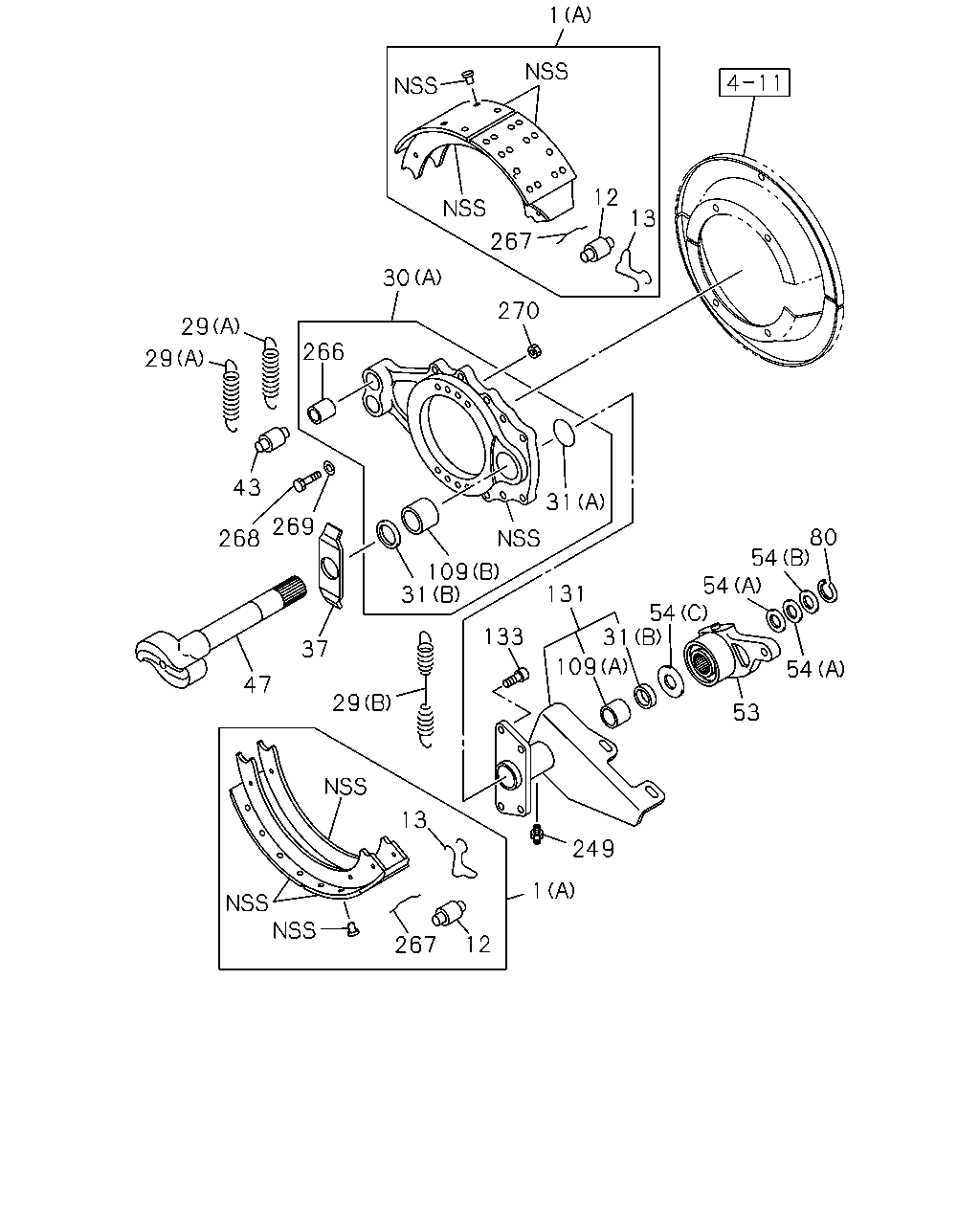

çizim 169145
1 267 12 270 13 30 266 29 29 43 268 269 31 109 31 37 47 29 13 12 1 267 249 53 31 133 109 131 54 54 54 80 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
(A) 		1-47120-832-0 04 1 1010- ●
1 SHOE; BRK,FRT
(B) LEADING 		1-47170-316-0 01 1 1010- ●
1 SHOE; BRK,FRT
(B) TRAILING 		1-47170-317-0 01 1 1010- ●
1 SHOE; BRK,FRT
(B) LEADING 		1-47170-318-0 01 1 1010- ●
1 SHOE; BRK,FRT
(B) TRAILING 		1-47170-319-0 01 1 1010- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 02 1 1010- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 02 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 04 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(D) 		1-47649-041-0 02 1 1010- ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-450-0 01 1 1010- ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-451-0 01 1 1010- ●
30 BRACKET; ANCHOR,FRT
(B) 		8-98091-252-0 02 1 1010- ●
31 SEAL; OIL,CM/SHF
(A) 		1-47149-056-0 02 1 1010- ●
31 SEAL; OIL,CM/SHF
(B) 		1-47149-057-0 02 1 1010- ●
37 WASHER; ADJ CAM 1-47149-087-0 02 1 1010- ●
43 PIN; ANCHOR 1-47131-040-0 04 1 1010- ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1010- ●
47 CAMSHAFT; FRT BRK 1-47141-126-0 01 1 1010- ●
47 CAMSHAFT; FRT BRK 1-47141-127-0 01 1 1010- ●
53 ADJUSTER ASM; SLACK 1-48270-107-0 02 1 1010- ●
54 SPACER; CM/SHF
(A) T=0.06" 		1-47139-121-0 02 1 1010- ●
54 SPACER; CM/SHF
(B) 		1-47149-059-0 02 1 1010- ●
54 SPACER; CM/SHF
(A) T=0.03" 		1-47149-060-0 02 1 1010- ●
54 SPACER; CM/SHF
(C) 		1-47149-065-0 02 1 1010- ●
80 RING; SNAP,CM/SHF 1-87050-005-0 02 1 1010- ●
109 BUSHING; CM/SHF,FRT BRK
(A) 		1-47146-012-0 02 1 1010- ●
109 BUSHING; CM/SHF,FRT BRK
(B) 		1-47146-017-0 02 1 1010- ●
131 BRACKET; POWER CHAMBER 1-48258-194-0 01 1 1010- ●
131 BRACKET; POWER CHAMBER 1-48258-195-0 01 1 1010- ●
133 BOLT; BRKT 1-47139-116-0 08 1 1010- ●
249 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 1010- ●
266 BUSHING; BRKT 1-47139-117-0 04 1 1010- ●
267 PIN; RETURN SPRING,FRT BRK SHOE 1-47119-116-0 02 1 1010- ●
268 BOLT; ANCHOR BRKT 1-47139-122-0 12 1 1010- ●
269 WASHER; ANCHOR BRKT 1-41519-102-0 28 1 1010- ●
270 NUT; ANCHOR BRKT 1-41229-169-0 14 1 1010- ●

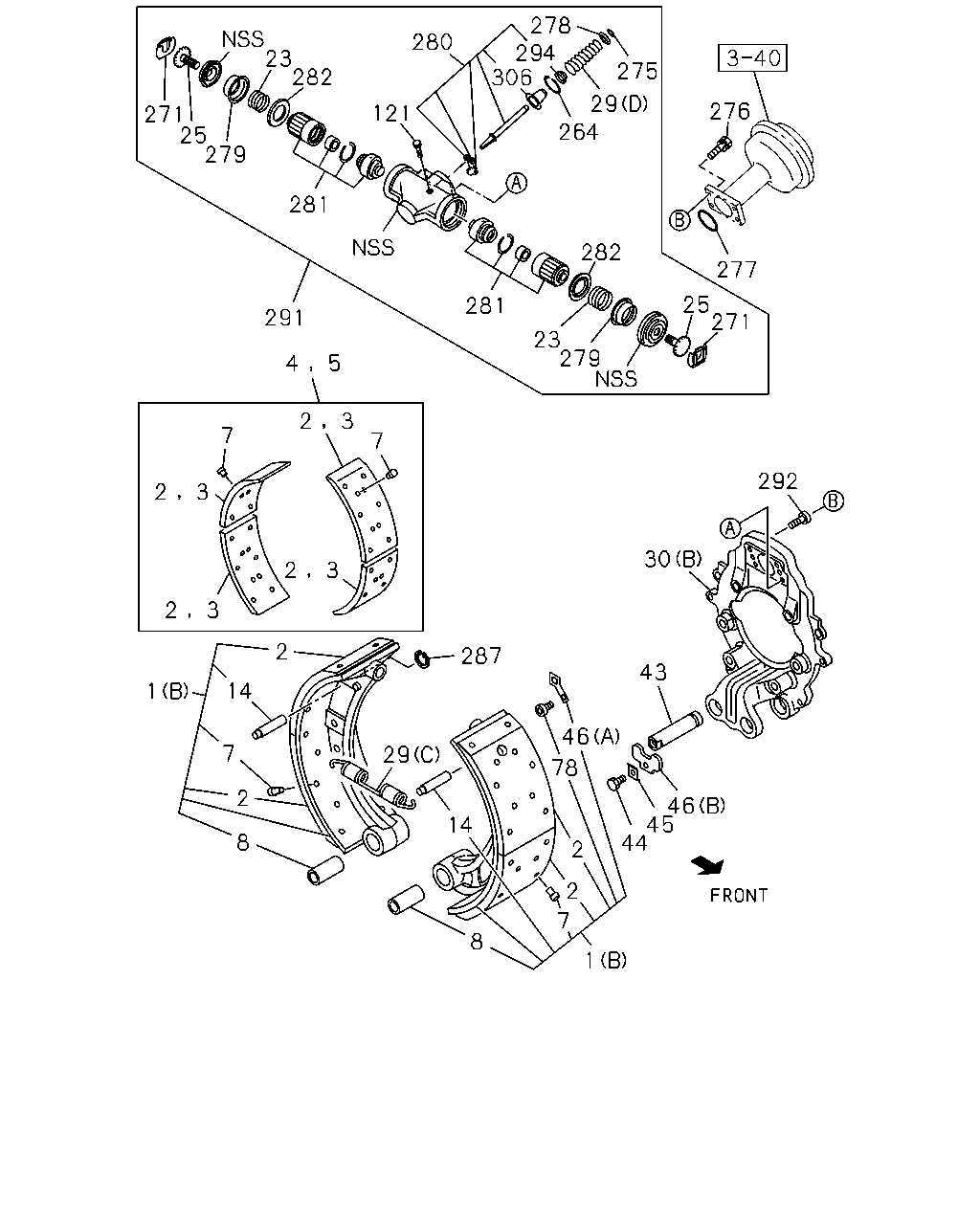

çizim 169150
276 277 271 25 282 279 23 264 29 275 294 278 280 121 281 281 282 23 279 25 271 292 30 43 46 46 45 44 78 2 2 7 1 8 14 287 29 2 2 2 2 2 2 306 3 3 3 3 7 7 291 5 4 8 14 7 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
(A) 		1-47120-832-0 04 1 1010- ●
1 SHOE; BRK,FRT
(B) LEADING 		1-47170-316-0 01 1 1010- ●
1 SHOE; BRK,FRT
(B) TRAILING 		1-47170-317-0 01 1 1010- ●
1 SHOE; BRK,FRT
(B) LEADING 		1-47170-318-0 01 1 1010- ●
1 SHOE; BRK,FRT
(B) TRAILING 		1-47170-319-0 01 1 1010- ●
2 LINING; FRT BRK SHOE,STANDARD 1-47126-698-0 08 1 1010- ●
3 LINING; FRT BRK SHOE,OVER SIZE 1-47126-699-0 08 1 1010- ●
4 LINING SET; FRT BRK,STANDARD
BEST VALUE PARTS 		1-87610-128-0 01 1 1307- ●
4 LINING SET; FRT BRK,STANDARD 1-88311-314-0 02 1 1010- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-315-0 02 1 1010- ●
7 RIVET; LINING,FRT BRK
L=15.5 		1-09732-053-0 80 1 1010- ●
8 BUSHING; BRK SHOE 1-47112-020-0 04 1 1010- ●
14 PIN; SHOE RETURN SPR 1-47119-177-1 04 1 1010- ●
23 SPRING; COIL 1-47629-196-0 04 1 1010- ●
25 SCREW; ADJ,FRT WHEEL CYL 1-47623-035-2 04 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(A) 		1-47119-114-0 04 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(B) 		1-47119-119-0 02 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(C) 		1-09583-365-1 04 1 1010- ●
29 SPRING; RETURN,FRT BRK SHOE
(D) 		1-47649-041-0 02 1 1010- ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-450-0 01 1 1010- ●
30 BRACKET; ANCHOR,FRT
(A) 		1-47137-451-0 01 1 1010- ●
30 BRACKET; ANCHOR,FRT
(B) 		8-98091-252-0 02 1 1010- ●
43 PIN; ANCHOR 1-47131-040-0 04 1 1010- ●
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 1010- ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 		1-47139-173-0 02 1 1010- ●
45 WASHER; LK 1-47133-011-0 02 1 1010- ●
46 PLATE; LOCK
(A) 		1-47119-152-0 04 1 1010- ●
46 PLATE; LOCK
(B) 		1-47133-010-0 02 1 1010- ●
78 BOLT; LK,PLATE 1-47119-153-0 04 1 1010- ●
121 SCREW; LK SPR FRT WHEEL CYL 1-47619-149-1 04 1 1010- ●
264 RING; SNAP,SPR PIN 1-47649-034-1 02 1 1010- ●
271 CLIP; ADJ 1-47621-017-0 04 1 1010- ●
275 RING; RETAINER 1-47649-031-0 02 1 1010- ●
276 BOLT; CHAMBER
M10X42.5 		1-47139-163-0 08 1 1010- ●
277 RING; CHAMBER 1-48259-231-0 02 1 1010- ●
278 RETAINER; SPRING 1-47649-020-0 02 1 1010- ●
279 CAGE; SPRING 1-47629-192-0 04 1 1010- ●
280 WEDGE; FRT WHEEL CYL 1-47640-012-0 02 1 1010- ●
281 SLEEVE 1-47629-247-1 04 1 1010- ●
282 RING; DRIVE 1-47629-200-0 04 1 1010- ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1010- ●
291 EXPANDER 1-47601-087-0 02 1 1010- ●
292 BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1010- ●
294 BOOT; WEDGE 1-47649-042-0 02 1 1010- ●
306 CAP; EXPANDER 1-47649-044-0 02 1 1010- ●
