2-03 — CLUTCH PEDAL AND CONTROL (#60436) — 65 parça

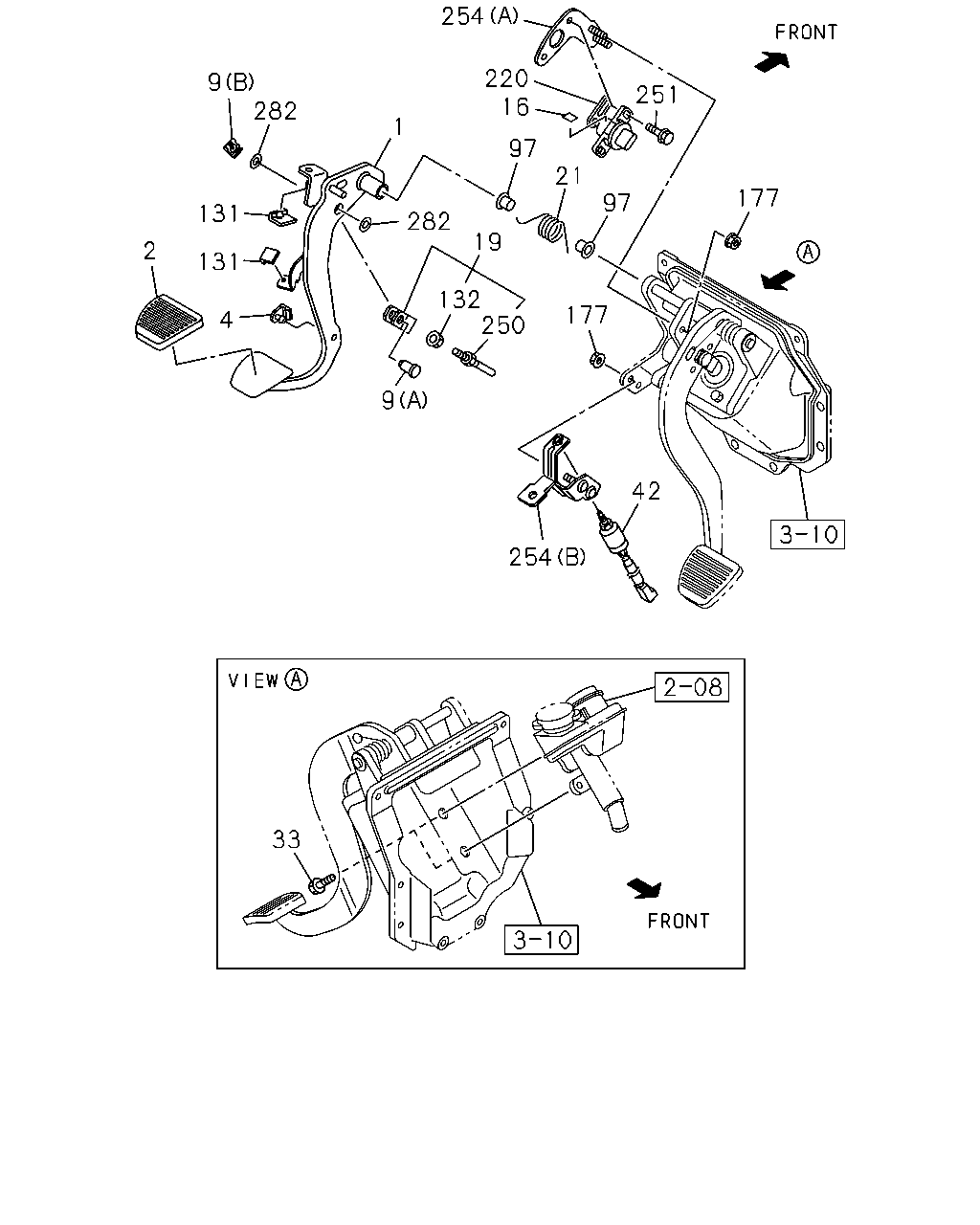

çizim 169433
254 251 220 1 282 9 131 2 131 4 9 132 16 97 21 19 250 177 177 42 254 33 282 97
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		8-98057-122-0 01 1 1010-1306 ● ●
1 PEDAL; CLU
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> H.S.A SYSTEM<6EP> 		8-98057-122-0 01 1 1307- ●
1 PEDAL; CLU
H.S.A SYSTEM<6EP> 		8-98057-122-0 01 1 1307- ●
1 PEDAL; CLU
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> 		8-98057-123-0 01 1 1010-1306 ● ●
1 PEDAL; CLU
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> 		8-98057-123-0 01 1 1307- ●
1 PEDAL; CLU
EXC. H.S.A SYSTEM<6EP> 		8-98057-123-0 01 1 1307- ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1010-1306 ● ●
2 COVER; CLU PEDAL
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98056-865-0 01 1 1307- ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1307- ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1010-1306 ● ●
4 STOPPER; CLU PEDAL
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98079-251-0 01 1 1307- ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1307- ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1010-1306 ● ●
9 PIN; CLU PEDAL
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98007-161-0 01 1 1307- ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1307- ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1010-1306 ● ●
9 PIN; CLU PEDAL
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98147-657-0 01 1 1307- ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1307- ●
16 SEAL; CLU PEDAL
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 30X30 		8-98142-344-0 01 1 1204-1306 ● ●
16 SEAL; CLU PEDAL
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> H.S.A SYSTEM<6EP> 30X30 		8-98142-344-0 01 1 1307- ●
16 SEAL; CLU PEDAL
H.S.A SYSTEM<6EP> 30X30 		8-98142-344-0 01 1 1307- ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1010-1306 ● ●
19 ROD ASM; PUSH,CLU
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98021-406-1 01 1 1307- ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1307- ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1010-1306 ● ●
21 SPRING; RETURN,CLU PEDAL
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98021-560-0 01 1 1307- ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1307- ●
33 BOLT; CLU M/CYL TO BRKT
ZF9S1110 M/T(Y5E) M12X20 FLANGE 		0-28051-220-0 02 1 1010-1306 ● ●
33 BOLT; CLU M/CYL TO BRKT
ZF9S1110 M/T(Y5E) M12X20 FLANGE 		0-28051-220-0 02 1 1307- ● ●
42 SWITCH; CLU 8-97620-841-0 01 1 1010-1306 ● ●
42 SWITCH; CLU
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-97620-841-0 01 1 1307- ●
42 SWITCH; CLU 8-97620-841-0 01 1 1307- ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1010-1306 ● ●
97 BUSHING; CLU PEDAL SHAFT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-94238-596-0 02 1 1307- ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1307- ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 1010-1306 ● ●
131 STOPPER; CLU SW
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-97302-305-0 02 1 1307- ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 1307- ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1010-1306 ● ●
132 NUT; LK,PUSH ROD
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 01 1 1307- ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
177 NUT; BRKT
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 04 1 1010-1306 ● ●
177 NUT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
177 NUT; BRKT
EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1307- ●
177 NUT; BRKT
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 02 1 1010-1306 ● ●
177 NUT; BRKT
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 04 1 1307- ●
177 NUT; BRKT
H.S.A SYSTEM<6EP> M8 FLANGE 		0-91180-108-0 04 1 1307- ●
220 SENSOR; CLUTCH
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 1010-1306 ● ●
220 SENSOR; CLUTCH
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 1307- ●
220 SENSOR; CLUTCH
H.S.A SYSTEM<6EP> 		1-80250-014-0 01 1 1307- ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1010-1306 ● ●
250 ROD; PUSH,CLU
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-97615-589-0 01 1 1307- ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1307- ●
251 BOLT; SENSOR
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> M6X16 		0-52000-616-0 02 1 1010-1306 ● ●
251 BOLT; SENSOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> H.S.A SYSTEM<6EP> M6X16 		0-52000-616-0 02 1 1307- ●
251 BOLT; SENSOR
H.S.A SYSTEM<6EP> M6X16 		0-52000-616-0 02 1 1307- ●
254 BRACKET; CLU SENSOR
(B) 		8-98057-131-1 01 1 1010-1306 ● ●
254 BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98057-131-1 01 1 1307- ●
254 BRACKET; CLU SENSOR
(B) 		8-98057-131-1 01 1 1307- ●
254 BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 1010-1306 ● ●
254 BRACKET; CLU SENSOR
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 1307- ●
254 BRACKET; CLU SENSOR
H.S.A SYSTEM<6EP> (A) 		8-98021-376-1 01 1 1307- ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1010-1306 ● ●
282 SPACER; CLU PEDAL
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98070-329-0 02 1 1307- ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1307- ●
