1-50 — EXHAUST PIPE AND SILENCER (#60432) — 121 parça

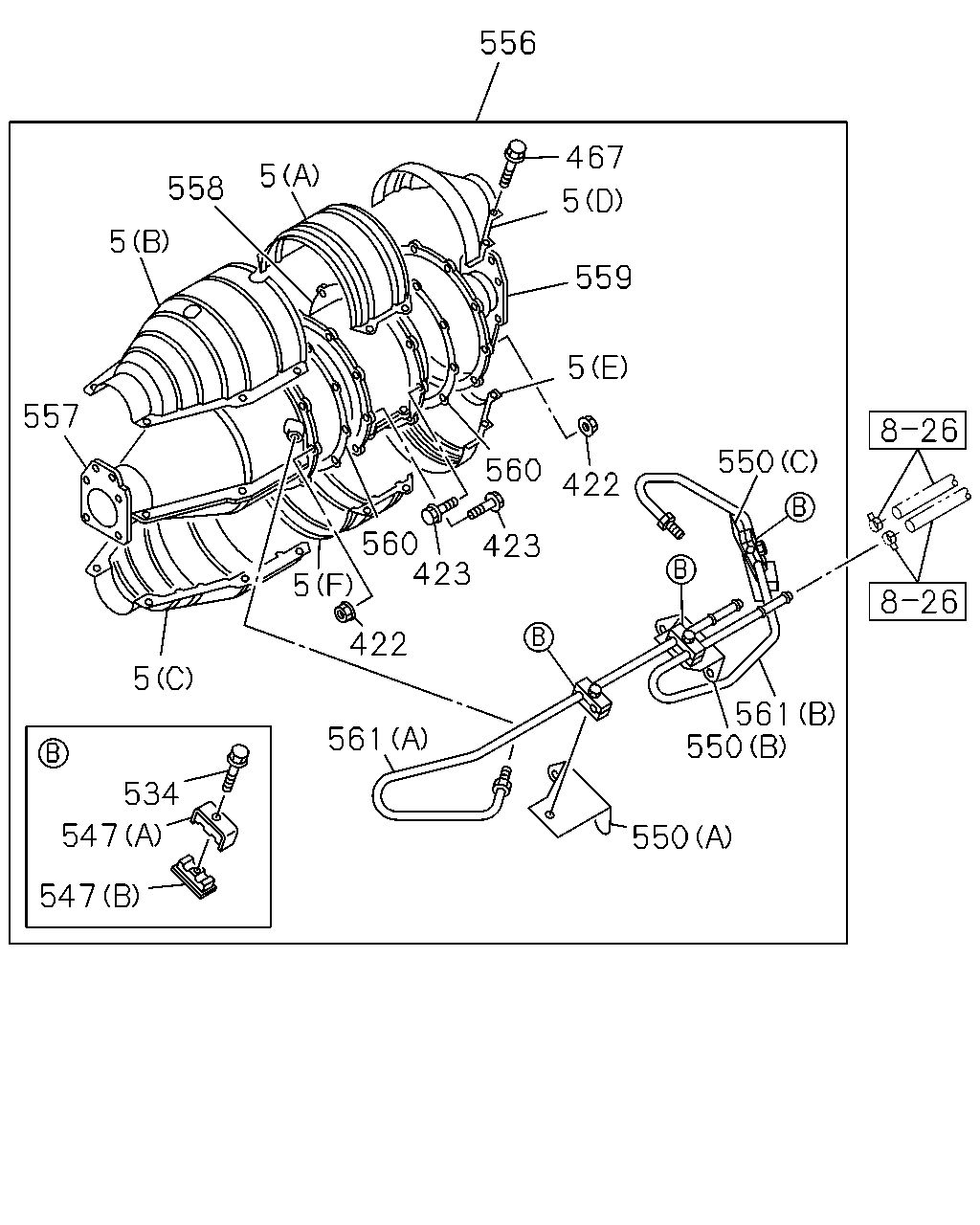

çizim 169230
556 467 5 559 5 5 558 5 557 5 422 5 560 423 423 560 422 550 561 550 550 561 534 547 547
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 1010-1306 ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1010- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1010- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1010- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1010- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1010- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1010- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1010- ● ●
550 BRACKET; DPD
(A) 		8-97611-096-0 01 1 1010- ● ●
550 BRACKET; DPD
(B) 		8-97611-097-0 01 1 1010- ● ●
556 DPD ASM 8-97606-314-5 01 1 1010-1011 ● ●
556 DPD ASM 8-97622-899-4 01 1 1012- ● ●
557 CATALYST ASM 8-97608-054-6 01 1 1010- ● ●
558 FILTER ASM 8-97608-056-2 01 1 1010- ● ●
559 COVER; RR 8-97611-090-0 01 1 1010-1011 ● ●
559 COVER; RR 8-97622-903-0 01 1 1012- ● ●
560 GASKET; DPD 8-97611-092-0 02 1 1010- ● ●
561 PIPE; DPD
(A) 		8-97611-093-0 01 1 1010-1011 ● ●
561 PIPE; DPD
(A) 		8-97622-904-0 01 1 1012- ● ●
561 PIPE; DPD
(B) 		8-97611-094-0 01 1 1010-1011 ● ●
561 PIPE; DPD
(B) 		8-97622-905-0 01 1 1012- ● ●

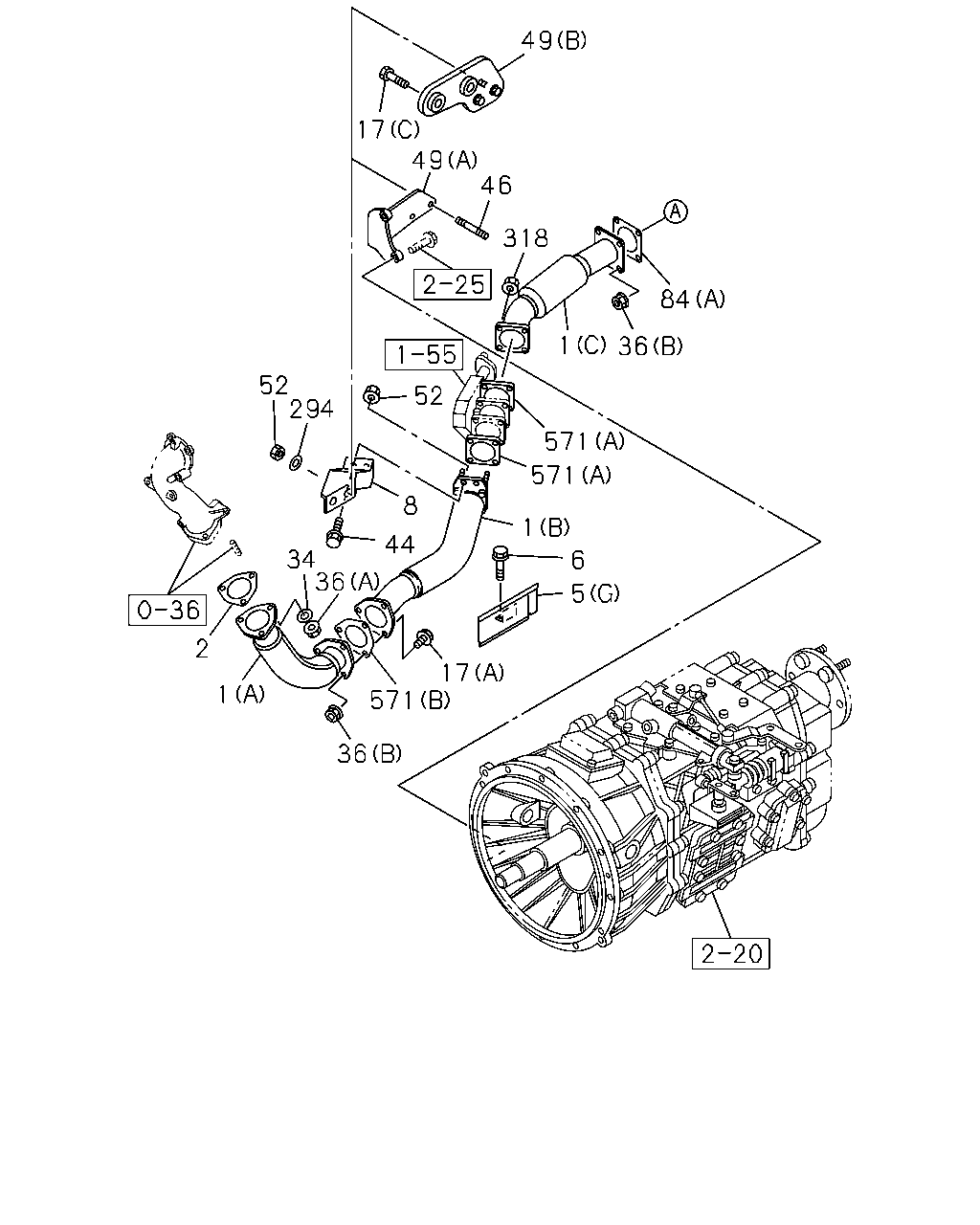

çizim 169434
571 36 1 2 34 36 8 44 17 5 1 6 571 571 52 294 52 36 1 84 318 46 49 17 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) 		8-98047-778-0 01 1 1010-1209 ● ●
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1210- ● ●
1 PIPE; EXH
(C) 		8-98099-921-0 01 1 1010- ● ●
1 PIPE; EXH
(A) 		8-98120-560-0 01 1 1010-1209 ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1210- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 1010- ● ●
5 PROTECTOR; HEAT
(G) 		8-98073-436-0 01 1 1010-1306 ● ●
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 1010-1306 ● ●
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) 		8-98149-834-0 01 1 1307- ●
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1010-1306 ● ●
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) 		8-98120-522-0 01 1 1307- ●
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1307- ●
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) (C) M16X45 		9-92361-645-0 02 1 1307- ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1010- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1010- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1010- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1010- ● ●
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1010-1306 ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1307- ● ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) (B) 		8-98149-833-0 01 1 1308- ●
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98120-497-0 01 1 1010-1306 ● ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (A) 		8-98120-497-0 01 1 1307- ●
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98120-497-0 01 1 1307- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1010- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1010- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1010- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1010- ● ●

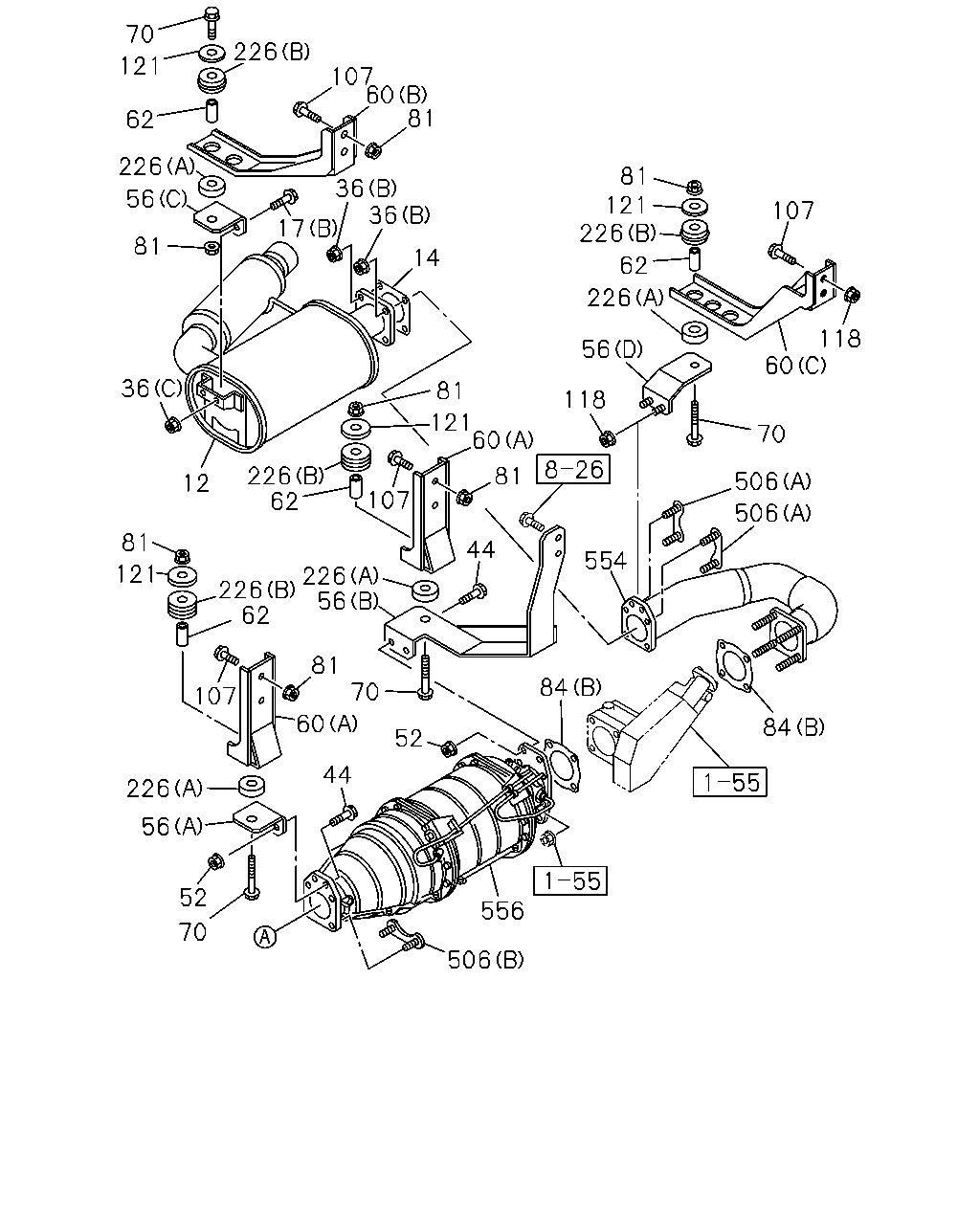

çizim 169435
70 226 121 107 62 60 226 81 56 36 81 17 36 81 121 107 226 226 62 118 60 56 118 70 506 506 554 84 84 44 81 60 121 81 107 226 56 81 70 52 44 60 62 226 121 36 12 81 226 56 52 70 506 556 226 14 62
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98070-098-2 01 1 1010- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 1010- ● ●
17 BOLT; EXH PIPE
ALLISON MD3560P A/T(Y3B) (C) M16X45 		9-92361-645-0 02 1 1307- ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1010- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1010- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1010- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1010- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 08 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 1010- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 02 1 1010-1309 ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-1 01 1 1010- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 01 1 1010- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 02 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 01 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 01 1 1010- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1010- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 1010- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1010- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 1010- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1010- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1010- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1010- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1010- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 1010- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 1010- ● ●
554 PIPE; EXH,SILENCER 8-98085-262-0 01 1 1010- ● ●
556 DPD ASM 8-97606-314-5 01 1 1010-1011 ● ●
556 DPD ASM 8-97622-899-4 01 1 1012- ● ●
