1-41 — FUEL PIPING; CHASSIS (#60430) — 124 parça

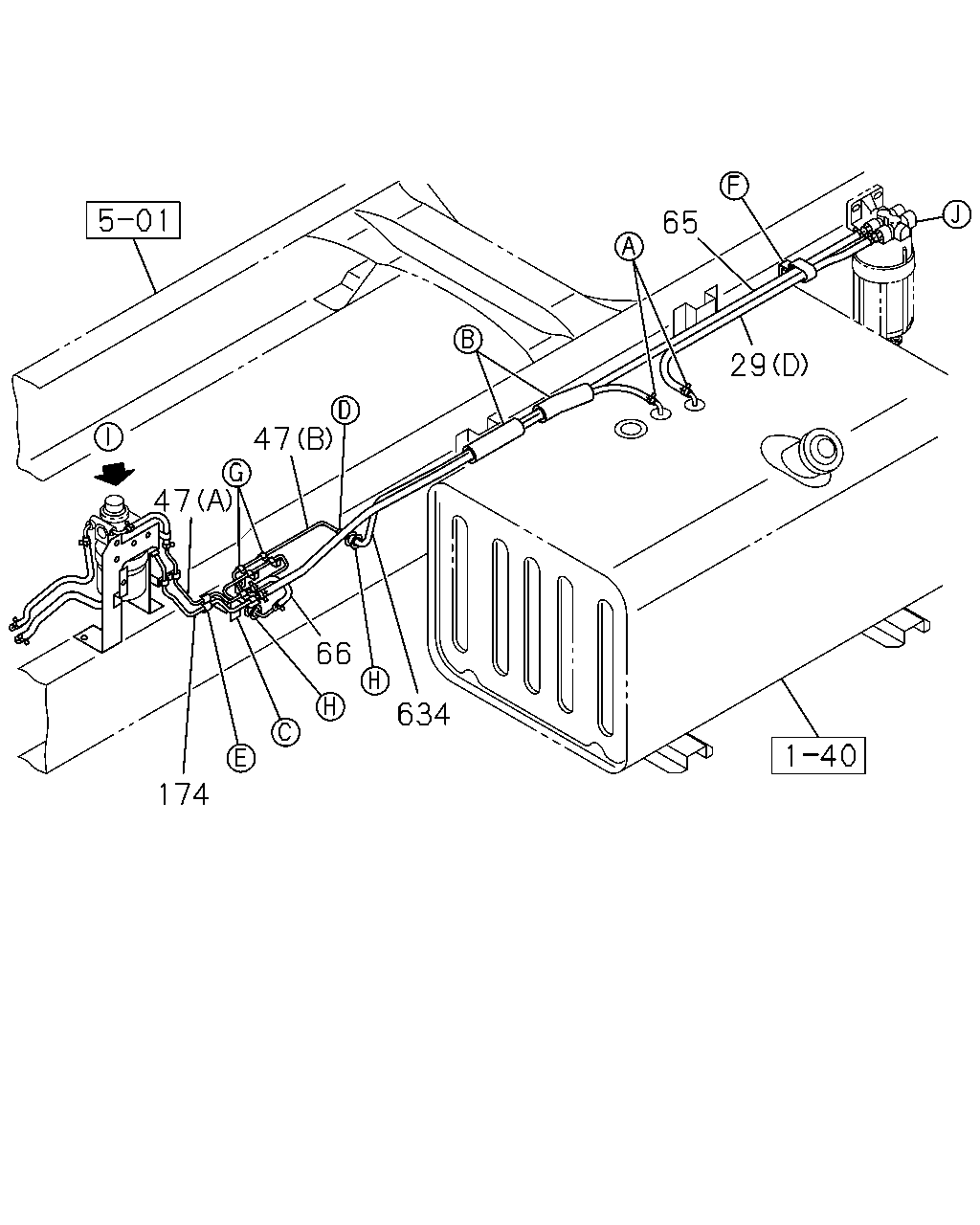

çizim 169462
47 47 174 66 634 29 65
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(D) L=920 		8-98232-244-0 01 1 1307- ● ●
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1010- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1010- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1010- ● ●
47 PIPE; FUEL,RETURN
(A) L=717 		8-98086-241-0 01 1 1010-1306 ● ●
47 PIPE; FUEL,RETURN
(A) L=688 		8-98129-921-0 01 1 1307- ● ●
47 PIPE; FUEL,RETURN
(B) L=787 		8-98127-647-0 01 1 1010- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1050 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1620 		8-98232-241-0 01 1 1307- ● ●
66 HOSE; FUEL,RETURN PIPE
L=150 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ● ●
66 HOSE; FUEL,RETURN PIPE
L=180 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ● ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 1010-1306 ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1307- ● ●
634 HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ● ●
634 HOSE; RUBBER RETURN
L=700 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ● ●

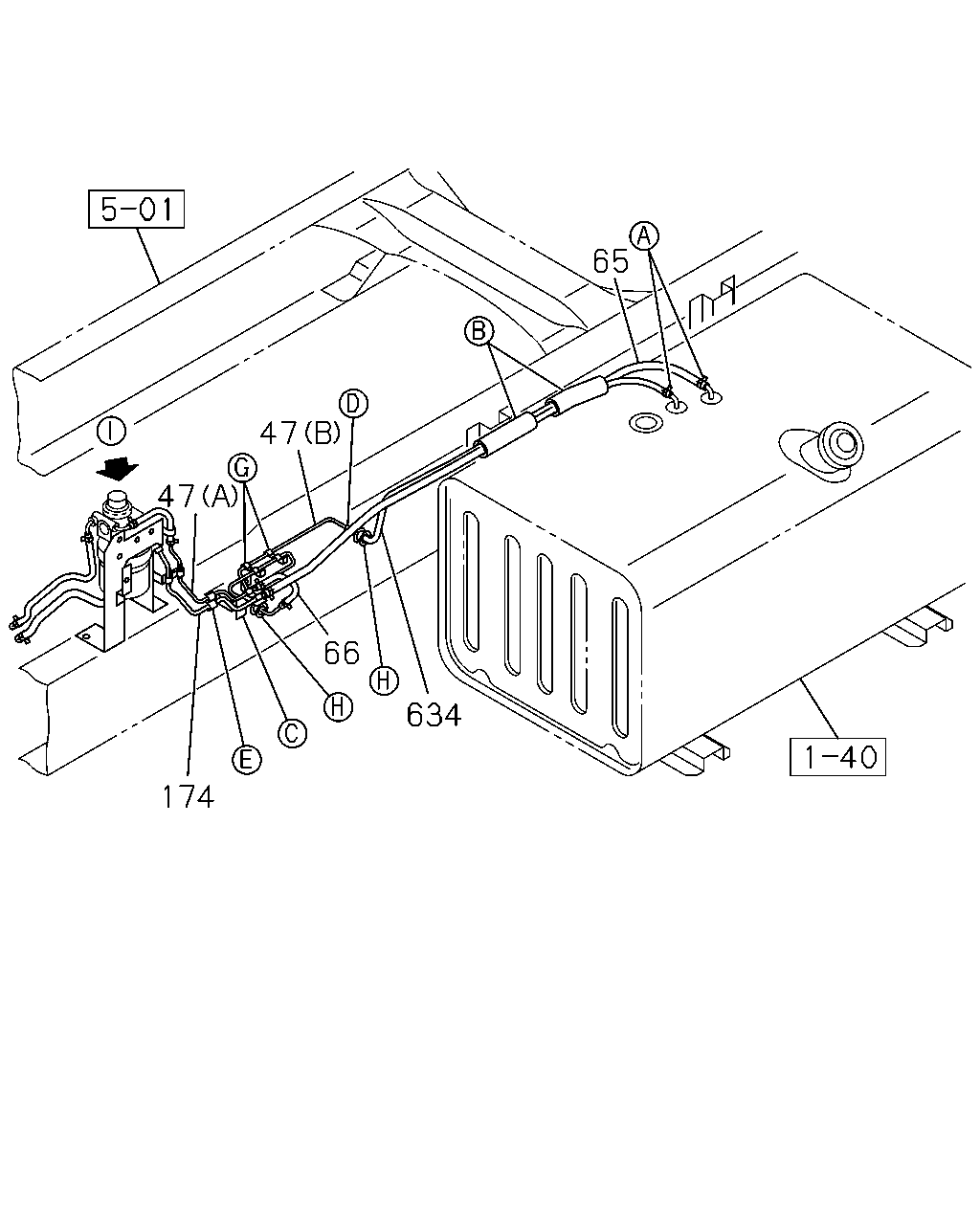

çizim 169466
47 47 66 174 634 65
BalonParca AdiParca NoAdetTipApplied Date A B
47 PIPE; FUEL,RETURN
(A) L=717 		8-98086-241-0 01 1 1010-1306 ● ●
47 PIPE; FUEL,RETURN
(A) L=688 		8-98129-921-0 01 1 1307- ● ●
47 PIPE; FUEL,RETURN
(B) L=787 		8-98127-647-0 01 1 1010- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1050 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1620 		8-98232-241-0 01 1 1307- ● ●
66 HOSE; FUEL,RETURN PIPE
L=150 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ● ●
66 HOSE; FUEL,RETURN PIPE
L=180 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ● ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 1010-1306 ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1307- ● ●
634 HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ● ●
634 HOSE; RUBBER RETURN
L=700 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ● ●
çizim 365659
29 65 41 634 41 39 373 29 373 41 55 83 41 41 304 47 66 65 41 303 174 97 97 41 80 41 83 80 41 103 80 98 41 308 83 95
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(D) L=920 		8-98232-244-0 01 1 1307- ● ●
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1010- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1010- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1010- ● ●
39 PIPE; FUEL
(B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1307- ● ●
39 PIPE; FUEL
(A) 		8-98009-438-1 01 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=24 & 24 L=49 		1-09701-018-0 01 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 08 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307- ● ●
47 PIPE; FUEL,RETURN
(A) L=717 		8-98086-241-0 01 1 1010-1306 ● ●
47 PIPE; FUEL,RETURN
(A) L=688 		8-98129-921-0 01 1 1307- ● ●
47 PIPE; FUEL,RETURN
(B) L=787 		8-98127-647-0 01 1 1010- ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1010-1306 ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 1307-1407 ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1408- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1050 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1620 		8-98232-241-0 01 1 1307- ● ●
66 HOSE; FUEL,RETURN PIPE
L=150 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ● ●
66 HOSE; FUEL,RETURN PIPE
L=180 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ● ●
80 BOLT; CLIP,FUEL TANK
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1010-1306 ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 02 1 1307- ● ●
97 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1010- ● ●
97 BRACKET; CLIP
(A) 		8-98053-654-0 01 1 1010- ● ●
97 BRACKET; CLIP
(B) 		8-98076-024-0 01 1 1010-1306 ● ●
97 BRACKET; CLIP
(B) 		8-98129-922-0 01 1 1307- ● ●
98 BOLT; BRKT,FUEL PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 1010- ● ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 1010-1306 ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1307- ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1010- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
308 BRACKET; FUEL PIPE
L=75 		1-47478-323-0 02 1 1010- ● ●
373 CLAMP; HOSE,FUEL
ID=16 		8-94238-568-0 02 1 1010- ● ●
634 HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000 		0-01558-300-0 01 1 1010-1306 ● ●
634 HOSE; RUBBER RETURN
L=700 SERVICED BY L=3000 		0-01558-300-0 01 1 1307- ● ●

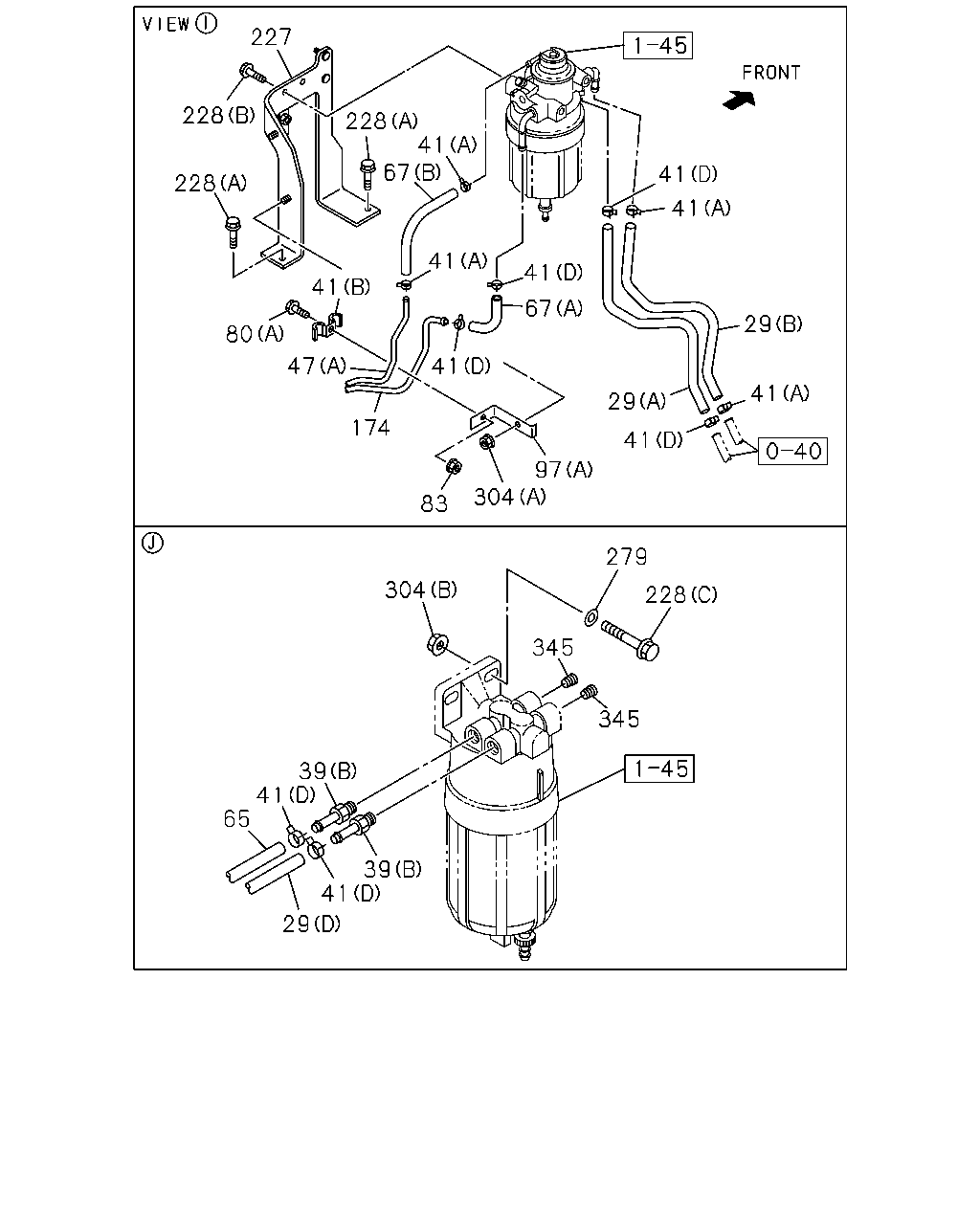

çizim 366201
227 228 228 228 80 41 47 174 83 97 304 41 41 67 41 41 41 41 67 29 41 29 41 279 345 228 304 345 39 41 29 65 39 41
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(D) L=920 		8-98232-244-0 01 1 1307- ● ●
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1010- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1010- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1010- ● ●
39 PIPE; FUEL
(B) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1307- ● ●
39 PIPE; FUEL
(A) 		8-98009-438-1 01 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=24 & 24 L=49 		1-09701-018-0 01 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1010- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 03 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 08 1 1010-1306 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1307- ● ●
47 PIPE; FUEL,RETURN
(A) L=717 		8-98086-241-0 01 1 1010-1306 ● ●
47 PIPE; FUEL,RETURN
(A) L=688 		8-98129-921-0 01 1 1307- ● ●
47 PIPE; FUEL,RETURN
(B) L=787 		8-98127-647-0 01 1 1010- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1050 SERVICED BY L=3000 		0-01859-300-0 01 1 1010-1306 ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1620 		8-98232-241-0 01 1 1307- ● ●
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1010- ● ●
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01859-300-0 01 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1307- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1010- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
97 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1010- ● ●
97 BRACKET; CLIP
(A) 		8-98053-654-0 01 1 1010- ● ●
97 BRACKET; CLIP
(B) 		8-98076-024-0 01 1 1010-1306 ● ●
97 BRACKET; CLIP
(B) 		8-98129-922-0 01 1 1307- ● ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 1010-1306 ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1307- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1010- ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1307- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1010- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1010- ● ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1307- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1307- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1010- ● ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1307- ● ●
