Isuzu WW
▶
TRUCKS
▶
FVM
▶
11304 - FVM AUST/NZ EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

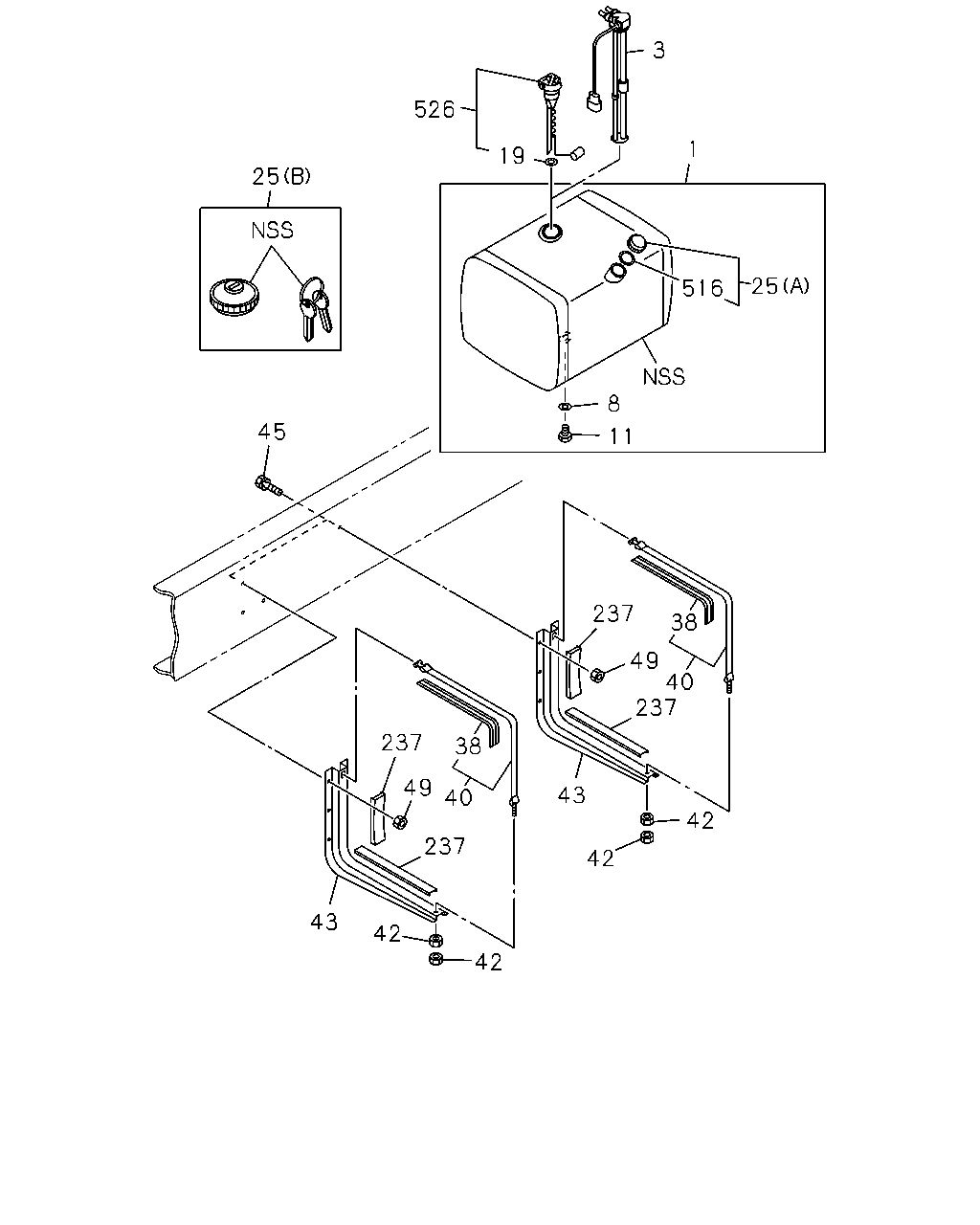

1-40 — FUEL TANK
(#60429) — 19 parça
Tümü
A - FGL5MV
B - FGM5MV
38
49
40
237
237
43
42
42
40
38
237
49
237
42
42
43
11
8
1
516
25
3
19
526
25
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1020X685X625 400L
1-87412-052-0
01
1
1010-
●
●
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1211-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1010-
●
●
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1010-
●
●
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1307-
●
●
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
1010-1210
●
●
25
CAP; FILLER,FUEL TANK
(A)
1-22440-056-0
01
1
1010-
●
●
25
CAP; FILLER,FUEL TANK
(B)
1-22440-057-2
01
1
1010-
●
●
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
1010-
●
●
40
BELT; SUPPORT,FUEL TANK
L=1210
1-22550-261-0
02
1
1010-1110
●
●
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1111-
●
●
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1010-
●
●
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
1010-
●
●
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28051-240-0
12
1
1010-
●
●
49
NUT; BRKT
ALLISON MD3560P A/T(Y3B) M12
0-91110-512-0
12
1
1307-
●
49
NUT; BRKT
ZF9S1110 M/T(Y5E) M12
0-91110-512-0
09
1
1010-
●
●
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
1010-
●
●
516
GASKET; CAP
ID=78
8-98259-383-0
01
1
1010-
●
●
526
SENDER; FUEL TANK
1-83141-132-0
01
1
1010-1210
●
●
