8-40 — HEATER SYSTEM (#6042) — 43 parça

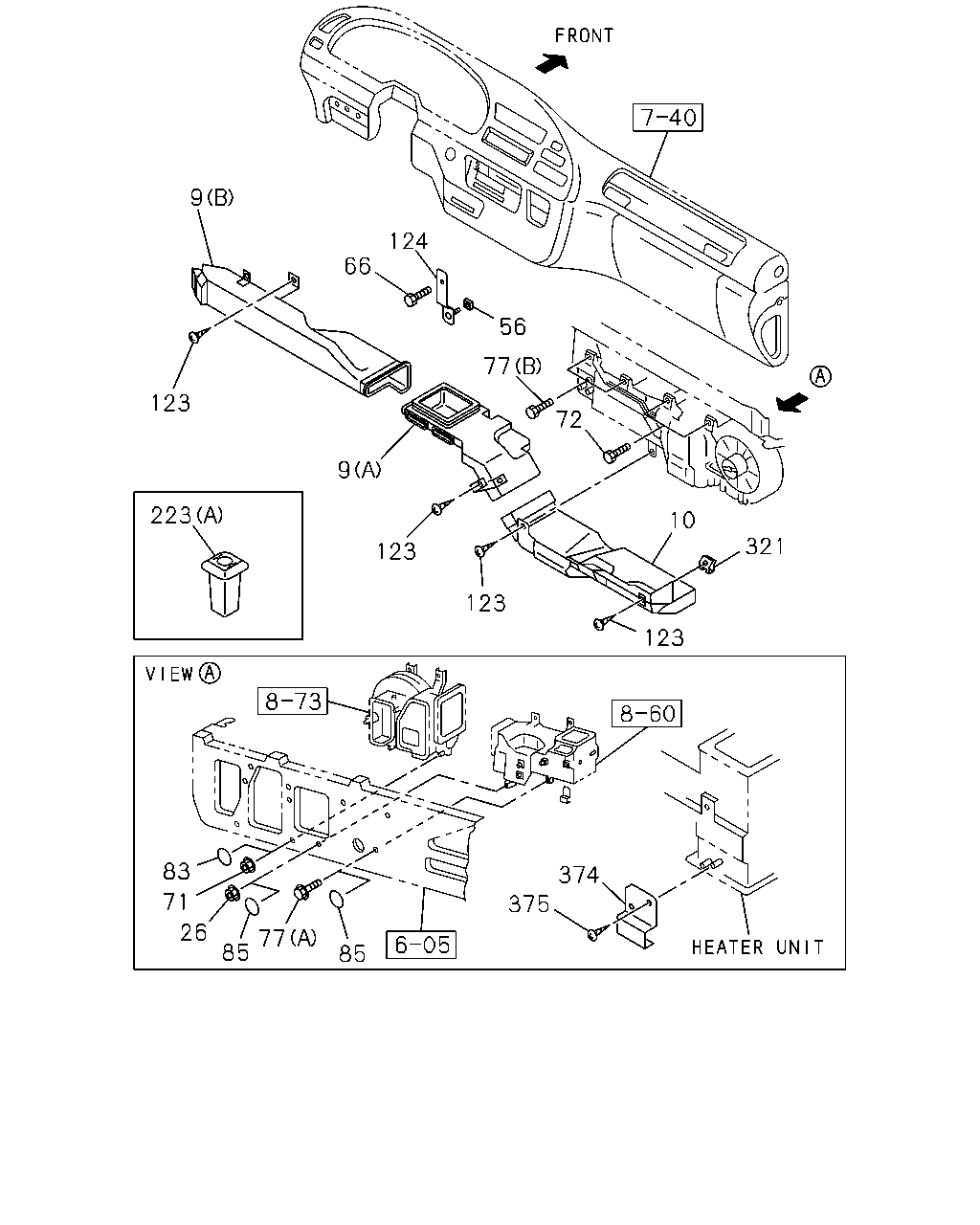

9 124 66 56 77 123 72 9 223 10 321 123 123 123 83 374 71 375 26 77 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-76377-198-2	01	1	9812-0006
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-76377-228-2	01	1	0007-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-199-1	01	1	9812-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-200-1	01	1	9812-
26	NUT; HTR EXC. HEATER VENTILATION A/C DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9812-
56	NUT; INL DUCT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9812-
66	BOLT; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9812-
71	NUT; BLOWER UNIT TO DASH EXC. HEATER VENTILATION A/C DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9812-
72	BOLT; BLOWER UNIT EXC. HEATER VENTILATION A/C DELETE(TFA) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION A/C DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	9812-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION A/C DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-
83	SEAL; COVER,HTR HOLE HEATER VENTILATION A/C DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	9812-
85	SEAL; HTR UNIT HEATER VENTILATION A/C DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	9812-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	9812-
123	SCREW; DUCT EXC. HEATER VENTILATION A/C DELETE(TFA) M5X14	8-94279-325-0	08	1	9812-
124	BRACKET ASM; VENT DUCT	1-79738-186-1	01	1	9812-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9812-
223	GROMMET; SCREW EXC. HEATER VENTILATION A/C DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9812-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-150-0	01	1	9812-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	9812-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9812-

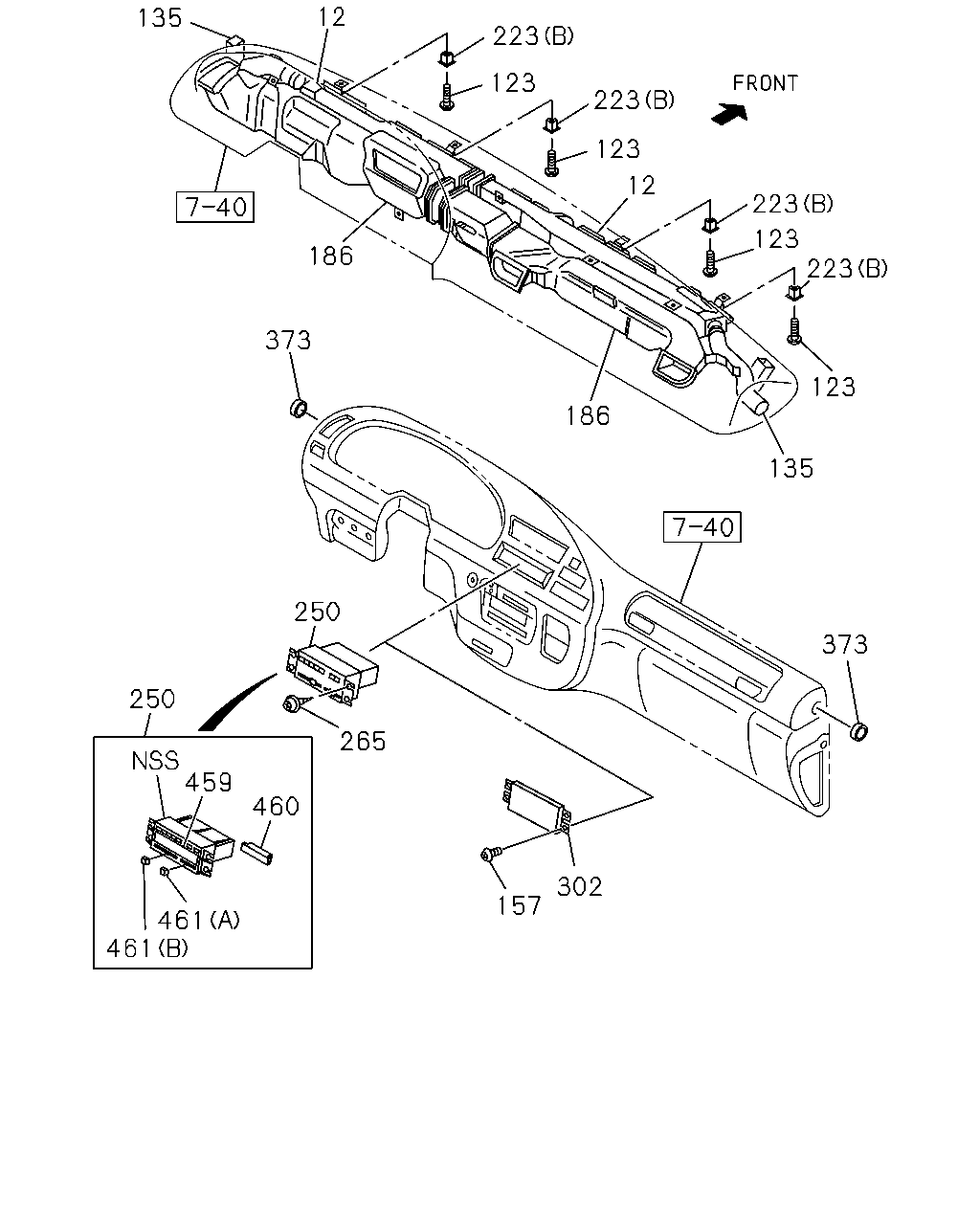

12 135 223 123 223 123 12 223 123 223 186 373 123 186 135 250 373 250 265 459 460 302 157 461 461

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION A/C DELETE(TFA)	1-76378-360-2	01	1	9812-
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION A/C DELETE(TFA)	1-76377-196-1	01	1	9812-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	9812-
123	SCREW; DUCT EXC. HEATER VENTILATION A/C DELETE(TFA) M5X14	8-94279-325-0	08	1	9812-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION A/C DELETE(TFA)	1-76378-364-2	01	1	9812-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION A/C DELETE(TFA)	1-76378-363-2	01	1	9812-
157	SCREW HEATER VENTILATION A/C DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9812-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION A/C DELETE(TFA)	1-76378-362-4	01	1	9812-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION A/C DELETE(TFA)	1-76377-197-1	01	1	9812-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9812-
223	GROMMET; SCREW EXC. HEATER VENTILATION A/C DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9812-
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-033-2	01	1	9812-9909
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-050-0	01	1	9910-
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83543-034-1	01	1	9812-
265	SCREW; A/C CONT UNIT EXC. HEATER VENTILATION A/C DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9812-
302	COVER; AIR HOLE HEATER VENTILATION A/C DELETE(TFA)	1-72438-140-1	01	1	9812-
373	RUBBER; JOINT	1-76378-291-0	02	1	9812-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83549-013-0	01	1	9812-
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83549-017-0	01	1	9812-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	9812-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	9812-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	9812-
