0-60 — ENGINE ELECTRICAL CONTROL PARTS (#60419) — 74 parça

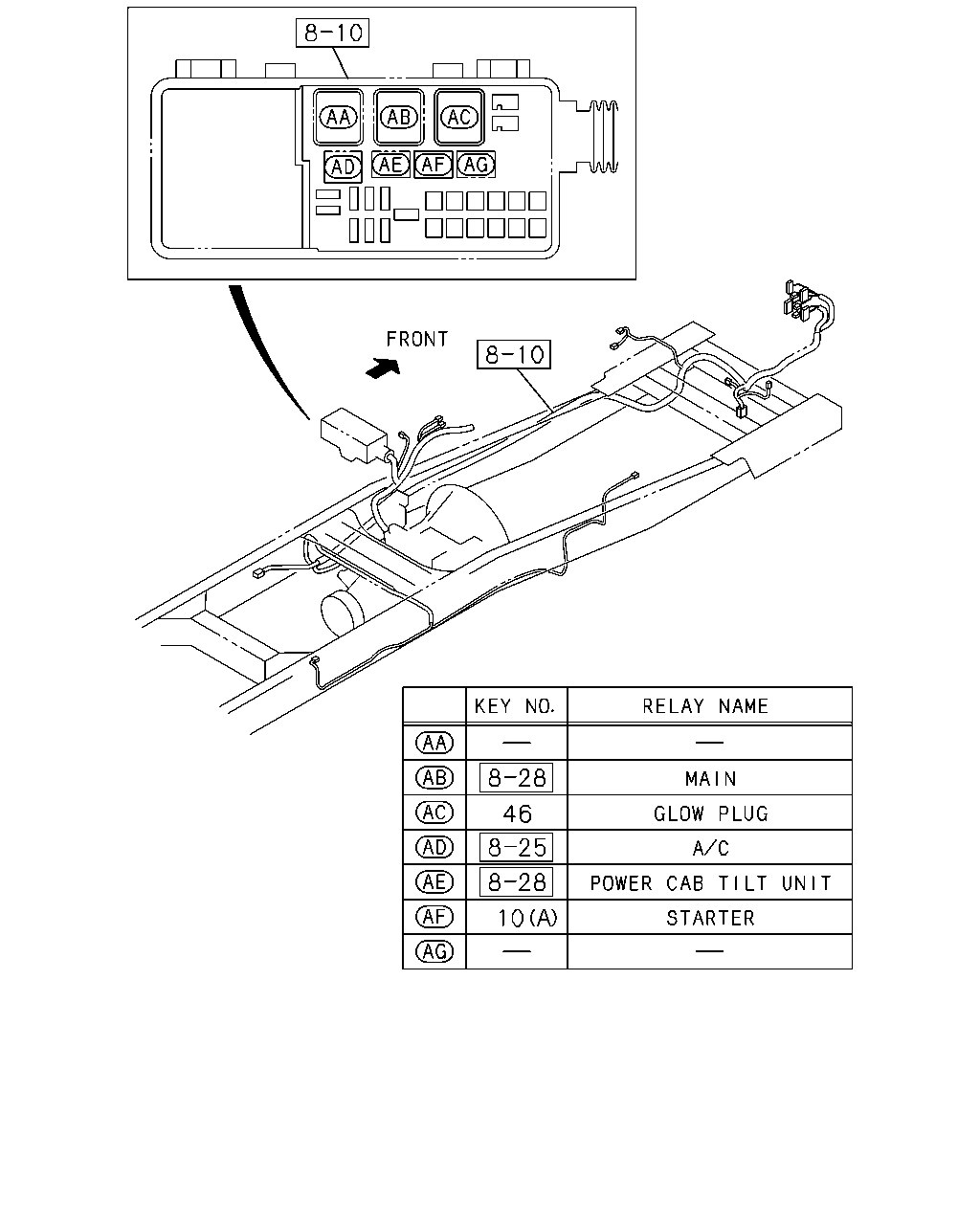

46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	1010-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1010-	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1010-	●	●

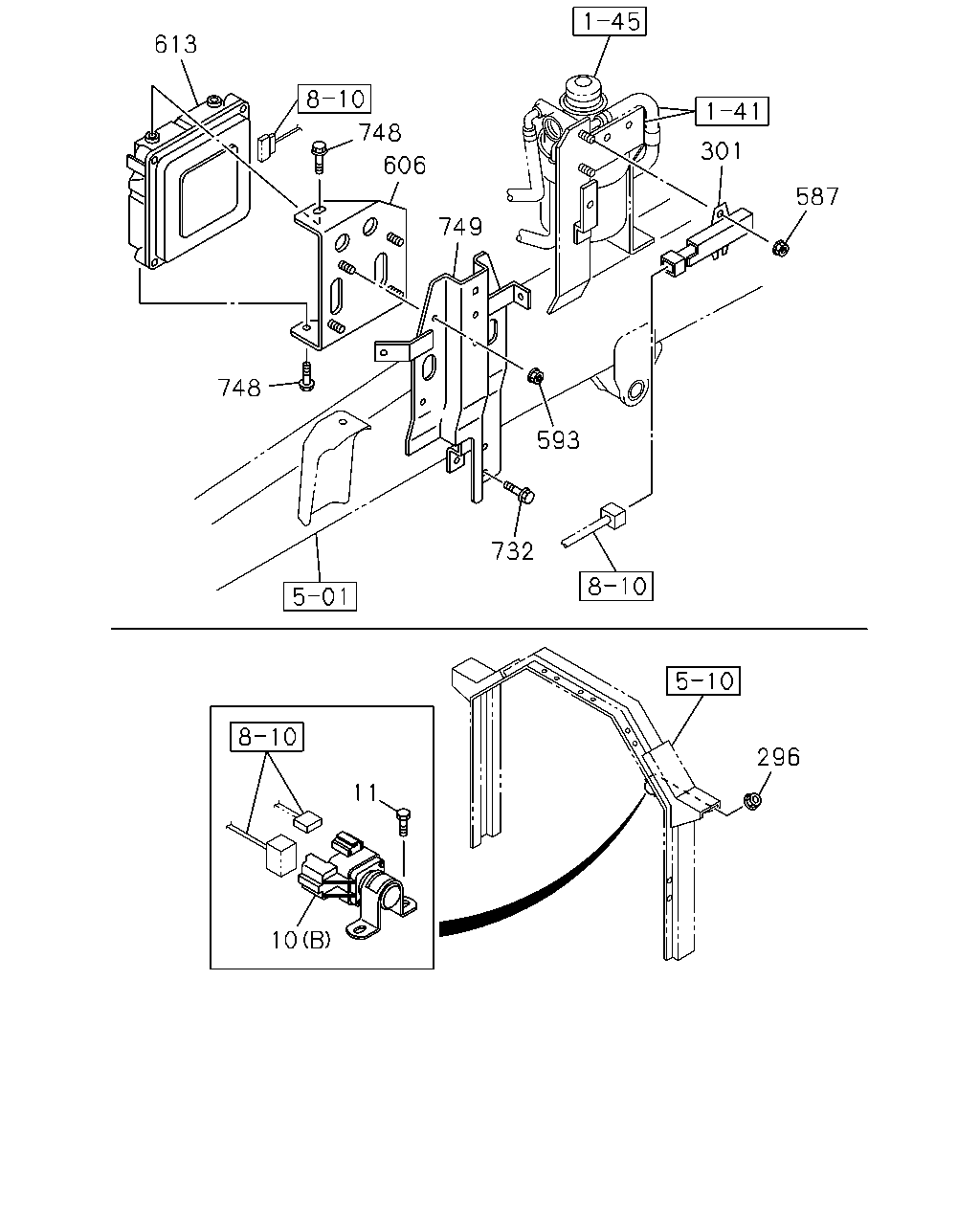

296 10 732 593 748 587 301 749 606 748 613 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	1010-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1010-	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	1010-	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	1010-	●	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1010-1405	●	●
301	RESISTOR; DROPPING SPEED LIMITER 100KM(NMU)	8-97357-613-0	01	1	1406-1406	●	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1407-	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1010-1405	●	●
587	NUT; RESISTOR & RELAY SPEED LIMITER 100KM(NMU) M6 FLANGE	0-91180-106-0	02	1	1406-1406	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1407-	●	●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	1010-	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1010-	●	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT)	8-98282-713-0	01	1	1407-	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT)	8-98282-710-0	01	1	1407-	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> SPEED LIMITER 95KM(NNT)	8-98282-710-0	01	1	1407-		●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> A/T<X9D> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98172-071-0	01	1	1307-1402	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) AUTO CRUISE<K30>	8-98270-198-0	01	1	1403-1405	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU)	8-98270-198-0	01	1	1406-	●
613	CONTROL UNIT; ENG A/T<X9D> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98172-072-0	01	1	1307-1402	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) EXC. AUTO CRUISE<K30>	8-98270-199-0	01	1	1403-1405	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) SPEED LIMITER 100KM(NMU) EXC. AUTO CRUISE<K30>	8-98270-199-0	01	1	1406-	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30>	8-98174-368-0	01	1	1010-1306	●	●
613	CONTROL UNIT; ENG AUTO CRUISE<K30> MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98174-368-0	01	1	1307-1402	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30>	8-98174-368-0	01	1	1307-1402		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30>	8-98270-201-0	01	1	1403-1405	●	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU)	8-98270-201-0	01	1	1406-	●	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EXC. AUTO CRUISE<K30>	8-98174-367-0	01	1	1010-1206	●	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EXC. AUTO CRUISE<K30>	8-98132-235-0	01	1	1207-1306	●	●
613	CONTROL UNIT; ENG MANUAL TRANSMISSION<X9C> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98132-235-0	01	1	1307-1402	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EXC. AUTO CRUISE<K30>	8-98132-235-0	01	1	1307-1402		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EXC. AUTO CRUISE<K30>	8-98270-207-0	01	1	1403-1405	●	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) SPEED LIMITER 100KM(NMU) EXC. AUTO CRUISE<K30>	8-98270-207-0	01	1	1406-	●	●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1010-	●	●
748	BOLT; CONT UNIT M6X12 FLANGE	0-28050-612-0	03	1	1010-	●	●
749	STAY; CONT UNIT	1-53194-595-3	01	1	1010-	●	●

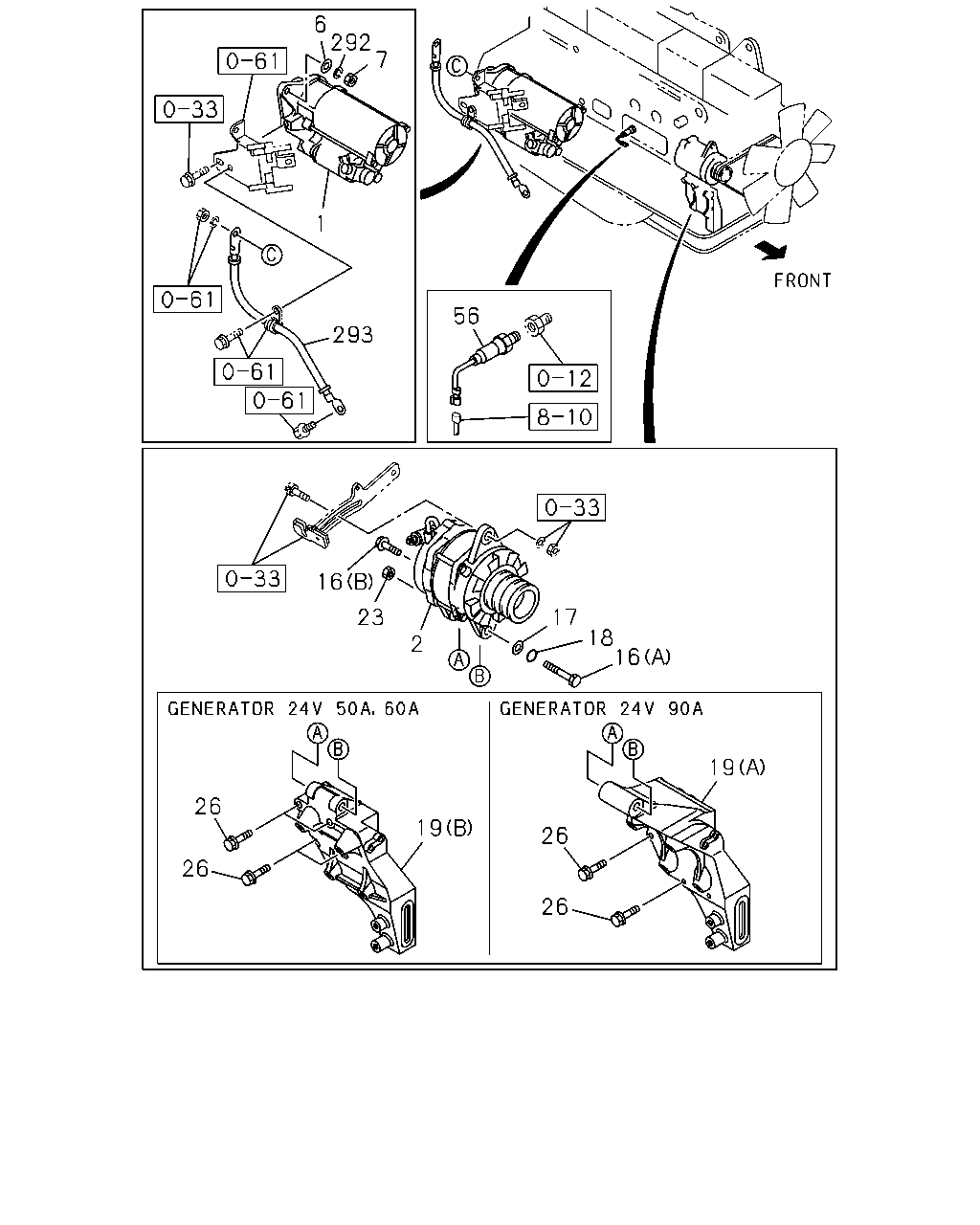

6 292 7 1 293 56 16 23 2 17 18 16 19 26 26 26 26 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1010-1409	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	1010-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	1010-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-463-3	01	1	1010-1508	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-087-0	01	1	1509-	●	●
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	1010-	●	●
7	NUT; STARTER M14	0-91110-514-0	02	1	1010-	●	●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1010-	●	●
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	1010-	●	●
16	BOLT; GEN HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	1010-	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	1010-	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	1010-	●	●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98082-615-1	01	1	1010-	●	●
19	BRACKET; GEN GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	1010-	●	●
23	NUT; GEN M14	0-91110-514-0	01	1	1010-	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	1010-	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	1010-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X25 FLANGE	0-28151-025-0	01	1	1010-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X135	8-94397-139-1	01	1	1010-	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	1010-	●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	1010-	●	●
293	CABLE; STARTER EARTH L=430	8-97621-357-0	01	1	1010-	●	●

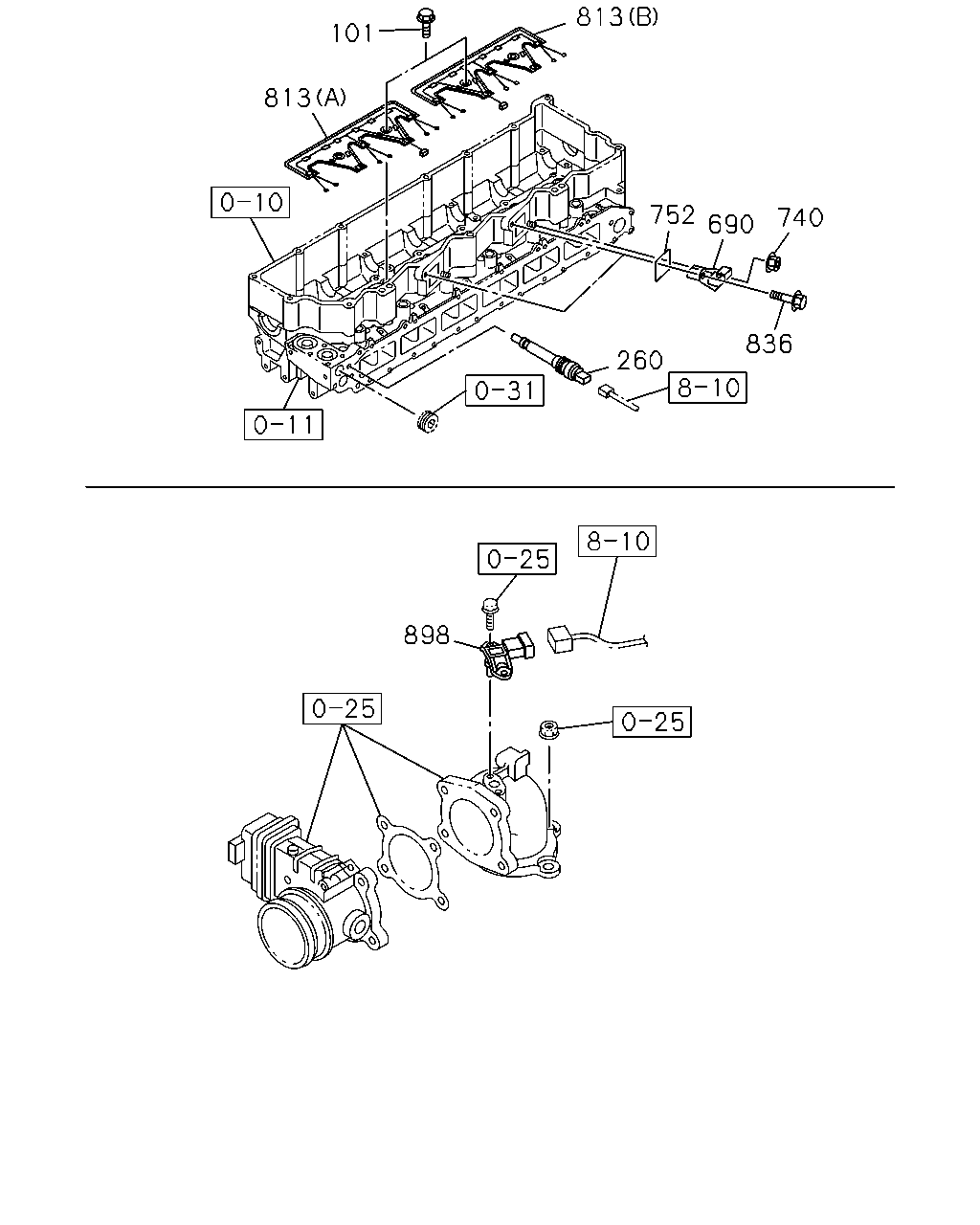

101 813 813 752 740 690 836 260 898

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	1010-	●	●
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	1010-1503	●	●
260	SENSOR; WATER TEMP NISHIDA	8-98260-257-0	01	1	1504-	●	●
690	CONNECTOR	8-94390-858-1	02	1	1010-	●	●
740	NUT M8 FLANGE	0-91180-108-0	04	1	1010-1011	●	●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	1010-	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1010-1112	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98204-717-0	01	1	1201-	●	●
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1010-1112	●	●
813	HARNESS; INJECTOR (B) REAR	8-98204-718-0	01	1	1201-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●
898	SENSOR; BOOST	8-98009-418-0	01	1	1010-	●	●
