8-28 — CHASSIS ELECTRICAL (#6041) — 264 parça

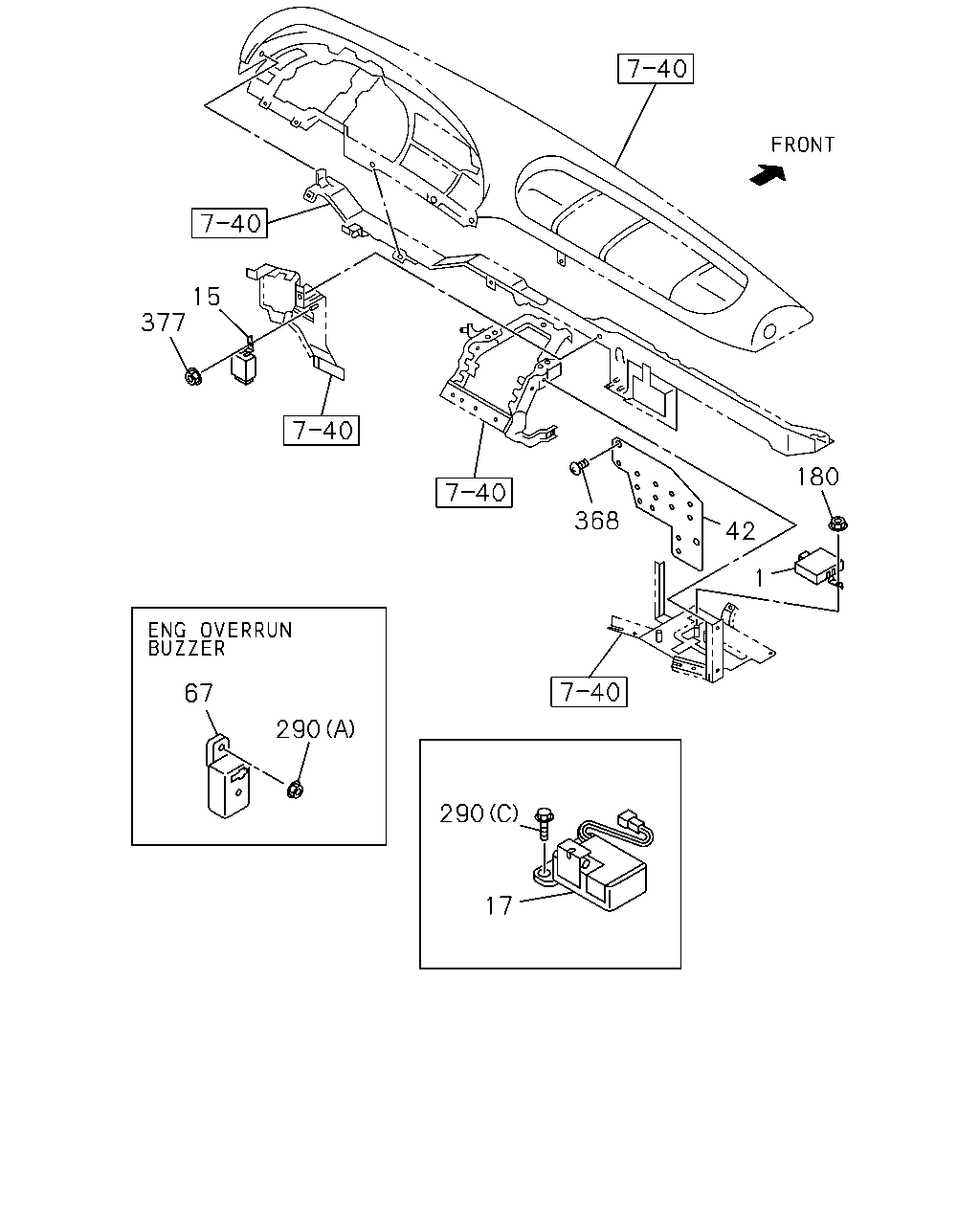

15 377 180 368 42 1 67 290 290 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-0	01	1	9812-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9812-
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1)	1-82550-183-1	01	1	9905-
42	BRACKET; RELAY AUTO ROUND CURTAIN<TAR>	1-82699-833-0	01	1	9812-9812
42	BRACKET; RELAY DELUXE CAB(W14)	1-82698-054-0	01	1	9901-
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9812-0101
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0102-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9812-
290	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9812-9904
290	NUT ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	02	1	9905-
290	NUT ENGINE OVERRUN BUZZER<SK4> (A) M6 FLANGE	0-91150-106-0	01	1	9812-0101
290	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0102-
290	NUT SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) (C) M6 FLANGE	0-91150-106-0	02	1	9905-
368	SCREW; RELAY FIX AUTO ROUND CURTAIN<TAR> M5X14	8-94279-325-0	03	1	9812-9812
368	SCREW; RELAY FIX DELUXE CAB(W14) M5X14	8-94279-325-0	03	1	9901-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9812-

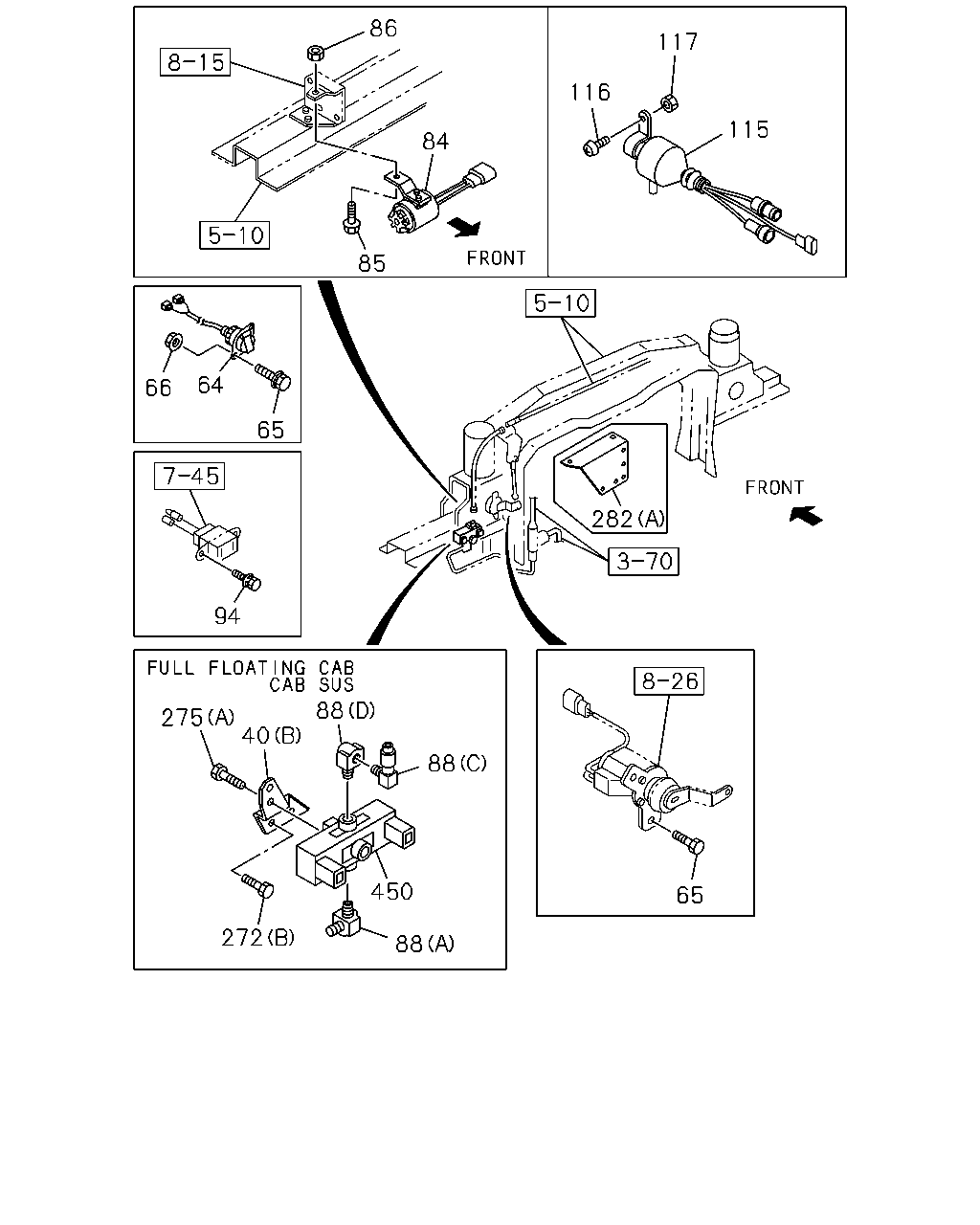

86 117 116 115 84 85 64 66 65 282 94 88 275 40 88 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9812-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-2	01	1	9812-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9905-
64	SOCKET; TRAILER 7P	1-82523-014-0	01	1	9812-
65	BOLT; SOCKET FIX M8X25 FLANGE	0-28680-825-0	02	1	9812-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X16 FLANGE	0-28080-616-0	02	1	9812-
66	NUT; SOCKET FIX M8 FLANGE	0-91150-108-0	02	1	9812-
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9812-
84	BUZZER; POWER CAB TILT METRO	1-83460-096-1	01	1	9904-9907
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO	1-83460-096-2	01	1	9908-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9812-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-0	02	1	9812-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9812-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	9812-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9812-
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	9812-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9812-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X35 FLANGE	0-28680-835-0	02	1	9812-9901
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X35 FLANGE	0-28680-835-0	02	1	9902-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9812-9902
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9812-9902
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M8X25 FLANGE	0-28680-825-0	01	1	9903-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28680-830-0	01	1	0104-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9903-9904
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	9905-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9812-
282	BRACKET; MAG VLV (A)	1-82569-277-1	01	1	9812-9902
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-82569-277-2	01	1	9903-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	9812-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9812-

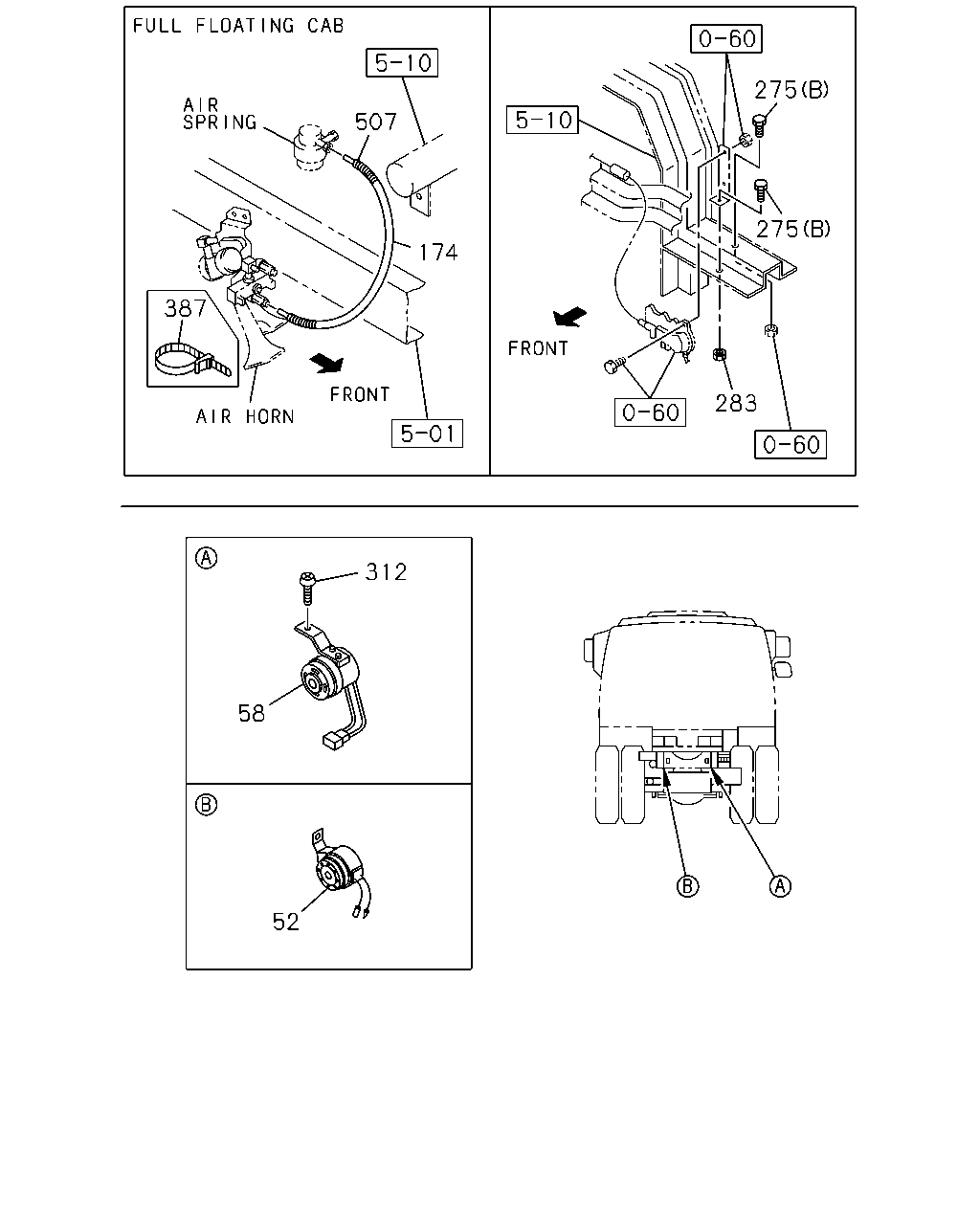

275 507 275 174 387 283 312 58 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA EQUIPMENT(YT2) NIKKO	1-83460-052-0	01	1	9902-9904
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) NIKKO	1-83460-052-0	01	1	9905-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA EQUIPMENT(YT2) METRO	1-83460-088-0	01	1	9904-9904
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO	1-83460-088-0	01	1	9905-9907
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO	1-83460-088-1	01	1	9908-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9812-
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-0	01	1	9904-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO	1-83460-074-1	01	1	9908-
174	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9812-
174	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=620 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9812-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9812-9902
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9812-9902
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M8X25 FLANGE	0-28680-825-0	01	1	9903-0103
275	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (B) M8X30 FLANGE	0-28680-830-0	01	1	0104-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	9903-9904
275	BOLT; BRKT ZF M/T<X9E> (B) M8X25 FLANGE	0-28680-825-0	02	1	9905-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9812-
283	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9812-9902
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9903-
283	NUT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M10 FLANGE	0-91150-210-0	01	1	0104-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9812-
387	CLIP; BAND FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	9812-
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=900 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9812-0103
507	TUBE; NYLON CAB UP +110MM<TGG> FULL FLOATING CAB(W16) L=950 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9812-0103
507	TUBE; NYLON FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-

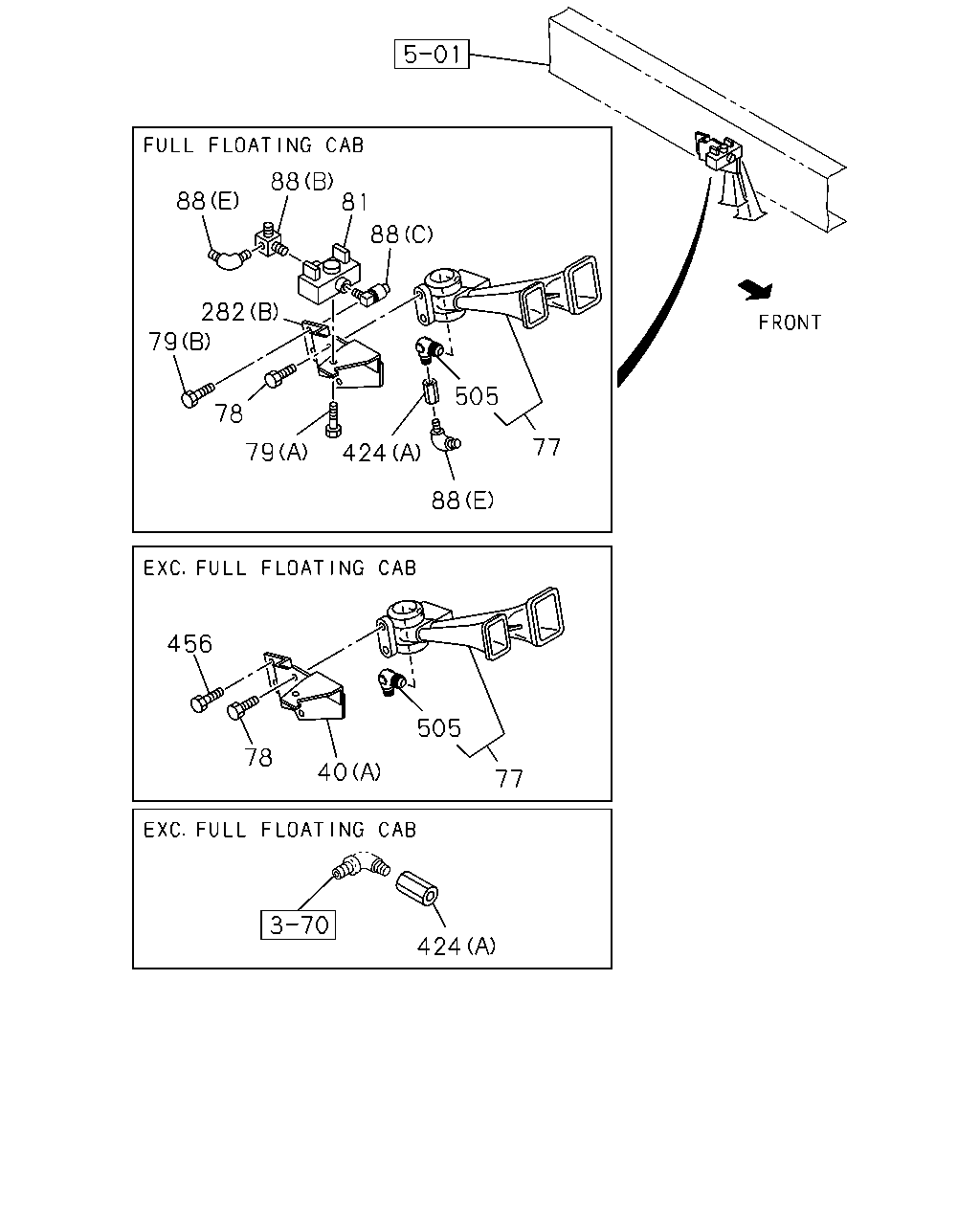

88 81 88 88 282 79 505 78 77 79 424 88 456 505 78 40 77 424

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9812-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-2	01	1	9812-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9905-
77	HORN ASM	1-83430-041-1	01	1	9812-0002
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-041-1	01	1	0003-
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-2	01	1	0003-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9812-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	9812-0103
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	9812-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-0	02	1	9812-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	9812-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
282	BRACKET; MAG VLV (A)	1-82569-277-1	01	1	9812-9902
282	BRACKET; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A)	1-82569-277-2	01	1	9903-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	9812-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	9812-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9812-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9812-
456	BOLT; BRKT EXC. FULL FLOATING CAB(W16) M10X35 FLANGE	0-28681-035-0	02	1	9812-
505	JOINT; AIR HORN	1-83439-006-0	01	1	9812-

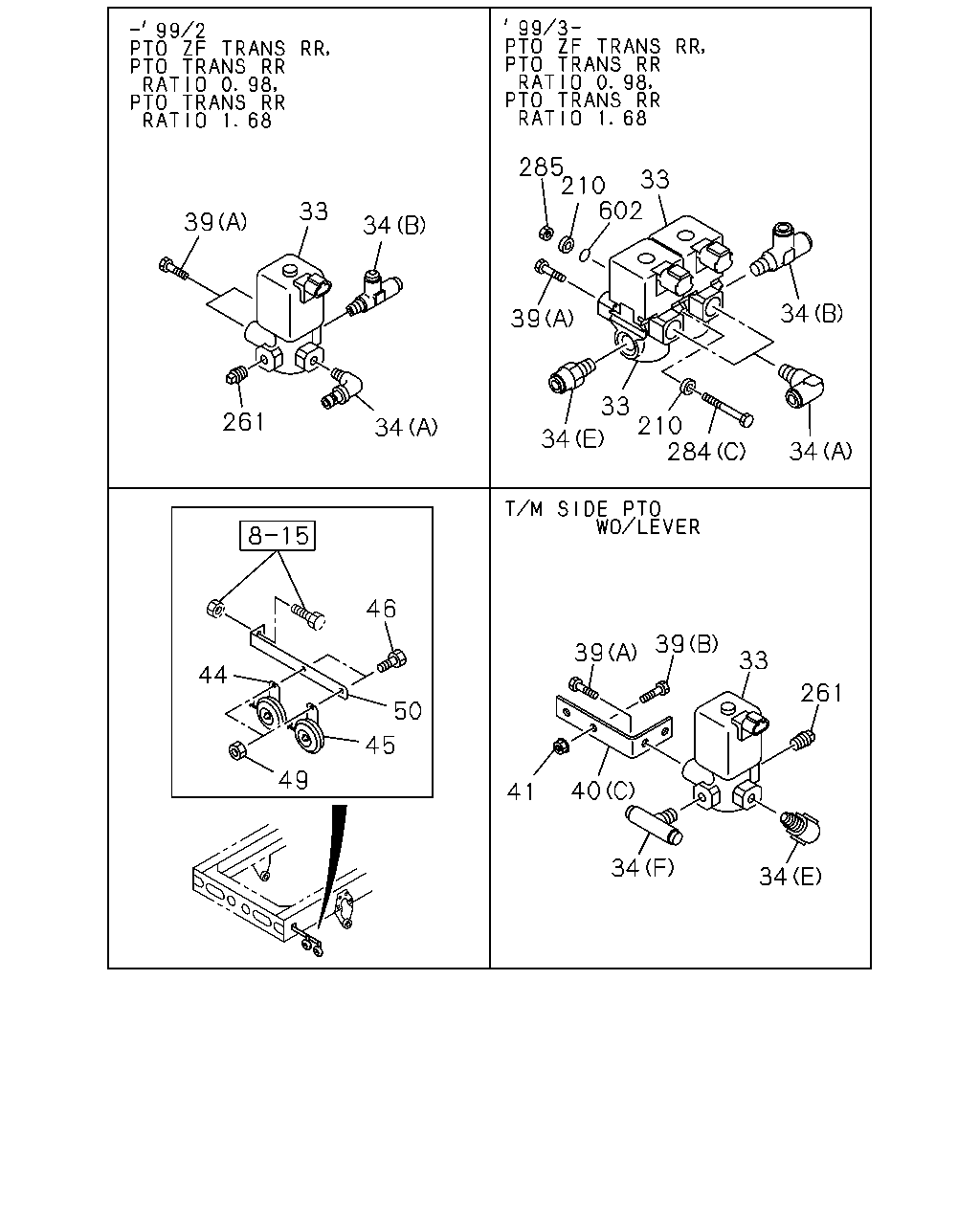

285 210 602 33 33 39 34 34 39 33 210 284 261 34 34 34 46 39 39 33 44 261 50 45 49 40 41 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM)	1-82563-871-0	01	1	9812-9901
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	1-82563-871-0	01	1	9902-9902
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	1-82563-871-2	02	1	9903-
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9812-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9812-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9902
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9902
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9902
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9903-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9902-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2>,CHINA EQUIPMENT(YT2) (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2>,CHINA EQUIPMENT(YT2) (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9902-9902
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9903-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9903-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9903-9904
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9903-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM) (A) M8X20 FLANGE	0-28680-820-0	02	1	9812-9901
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) M8X20 FLANGE	0-28680-820-0	02	1	9902-9904
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9905-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	9812-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (A)	1-53458-742-2	01	1	9812-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-279-0	01	1	9905-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9905-
44	HORN; HIGH NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-061-1	01	1	9905-
45	HORN; LOW NOTE ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-83410-062-1	01	1	9905-
46	BOLT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8X25 FLANGE	0-28680-825-0	02	1	9905-
49	NUT; HORN TO BODY ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> M8 FLANGE	0-91150-108-0	02	1	9905-
50	BRACKET; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>	1-53458-901-0	01	1	9905-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	9812-
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	1-82569-266-0	02	1	9903-9910
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9812-9901
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PT1/4	9-99204-513-0	01	1	9812-9901
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9812-9901
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) PT1/4	9-99204-513-0	01	1	9902-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9902-9904
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9902-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9812-9902
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9903-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	9812-
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (C) M6X50 FLANGE	0-28080-650-0	01	1	9903-9910
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	9812-
285	NUT; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) M6 FLANGE	0-91150-106-0	01	1	9903-9910
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-09561-117-0	02	1	9812-9910
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	9911-
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	9-09561-117-0	01	1	9903-9910

284 89 34 89 210 285 286 89 602 290 34 34 90 89 272 261 261 34 424 34 210 284 89 714 272 90 261 34 34 34 261 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	03	1	9812-
34	CONNECTOR; MAG VLV,INL PORT EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9812-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9902
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9902
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-9902
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9903-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9902-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2>,CHINA EQUIPMENT(YT2) (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2>,CHINA EQUIPMENT(YT2) (F) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9812-9901
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9902-9902
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9903-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9903-9910
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9911-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9903-9904
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9903-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) CHINA EQUIPMENT(YT2) EXC. DUAL AIR GAUGE<UG2> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	02	1	9812-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	9812-
89	VALVE; MAG,DIFF LOCK EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	9812-
90	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	03	1	9812-
90	BOLT; MAG VLV EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	02	1	9812-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	04	1	9812-
210	WASHER; PL,BRKT PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	1-82569-266-0	02	1	9903-9910
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9812-9901
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) PT1/4	9-99204-513-0	01	1	9812-9901
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9812-9901
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) PT1/4	9-99204-513-0	01	1	9902-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9902-9904
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9902-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	9905-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X30 FLANGE	0-28681-030-0	02	1	9812-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X35 FLANGE	0-28680-835-0	02	1	9812-9901
272	BOLT; MAG VLV TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X35 FLANGE	0-28680-835-0	02	1	9902-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28680-820-0	02	1	9812-9902
284	BOLT; MAG VLV 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28680-820-0	02	1	9903-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28080-650-0	02	1	9812-
284	BOLT; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) (C) M6X50 FLANGE	0-28080-650-0	01	1	9903-9910
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M6 FLANGE	0-91150-106-0	02	1	9812-
285	NUT; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) M6 FLANGE	0-91150-106-0	01	1	9903-9910
286	BRACKET	1-82569-278-0	01	1	9812-9904
286	BRACKET ZF M/T<X9E>	1-82569-278-0	01	1	9905-
290	NUT (B) M8 FLANGE	0-91150-108-0	02	1	9812-9904
290	NUT ZF M/T<X9E> (B) M8 FLANGE	0-91150-108-0	02	1	9905-
290	NUT ENGINE OVERRUN BUZZER<SK4> (A) M6 FLANGE	0-91150-106-0	01	1	9812-0101
290	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0102-
290	NUT SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) (C) M6 FLANGE	0-91150-106-0	02	1	9905-
424	ADAPTER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) R1/4 & RC1/4	1-09664-211-0	02	1	9812-
424	ADAPTER FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9812-
424	ADAPTER EXC. FULL FLOATING CAB(W16) (A) M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9812-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-09561-117-0	02	1	9812-9910
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	02	1	9911-
602	GASKET; MAG VLV PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY)	9-09561-117-0	01	1	9903-9910
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U)	1-82563-871-2	01	1	9812-9901
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	9902-

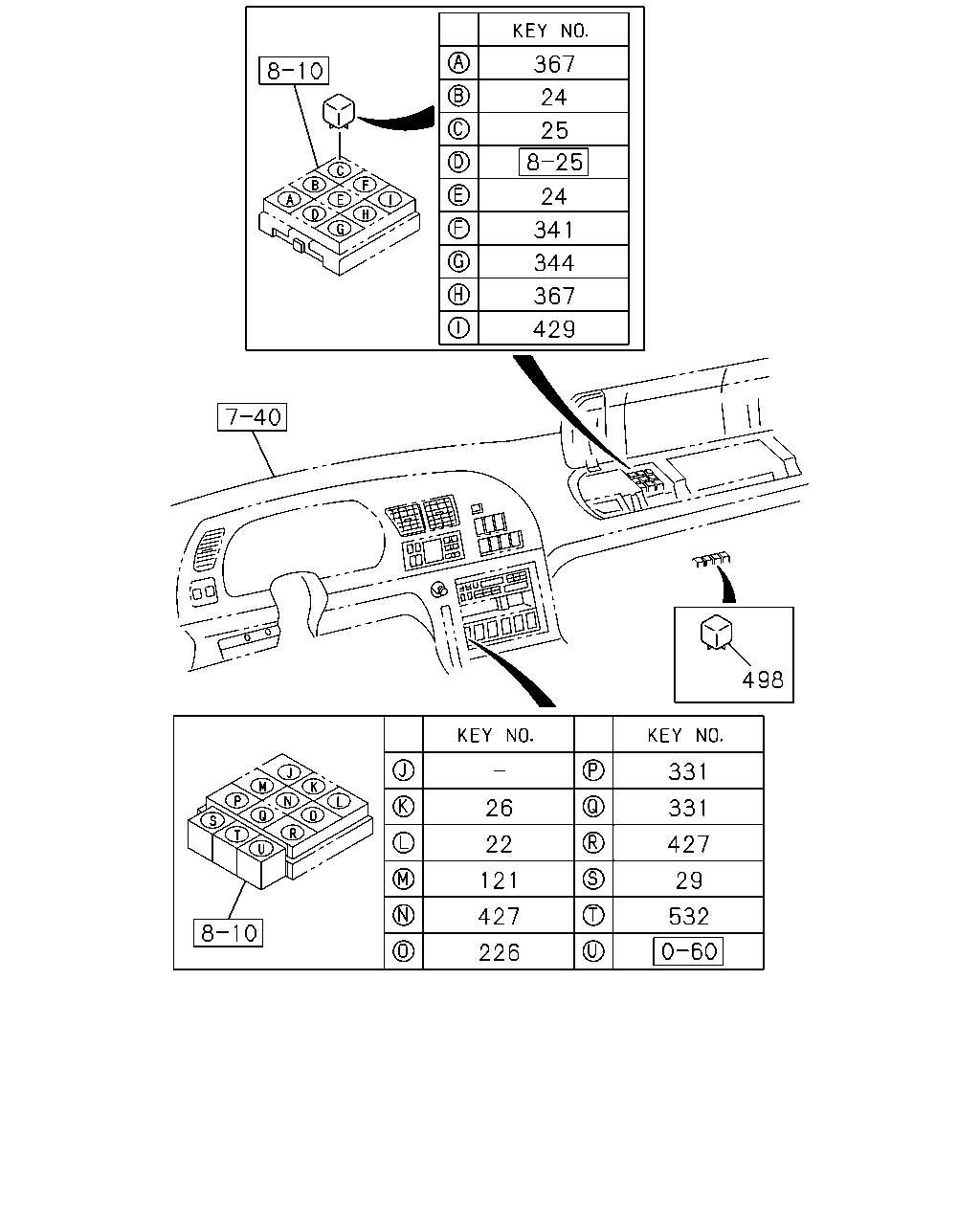

367 24 25 24 341 344 367 429 498 331 26 331 22 427 121 29 427 532 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9812-
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	9812-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	9812-
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	9812-
29	RELAY; HORN ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-
121	RELAY; PARKING BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9812-
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	9812-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	9812-
341	RELAY FULL FLOATING CAB(W16) 24V 12.5A JIDECO	8-97062-815-1	01	1	9812-
344	RELAY; LAMP CORNARING LAMP<TDS> 24V 12.5A JIDECO	8-97062-815-1	01	1	9812-
367	RELAY; NEUTRAL 24V 12.5A JIDECO	8-97062-815-1	02	1	9812-
427	RELAY; RETARDER CAB UP +110MM<TGG> 24V 12.5A JIDECO	8-97062-815-1	02	1	9812-9902
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 12.5A JIDECO	8-97062-815-1	02	1	9903-
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	9812-9901
429	RELAY; POWER CUT 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A JIDECO	8-97062-815-1	01	1	9902-
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A JIDECO	8-97062-815-1	04	1	9812-
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) 24V 12.5A JIDECO	8-97062-815-1	01	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
