8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#6040) — 34 parça
çizim 8975
244 603
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-
603 COVER; CONT UNIT,SEAT STAND 1-75558-535-3 01 1 9812-

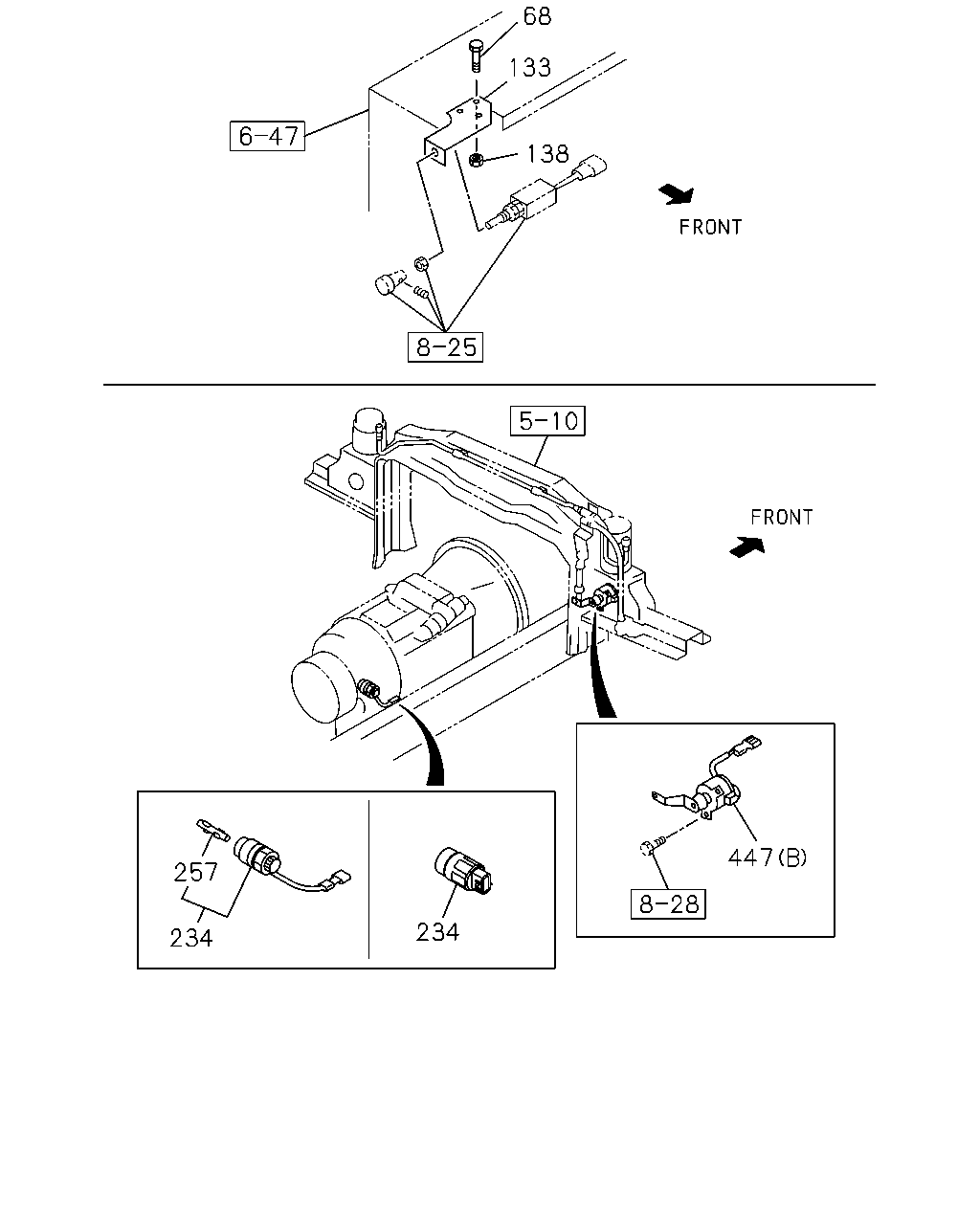

çizim 40934
68 133 138 447 257 234 234
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9812-0104
68 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
133 BRACKET; SWITCH 1-82699-874-0 01 1 9812-9901
133 BRACKET; SWITCH 1-82699-815-0 01 1 9902-
138 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9812-
234 SENSOR; VEHICLE SPD
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) 25 PULSE 		1-83127-414-1 01 1 9905-
234 SENSOR; VEHICLE SPD
TRANSMISSION-ZF 16S221 OD(Y1U) 		1-80240-001-1 01 1 9812-9901
234 SENSOR; VEHICLE SPD
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-80240-001-1 01 1 9902-9904
234 SENSOR; VEHICLE SPD
MJA7U M/T(X6G),TRANSMISSION-ZF 16S221 OD(Y1U), TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-80240-001-1 01 1 9905-
257 KEY; SPEED SENSOR
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-83129-073-0 01 1 9905-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9812-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9812-

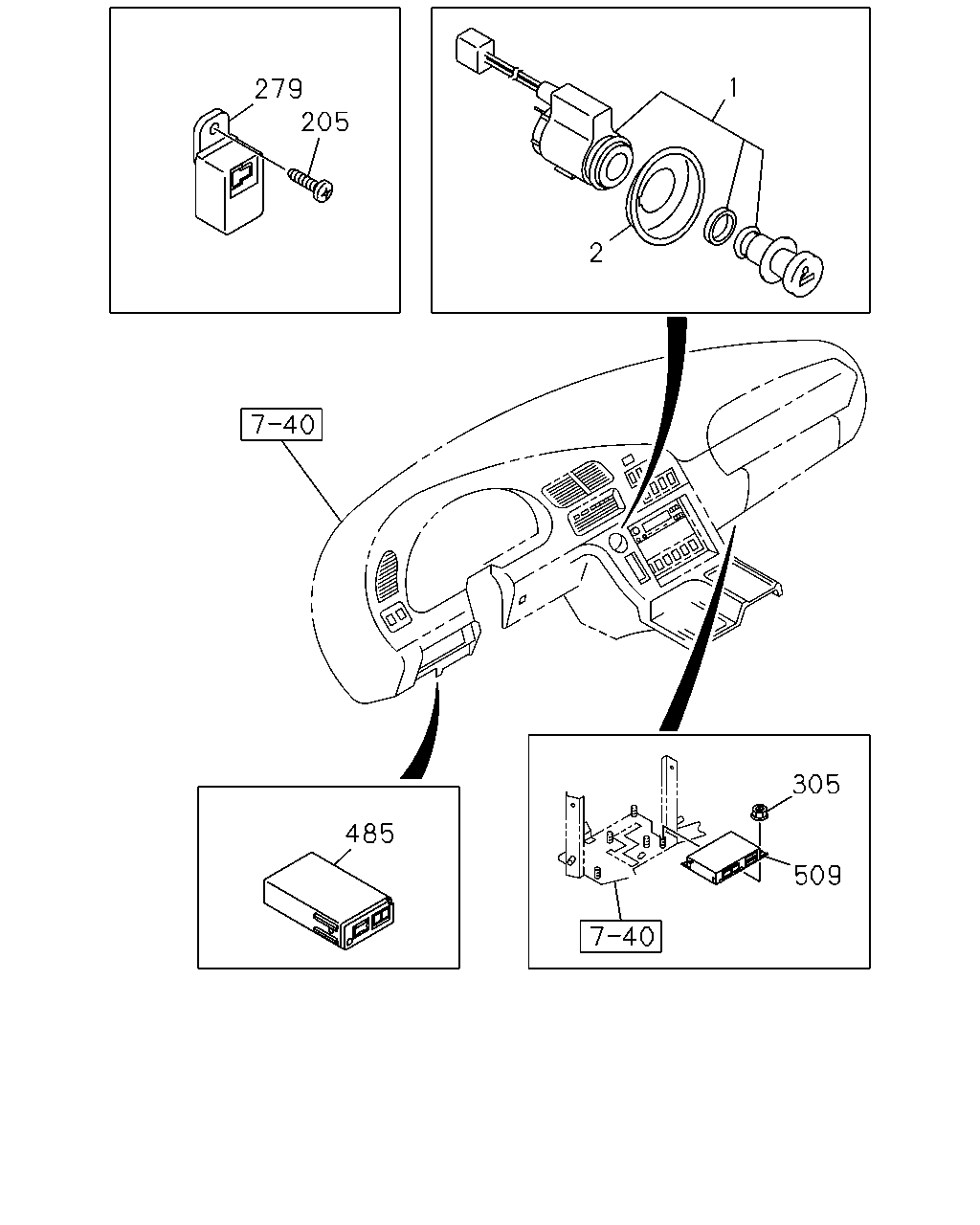

çizim 40935
1 279 205 2 305 485 509
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9812-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9812-
205 SCREW; BUZZER
SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) M5X14 		8-94279-325-0 01 1 9905-
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1),U ARB E EQUIPMENT(WM1) 12V 		5-83460-004-1 01 1 9905-
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 9812-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9812-
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-032-0 01 1 9812-

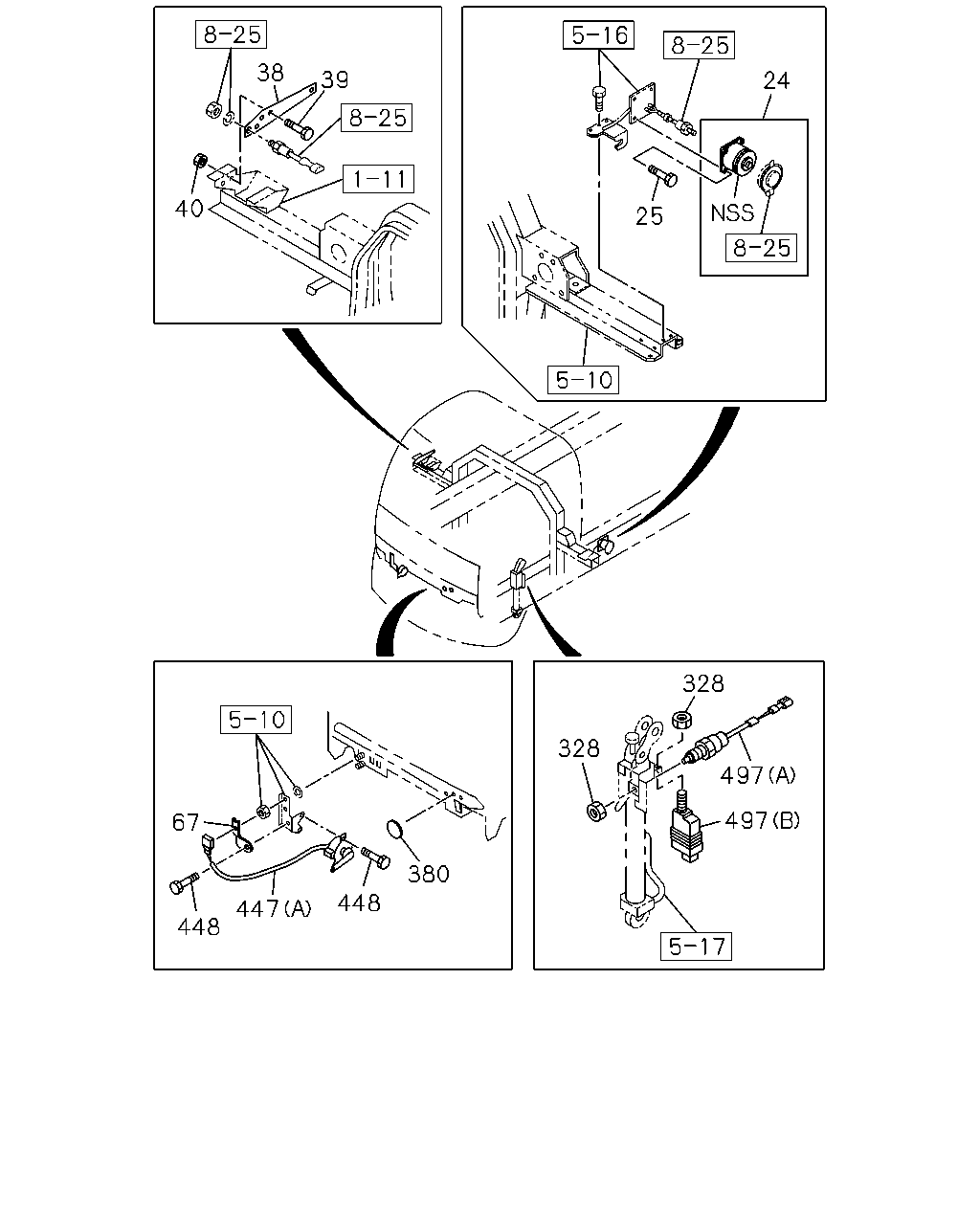

çizim 41035
38 39 24 40 25 328 328 497 497 67 380 448 447 448
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9812-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9812-
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9812-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9812-
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9812-
67 BRACKET; CONT UNIT
FULL FLOATING CAB(W16) 		1-82699-355-1 01 1 9812-
328 NUT
M16 		9-99111-416-0 02 1 9812-
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 02 1 9902-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-81541-067-4 01 1 9812-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-81541-069-3 01 1 9812-
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9812-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9812-
