Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

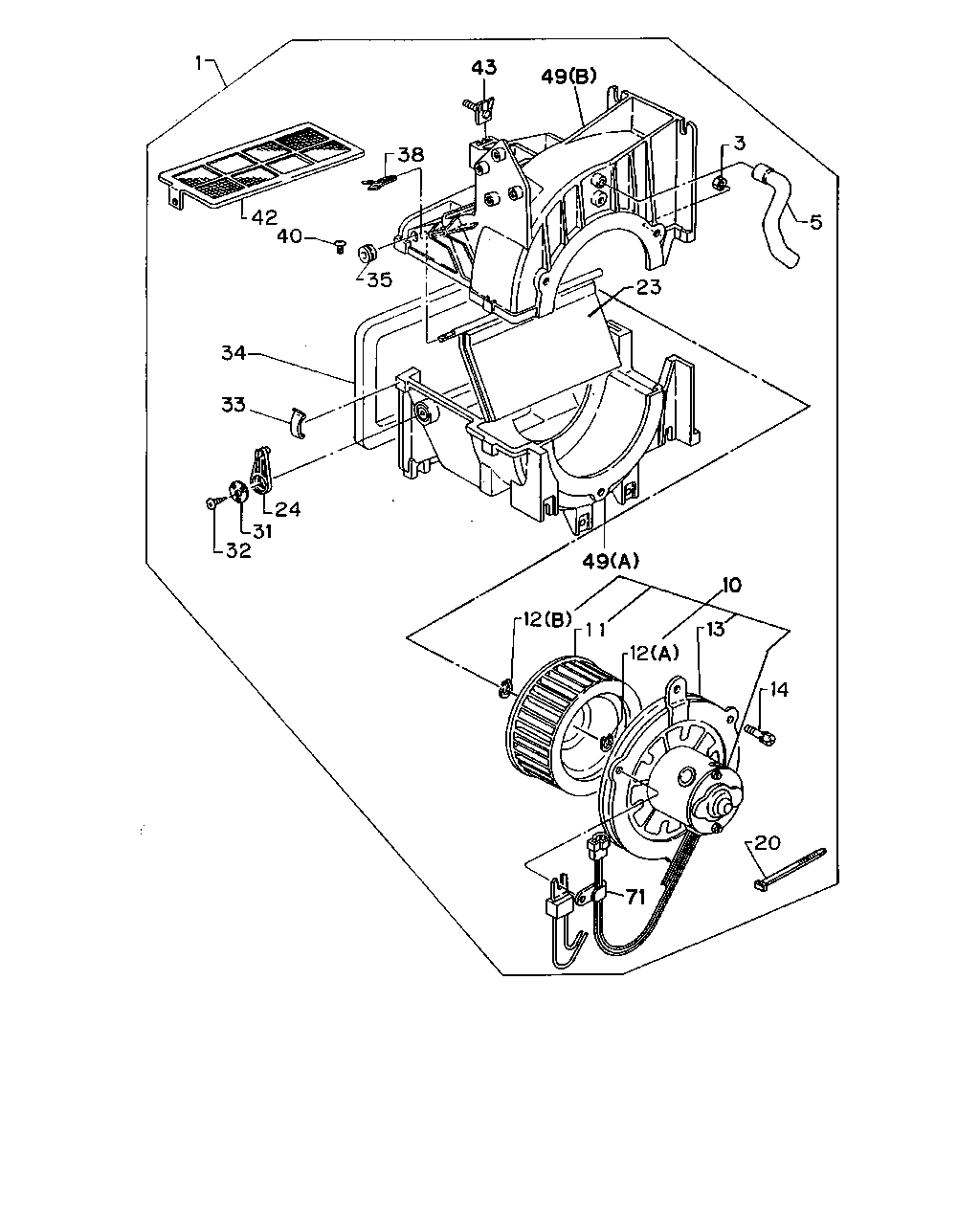

8-73 - BLOWER UNIT
▶
8-73 — BLOWER UNIT
(#604) — 24 parça
1
42
40
35
38
43
49
3
5
23
34
33
24
31
32
49
12
11
12
10
13
14
20
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
1-83561-062-5
01
1
8712-
3
NUT; CASE
8-94233-154-0
04
1
8712-
5
HOSE; AIR
1-83563-096-0
01
1
8712-
10
MOTOR ASM; FAN,BLOWER UNIT
1-83561-070-1
01
1
8712-
11
IMPELLER; FAN MOTOR
1-83579-226-0
01
1
8712-
12
RING; SNAP,FAN MOTOR
(A)
5-83569-088-0
01
1
8712-
12
RING; SNAP,FAN MOTOR
(B)
8-94243-962-0
01
1
8712-
13
LINING; BLOWER UNIT
8-94233-165-0
01
1
8712-
14
SCREW; COVER TO CASE
M5X25
5-15729-279-0
04
1
8712-
20
BAND; CLIP,BLOWER UNIT
1-83579-263-0
01
1
8712-
23
SHUTTER; BLOWER UNIT
1-83579-088-0
01
1
8712-
24
LEVER; CASE
1-83564-209-0
01
1
8712-
31
WASHER; LEVER
1-83579-095-0
01
1
8712-
32
SCREW; LEVER
M5X16
8-94248-820-0
01
1
8712-
33
CLIP; BLOWER UNIT
1-83574-148-0
01
1
8712-
34
LINING; BLOWER UNIT
1-83579-286-0
01
1
8712-
35
BUSHING; LEVER
1-83576-028-0
01
1
8712-
38
CLIP; BLOWER UNIT
1-83574-149-0
01
1
8712-
40
SCREW; LEVER,BLOWER UNIT
5-83571-160-0
01
1
8712-
42
FILTER; BLOWER UNIT
1-83579-267-1
01
1
8712-
43
BOLT; CASE
1-83579-175-0
03
1
8712-
49
CASE; BLOWER UNIT
(A)
1-83563-115-0
01
1
8712-
49
CASE; BLOWER UNIT
(B)
1-83563-119-0
01
1
8712-
71
CLIP; HARNESS
1-83574-080-0
01
1
8712-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
