◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11234 - FTR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#60393) — 67 parça

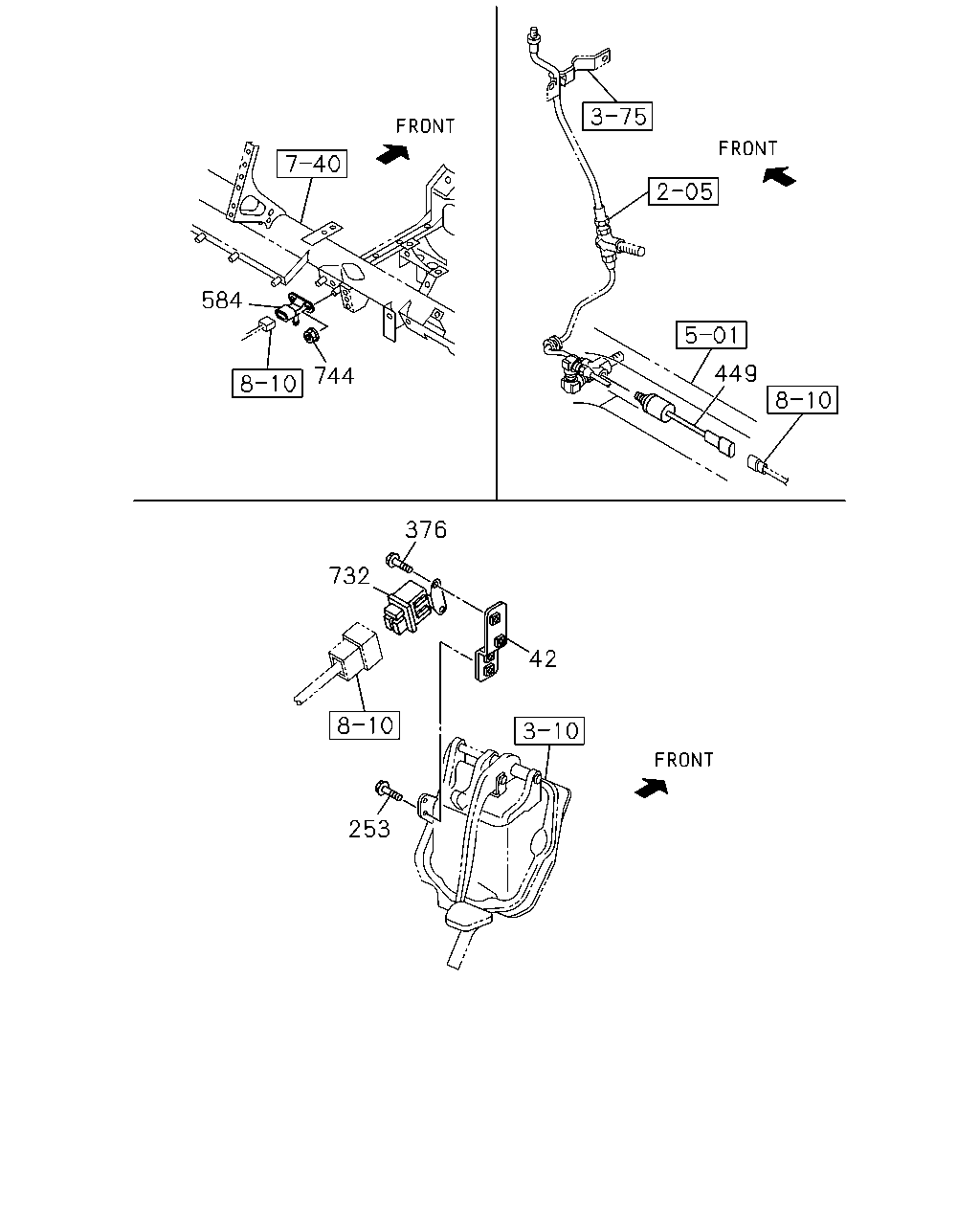

çizim 164373
584 449 744 376 732 42 253
BalonParca AdiParca NoAdetTipApplied Date
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 0906-
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0906-
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0906-
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82410-143-1 01 1 0906-
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0906-
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 0906-
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0906-

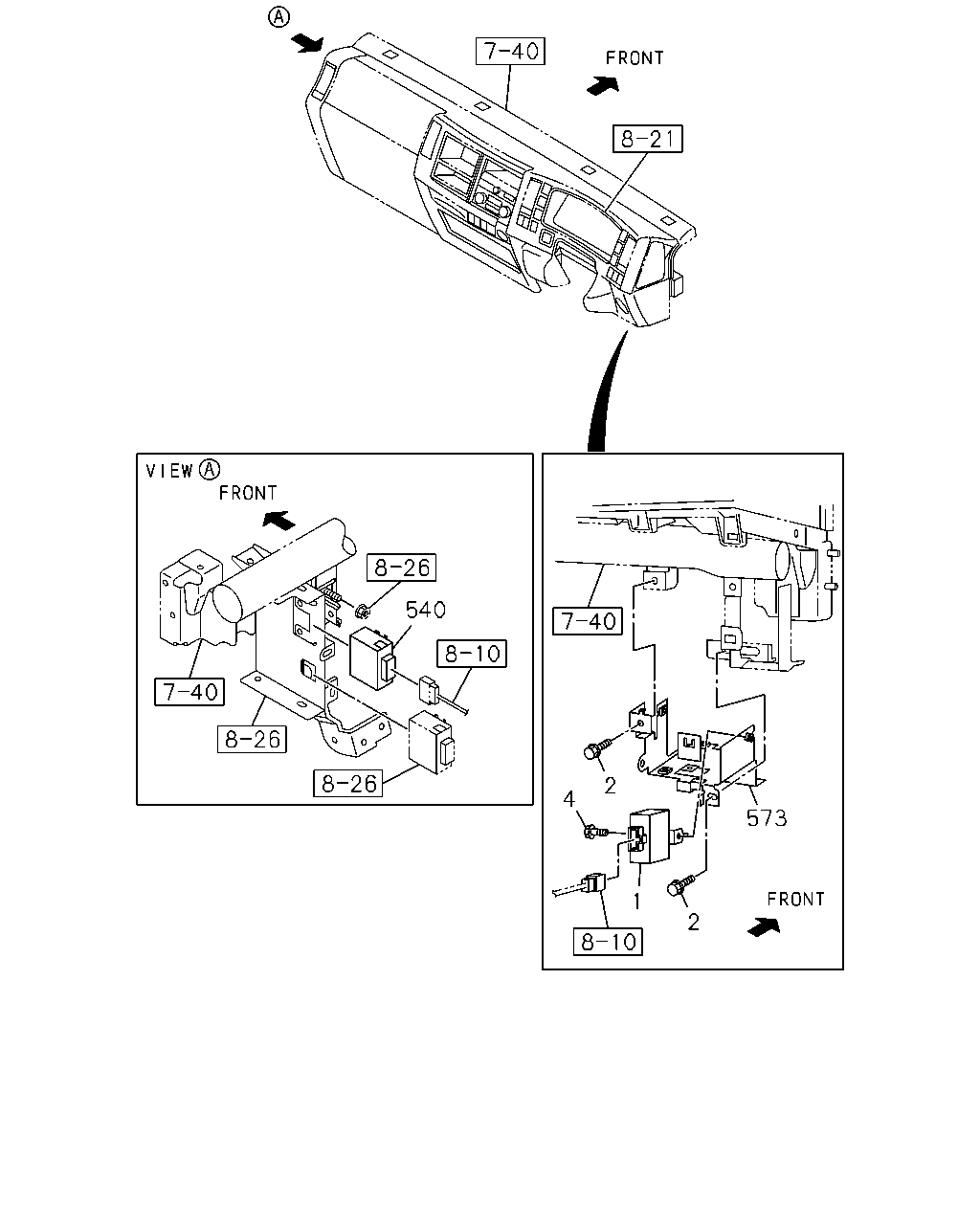

çizim 164374
540 2 4 573 1 2
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 8-98025-533-1 01 1 0906-
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0906-
4 SCREW; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 0906-
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0906-1308
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309-
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0906-
çizim 164375
531 115
BalonParca AdiParca NoAdetTipApplied Date
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (A) 24V NIKKO 		8-98005-631-1 01 1 0906-
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 0906-1402
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403-

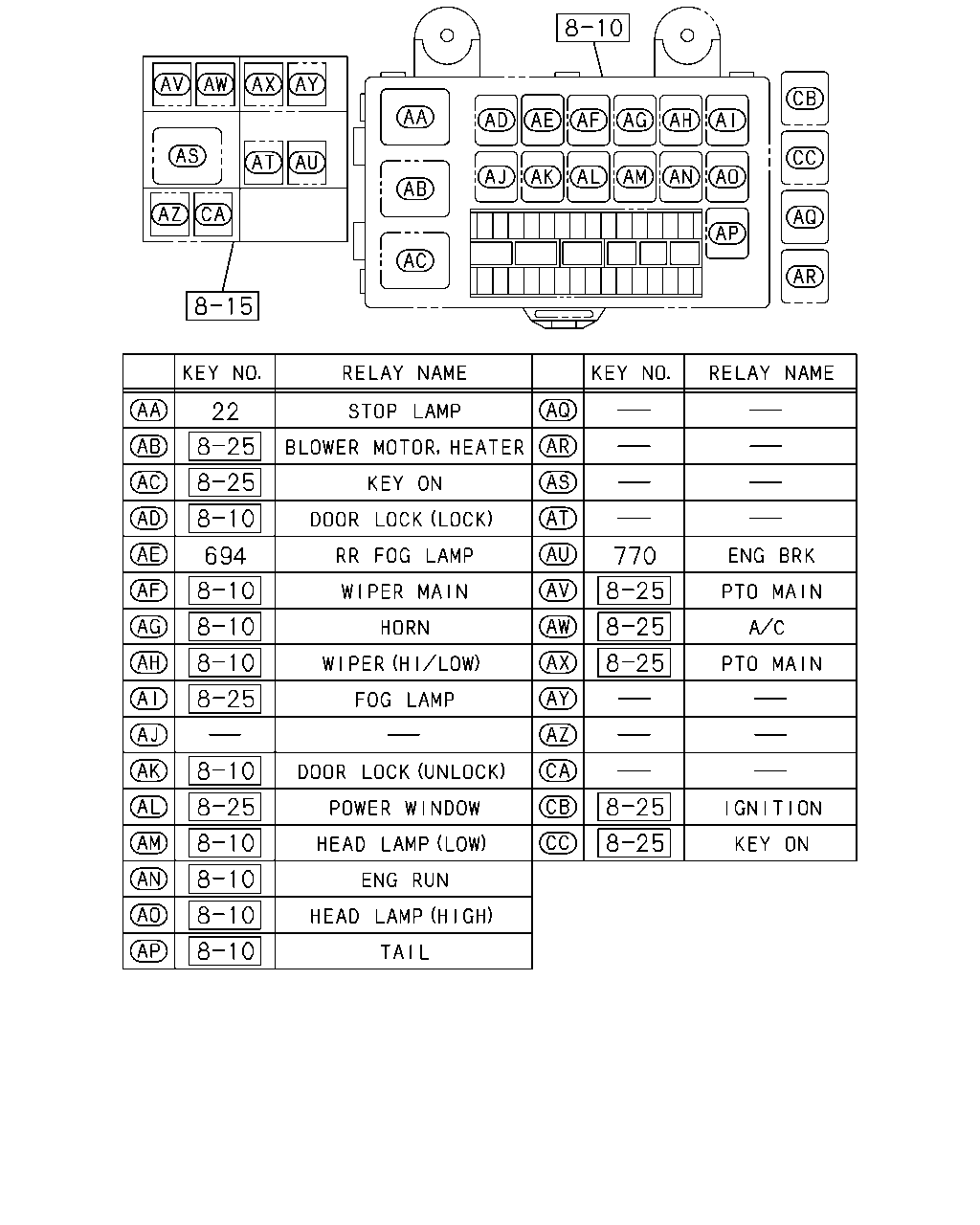

çizim 164382
22 694 770
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0906-
694 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
770 RELAY; ENG BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0906-

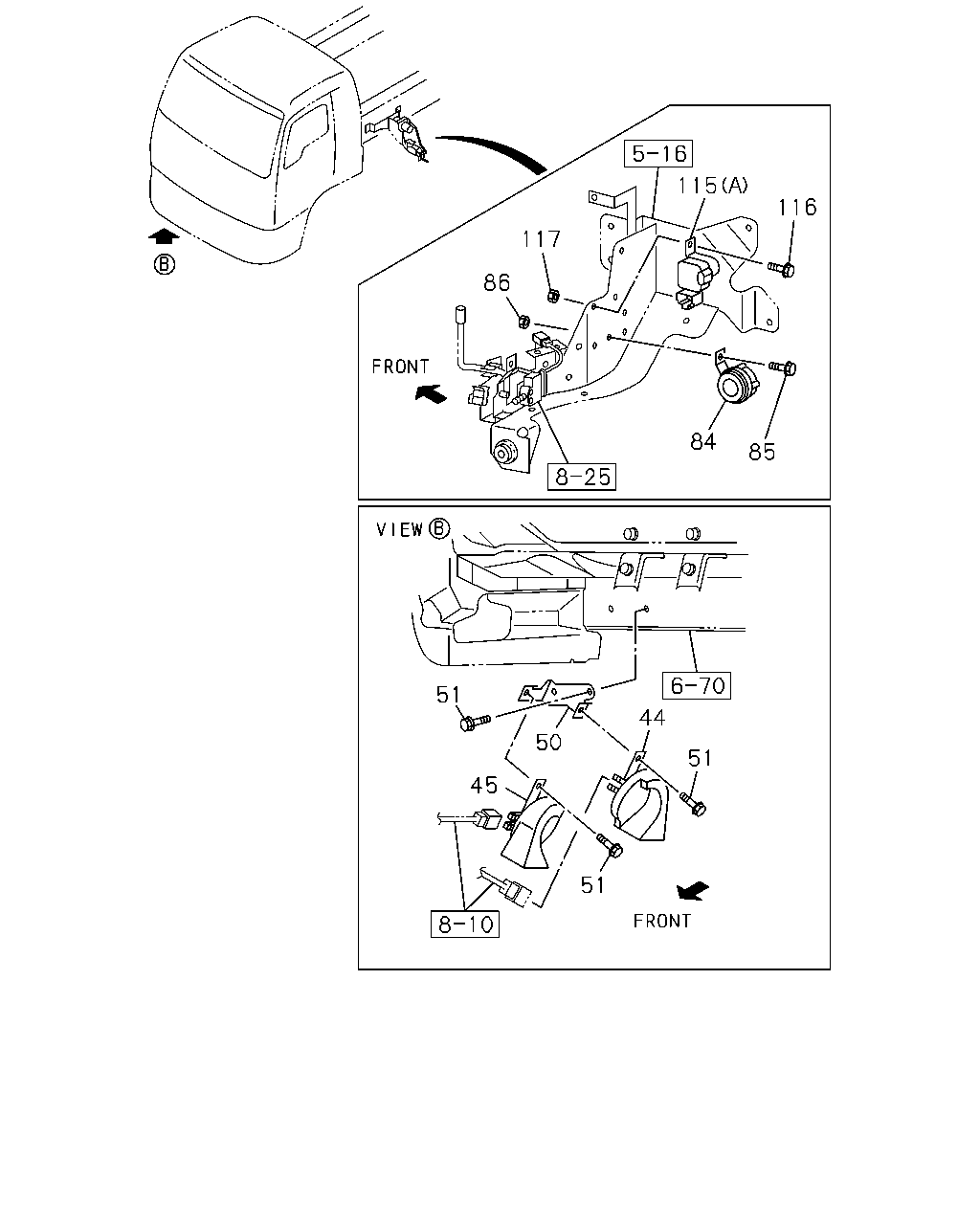

çizim 164384
115 116 117 86 84 85 51 44 50 51 45 51
BalonParca AdiParca NoAdetTipApplied Date
44 HORN; HIGH NOTE 8-97611-677-2 01 1 0906-
45 HORN; LOW NOTE 8-97611-676-2 01 1 0906-
50 BRACKET; HORN 8-97613-300-2 01 1 0906-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0906-1008
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1009-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1009-
84 BUZZER; POWER CAB TILT
AUTO CAB TILT<WV2> METRO DENSO 		8-98069-860-0 01 1 0906-
85 BOLT; BUZZER,POWER CAB TILT
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28650-820-0 01 1 0906-
86 NUT; BUZZER
AUTO CAB TILT<WV2> M8 FLANGE 		0-91180-108-0 01 1 0906-
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0906-
115 RELAY; POWER CAB TILT UNIT
AUTO CAB TILT<WV2> (A) 24V NIKKO 		8-98005-631-1 01 1 0906-
116 BOLT; RELAY FIX
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28650-820-0 02 1 0906-
117 NUT; RELAY FIX
AUTO CAB TILT<WV2> M8 FLANGE 		0-91180-108-0 02 1 0906-

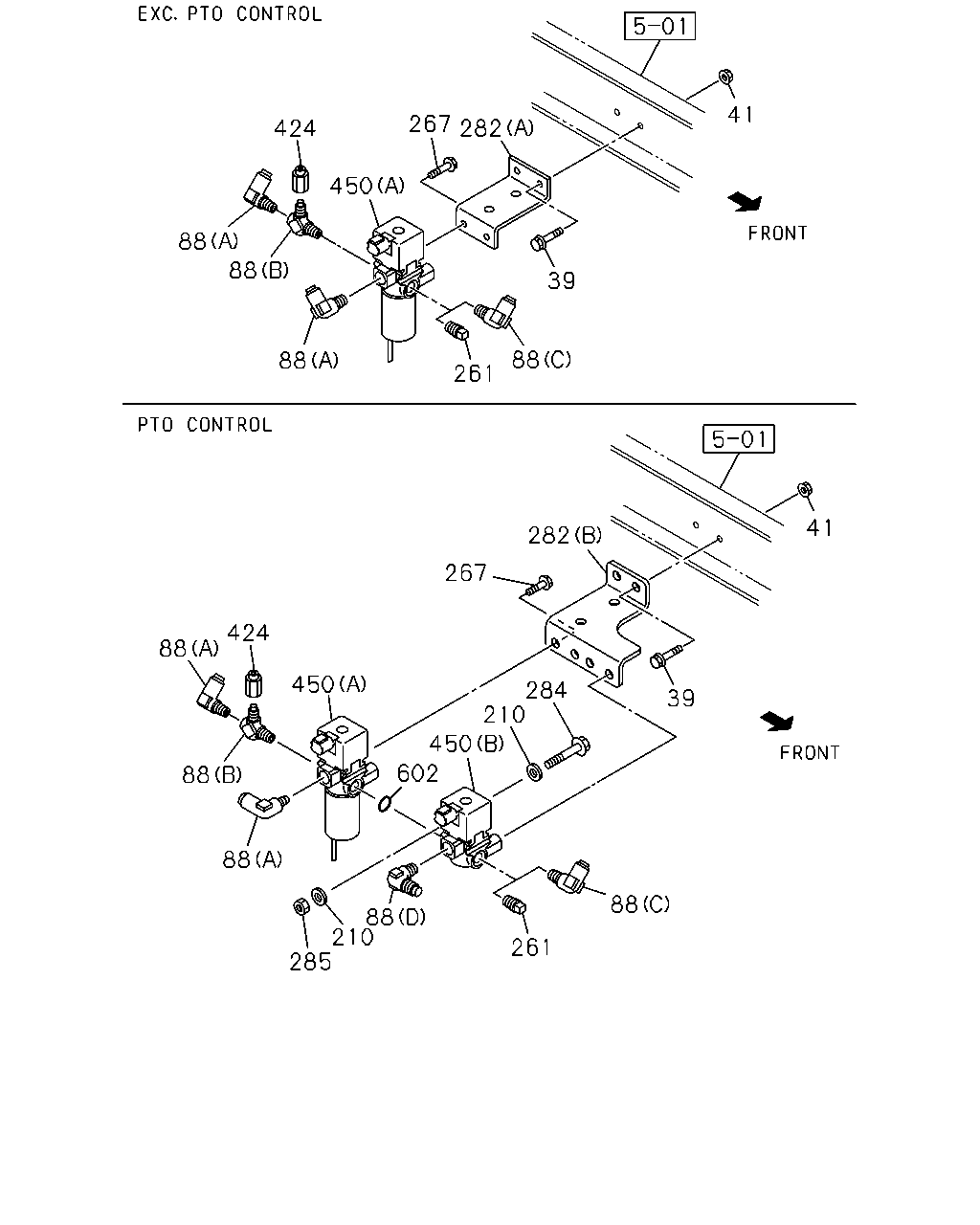

çizim 164388
41 267 282 424 450 88 88 39 88 88 261 41 282 267 424 88 450 284 210 450 39 602 88 88 88 88 210 285 261
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0906-
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0906-
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0906-1111
88 CONNECTOR; MAG VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1112-
88 CONNECTOR; MAG VLV
H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-1111
88 CONNECTOR; MAG VLV
EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-1111
88 CONNECTOR; MAG VLV
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
88 CONNECTOR; MAG VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1112-
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1111
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
88 CONNECTOR; MAG VLV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0906-1111
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0906-1111
210 WASHER; PL,BRKT
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82569-266-0 02 1 1112-
261 PLUG; MAG VLV
RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 0906-1111
261 PLUG; MAG VLV
RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1112-
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0906-1111
267 BOLT; VLV TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
282 BRACKET; MAG VLV
PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0906-1111
282 BRACKET; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98101-296-0 01 1 1112-
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-1 01 1 0906-1004
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1005-1111
282 BRACKET; MAG VLV
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1112-
284 BOLT; MAG VLV
PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0906-1111
284 BOLT; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) M6X50 FLANGE 		0-28050-650-0 01 1 1112-
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0906-1111
285 NUT; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) M6 FLANGE 		0-91180-106-0 01 1 1112-
424 ADAPTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0906-1111
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0906-0910
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911-1111
450 VALVE; MAG
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97633-075-0 01 1 1112-
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0906-1111
450 VALVE; MAG
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-82563-871-2 01 1 1112-
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0906-1111
602 GASKET; MAG VLV
PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) ID=16.8 		9-09565-117-0 01 1 1112-
