Isuzu WW
▶
TRUCKS
▶
FTR
▶
11234 - FTR-RHD EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#60391) — 63 parça
◀

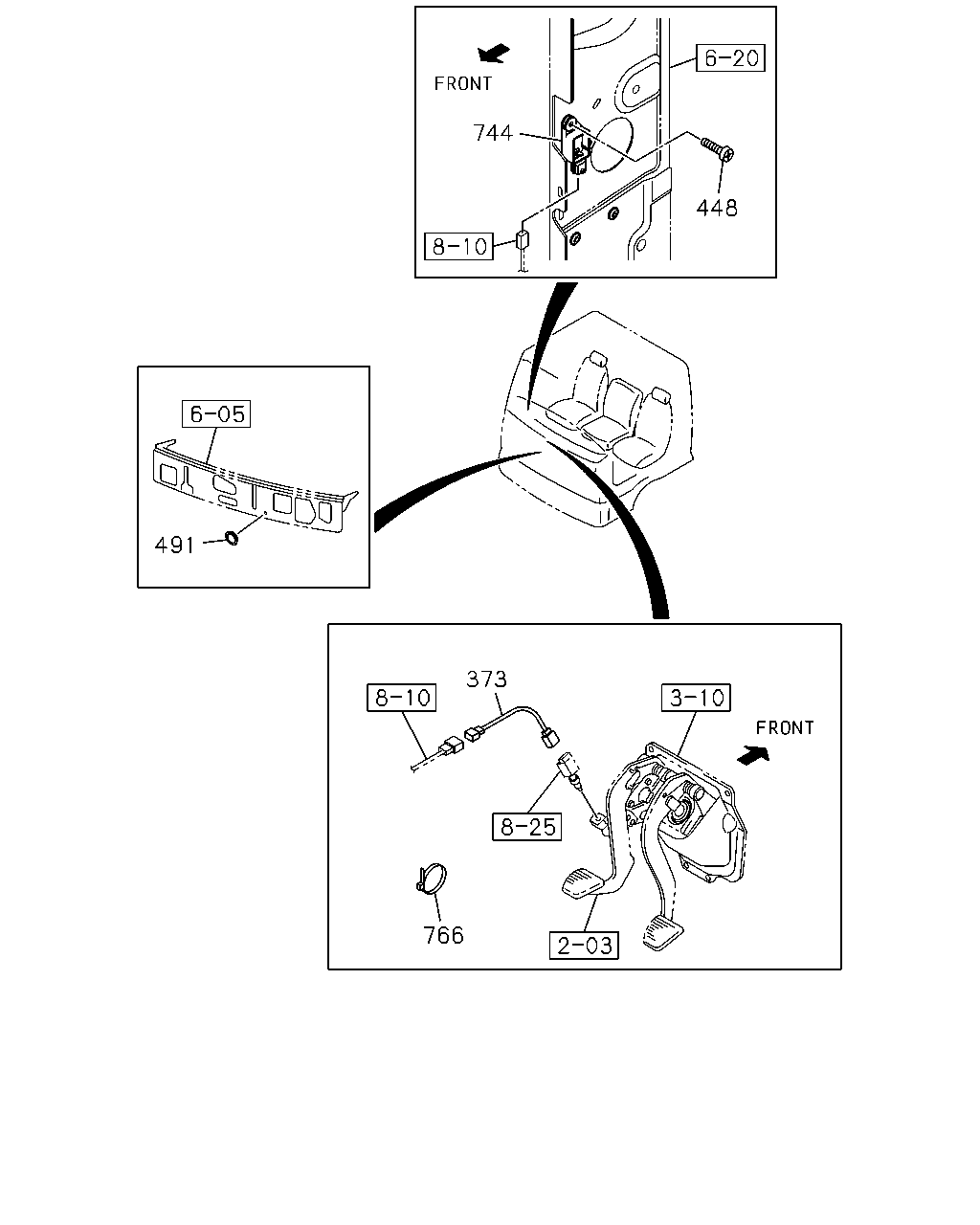

[826A] FRONT SIDE NO.4 (2 parça)
[826A] FRONT SIDE NO.3 (6 parça)

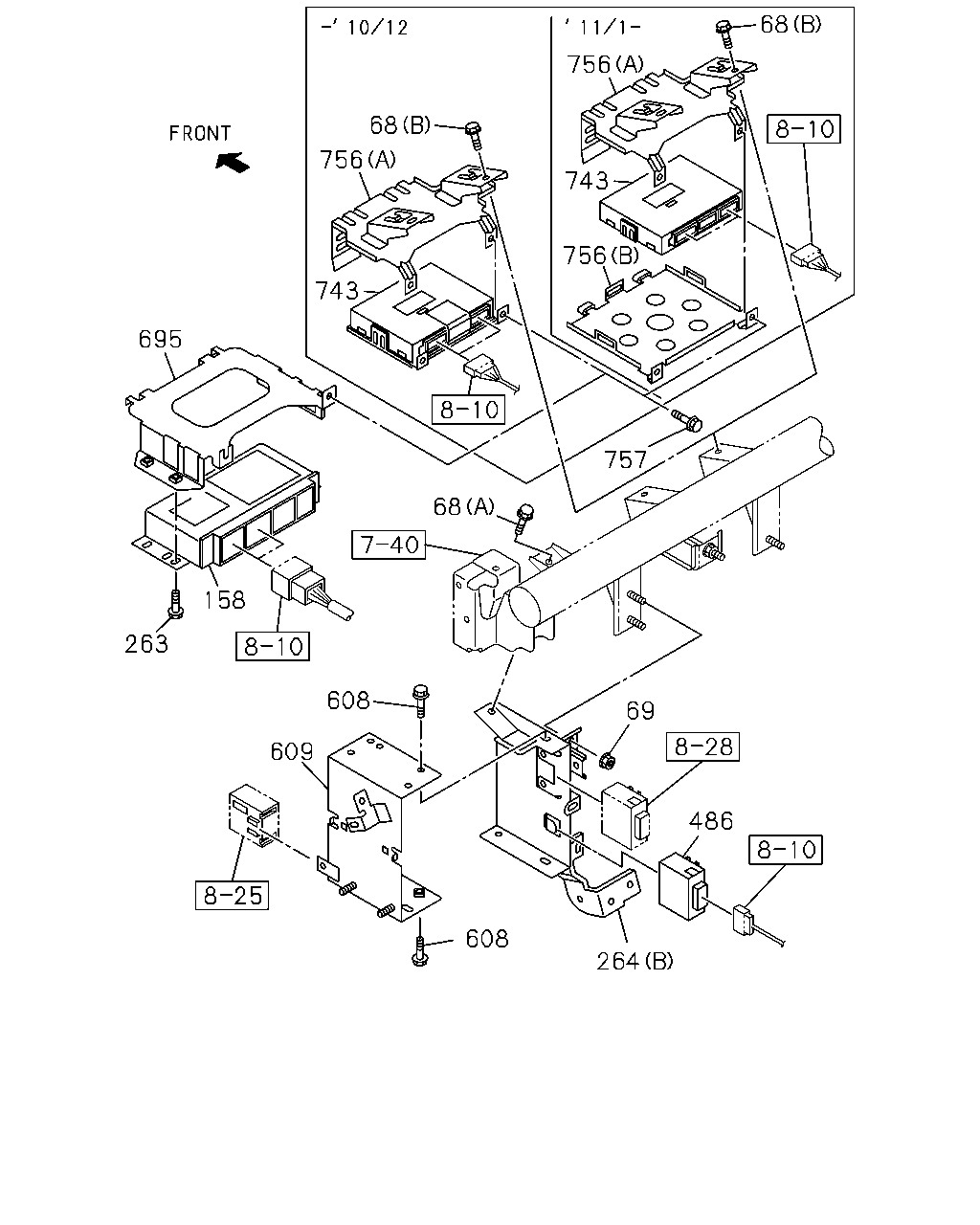

[826A] FRONT SIDE NO.1 (19 parça)

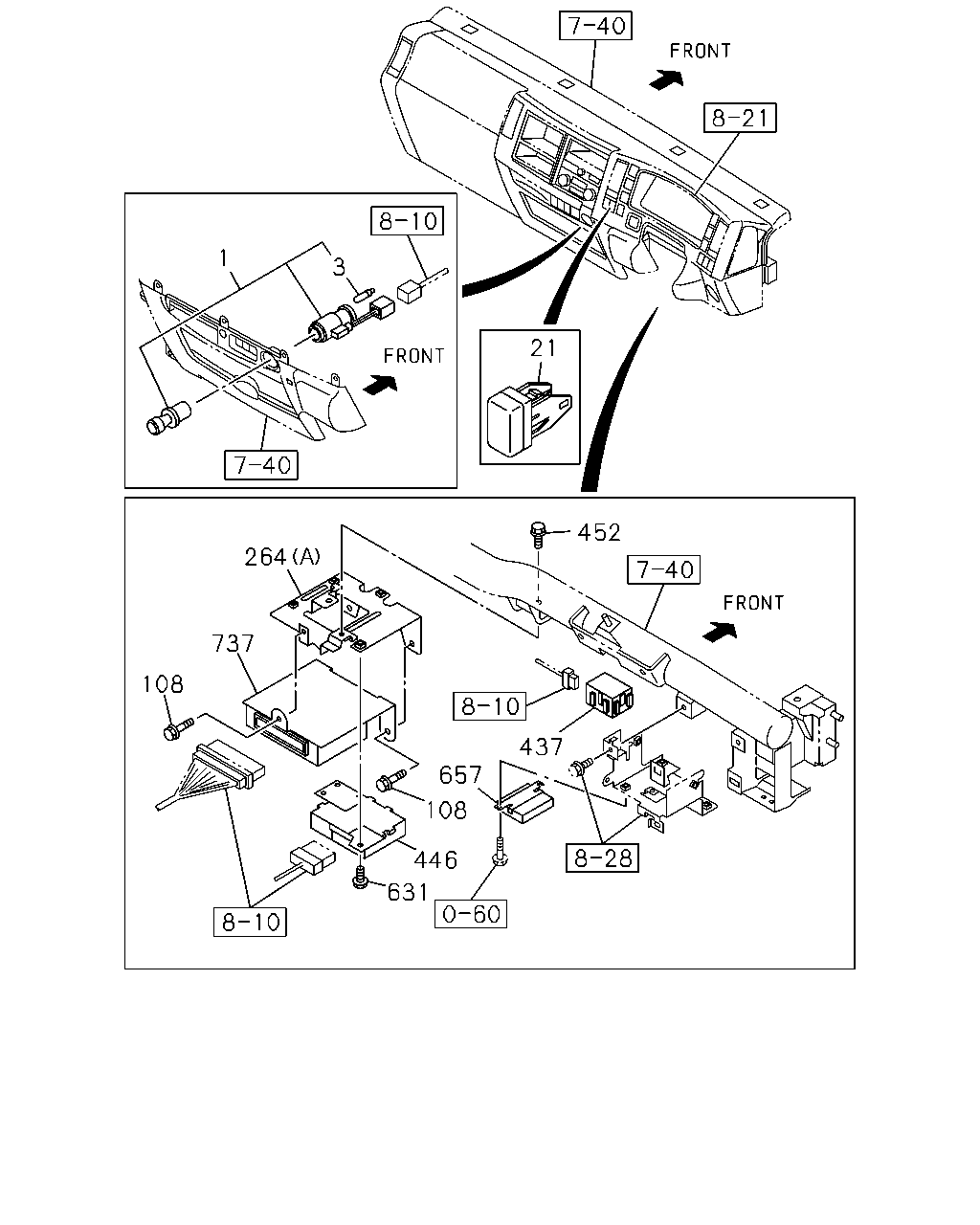

[826A] FRONT SIDE NO.2 (23 parça)

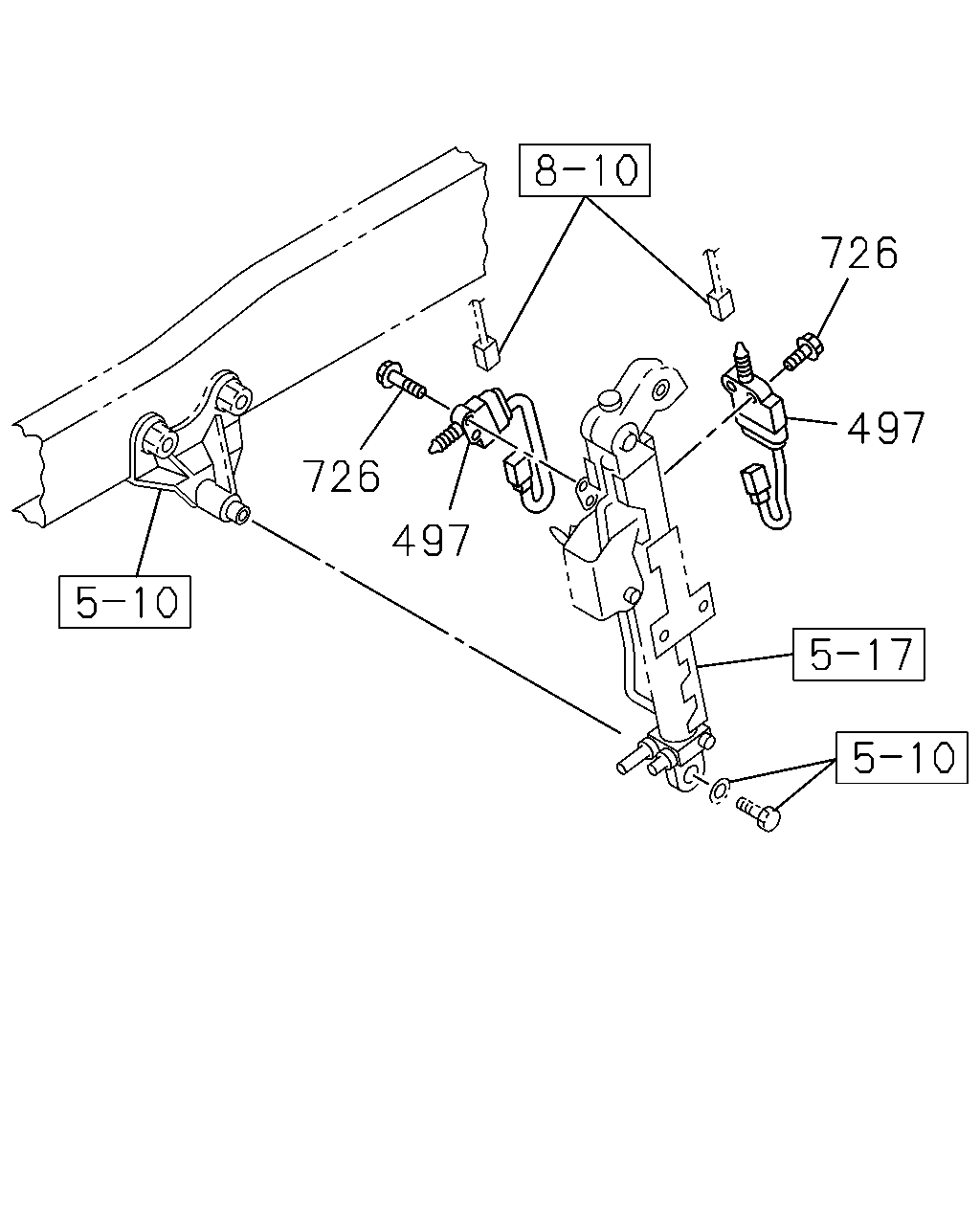

[826A] CAB TILT SWITCH (2 parça)

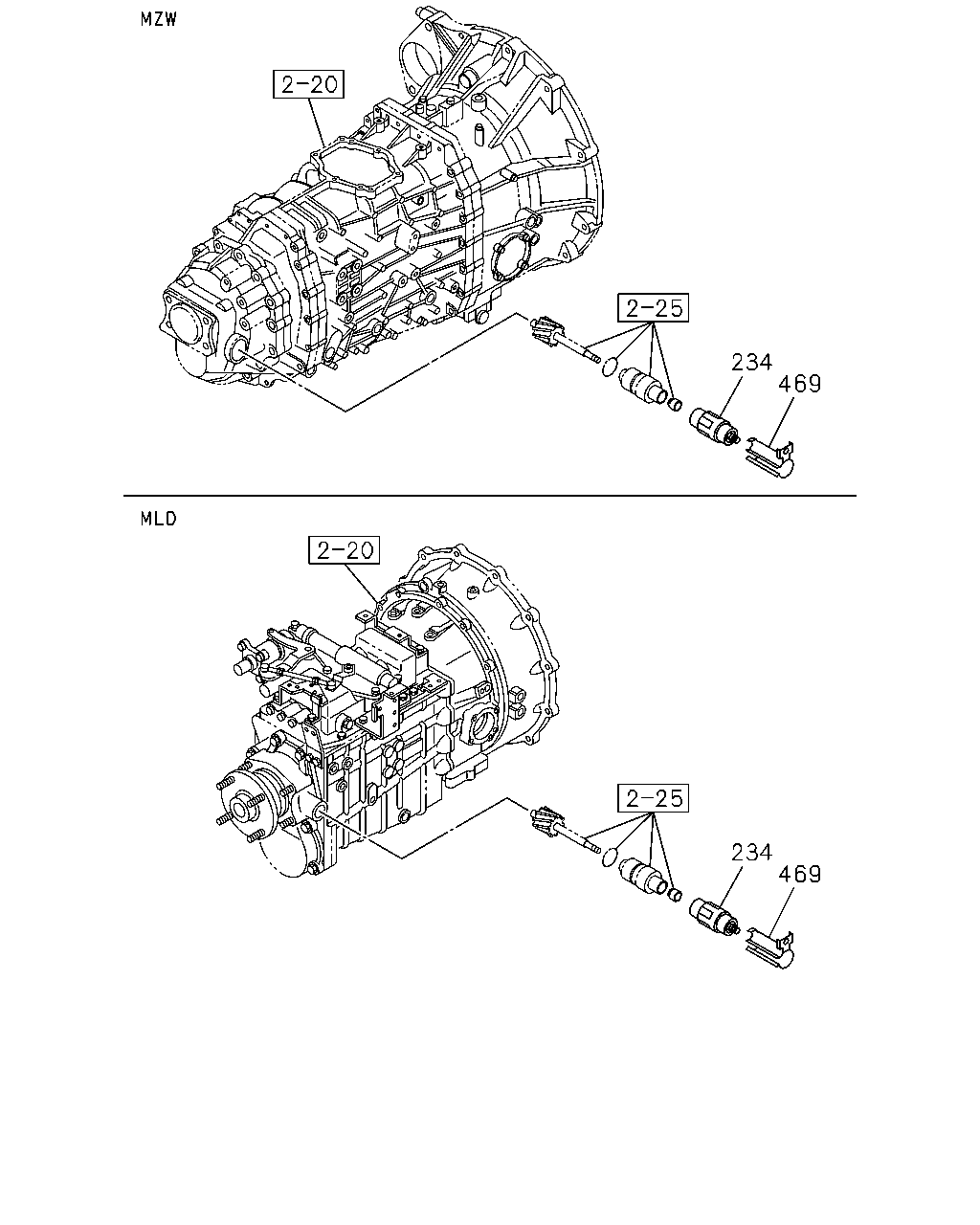

[826A] VEHICLE SPEED SENSOR (2 parça)

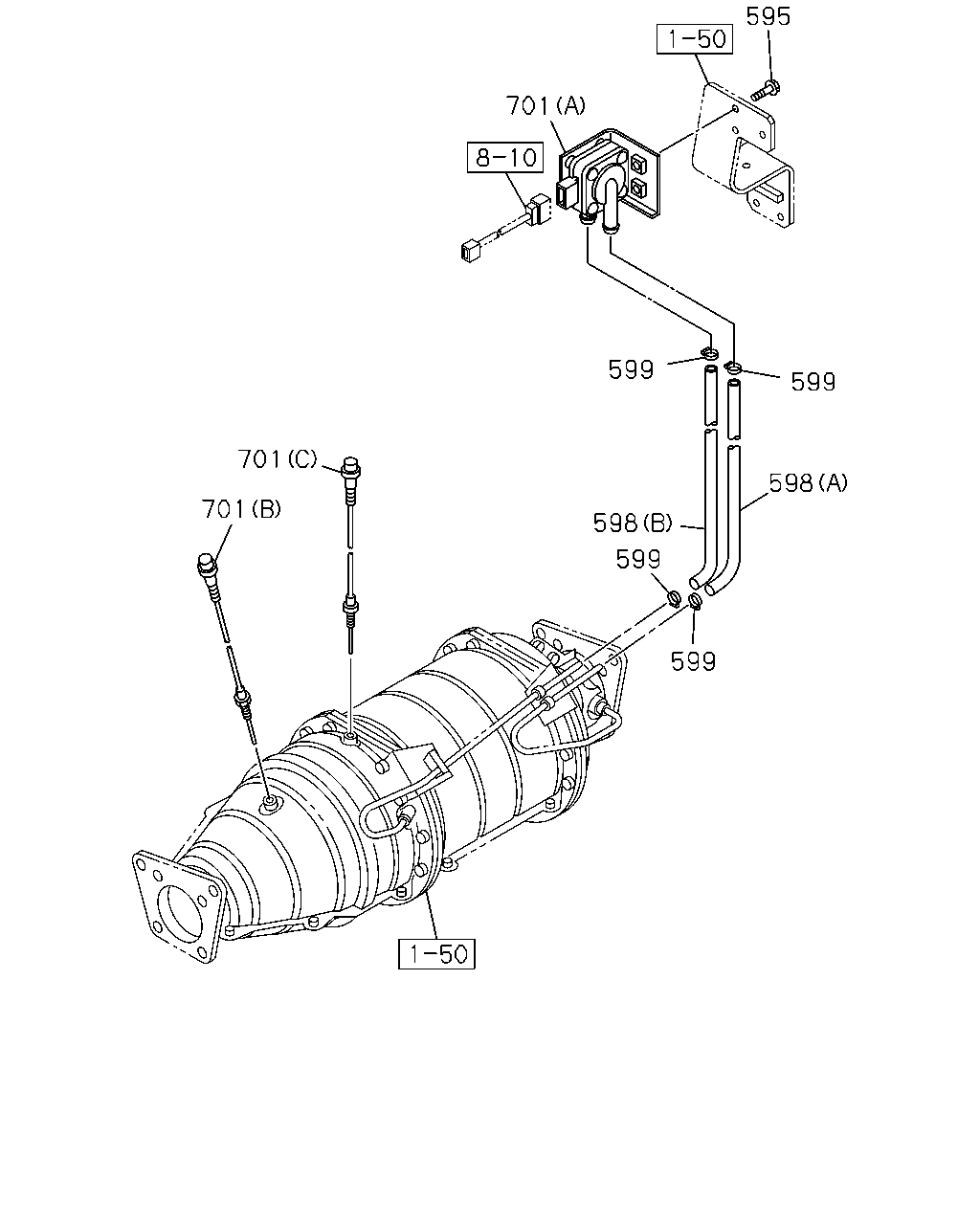

[826A] DPD SENSOR (9 parça)
▶
380
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
0906-
507
CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1011-
744
448
491
373
766
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98059-419-1
01
1
0906-1010
373
HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98059-419-2
01
1
1011-
448
BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER
8-97105-796-1
02
1
0906-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
0906-
744
SENSOR; AIR BAG
AIR BAG DRIVER(AJ3)
8-97386-841-2
01
1
0906-
766
BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140
5-09707-031-1
01
1
0906-
21
3
108
657
737
446
631
108
437
452
1
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98076-255-0
01
1
0906-0908
1
LIGHTER; CIGAR
8-98142-962-0
01
1
0909-
3
BULB; CIGAR LIGHTER
28V 1.8W
8-97173-159-0
01
1
0906-0908
21
COVER; HOLE
EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>
8-98025-954-1
01
1
0906-
108
BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0906-0906
108
BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
03
1
0907-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
0906-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
0906-
264
BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
0906-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
0906-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98136-318-1
01
1
0906-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
02
1
0906-
452
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
02
1
0906-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0906-0906
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE
0-28650-616-0
02
1
0907-
657
CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98013-144-8
01
1
0906-1401
657
CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY>
8-98260-912-1
01
1
1402-
737
CONTROL UNIT; TRANSMISSION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98095-624-9
01
1
0906-1411
737
CONTROL UNIT; TRANSMISSION
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98277-100-0
01
1
1412-
68
756
68
756
743
756
743
695
757
68
158
263
608
69
609
486
608
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
01
1
0906-
68
BOLT; BRKT
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
0906-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
0906-
158
CONTROLLER; ABS
1-80119-261-0
01
1
0906-1004
158
CONTROLLER; ABS
8-98170-648-0
01
1
1005-1205
158
CONTROLLER; ABS
EXC. VIN MODEL YEAR 2011<VZB>
8-98170-648-0
01
1
1206-1206
158
CONTROLLER; ABS
8-98170-648-0
01
1
1207-
263
BOLT; CONT UNIT
M6X16 FLANGE
0-28650-616-0
04
1
0906-
264
BRACKET; CONT UNIT
(B)
8-97609-985-9
01
1
0906-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
0906-
264
BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98064-901-0
01
1
0906-
486
CONTROL UNIT; MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH>
8-97610-202-1
01
1
0906-
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE
0-28650-616-0
05
1
0906-
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98095-337-0
01
1
0906-1308
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98169-737-1
01
1
1309-
695
BRACKET; CONT UNIT,ABS
8-98045-016-1
01
1
0906-
743
CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY>
8-98125-904-0
01
1
0906-1005
743
CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY>
8-98155-169-1
01
1
1006-1007
743
CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY>
8-98176-213-0
01
1
1008-1012
743
CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY>
8-98182-026-3
01
1
1101-
756
BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B)
8-98111-836-1
01
1
1101-
756
BRACKET; ECU,BCM
(A)
8-98056-411-3
01
1
0906-
757
BOLT; BRKT,BCM
M6X16 FLANGE
0-28650-616-0
02
1
0906-
726
497
726
497
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
497
SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO
1-82380-172-1
02
1
0906-
726
BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE
0-28050-625-0
04
1
0906-
234
469
234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
0906-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
0906-
595
701
599
599
701
598
701
598
599
599
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
595
BOLT; SENSOR
M8X20 FLANGE
0-28650-820-0
02
1
0906-
598
HOSE; RUBBER,SENSOR
WHEEL BASE 5000MM(50W) (B)
8-98072-087-1
01
1
0906-
598
HOSE; RUBBER,SENSOR
WHEEL BASE 5000MM(50W) (A)
8-98072-088-0
01
1
0906-
598
HOSE; RUBBER,SENSOR
WHEEL BASE 5500MM(55W) (A)
8-98075-388-0
01
1
0906-
598
HOSE; RUBBER,SENSOR
WHEEL BASE 5500MM(55W) (B)
8-98075-389-0
01
1
0906-
599
CLIP; HOSE
ID=13
8-97329-627-0
04
1
0906-
701
SENSOR; DPD
(B)
8-97359-987-5
01
1
0906-
701
SENSOR; DPD
(C)
8-97359-989-5
01
1
0906-
701
SENSOR; DPD
(A)
8-97360-368-2
01
1
0906-
