8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#6039) — 82 parça
çizim 7609
255 356 131
BalonParca AdiParca NoAdetTipApplied Date
131 CLIP; BAND
BRAKE REGULATION HONG KONG<TCZ> OD=9 H=6 		1-09709-178-0 01 1 9812-0003
131 CLIP; BAND
PARKING BRAKE VALVE LEVER TYPE<W48> OD=9 H=6 		1-09709-178-0 01 1 0004-
255 SWITCH; SEARCH LIGHT 1-82340-360-1 01 1 9812-
356 SWITCH; TRAILER,LOW PRESS
BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-0 01 1 9812-0003
356 SWITCH; TRAILER,LOW PRESS
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-48340-057-1 01 1 0004-

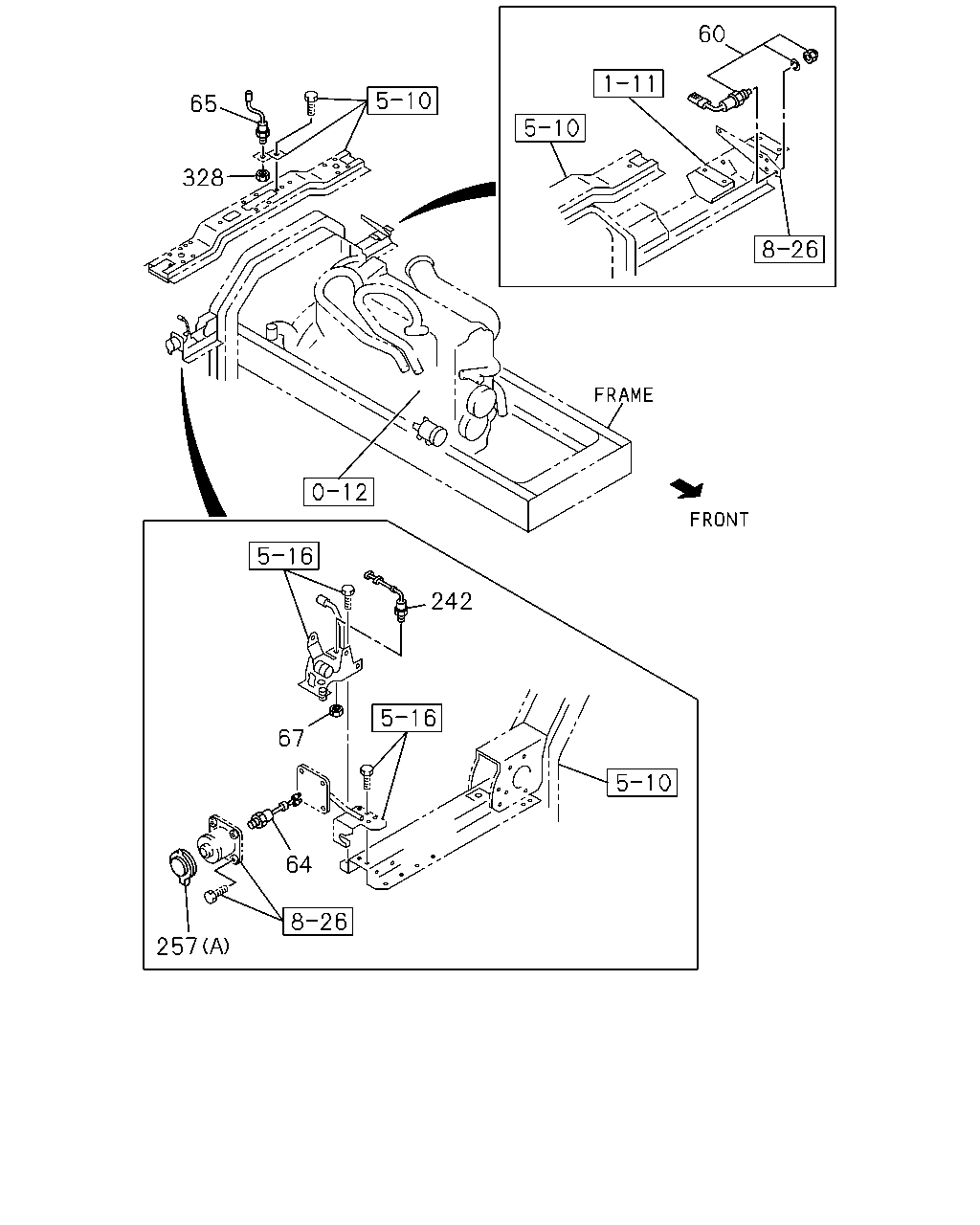

çizim 7610
60 65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9812-
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9812-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 9812-
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 9812-
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 9812-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9812-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9812-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9812-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9812-
328 NUT; SW
M16 		9-99110-416-0 01 1 9812-

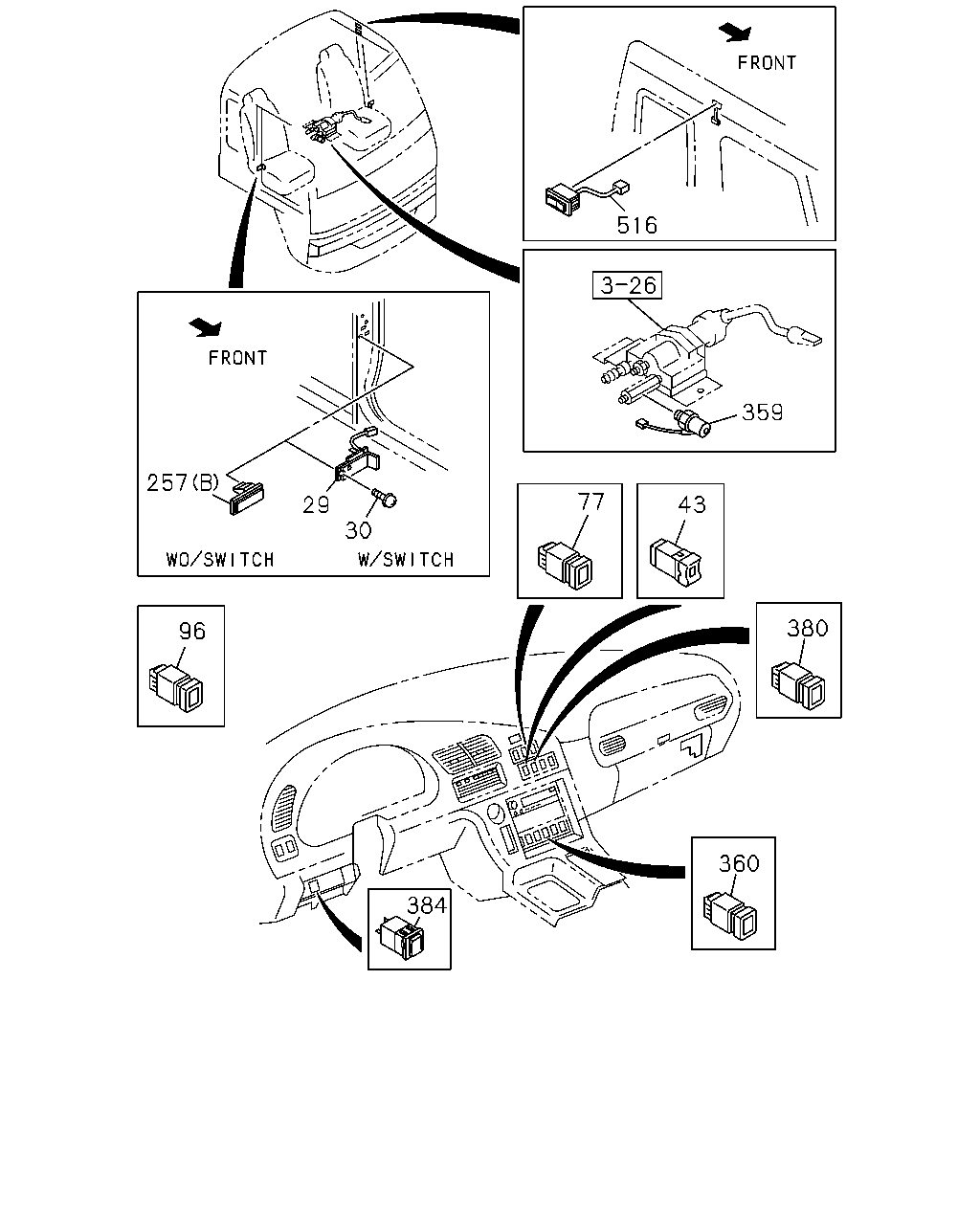

çizim 41106
516 359 257 77 43 29 30 380 96 360 384
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 9812-
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9812-9906
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-
43 SWITCH; HORN
ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> 		1-82350-332-0 01 1 9905-
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) 		1-82340-413-0 01 1 9812-9901
77 SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82340-413-0 01 1 9812-9901
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY) 		1-82340-413-0 01 1 9902-9904
77 SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82340-413-0 01 1 9902-9904
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),PTO TRANS RR RATIO 0.98(BEX), PTO TRANS RR RATIO 1.68(BEY),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82340-413-0 01 1 9905-
77 SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82340-413-0 01 1 9905-
96 SWITCH; FOG LAMP
FOG LAMP REAR<NHD> 		1-82340-676-0 01 1 0002-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9812-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9812-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9812-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9812-
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-0 01 1 9812-
360 SWITCH ASM; DIFF LK 1-82340-404-0 01 1 9812-
380 SWITCH; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82340-405-0 01 1 9905-0104
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 9812-9901
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5) 		1-82350-213-1 01 1 9902-
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> ASSIST 		1-82350-274-0 01 1 9812-
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> DRIVER 		1-82350-275-0 01 1 9812-

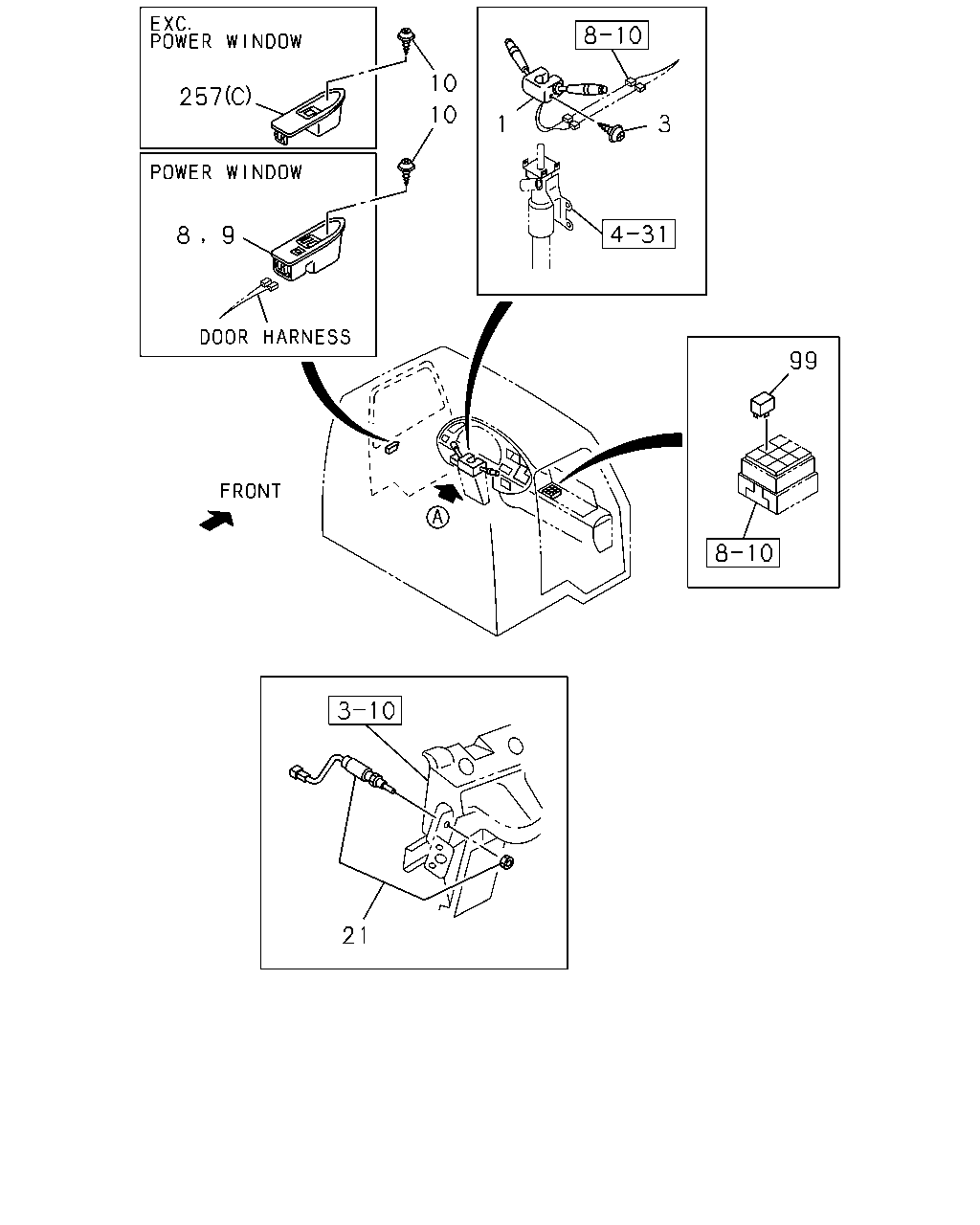

çizim 41461
10 257 10 3 1 8 9 99 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FOG LAMP<T96> 		1-82360-411-2 01 1 9812-9901
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 		1-82360-411-2 01 1 9902-0001
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FOG LAMP<T96> 		1-82360-411-2 01 1 9902-0001
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. FOG LAMP REAR<NHD> 		1-82360-411-2 01 1 0002-0103
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FOG LAMP<T96> EXC. FOG LAMP REAR<NHD> 		1-82360-411-2 01 1 0002-0103
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. FOG LAMP REAR<NHD> 		1-82360-648-0 01 1 0104-
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FOG LAMP<T96> EXC. FOG LAMP REAR<NHD> 		1-82360-648-0 01 1 0104-
1 SWITCH; COMB
FOG LAMP<T96> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-405-4 01 1 9812-9901
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-405-4 01 1 9902-0001
1 SWITCH; COMB
FOG LAMP<T96> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-405-4 01 1 9902-0001
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC> 		1-82360-405-4 01 1 0002-0103
1 SWITCH; COMB
FOG LAMP<T96> EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC> 		1-82360-405-4 01 1 0002-0103
1 SWITCH; COMB
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC> 		1-82360-647-0 01 1 0104-
1 SWITCH; COMB
FOG LAMP<T96> EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC> 		1-82360-647-0 01 1 0104-
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP<T96> 		1-82360-400-0 01 1 9812-9901
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,FOG LAMP<T96> 		1-82360-400-0 01 1 9902-0001
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP REAR<NHD>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,FOG LAMP<T96> 		1-82360-400-0 01 1 0002-0103
1 SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FOG LAMP REAR<NHD>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,FOG LAMP<T96> 		1-82360-643-0 01 1 0104-
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>,FOG LAMP<T96> 		1-82360-371-4 01 1 9812-9901
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>, HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB>,FOG LAMP<T96> 		1-82360-371-4 01 1 9902-0001
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ,FOG LAMP<T96> 		1-82360-371-4 01 1 0002-0103
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD>,BRAKE SYSTEM RETARDER HEAVYDUTY<TCC>,HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> ,FOG LAMP<T96> 		1-82360-642-0 01 1 0104-
1 SWITCH; COMB
FOG LAMP REAR<NHD> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-540-0 01 1 0002-0103
1 SWITCH; COMB
FOG LAMP REAR<NHD> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-655-0 01 1 0104-
1 SWITCH; COMB
FOG LAMP REAR<NHD> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-539-0 01 1 0002-0103
1 SWITCH; COMB
FOG LAMP REAR<NHD> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82360-654-0 01 1 0104-
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9812-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-3 01 1 9812-
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSENGER 		1-82380-158-3 01 1 9812-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812-
21 SWITCH; CLU 1-82380-114-2 01 1 9812-9904
21 SWITCH; CLU 1-82380-114-2 01 1 9812-9904
21 SWITCH; CLU 1-82380-114-2 01 1 9905-
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-2 01 1 9905-
99 RELAY; FOG LAMP
EXC. LIGHTING SYSTEM ECE<SLC> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9812-9812
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9901-9901
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9902-0001
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9902-0001
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0002-
99 RELAY; FOG LAMP
HEADLAMPS VARIANT SQUARE W/FOG LAMP<TEB> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0002-
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A JIDECO 		8-97062-815-1 01 1 0002-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9812-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9812-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9812-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9812-
