Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#60387) — 307 parça

304 304 139 304 304 516 304 313 127 139 47 184 139 139 38 313 242 313 139 139 38 313 150 139 98 313 242 150 38 524 219 294 525 294 516 358 377 38 386 38 386

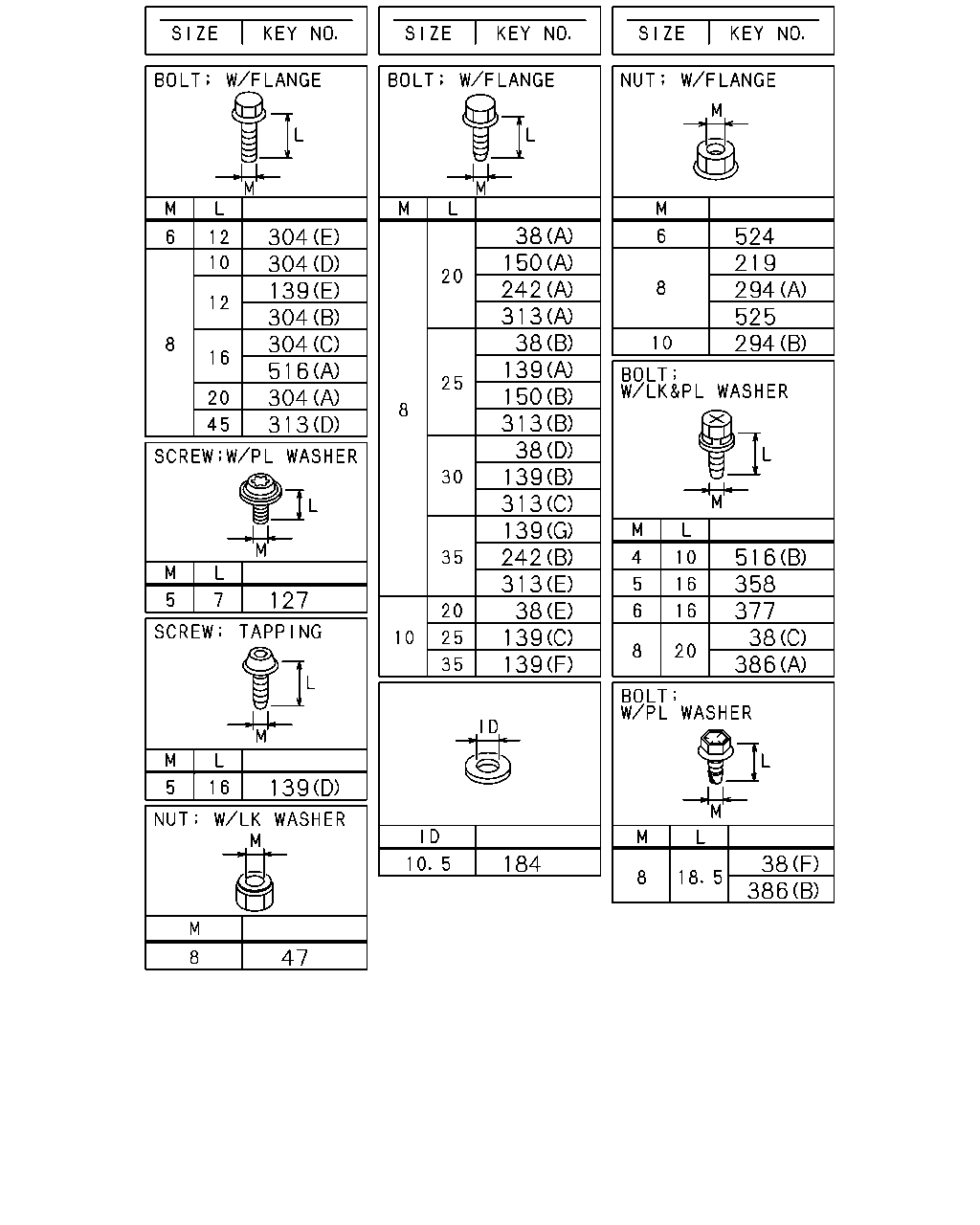

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0906-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0906-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0906-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0906-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS AUTO CAB TILT<WV2> (D) M8X30 FLANGE	0-28650-830-0	01	1	0906-
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (E) M10X20 FLANGE	0-28751-020-0	01	1	0906-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0906-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0906-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0906-1004
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1005-
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	0906-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0906-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0906-1005
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0906-1005
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	02	1	1006-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0906-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0906-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0906-
219	NUT M8 FLANGE	0-91180-108-0	04	1	1006-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0906-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0906-1004
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005
219	NUT M8 FLANGE	0-91180-108-0	02	1	1005-1005
219	NUT M8 FLANGE	0-91180-108-0	02	1	1006-
219	NUT M8 FLANGE	0-91180-108-0	04	1	0906-1004
242	BOLT; BRKT,HARNESS CAB SUSPENSION FULL FLOATING<W16> (A) M8X20 FLANGE	0-28650-820-0	02	1	0906-
242	BOLT; BRKT,HARNESS WHEEL BASE 5500MM(55W) (B) M8X35 FLANGE	0-28650-835-0	01	1	0906-1011
242	BOLT; BRKT,HARNESS WHEEL BASE 5500MM(55W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1012-1101
242	BOLT; BRKT,HARNESS MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2011<VZB> (B) M8X35 FLANGE	0-28650-835-0	01	1	1012-1101
242	BOLT; BRKT,HARNESS WHEEL BASE 5500MM(55W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1102-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1005-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT AUTO CAB TILT<WV2> (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-
294	NUT CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE	0-91180-108-0	02	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-1004
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-1004
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	1005-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0906-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0906-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0906-1010
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	0906-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0906-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0906-
313	BOLT; BRKT (D) M8X45 FLANGE	0-28050-845-0	01	1	0906-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0906-
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	0906-
313	BOLT; BRKT AUTO CAB TILT<WV2> (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-
358	BOLT; EARTH AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0906-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0906-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0906-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0906-
516	BOLT; HARNESS MLD6W M/T(Y2C) (A) M8X16 FLANGE	0-28050-816-0	02	1	0906-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0906-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0906-
525	NUT; CLIP AUTO CAB TILT<WV2> T=8.0 M8 FLANGE	0-91180-108-0	01	1	0906-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0906-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0906-

16 48 14 16 37 183 194 206 217 225 235 612 14 14 48 530 538 1 1 503 178 178 596 178 596

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

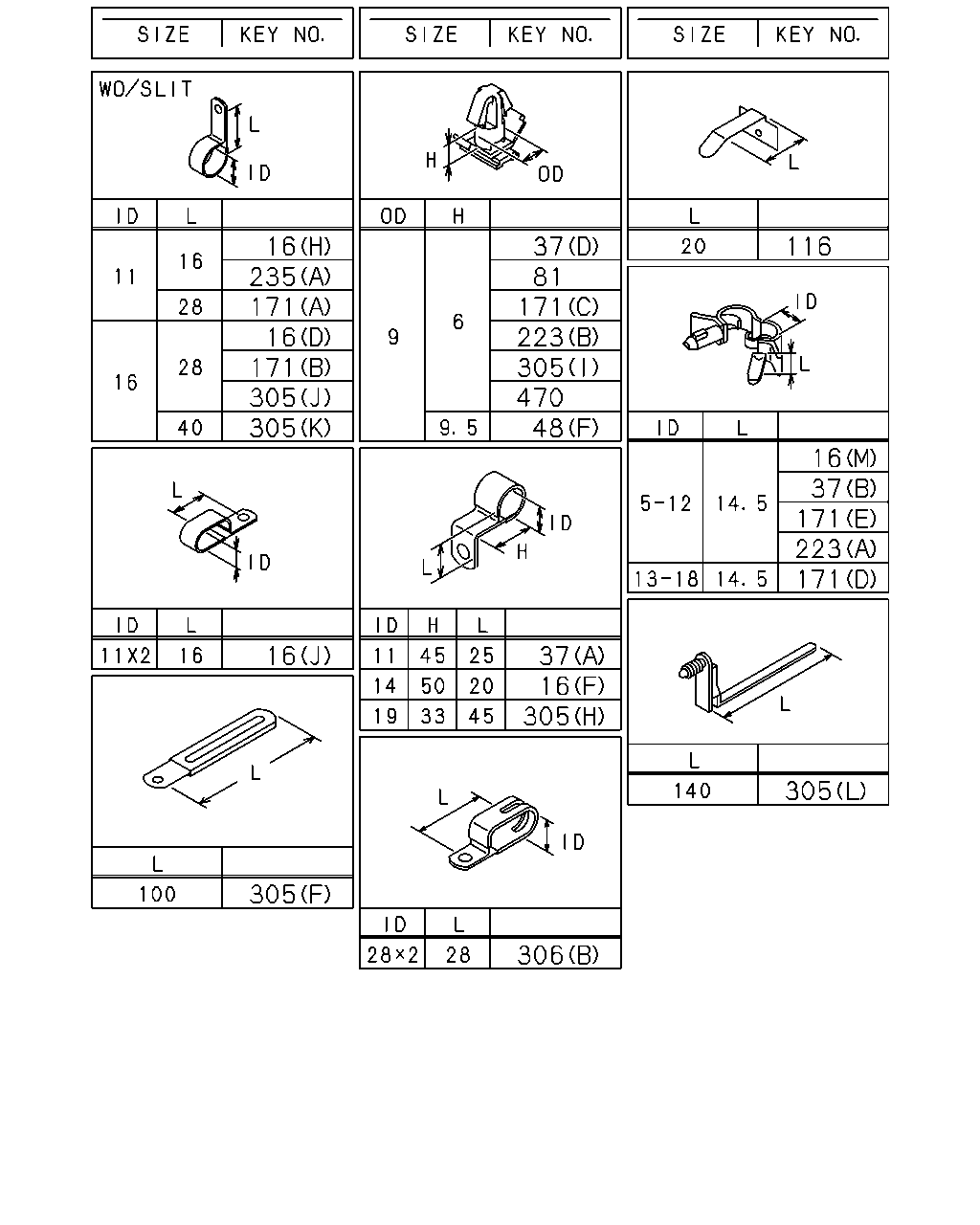

1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0906-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0906-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0906-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0906-
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	13	1	0906-1205
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	13	1	1206-
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	0906-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	0906-
16	CLIP; HARNESS (F) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (A) ID=11 H=45 L=25	1-09700-866-0	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) L=250	5-09707-030-1	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (D) OD=9 H=6	8-97368-793-0	02	1	0906-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=15 L=65	1-09700-466-0	08	1	1006-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1006-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1006-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45	1-09700-825-1	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (D) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	18	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	09	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	04	1	0906-0906
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	20	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=15 L=65	1-09700-466-0	07	1	1008-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	0906-0907
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0908-1007
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0908-1007
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1008-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
178	GROMMET; HARNESS AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0906-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0906-
194	CLIP; BAND AUTO CAB TILT<WV2> L=250	5-09707-030-1	02	1	0906-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0906-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0906-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	06	1	0906-0906
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0906-1005
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (C) ID=12 L=35	5-09700-206-0	01	1	0906-
503	CONNECTOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82690-668-0	01	1	0906-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0906-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0906-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0906-
596	GROMMET MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1012-1012
596	GROMMET WHEEL BASE 5500MM(55W) (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0906-1011
596	GROMMET (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1012-
612	CLIP; HARNESS DPD WHEEL BASE 5000MM(50W) (A) L=135	1-09987-143-1	01	1	0906-1011
612	CLIP; HARNESS DPD WHEEL BASE 5000MM(50W) (A) L=135	1-09987-143-1	01	1	1012-1101
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2011<VZB> (A) L=135	1-09987-143-1	01	1	1012-1101
612	CLIP; HARNESS DPD WHEEL BASE 5000MM(50W) (A) L=135	1-09987-143-1	01	1	1102-
612	CLIP; HARNESS DPD WHEEL BASE 5500MM(55W) (B) ID=11 L=41	1-09700-403-0	02	1	0906-
612	CLIP; HARNESS DPD WHEEL BASE 5500MM(55W) (A) L=135	1-09987-143-1	02	1	0906-

16 235 171 16 171 305 305 37 81 171 223 305 470 48 116 16 37 171 223 171 16 37 16 305 305 305 306

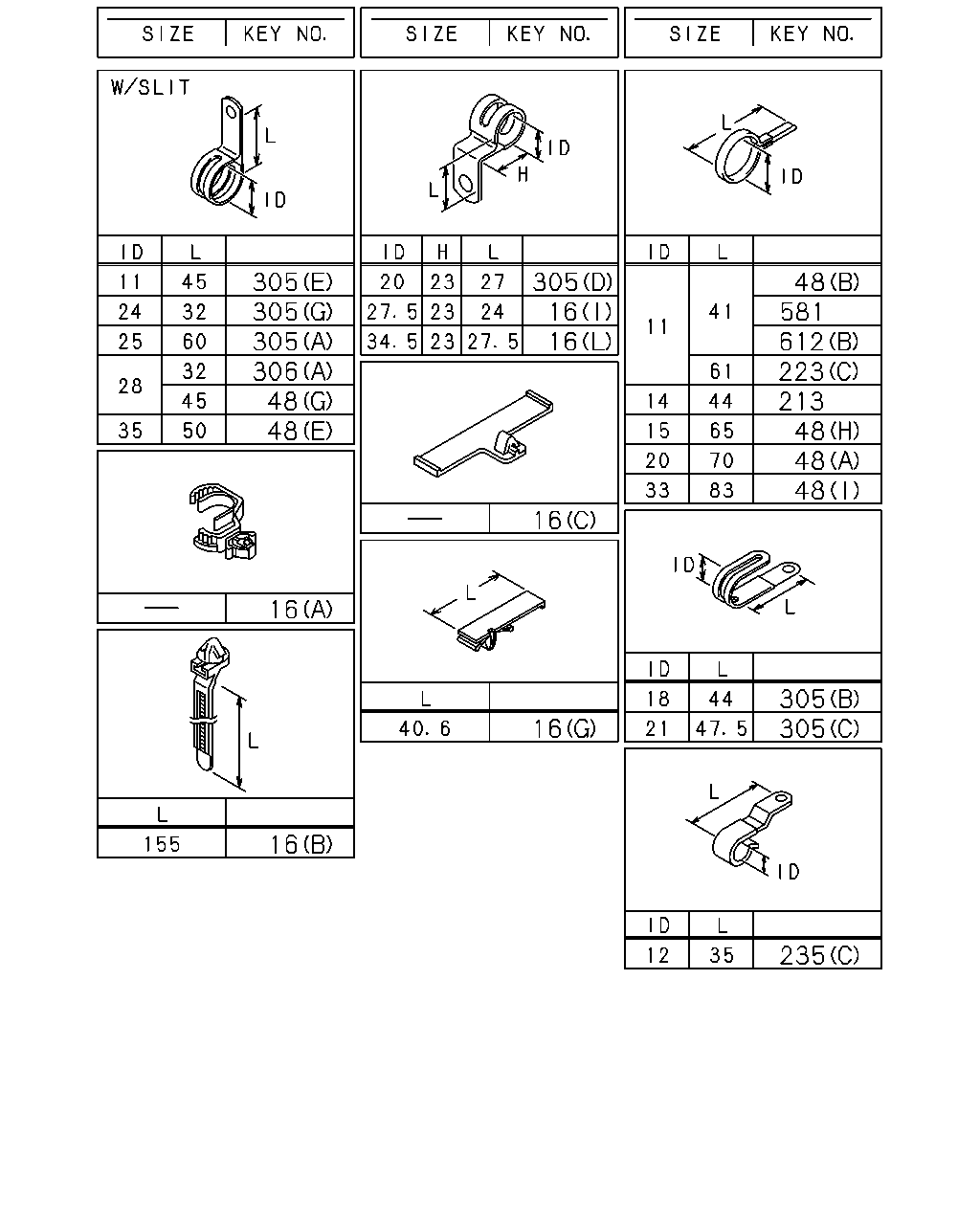

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	0906-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	0906-
16	CLIP; HARNESS (F) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (A) ID=11 H=45 L=25	1-09700-866-0	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) L=250	5-09707-030-1	01	1	0906-
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (D) OD=9 H=6	8-97368-793-0	02	1	0906-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=15 L=65	1-09700-466-0	08	1	1006-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1006-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1006-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45	1-09700-825-1	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (D) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	18	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	09	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	04	1	0906-0906
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	20	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=15 L=65	1-09700-466-0	07	1	1008-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6	1-09709-178-0	01	1	0906-1005
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6	1-09709-178-0	01	1	1006-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	0906-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0906-1005
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (C) ID=12 L=35	5-09700-206-0	01	1	0906-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0906-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	0906-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0906-
305	CLIP; ENG HARNESS (H) ID=19 H=33 L=45	1-09701-045-0	01	1	0906-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0906-
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	0906-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	0906-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	0906-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0906-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5	8-94178-108-0	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0906-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0908-1103

305 305 305 306 48 16 48 16 305 16 16 16 16 48 612 581 223 48 48 213 48 305 305 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (H) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (D) ID=16 L=28	0-95235-556-0	02	1	0906-
16	CLIP; HARNESS (J) ID=11X2 L=16	0-95325-025-0	02	1	0906-
16	CLIP; HARNESS (F) ID=14 H=50 L=20	1-09700-843-0	02	1	0906-
16	CLIP; HARNESS (L) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0906-
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
16	CLIP; HARNESS (E) L=250	5-09707-030-1	03	1	0906-
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (G) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (H) ID=15 L=65	1-09700-466-0	08	1	1006-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	10	1	1006-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	02	1	1006-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS (A) ID=20 L=70	1-09700-485-0	01	1	0906-0906
48	CLIP; FRAME HARNESS (F) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45	1-09700-825-1	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK> (D) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	18	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (A) ID=20 L=70	1-09700-485-0	09	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	04	1	0906-0906
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (A) ID=20 L=70	1-09700-485-0	20	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (H) ID=15 L=65	1-09700-466-0	07	1	1008-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0906-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0906-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0906-1005
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) (C) ID=12 L=35	5-09700-206-0	01	1	0906-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0906-
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0906-
305	CLIP; ENG HARNESS (G) ID=24 L=32	1-09700-766-1	01	1	0906-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0906-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0906-
305	CLIP; ENG HARNESS (H) ID=19 H=33 L=45	1-09701-045-0	01	1	0906-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0906-
305	CLIP; ENG HARNESS (E) ID=11 L=45	8-94296-897-1	01	1	0906-
305	CLIP; ENG HARNESS (F) L=100	8-94443-021-1	01	1	0906-
305	CLIP; ENG HARNESS (L) L=140	8-97122-360-0	01	1	0906-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0906-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5	8-94178-108-0	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0906-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0906-
581	CLIP; HARNESS,REAR SUSP ID=11 L=41	1-09700-403-0	01	1	0906-
612	CLIP; HARNESS DPD WHEEL BASE 5000MM(50W) (A) L=135	1-09987-143-1	01	1	0906-1011
612	CLIP; HARNESS DPD WHEEL BASE 5000MM(50W) (A) L=135	1-09987-143-1	01	1	1012-1101
612	CLIP; HARNESS DPD MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2011<VZB> (A) L=135	1-09987-143-1	01	1	1012-1101
612	CLIP; HARNESS DPD WHEEL BASE 5000MM(50W) (A) L=135	1-09987-143-1	01	1	1102-
612	CLIP; HARNESS DPD WHEEL BASE 5500MM(55W) (B) ID=11 L=41	1-09700-403-0	02	1	0906-
612	CLIP; HARNESS DPD WHEEL BASE 5500MM(55W) (A) L=135	1-09987-143-1	02	1	0906-

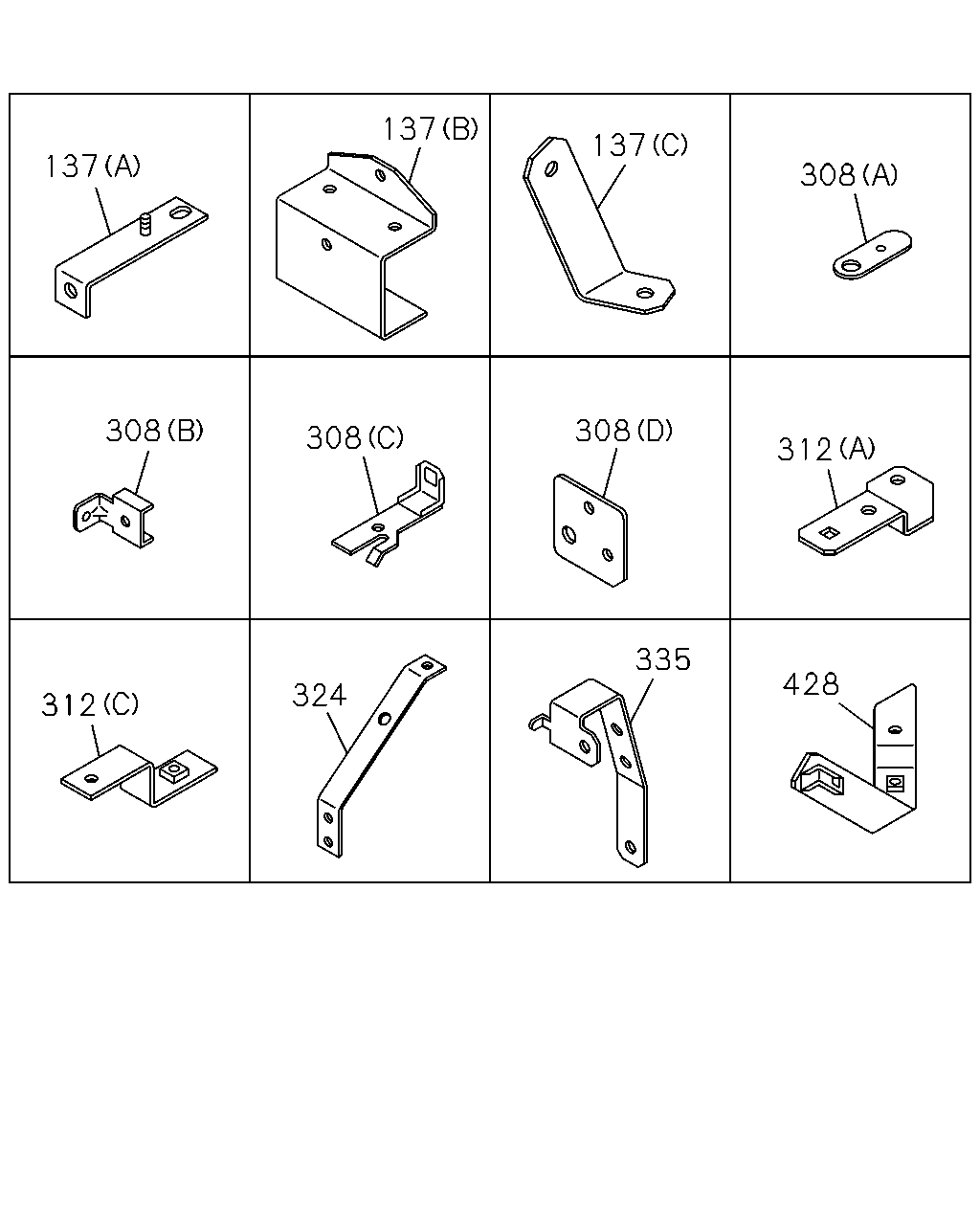

137 137 137 308 308 308 308 335 428 324 312 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	0906-
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	0906-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	0906-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0906-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0906-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0906-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0906-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0906-
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	0906-
312	BRACKET; CLIP HARNESS AUTO CAB TILT<WV2> (A)	8-97620-519-0	01	1	0906-
324	BRACKET; CLIP	1-47479-430-0	02	1	0906-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0906-
428	BRACKET	8-97620-514-0	01	1	0906-

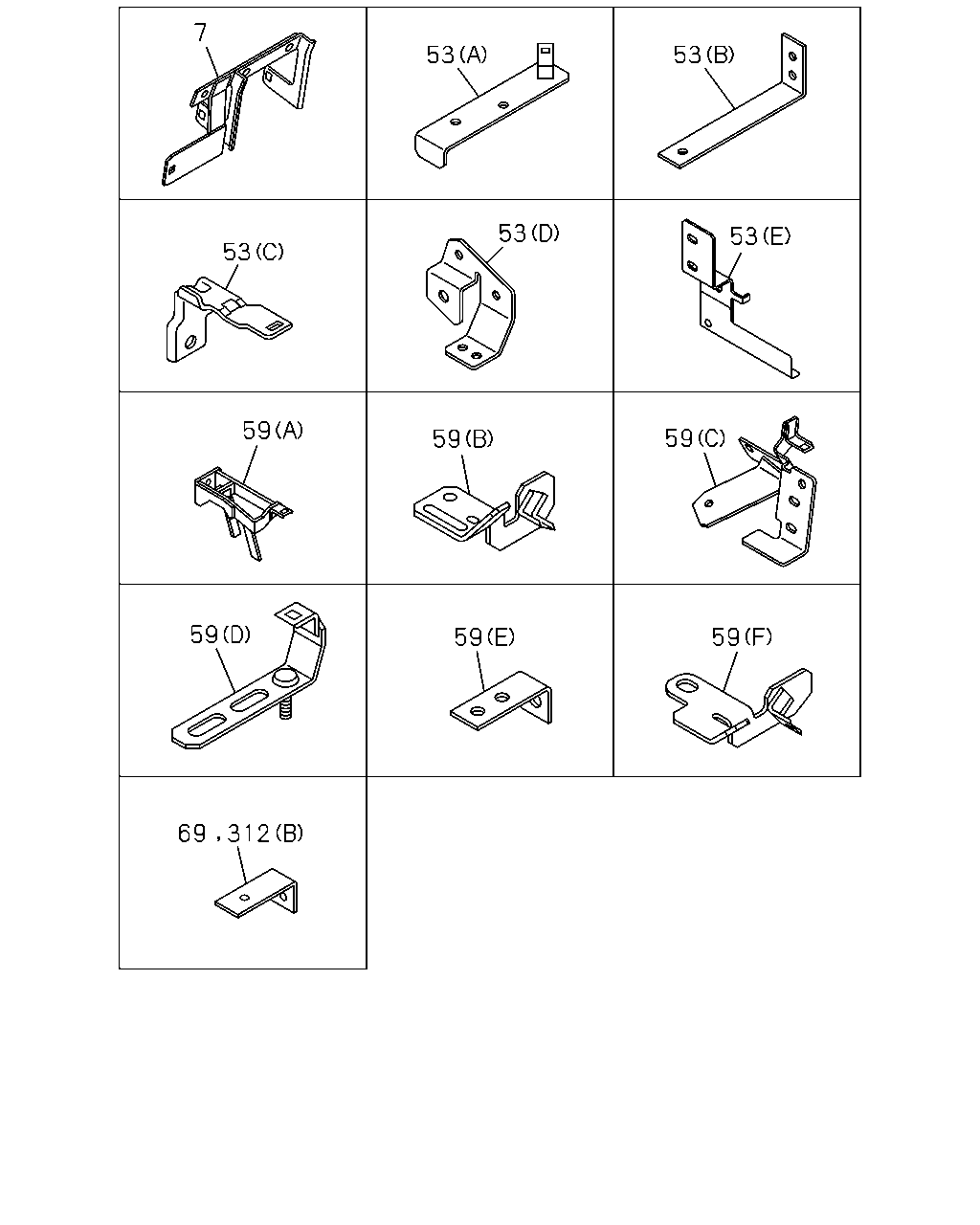

59 59 53 53 53 53 59 59 59 69 312 59 53 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0906-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	0906-
53	BRACKET; HARNESS CAB SUSPENSION FULL FLOATING<W16> (B)	1-47479-674-0	01	1	0906-
53	BRACKET; HARNESS CAB SUSPENSION FULL FLOATING<W16> (A)	8-97616-959-0	01	1	0906-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),VENTILA TOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98084-590-0	01	1	0906-
53	BRACKET; HARNESS WHEEL BASE 5500MM(55W) (E)	8-97620-485-0	01	1	0906-1011
53	BRACKET; HARNESS WHEEL BASE 5500MM(55W) (E)	8-97620-485-0	01	1	1012-1101
53	BRACKET; HARNESS MZW6P M/T(RSZ) WHEEL BASE 5000MM(50W) VIN MODEL YEAR 2011<VZB> (E)	8-97620-485-0	01	1	1012-1101
53	BRACKET; HARNESS WHEEL BASE 5500MM(55W) (E)	8-97620-485-0	01	1	1102-
59	BRACKET; FRAME HARNESS (E) L=62	1-21464-170-2	01	1	0906-
59	BRACKET; FRAME HARNESS (B)	8-97616-305-0	01	1	0906-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (D)	8-98047-730-0	02	1	0906-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	0906-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (A)	8-97627-325-0	01	1	0906-
59	BRACKET; FRAME HARNESS MZW6P M/T(RSZ) (A)	8-97609-264-2	01	1	0906-
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55	1-47475-304-0	01	1	0906-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0906-
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	0906-
312	BRACKET; CLIP HARNESS AUTO CAB TILT<WV2> (A)	8-97620-519-0	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
