Isuzu WW
▶
TRUCKS
▶
FTR
▶
11234 - FTR-RHD EURO5
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

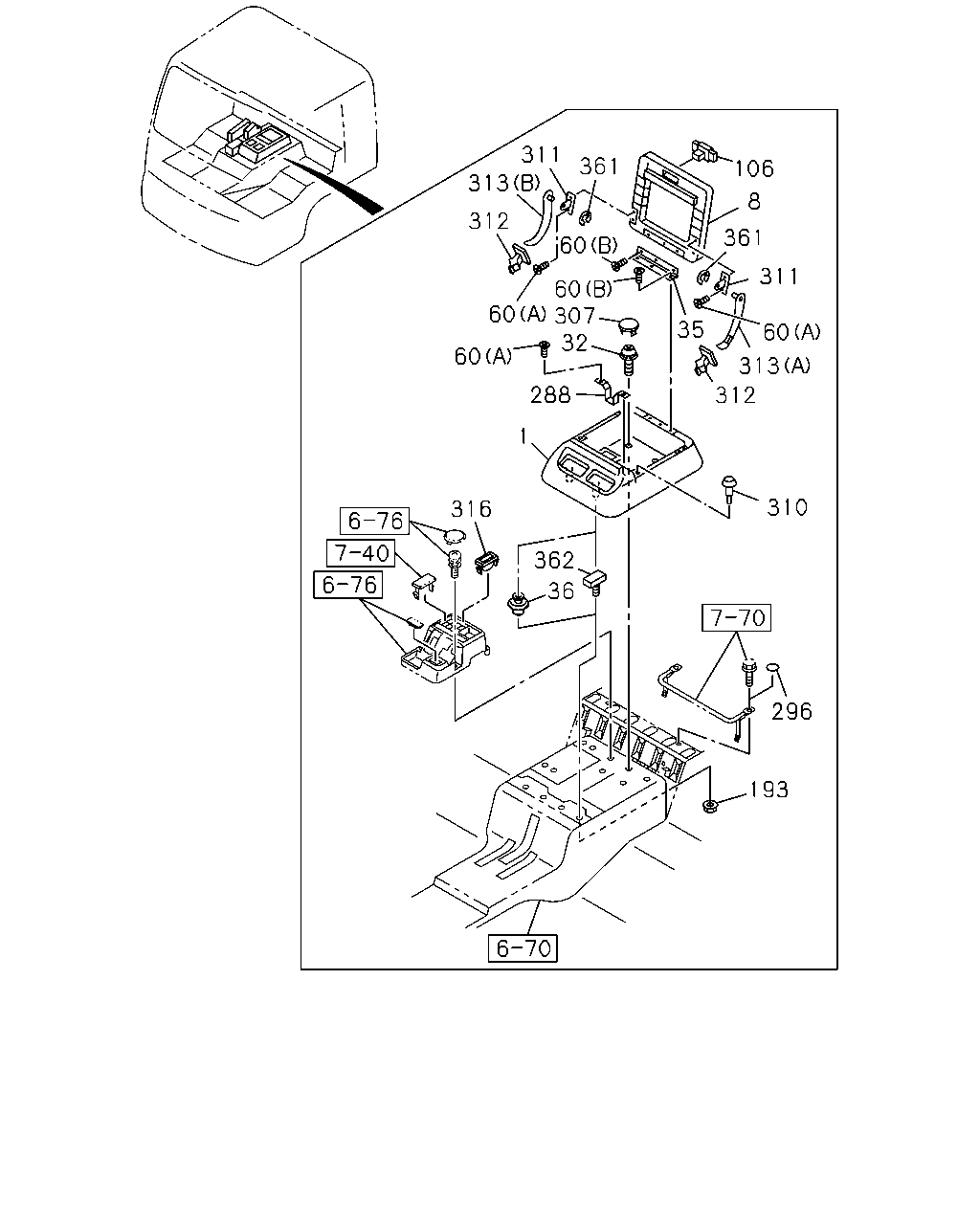

7-45 — CONSOLE BOX
(#60379) — 20 parça
311
361
106
313
8
312
361
60
60
32
311
60
35
60
60
313
288
312
1
310
316
362
36
296
193
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY
8-97408-710-0
01
1
0906-
8
LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97408-712-0
01
1
0906-
32
SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16
0-38050-616-0
02
1
0906-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-182-1
01
1
0906-
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-09984-190-0
02
1
1006-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
06
1
0906-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14
8-94279-325-0
04
1
0906-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9>
1-72538-312-0
01
1
0906-
193
NUT; PARCEL BOX
CENTER SEAT DELETE<SP9> M8 FLANGE
0-91180-108-0
02
1
0906-1005
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-190-0
01
1
0906-
296
SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK
1-76798-019-0
04
1
1006-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97407-951-0
02
1
0906-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-187-0
02
1
0906-
311
HOLDER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-188-2
02
1
0906-
312
STOPPER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-186-1
02
1
0906-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A)
1-72538-184-3
01
1
0906-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B)
1-72538-185-3
01
1
0906-
316
BOX; COIN
8-94482-280-2
02
1
0906-
361
RING; SNAP
CENTER SEAT DELETE<SP9> ID=5
9-09185-405-0
02
1
0906-
362
STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9>
1-72538-308-0
02
1
0906-1005
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
