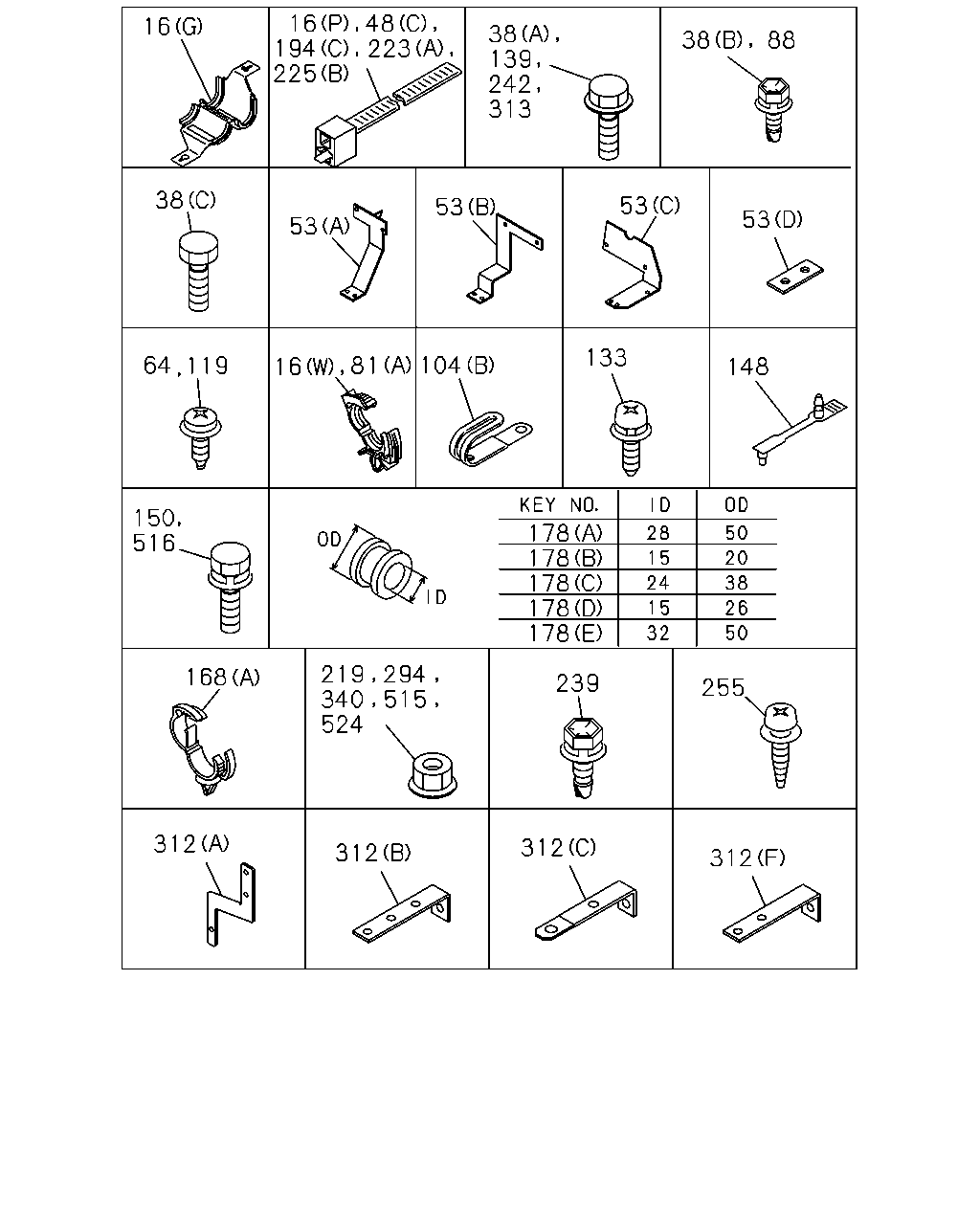

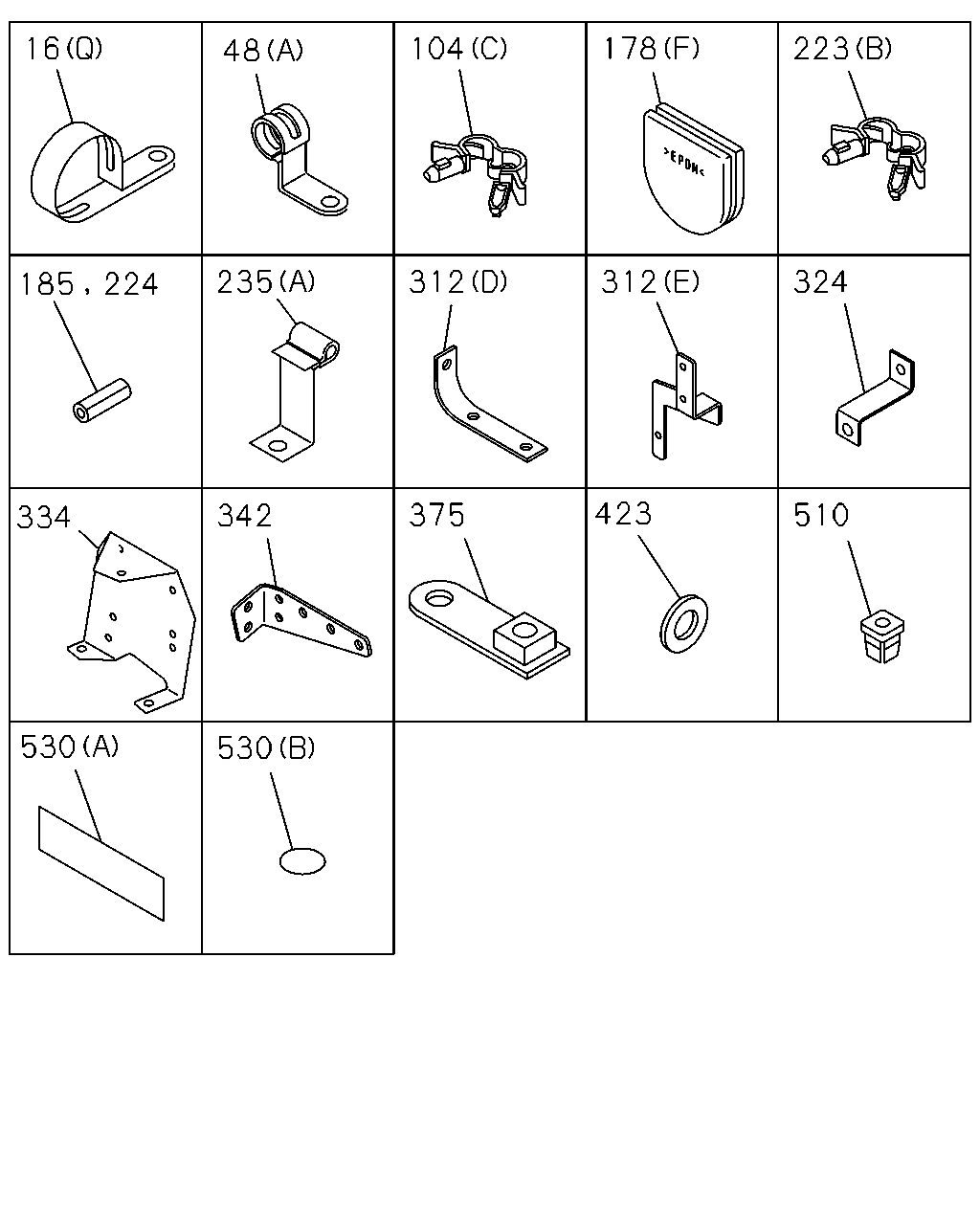

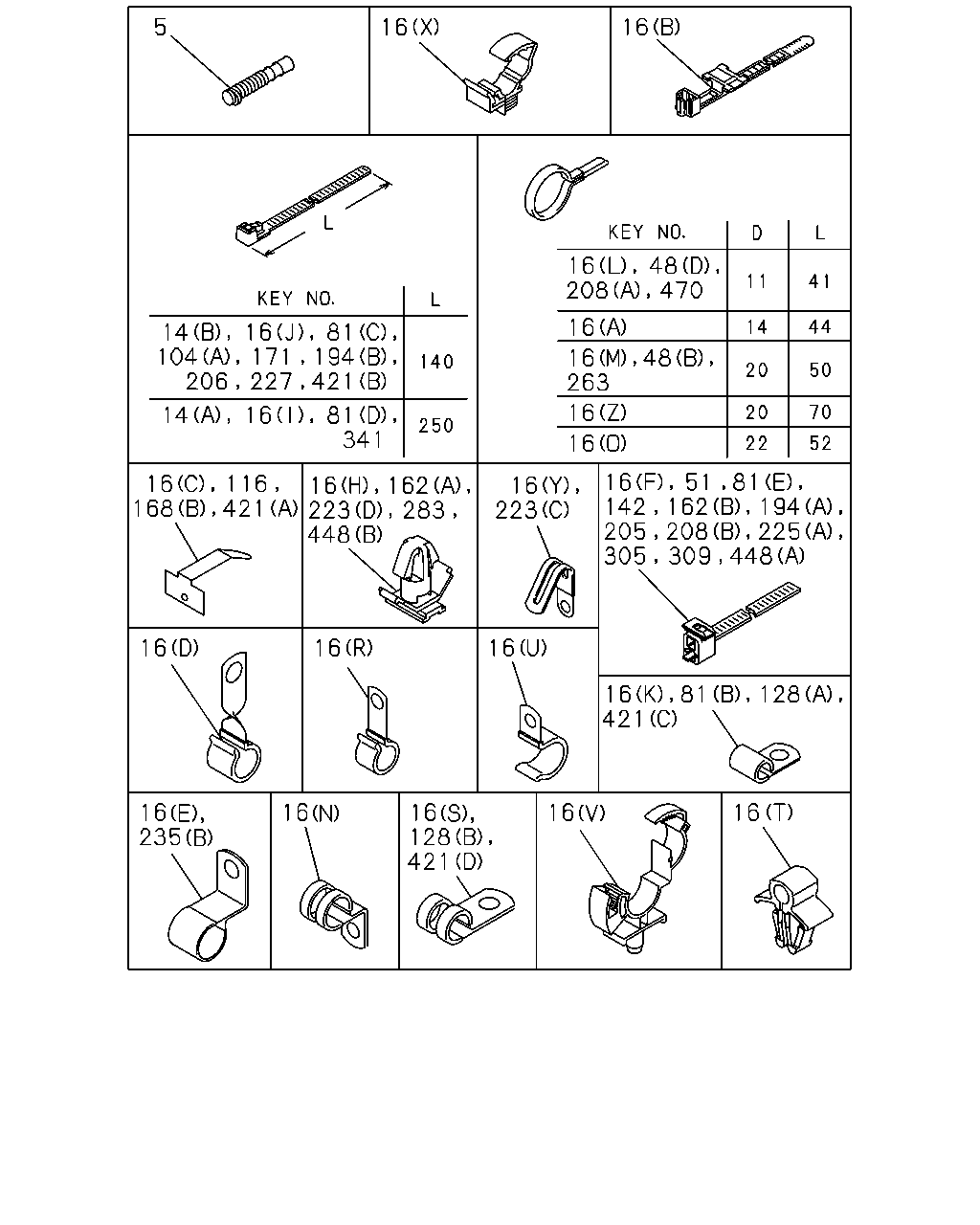

8-15 — FIXING PARTS; WIRING HARNESS (#6036) — 653 parça

5 16 16 16 48 470 208 16 48 16 263 16 16 341 81 16 14 206 227 421 194 171 104 14 16 81 16 116 168 421 16 162 223 283 448 223 16 51 81 194 162 16 142 205 208 225 448 309 305 128 81 16 421 16 16 16 16 16 16 235 16 16 128 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	GUIDE; HARNESS 6WG1 TC-C(72L) L=360	1-82699-476-1	01	1	9812-9901
5	GUIDE; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) L=360	1-82699-476-1	01	1	9902-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250	5-09707-030-1	02	1	9902-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=140	5-09707-031-1	01	1	9902-
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	08	1	9812-0001
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	07	1	0002-
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	01	1	9812-
16	CLIP; HARNESS (B) ID=15 L=42	1-09700-479-0	02	1	9812-
16	CLIP; HARNESS (R) ID=15 L=35	1-09700-507-0	01	1	9812-
16	CLIP; HARNESS (E) ID=15 H=30 L=30	1-09700-832-0	01	1	9812-9904
16	CLIP; HARNESS ZF M/T<X9E> (E) ID=15 H=30 L=30	1-09700-832-0	01	1	9905-0008
16	CLIP; HARNESS TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30	1-09700-832-0	01	1	0009-
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0006-
16	CLIP; HARNESS CAB UP +110MM<TGG> (N) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0006-
16	CLIP; HARNESS (T) ID=4.8	1-09701-218-0	01	1	9812-
16	CLIP; HARNESS (S) ID=19 L=32	1-09701-235-0	02	1	9812-
16	CLIP; HARNESS (P) L=300	1-09707-001-1	03	1	9812-
16	CLIP; HARNESS (F) L=180	1-09707-162-1	02	1	9812-9902
16	CLIP; HARNESS (F) L=180	1-09707-162-1	03	1	9903-
16	CLIP; HARNESS (G) WO/SPONGE RUBBER	1-09709-103-1	02	1	9812-
16	CLIP; HARNESS (G) W/SPONGE RUBBER	1-09709-150-0	01	1	9812-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9812-9902
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9812-9902
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	02	1	9903-9904
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	02	1	9905-
16	CLIP; HARNESS FULLER M/T<X9B> (H) OD=9 H=6	1-09709-178-0	02	1	9905-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	06	1	9812-
16	CLIP; HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	9812-
16	CLIP; HARNESS (X) ID=6-10 & 6-10	1-09709-192-1	01	1	9812-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9812-9904
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9812-9904
16	CLIP; HARNESS ZF M/T<X9E> (I) L=250	5-09707-030-1	01	1	9905-9907
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9905-9907
16	CLIP; HARNESS ZF M/T<X9E> (I) L=250	5-09707-030-1	03	1	9908-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	02	1	9812-9904
16	CLIP; HARNESS (I) L=250	5-09707-030-1	02	1	9905-
16	CLIP; HARNESS FULLER M/T<X9B> (I) L=250	5-09707-030-1	02	1	9905-
16	CLIP; HARNESS (J) L=140	5-09707-031-1	02	1	9812-9907
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9908-
16	CLIP; HARNESS (U)	8-94403-348-0	01	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0006-
16	CLIP; HARNESS (W) ID=7-10	8-94472-578-0	01	1	9812-
16	CLIP; HARNESS (V) ID=14-20	8-97061-603-0	03	1	9812-
16	CLIP; HARNESS (D) ID=15 L=42	9-09716-203-1	01	1	9812-9901
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9902-9904
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9902-9904
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9905-9908
16	CLIP; HARNESS ZF M/T<X9E> (K) ID=16 L=20	9-09525-535-0	01	1	9905-9908
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9909-
16	CLIP; HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (K) ID=16 L=20	9-09525-535-0	01	1	9909-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS 6WG1 TC-C(72L) (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	04	1	9812-0001
16	CLIP; HARNESS (J) L=140	5-09707-031-1	02	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	07	1	9812-9903
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	04	1	9904-0001
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	08	1	9812-9903
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	9904-9904
16	CLIP; HARNESS ZF M/T<X9E> (M) ID=11 L=41	1-09700-403-0	02	1	9905-0001
16	CLIP; HARNESS ZF M/T<X9E> (M) ID=11 L=41	1-09700-403-0	02	1	0002-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0002-
16	CLIP; HARNESS (O) ID=22 L=52	9-09917-431-0	03	1	9812-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9903-9904
16	CLIP; HARNESS ZF M/T<X9E> (H) OD=9 H=6	1-09709-178-0	03	1	9905-
16	CLIP; HARNESS (Z) ID=20 L=70	1-09700-485-0	04	1	9904-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	03	1	9904-
16	CLIP; HARNESS (J) L=140	5-09707-031-1	01	1	9908-9908
16	CLIP; HARNESS MJA7 M/T<X9Q> (J) L=140	5-09707-031-1	01	1	9908-9908
16	CLIP; HARNESS (J) L=140	5-09707-031-1	01	1	9909-0001
16	CLIP; HARNESS ISUZU M/T<X9A> (J) L=140	5-09707-031-1	01	1	9909-0001
16	CLIP; HARNESS ISUZU M/T<X9A> (J) L=140	5-09707-031-1	01	1	0002-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9812-9901
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9902-9902
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9902-9902
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9903-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24	9-09525-045-0	01	1	9903-
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (U)	8-94403-348-0	01	1	0006-
16	CLIP; HARNESS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (Y) L=36	8-94224-891-1	01	1	9905-
16	CLIP; HARNESS HIGH ROOF<S2F> (C) L=20	1-09987-246-2	02	1	9812-
16	CLIP; HARNESS MJA7 M/T<X9Q> (H) OD=9 H=6	1-09709-178-0	01	1	9905-
16	CLIP; HARNESS REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5	1-09709-179-0	01	1	9812-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20	1-09987-246-2	04	1	9812-
16	CLIP; HARNESS TRANSMISSION-ZF 16S221 OD(Y1U) (S) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0009-
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (M) ID=20 L=50	9-09917-430-0	07	1	9904-
16	CLIP; HARNESS WHEEL BASE 4700MM(47W) (M) ID=20 L=50	9-09917-430-0	08	1	9904-
16	CLIP; HARNESS EXC. ZF M/T<X9E> (K) ID=16 L=40	9-09525-576-0	01	1	9905-
16	CLIP; HARNESS 6WG1 TC-C(72L) (Q) ID=42.7 L=38	1-09700-583-1	01	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (Q) ID=42.7 L=38	1-09700-583-1	01	1	9902-
16	CLIP; HARNESS 6WG1 TC-C(72L) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	9902-
16	CLIP; HARNESS 6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	9812-9901
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	9902-0001
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	9902-0001
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	0002-
48	CLIP; FRAME HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9904-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	03	1	9812-
48	CLIP; FRAME HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9904-
48	CLIP; FRAME HARNESS EXC. CAB UP +110MM<TGG> (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9904-
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	04	1	9904-0005
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	03	1	0006-
48	CLIP; FRAME HARNESS (A) ID=24 H=40 L=24	1-09701-243-0	06	1	9812-9903
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-0	05	1	9812-9903
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-1	06	1	9812-
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-1	02	1	9812-
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	9812-9903
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	9812-9903
48	CLIP; FRAME HARNESS CAB UP +110MM<TGG> (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0006-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) L=180	1-09707-162-1	01	1	9812-
81	CLIP; HARNESS (D) L=250	5-09707-030-1	01	1	9812-
81	CLIP; HARNESS (C) L=140	5-09707-031-1	02	1	9812-9904
81	CLIP; HARNESS EXC. REINFORCEMENT BUMPER<VG7> (C) L=140	5-09707-031-1	02	1	9905-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	9-09525-025-0	01	1	9812-
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=7-10	8-94472-578-0	06	1	9812-9904
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	06	1	9905-9907
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	02	1	9908-
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	06	1	9908-
81	CLIP; HARNESS REINFORCEMENT BUMPER<VG7> (E) L=180	1-09707-162-1	02	1	9905-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5	1-09709-290-0	08	1	9812-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) L=140	5-09707-031-1	02	1	9812-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5	8-94178-108-0	02	1	9812-
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	04	1	9812-0009
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	05	1	0010-
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20	1-09987-246-2	03	1	9812-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	9812-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=19 L=32	9-09525-862-0	01	1	9812-0011
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0012-
142	CLIP; HARNESS,ENG 6WA1 TC-C(55L) L=180	1-09707-162-1	01	1	9902-9904
142	CLIP; HARNESS,ENG 6WA1 TC-C(55L),6WA1 TC-S(56L) L=180	1-09707-162-1	01	1	9905-9906
142	CLIP; HARNESS,ENG 6WA1 TC-C(55L) L=180	1-09707-162-1	01	1	9907-
142	CLIP; HARNESS,ENG 6WG1 TC-C(72L) L=180	1-09707-162-1	02	1	9812-9901
142	CLIP; HARNESS,ENG 6WG1 TC-N(71L),6WG1 TC-C(72L) L=180	1-09707-162-1	02	1	9902-
162	CLIP; SW HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	9812-9902
162	CLIP; SW HARNESS EXC. CAB UP +110MM<TGG> (A) OD=9 H=6	1-09709-178-0	01	1	9903-
162	CLIP; SW HARNESS CAB UP +110MM<TGG> (B) L=180	1-09707-162-1	01	1	9903-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	9812-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30	1-09987-265-0	01	1	0102-
171	CLIP; STARTER HARNESS L=140	5-09707-031-1	05	1	9812-
194	CLIP; BAND (C) L=300	1-09707-001-1	01	1	9812-
194	CLIP; BAND (A) L=180	1-09707-162-1	02	1	9812-
194	CLIP; BAND (B) L=140	5-09707-031-1	01	1	9812-
205	CLIP; BACK LAMP HARNESS L=180	1-09707-162-1	01	1	9812-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	9812-
208	CLIP; HARNESS,MAG VLV (B) L=250	1-09707-126-0	01	1	9903-
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=41	1-09700-403-0	01	1	9812-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) L=600	1-09707-107-0	01	1	9812-9903
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) L=180	1-09707-162-1	01	1	9904-9904
223	CLIP; AIR TANK HARNESS WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (A) L=180	1-09707-162-1	01	1	9905-
223	CLIP; AIR TANK HARNESS SILENCER SINGLE VERTICAL<N28> (B) ID=13-18 L=14.5	1-09709-290-0	02	1	9812-
223	CLIP; AIR TANK HARNESS EXC. SILENCER SINGLE VERTICAL<N28> (C) ID=5-12 L=18	1-09709-287-0	01	1	9812-
223	CLIP; AIR TANK HARNESS WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (D) OD=9 H=9.5	1-09709-179-0	01	1	9905-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	03	1	9812-
225	CLIP; AIR TANK HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (A) L=180	1-09707-162-1	01	1	9905-
225	CLIP; AIR TANK HARNESS EXC. SILENCER SINGLE VERTICAL<N28> (B) L=250	1-09707-126-0	01	1	9812-
225	CLIP; AIR TANK HARNESS (B) L=250	1-09707-126-0	01	1	9812-
227	CLIP; FOG LAMP HARNESS BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> L=140	5-09707-031-1	02	1	9812-
235	CLIP; HARNESS,SPD SENSOR,SSPS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=6 H=25 L=21	1-09700-432-0	01	1	9905-9907
235	CLIP; HARNESS,SPD SENSOR,SSPS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=13 H=29 L=30	1-09700-001-0	01	1	9908-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	01	1	9812-
283	CLIP; SUB SW HARNESS OD=9 H=6	1-09709-178-0	01	1	9812-
305	CLIP; ENG HARNESS L=180	1-09707-162-1	01	1	9812-
309	CLIP; HARNESS,HAND BRAKE CABLE L=180	1-09707-162-1	01	1	9812-
341	CLIP; BAND,STARTER RELAY L=250	5-09707-030-1	03	1	9812-
421	CLIP; FLOOR HARNESS (A) L=20	1-09987-246-2	12	1	9812-0101
421	CLIP; FLOOR HARNESS (A) L=20	1-09987-246-2	01	1	0102-
421	CLIP; FLOOR HARNESS (C) ID=16 L=20	9-09525-532-0	02	1	9812-9901
421	CLIP; FLOOR HARNESS 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (C) ID=16 L=20	9-09525-532-0	02	1	9902-9903
421	CLIP; FLOOR HARNESS ELECTRONIC GOV RED3(KG5) (C) ID=16 L=20	9-09525-532-0	02	1	9902-9903
421	CLIP; FLOOR HARNESS 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (D) ID=19 L=32	1-09701-235-0	02	1	9904-9904
421	CLIP; FLOOR HARNESS ELECTRONIC GOV RED3(KG5) (D) ID=19 L=32	1-09701-235-0	02	1	9904-9904
421	CLIP; FLOOR HARNESS 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (C) ID=19 L=20	9-09525-832-0	02	1	9905-
421	CLIP; FLOOR HARNESS ELECTRONIC GOV RED3(KG5) (C) ID=19 L=20	9-09525-832-0	02	1	9905-
421	CLIP; FLOOR HARNESS VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION A/C DELETE(TFA) (B) L=140	5-09707-031-1	01	1	9812-
448	CLIP; AIR SUSP HARNESS FULL FLOATING CAB(W16) (A) L=180	1-09707-162-1	01	1	9812-
448	CLIP; AIR SUSP HARNESS FULL FLOATING CAB(W16) (B) OD=9 H=6	1-09709-178-0	01	1	9812-
470	CLIP; HARNESS,LICENSE LAMP ID=11 L=41	1-09700-403-0	01	1	9812-

225 16 38 139 242 313 38 88 38 53 53 53 53 133 104 148 16 150 516 178 178 178 178 178 524 239 255 312 312 312 312 16 48 194 223 81 119 64 219 294 515 340 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	08	1	9812-0001
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	07	1	0002-
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	01	1	9812-
16	CLIP; HARNESS (B) ID=15 L=42	1-09700-479-0	02	1	9812-
16	CLIP; HARNESS (R) ID=15 L=35	1-09700-507-0	01	1	9812-
16	CLIP; HARNESS (E) ID=15 H=30 L=30	1-09700-832-0	01	1	9812-9904
16	CLIP; HARNESS ZF M/T<X9E> (E) ID=15 H=30 L=30	1-09700-832-0	01	1	9905-0008
16	CLIP; HARNESS TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30	1-09700-832-0	01	1	0009-
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0006-
16	CLIP; HARNESS CAB UP +110MM<TGG> (N) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0006-
16	CLIP; HARNESS (T) ID=4.8	1-09701-218-0	01	1	9812-
16	CLIP; HARNESS (S) ID=19 L=32	1-09701-235-0	02	1	9812-
16	CLIP; HARNESS (P) L=300	1-09707-001-1	03	1	9812-
16	CLIP; HARNESS (F) L=180	1-09707-162-1	02	1	9812-9902
16	CLIP; HARNESS (F) L=180	1-09707-162-1	03	1	9903-
16	CLIP; HARNESS (G) WO/SPONGE RUBBER	1-09709-103-1	02	1	9812-
16	CLIP; HARNESS (G) W/SPONGE RUBBER	1-09709-150-0	01	1	9812-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9812-9902
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9812-9902
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	02	1	9903-9904
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	02	1	9905-
16	CLIP; HARNESS FULLER M/T<X9B> (H) OD=9 H=6	1-09709-178-0	02	1	9905-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	06	1	9812-
16	CLIP; HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	9812-
16	CLIP; HARNESS (X) ID=6-10 & 6-10	1-09709-192-1	01	1	9812-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9812-9904
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9812-9904
16	CLIP; HARNESS ZF M/T<X9E> (I) L=250	5-09707-030-1	01	1	9905-9907
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9905-9907
16	CLIP; HARNESS ZF M/T<X9E> (I) L=250	5-09707-030-1	03	1	9908-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	02	1	9812-9904
16	CLIP; HARNESS (I) L=250	5-09707-030-1	02	1	9905-
16	CLIP; HARNESS FULLER M/T<X9B> (I) L=250	5-09707-030-1	02	1	9905-
16	CLIP; HARNESS (J) L=140	5-09707-031-1	02	1	9812-9907
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9908-
16	CLIP; HARNESS (U)	8-94403-348-0	01	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0006-
16	CLIP; HARNESS (W) ID=7-10	8-94472-578-0	01	1	9812-
16	CLIP; HARNESS (V) ID=14-20	8-97061-603-0	03	1	9812-
16	CLIP; HARNESS (D) ID=15 L=42	9-09716-203-1	01	1	9812-9901
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9902-9904
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9902-9904
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9905-9908
16	CLIP; HARNESS ZF M/T<X9E> (K) ID=16 L=20	9-09525-535-0	01	1	9905-9908
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9909-
16	CLIP; HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (K) ID=16 L=20	9-09525-535-0	01	1	9909-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS 6WG1 TC-C(72L) (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	04	1	9812-0001
16	CLIP; HARNESS (J) L=140	5-09707-031-1	02	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	07	1	9812-9903
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	04	1	9904-0001
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	08	1	9812-9903
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	9904-9904
16	CLIP; HARNESS ZF M/T<X9E> (M) ID=11 L=41	1-09700-403-0	02	1	9905-0001
16	CLIP; HARNESS ZF M/T<X9E> (M) ID=11 L=41	1-09700-403-0	02	1	0002-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0002-
16	CLIP; HARNESS (O) ID=22 L=52	9-09917-431-0	03	1	9812-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9903-9904
16	CLIP; HARNESS ZF M/T<X9E> (H) OD=9 H=6	1-09709-178-0	03	1	9905-
16	CLIP; HARNESS (Z) ID=20 L=70	1-09700-485-0	04	1	9904-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	03	1	9904-
16	CLIP; HARNESS (J) L=140	5-09707-031-1	01	1	9908-9908
16	CLIP; HARNESS MJA7 M/T<X9Q> (J) L=140	5-09707-031-1	01	1	9908-9908
16	CLIP; HARNESS (J) L=140	5-09707-031-1	01	1	9909-0001
16	CLIP; HARNESS ISUZU M/T<X9A> (J) L=140	5-09707-031-1	01	1	9909-0001
16	CLIP; HARNESS ISUZU M/T<X9A> (J) L=140	5-09707-031-1	01	1	0002-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9812-9901
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9902-9902
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9902-9902
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9903-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24	9-09525-045-0	01	1	9903-
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (U)	8-94403-348-0	01	1	0006-
16	CLIP; HARNESS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (Y) L=36	8-94224-891-1	01	1	9905-
16	CLIP; HARNESS HIGH ROOF<S2F> (C) L=20	1-09987-246-2	02	1	9812-
16	CLIP; HARNESS MJA7 M/T<X9Q> (H) OD=9 H=6	1-09709-178-0	01	1	9905-
16	CLIP; HARNESS REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5	1-09709-179-0	01	1	9812-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20	1-09987-246-2	04	1	9812-
16	CLIP; HARNESS TRANSMISSION-ZF 16S221 OD(Y1U) (S) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0009-
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (M) ID=20 L=50	9-09917-430-0	07	1	9904-
16	CLIP; HARNESS WHEEL BASE 4700MM(47W) (M) ID=20 L=50	9-09917-430-0	08	1	9904-
16	CLIP; HARNESS EXC. ZF M/T<X9E> (K) ID=16 L=40	9-09525-576-0	01	1	9905-
16	CLIP; HARNESS 6WG1 TC-C(72L) (Q) ID=42.7 L=38	1-09700-583-1	01	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (Q) ID=42.7 L=38	1-09700-583-1	01	1	9902-
16	CLIP; HARNESS 6WG1 TC-C(72L) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	9902-
16	CLIP; HARNESS 6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	9812-9901
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	9902-0001
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	9902-0001
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	0002-
38	BOLT; CLIP,HARNESS (C) M6X8	0-20800-608-0	01	1	9812-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28080-820-0	01	1	9812-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	07	1	9812-9907
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	06	1	9908-0005
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28680-820-0	05	1	0006-
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	10	1	9812-9903
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	03	1	9904-
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	07	1	9812-9903
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	09	1	9904-
38	BOLT; CLIP,HARNESS (A) M12X16 FLANGE	1-09044-079-0	01	1	9812-
38	BOLT; CLIP,HARNESS (B) M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	9812-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X12 FLANGE	0-28080-812-0	01	1	9812-9904
38	BOLT; CLIP,HARNESS (A) M8X12 FLANGE	0-28080-812-0	01	1	9812-9904
38	BOLT; CLIP,HARNESS (A) M8X12 FLANGE	0-28080-812-0	01	1	9905-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	01	1	9812-9908
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	01	1	9909-0005
38	BOLT; CLIP,HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (A) M8X20 FLANGE	0-28680-820-0	01	1	0006-
38	BOLT; CLIP,HARNESS CAB UP +110MM<TGG> (A) M8X20 FLANGE	0-28680-820-0	01	1	0006-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28680-820-0	01	1	0006-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE	0-28080-816-0	01	1	9905-
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9812-9901
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	02	1	9812-9901
38	BOLT; CLIP,HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9903
38	BOLT; CLIP,HARNESS (A) M8X30 FLANGE	0-28680-830-0	02	1	9902-9903
38	BOLT; CLIP,HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) M8X30 FLANGE	0-28680-830-0	02	1	9904-
48	CLIP; FRAME HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9904-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	03	1	9812-
48	CLIP; FRAME HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9904-
48	CLIP; FRAME HARNESS EXC. CAB UP +110MM<TGG> (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9904-
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	04	1	9904-0005
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	03	1	0006-
48	CLIP; FRAME HARNESS (A) ID=24 H=40 L=24	1-09701-243-0	06	1	9812-9903
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-0	05	1	9812-9903
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-1	06	1	9812-
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-1	02	1	9812-
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	9812-9903
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	9812-9903
48	CLIP; FRAME HARNESS CAB UP +110MM<TGG> (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0006-
53	BRACKET; HARNESS EXC. CAB UP +110MM<TGG> (C)	1-82699-826-0	01	1	9812-
53	BRACKET; HARNESS EXC. CAB UP +110MM<TGG> (B)	1-82699-916-0	01	1	9812-
53	BRACKET; HARNESS 6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> (D)	1-82699-239-0	02	1	9812-9901
53	BRACKET; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> (D)	1-82699-239-0	02	1	9902-
53	BRACKET; HARNESS 6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> (A)	1-82699-592-2	01	1	9812-9901
53	BRACKET; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> (A)	1-82699-592-2	01	1	9902-
64	SCREW; CLIP M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	9812-9901
64	SCREW; CLIP ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER	0-74100-612-0	02	1	9902-
64	SCREW; CLIP 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER	0-74100-612-0	01	1	9902-
81	CLIP; HARNESS (D) L=250	5-09707-030-1	01	1	9812-
81	CLIP; HARNESS (C) L=140	5-09707-031-1	02	1	9812-9904
81	CLIP; HARNESS EXC. REINFORCEMENT BUMPER<VG7> (C) L=140	5-09707-031-1	02	1	9905-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	9-09525-025-0	01	1	9812-
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> (A) ID=7-10	8-94472-578-0	06	1	9812-9904
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	06	1	9905-9907
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	02	1	9908-
81	CLIP; HARNESS BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10	8-94472-578-0	06	1	9908-
81	CLIP; HARNESS REINFORCEMENT BUMPER<VG7> (E) L=180	1-09707-162-1	02	1	9905-
88	BOLT; DOOR HARNESS EARTH POWER WINDOW<A30> M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	9812-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5	1-09709-290-0	08	1	9812-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) L=140	5-09707-031-1	02	1	9812-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5	8-94178-108-0	02	1	9812-
119	SCREW; DOOR HARNESS EARTH EXC. POWER WINDOW<A30> M5X14 W/PL WASHER	8-94447-551-0	02	1	9812-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	9812-
139	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE	0-28680-825-0	01	1	9812-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	9812-
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X12 W/LK WASHER	0-50040-812-0	01	1	9902-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	02	1	9812-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30	1-09987-265-0	01	1	0102-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	03	1	9812-9903
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	9904-
178	GROMMET; HARNESS (C) ID=24 OD=30 T=22	1-09332-104-0	01	1	9812-9903
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	9812-0007
178	GROMMET; HARNESS (B) ID=19 OD=23 T=18	9-09956-130-1	01	1	0008-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	9812-9903
178	GROMMET; HARNESS SILENCER SINGLE VERTICAL<N28> (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	9812-9903
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	9904-
178	GROMMET; HARNESS WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	9904-
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	03	1	9812-9903
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	02	1	9904-
178	GROMMET; HARNESS (F)	1-82699-891-0	01	1	9812-
194	CLIP; BAND (C) L=300	1-09707-001-1	01	1	9812-
194	CLIP; BAND (A) L=180	1-09707-162-1	02	1	9812-
194	CLIP; BAND (B) L=140	5-09707-031-1	01	1	9812-
219	NUT M8 FLANGE	0-91150-108-0	02	1	9812-9903
219	NUT M8 FLANGE	0-91150-108-0	02	1	9812-9903
219	NUT M8 FLANGE	0-91150-108-0	03	1	9904-9908
219	NUT M8 FLANGE	0-91150-108-0	03	1	9904-9908
219	NUT M8 FLANGE	0-91150-108-0	03	1	9909-
219	NUT M8 FLANGE	0-91150-108-0	10	1	9812-9903
219	NUT M8 FLANGE	0-91150-108-0	02	1	9904-9904
219	NUT ZF M/T<X9E> M8 FLANGE	0-91150-108-0	02	1	9905-9908
219	NUT FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9909-
219	NUT M8 FLANGE	0-91150-108-0	03	1	9812-9903
219	NUT M8 FLANGE	0-91150-108-0	09	1	9904-
219	NUT M8 FLANGE	0-91150-108-0	07	1	9812-9903
219	NUT M10 FLANGE	0-91250-210-0	01	1	9812-
219	NUT EXC. FULLER M/T<X9B>,ZF M/T<X9E> M10 FLANGE	0-91150-210-0	01	1	9905-
219	NUT MJA7 M/T<X9Q> M10 FLANGE	0-91150-210-0	01	1	9905-
219	NUT 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9812-9901
219	NUT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9902-9904
219	NUT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9905-9907
219	NUT EXC. ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9905-9907
219	NUT EXC. ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9908-9908
219	NUT M8 FLANGE	0-91150-108-0	04	1	9909-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) L=600	1-09707-107-0	01	1	9812-9903
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) L=180	1-09707-162-1	01	1	9904-9904
223	CLIP; AIR TANK HARNESS WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (A) L=180	1-09707-162-1	01	1	9905-
223	CLIP; AIR TANK HARNESS SILENCER SINGLE VERTICAL<N28> (B) ID=13-18 L=14.5	1-09709-290-0	02	1	9812-
223	CLIP; AIR TANK HARNESS EXC. SILENCER SINGLE VERTICAL<N28> (C) ID=5-12 L=18	1-09709-287-0	01	1	9812-
223	CLIP; AIR TANK HARNESS WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (D) OD=9 H=9.5	1-09709-179-0	01	1	9905-
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	03	1	9812-
225	CLIP; AIR TANK HARNESS CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (A) L=180	1-09707-162-1	01	1	9905-
225	CLIP; AIR TANK HARNESS EXC. SILENCER SINGLE VERTICAL<N28> (B) L=250	1-09707-126-0	01	1	9812-
225	CLIP; AIR TANK HARNESS (B) L=250	1-09707-126-0	01	1	9812-
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9812-
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9812-
242	BOLT; BRKT,HARNESS M8X12 FLANGE	0-28080-812-0	01	1	9812-
242	BOLT; BRKT,HARNESS M8X20 FLANGE	0-28080-820-0	02	1	9812-9907
242	BOLT; BRKT,HARNESS M8X20 FLANGE	0-28680-820-0	02	1	9812-
242	BOLT; BRKT,HARNESS M10X20 FLANGE	0-28681-020-0	02	1	9812-
242	BOLT; BRKT,HARNESS EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28080-820-0	04	1	9812-9901
242	BOLT; BRKT,HARNESS 6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28080-820-0	04	1	9812-9901
242	BOLT; BRKT,HARNESS EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28080-820-0	04	1	9902-9910
242	BOLT; BRKT,HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28080-820-0	04	1	9902-9910
242	BOLT; BRKT,HARNESS EXC. CAB UP +110MM<TGG> M8X18 FLANGE	0-28080-818-0	04	1	9911-
242	BOLT; BRKT,HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> M8X18 FLANGE	0-28080-818-0	04	1	9911-
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74305-620-0	02	1	9812-
294	NUT M8 FLANGE	0-91150-108-0	01	1	9812-9901
294	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9812-9901
294	NUT 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9812-9901
294	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	9812-9901
294	NUT M8 FLANGE	0-91150-108-0	01	1	9902-9904
294	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9902-9904
294	NUT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9902-9904
294	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	9902-9904
294	NUT M8 FLANGE	0-91150-108-0	01	1	9905-9907
294	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9905-9907
294	NUT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9905-9907
294	NUT FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	9905-9907
294	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	9905-9907
294	NUT M8 FLANGE	0-91150-108-0	01	1	9908-9908
294	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9908-9908
294	NUT ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	9908-9908
294	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	9908-9908
294	NUT M8 FLANGE	0-91150-108-0	01	1	9909-
294	NUT ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9909-
294	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9909-
294	NUT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	9909-
294	NUT 6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	9812-9901
294	NUT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	9902-
312	BRACKET; CLIP HARNESS (B) L=120 H=35	1-82699-970-0	01	1	9812-9901
312	BRACKET; CLIP HARNESS (F) L=120	1-82699-465-0	01	1	9902-0007
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),CAB UP +110MM<TGG> (E)	1-82699-593-1	01	1	9812-9907
312	BRACKET; CLIP HARNESS CAB UP +110MM<TGG> (C) L=60 H=30	1-47477-716-1	01	1	9812-
312	BRACKET; CLIP HARNESS CAB UP +110MM<TGG> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82699-825-0	01	1	9812-9907
312	BRACKET; CLIP HARNESS FULLER M/T<X9B> (B) L=120 H=35	1-82699-970-0	01	1	9905-9907
312	BRACKET; CLIP HARNESS ISUZU M/T<X9A>,FULLER M/T<X9B> (B) L=120 H=35	1-82699-970-0	01	1	9908-9908
312	BRACKET; CLIP HARNESS ISUZU M/T<X9A> (B) L=120 H=35	1-82699-970-0	01	1	9909-0007
312	BRACKET; CLIP HARNESS (B) L=120 H=35	1-82699-970-0	01	1	0008-
312	BRACKET; CLIP HARNESS ISUZU M/T<X9A> (B) L=120 H=35	1-82699-970-0	01	1	0008-
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (D)	1-47477-156-2	01	1	9812-9901
312	BRACKET; CLIP HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (D)	1-47477-156-2	01	1	9902-
313	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9812-9901
313	BOLT; BRKT CAB UP +110MM<TGG> M8X30 FLANGE	0-28680-830-0	01	1	9812-9901
313	BOLT; BRKT 6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9812-9901
313	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9902-9904
313	BOLT; BRKT CAB UP +110MM<TGG> M8X30 FLANGE	0-28680-830-0	01	1	9902-9904
313	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9902-9904
313	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9905-9907
313	BOLT; BRKT CAB UP +110MM<TGG> M8X30 FLANGE	0-28680-830-0	01	1	9905-9907
313	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9905-9907
313	BOLT; BRKT FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	01	1	9905-9907
313	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9908-9908
313	BOLT; BRKT CAB UP +110MM<TGG> M8X30 FLANGE	0-28680-830-0	01	1	9908-9908
313	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9908-9908
313	BOLT; BRKT ISUZU M/T<X9A>,FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	01	1	9908-9908
313	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	9909-
313	BOLT; BRKT ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9909-
313	BOLT; BRKT CAB UP +110MM<TGG> M8X30 FLANGE	0-28680-830-0	01	1	9909-
313	BOLT; BRKT 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8X30 FLANGE	0-28680-830-0	01	1	9909-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91150-108-0	01	1	9812-9901
340	NUT; HARNESS CAB TO FRAME 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9812-9901
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91150-108-0	01	1	9902-
340	NUT; HARNESS CAB TO FRAME 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	9902-
515	NUT; BRKT M10	9-09110-510-0	02	1	9812-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9812-
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	02	1	9812-

16 104 178 223 48 235 312 312 324 423 375 510 342 334 530 530 185 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	08	1	9812-0001
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	07	1	0002-
16	CLIP; HARNESS (L) ID=11 L=41	1-09700-403-0	01	1	9812-
16	CLIP; HARNESS (B) ID=15 L=42	1-09700-479-0	02	1	9812-
16	CLIP; HARNESS (R) ID=15 L=35	1-09700-507-0	01	1	9812-
16	CLIP; HARNESS (E) ID=15 H=30 L=30	1-09700-832-0	01	1	9812-9904
16	CLIP; HARNESS ZF M/T<X9E> (E) ID=15 H=30 L=30	1-09700-832-0	01	1	9905-0008
16	CLIP; HARNESS TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30	1-09700-832-0	01	1	0009-
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0006-
16	CLIP; HARNESS CAB UP +110MM<TGG> (N) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0006-
16	CLIP; HARNESS (T) ID=4.8	1-09701-218-0	01	1	9812-
16	CLIP; HARNESS (S) ID=19 L=32	1-09701-235-0	02	1	9812-
16	CLIP; HARNESS (P) L=300	1-09707-001-1	03	1	9812-
16	CLIP; HARNESS (F) L=180	1-09707-162-1	02	1	9812-9902
16	CLIP; HARNESS (F) L=180	1-09707-162-1	03	1	9903-
16	CLIP; HARNESS (G) WO/SPONGE RUBBER	1-09709-103-1	02	1	9812-
16	CLIP; HARNESS (G) W/SPONGE RUBBER	1-09709-150-0	01	1	9812-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9812-9902
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9812-9902
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	02	1	9903-9904
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	02	1	9905-
16	CLIP; HARNESS FULLER M/T<X9B> (H) OD=9 H=6	1-09709-178-0	02	1	9905-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	06	1	9812-
16	CLIP; HARNESS (H) OD=9 H=13.5	1-09709-180-0	01	1	9812-
16	CLIP; HARNESS (X) ID=6-10 & 6-10	1-09709-192-1	01	1	9812-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9812-9904
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9812-9904
16	CLIP; HARNESS ZF M/T<X9E> (I) L=250	5-09707-030-1	01	1	9905-9907
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9905-9907
16	CLIP; HARNESS ZF M/T<X9E> (I) L=250	5-09707-030-1	03	1	9908-
16	CLIP; HARNESS (I) L=250	5-09707-030-1	02	1	9812-9904
16	CLIP; HARNESS (I) L=250	5-09707-030-1	02	1	9905-
16	CLIP; HARNESS FULLER M/T<X9B> (I) L=250	5-09707-030-1	02	1	9905-
16	CLIP; HARNESS (J) L=140	5-09707-031-1	02	1	9812-9907
16	CLIP; HARNESS (I) L=250	5-09707-030-1	01	1	9908-
16	CLIP; HARNESS (U)	8-94403-348-0	01	1	9812-0005
16	CLIP; HARNESS (N) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0006-
16	CLIP; HARNESS (W) ID=7-10	8-94472-578-0	01	1	9812-
16	CLIP; HARNESS (V) ID=14-20	8-97061-603-0	03	1	9812-
16	CLIP; HARNESS (D) ID=15 L=42	9-09716-203-1	01	1	9812-9901
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9902-9904
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9902-9904
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9905-9908
16	CLIP; HARNESS ZF M/T<X9E> (K) ID=16 L=20	9-09525-535-0	01	1	9905-9908
16	CLIP; HARNESS (K) ID=16 L=20	9-09525-535-0	01	1	9909-
16	CLIP; HARNESS FULLER M/T<X9B>,ZF M/T<X9E> (K) ID=16 L=20	9-09525-535-0	01	1	9909-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS 6WG1 TC-C(72L) (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9812-9901
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	01	1	9902-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	04	1	9812-0001
16	CLIP; HARNESS (J) L=140	5-09707-031-1	02	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	07	1	9812-9903
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	04	1	9904-0001
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	03	1	0002-
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	08	1	9812-9903
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	9904-9904
16	CLIP; HARNESS ZF M/T<X9E> (M) ID=11 L=41	1-09700-403-0	02	1	9905-0001
16	CLIP; HARNESS ZF M/T<X9E> (M) ID=11 L=41	1-09700-403-0	02	1	0002-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0002-
16	CLIP; HARNESS (O) ID=22 L=52	9-09917-431-0	03	1	9812-
16	CLIP; HARNESS (H) OD=9 H=6	1-09709-178-0	03	1	9903-9904
16	CLIP; HARNESS ZF M/T<X9E> (H) OD=9 H=6	1-09709-178-0	03	1	9905-
16	CLIP; HARNESS (Z) ID=20 L=70	1-09700-485-0	04	1	9904-
16	CLIP; HARNESS (A) ID=14 L=44	9-09917-427-0	03	1	9904-
16	CLIP; HARNESS (J) L=140	5-09707-031-1	01	1	9908-9908
16	CLIP; HARNESS MJA7 M/T<X9Q> (J) L=140	5-09707-031-1	01	1	9908-9908
16	CLIP; HARNESS (J) L=140	5-09707-031-1	01	1	9909-0001
16	CLIP; HARNESS ISUZU M/T<X9A> (J) L=140	5-09707-031-1	01	1	9909-0001
16	CLIP; HARNESS ISUZU M/T<X9A> (J) L=140	5-09707-031-1	01	1	0002-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9812-9901
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9902-9902
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9902-9902
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=16	9-09525-025-0	01	1	9903-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 L=24	9-09525-045-0	01	1	9903-
16	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (U)	8-94403-348-0	01	1	0006-
16	CLIP; HARNESS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (Y) L=36	8-94224-891-1	01	1	9905-
16	CLIP; HARNESS HIGH ROOF<S2F> (C) L=20	1-09987-246-2	02	1	9812-
16	CLIP; HARNESS MJA7 M/T<X9Q> (H) OD=9 H=6	1-09709-178-0	01	1	9905-
16	CLIP; HARNESS REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5	1-09709-179-0	01	1	9812-
16	CLIP; HARNESS SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (C) L=20	1-09987-246-2	04	1	9812-
16	CLIP; HARNESS TRANSMISSION-ZF 16S221 OD(Y1U) (S) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0009-
16	CLIP; HARNESS WHEEL BASE 4500MM(45W) (M) ID=20 L=50	9-09917-430-0	07	1	9904-
16	CLIP; HARNESS WHEEL BASE 4700MM(47W) (M) ID=20 L=50	9-09917-430-0	08	1	9904-
16	CLIP; HARNESS EXC. ZF M/T<X9E> (K) ID=16 L=40	9-09525-576-0	01	1	9905-
16	CLIP; HARNESS 6WG1 TC-C(72L) (Q) ID=42.7 L=38	1-09700-583-1	01	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (Q) ID=42.7 L=38	1-09700-583-1	01	1	9902-
16	CLIP; HARNESS 6WG1 TC-C(72L) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (N) ID=20 H=23 L=27	1-09700-861-0	01	1	9902-
16	CLIP; HARNESS 6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	9812-9901
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	9812-9901
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	9902-0001
16	CLIP; HARNESS (M) ID=20 L=50	9-09917-430-0	02	1	9902-0001
16	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (M) ID=20 L=50	9-09917-430-0	02	1	0002-
48	CLIP; FRAME HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	9904-
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	04	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	03	1	9812-
48	CLIP; FRAME HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	02	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9904-
48	CLIP; FRAME HARNESS EXC. CAB UP +110MM<TGG> (A) ID=35 H=45 L=33	1-09700-947-0	01	1	9904-
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9812-9903
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	04	1	9904-0005
48	CLIP; FRAME HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	03	1	0006-
48	CLIP; FRAME HARNESS (A) ID=24 H=40 L=24	1-09701-243-0	06	1	9812-9903
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-0	05	1	9812-9903
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-1	06	1	9812-
48	CLIP; FRAME HARNESS (C) L=300	1-09707-001-1	02	1	9812-
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	9812-9903
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	9812-9903
48	CLIP; FRAME HARNESS CAB UP +110MM<TGG> (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0006-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (C) ID=13-18 L=14.5	1-09709-290-0	08	1	9812-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (A) L=140	5-09707-031-1	02	1	9812-
104	CLIP; HEADLAMP HARNESS BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5	8-94178-108-0	02	1	9812-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	03	1	9812-9903
178	GROMMET; HARNESS (A) ID=28 OD=35 T=25	1-09332-011-1	02	1	9904-
178	GROMMET; HARNESS (C) ID=24 OD=30 T=22	1-09332-104-0	01	1	9812-9903
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	9812-0007
178	GROMMET; HARNESS (B) ID=19 OD=23 T=18	9-09956-130-1	01	1	0008-
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	9812-9903
178	GROMMET; HARNESS SILENCER SINGLE VERTICAL<N28> (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	9812-9903
178	GROMMET; HARNESS (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	9904-
178	GROMMET; HARNESS WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (D) ID=15 OD=20 T=26	1-09332-132-0	01	1	9904-
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	03	1	9812-9903
178	GROMMET; HARNESS (E) ID=32 OD=40 T=18	1-09891-003-0	02	1	9904-
178	GROMMET; HARNESS (F)	1-82699-891-0	01	1	9812-
185	SLEEVE; RUBBER ID=6 L=30	5-09360-352-0	01	1	0005-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) L=600	1-09707-107-0	01	1	9812-9903
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) L=180	1-09707-162-1	01	1	9904-9904
223	CLIP; AIR TANK HARNESS WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (A) L=180	1-09707-162-1	01	1	9905-
223	CLIP; AIR TANK HARNESS SILENCER SINGLE VERTICAL<N28> (B) ID=13-18 L=14.5	1-09709-290-0	02	1	9812-
223	CLIP; AIR TANK HARNESS EXC. SILENCER SINGLE VERTICAL<N28> (C) ID=5-12 L=18	1-09709-287-0	01	1	9812-
223	CLIP; AIR TANK HARNESS WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (D) OD=9 H=9.5	1-09709-179-0	01	1	9905-
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	9902-
235	CLIP; HARNESS,SPD SENSOR,SSPS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=6 H=25 L=21	1-09700-432-0	01	1	9905-9907
235	CLIP; HARNESS,SPD SENSOR,SSPS EXC. FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=13 H=29 L=30	1-09700-001-0	01	1	9908-
312	BRACKET; CLIP HARNESS (B) L=120 H=35	1-82699-970-0	01	1	9812-9901
312	BRACKET; CLIP HARNESS (F) L=120	1-82699-465-0	01	1	9902-0007
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),CAB UP +110MM<TGG> (E)	1-82699-593-1	01	1	9812-9907
312	BRACKET; CLIP HARNESS CAB UP +110MM<TGG> (C) L=60 H=30	1-47477-716-1	01	1	9812-
312	BRACKET; CLIP HARNESS CAB UP +110MM<TGG> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-82699-825-0	01	1	9812-9907
312	BRACKET; CLIP HARNESS FULLER M/T<X9B> (B) L=120 H=35	1-82699-970-0	01	1	9905-9907
312	BRACKET; CLIP HARNESS ISUZU M/T<X9A>,FULLER M/T<X9B> (B) L=120 H=35	1-82699-970-0	01	1	9908-9908
312	BRACKET; CLIP HARNESS ISUZU M/T<X9A> (B) L=120 H=35	1-82699-970-0	01	1	9909-0007
312	BRACKET; CLIP HARNESS (B) L=120 H=35	1-82699-970-0	01	1	0008-
312	BRACKET; CLIP HARNESS ISUZU M/T<X9A> (B) L=120 H=35	1-82699-970-0	01	1	0008-
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (D)	1-47477-156-2	01	1	9812-9901
312	BRACKET; CLIP HARNESS 6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) (D)	1-47477-156-2	01	1	9902-
324	BRACKET; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=110	1-82699-589-0	01	1	9812-
334	BRACKET	1-53458-709-1	01	1	9812-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	9812-0007
342	BRACKET; HARNESS CAB MTG EXC. ZF M/T<X9E>	1-82699-625-0	01	1	0008-
342	BRACKET; HARNESS CAB MTG ZF M/T<X9E>	1-82698-224-0	01	1	0008-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	9812-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	02	1	9812-
510	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	02	1	9812-9901
510	GROMMET; SCREW ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8	8-94222-314-0	02	1	9902-
510	GROMMET; SCREW 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8	8-94222-314-0	01	1	9902-
530	SEAL; HARNESS (B) 180X40	1-72498-019-0	06	1	9812-9901
530	SEAL; HARNESS 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 180X40	1-72498-019-0	06	1	9902-0101
530	SEAL; HARNESS ELECTRONIC GOV RED3(KG5) (B) 180X40	1-72498-019-0	06	1	9902-0101
530	SEAL; HARNESS 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 180X40	1-72498-019-0	04	1	0102-
530	SEAL; HARNESS ELECTRONIC GOV RED3(KG5) (B) 180X40	1-72498-019-0	04	1	0102-
530	SEAL; HARNESS (B) 180X40	1-72498-019-0	02	1	9812-0101
530	SEAL; HARNESS (B) 180X40	1-72498-019-0	01	1	0102-
530	SEAL; HARNESS (B) 180X40	1-72498-019-0	07	1	0102-
530	SEAL; HARNESS EXC. HIGH ROOF<S2F> (A) 100X30	1-72498-014-1	01	1	9812-9903
530	SEAL; HARNESS EXC. HIGH ROOF<S2F> (A) 100X40	1-72498-022-0	01	1	9904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
