6-20 — SIDE PANEL AND STEP (#60355) — 119 parça

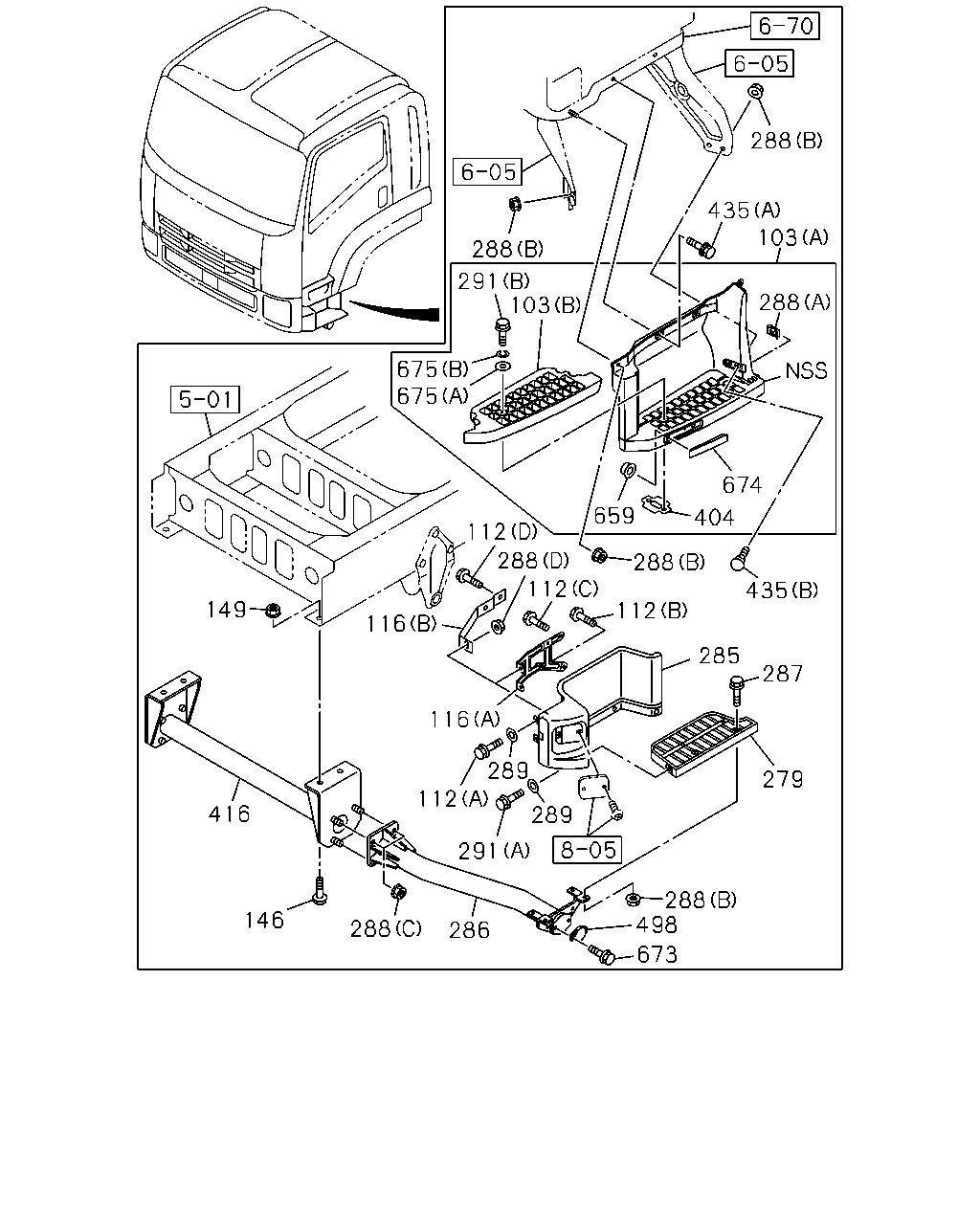

çizim 164320
288 435 103 288 291 103 288 675 675 674 659 404 112 288 288 116 112 435 149 112 285 287 116 289 279 112 416 289 291 288 498 146 288 286 673
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
(A) 		8-98080-625-2 01 1 0906-
103 PLATE; STEP
(B) 		8-98080-631-0 01 1 0906-
103 PLATE; STEP
(A) 		8-98080-624-2 01 1 0906-
103 PLATE; STEP
(B) 		8-98080-630-0 01 1 0906-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 04 1 0906-1112
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1201-
112 BOLT; 1ST STEP
(B) M6X25 FLANGE 		0-28050-625-0 02 1 0906-1112
112 BOLT; 1ST STEP
(D) M8X12 FLANGE 		0-28050-812-0 04 1 1201-
112 BOLT; 1ST STEP
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0906-1112
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1201-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-133-1 01 1 0906-1112
116 STAY; 1ST STEP,FRT
(B) 		8-98196-756-0 02 1 1201-
116 STAY; 1ST STEP,FRT
(A) 		8-98062-134-1 01 1 0906-1112
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 0906-
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 0906-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 0906-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 0906-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 0906-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 0906-
286 STEP ASM; 1ST 8-98082-430-2 01 1 0906-
286 STEP ASM; 1ST 8-98082-431-2 01 1 0906-
287 BOLT; BOARD STEP
M8X40 FLANGE 		0-28650-840-0 08 1 0906-1107
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1108-
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1201-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1106-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1005-1005
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 0906-1004
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1005-1005
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 18 1 1006-1105
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1106-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0906-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0906-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 0906-
291 BOLT; STEP PLATE
(A) M6X12 FLANGE 		0-28050-612-0 06 1 0906-
291 BOLT; STEP PLATE
(B) 		8-98112-671-0 08 1 0906-1006
291 BOLT; STEP PLATE
(B) 		8-98165-009-0 08 1 1007-
404 BRACKET 8-98080-646-1 04 1 0906-
416 BRACKET; ASSIST STEP 8-98053-542-4 01 1 0906-
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0906-0907
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0906-
498 REFLECTOR 1-82290-011-1 02 1 0906-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0906-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 0906-
674 COVER; REFLECTOR 8-98092-734-0 01 1 0906-
674 COVER; REFLECTOR 8-98092-733-0 01 1 0906-
675 WASHER; STEP PLATE
(A) 		8-98112-672-1 08 1 0906-
675 WASHER; STEP PLATE
(B) 		8-98112-673-1 08 1 0906-

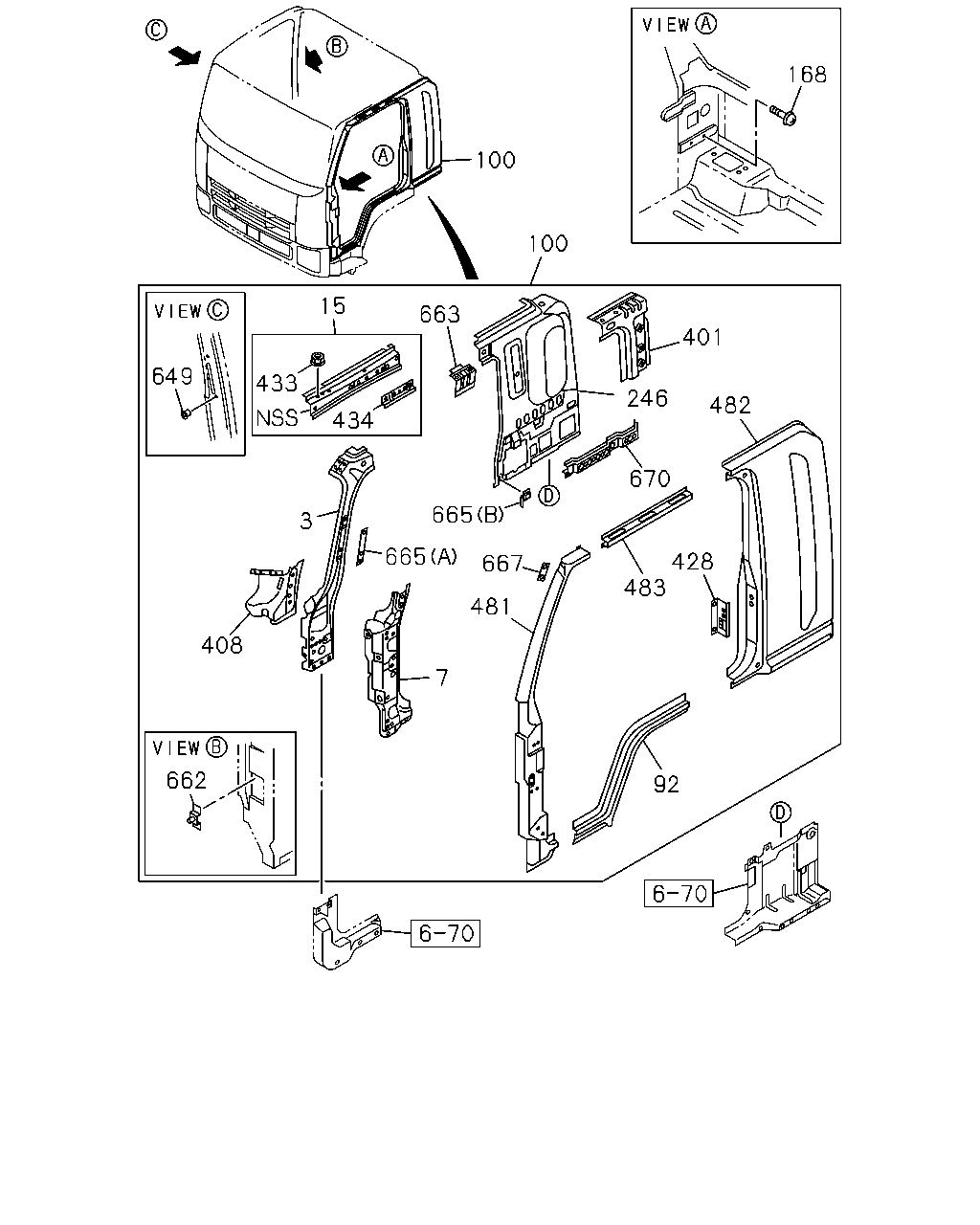

çizim 164476
168 100 100 15 663 401 649 433 246 434 482 670 665 3 665 428 483 667 481 408 7 662 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0906-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0906-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0906-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0906-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0906-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0906-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0906-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0906-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-6 01 1 1006-1101
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-97586-071-6 01 1 1102-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-5 01 1 0906-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0906-1101
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0906-1101
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 1102-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 1102-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-065-6 01 1 0906-
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98044-544-5 01 1 0906-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-079-6 01 1 0906-1005
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-7 01 1 1006-1101
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-079-7 01 1 1006-1101
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-7 01 1 1102-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-079-7 01 1 1102-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0906-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0906-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0906-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0906-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0906-
408 GUSSET; PILLAR 8-97586-194-2 01 1 0906-
408 GUSSET; PILLAR 8-97586-193-3 01 1 0906-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0906-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0906-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0906-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0906-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0906-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 1006-1101
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98072-714-1 01 1 1102-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98093-579-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0906-1101
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0906-1101
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>,LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 1102-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 1102-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-471-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-915-0 01 1 0906-1005
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1006-1101
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-915-0 01 1 1006-1101
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1102-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-915-0 01 1 1102-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0906-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0906-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0906-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0906-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0906-
662 BRACKET; DUCT 8-97584-611-1 01 1 0906-
663 BRACKET; AIR 8-97585-208-2 01 1 0906-
663 BRACKET; AIR 8-97585-207-2 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0906-
667 BRACKET; MIRROR 8-98109-948-0 01 1 0906-1005
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1006-1101
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1006-1101
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF>,LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1102-
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1102-
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 01 1 1102-
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9>,O/SIDE MIRROR UNDER &SIDE UNDER VIEW<TAF> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1102-
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 02 1 0906-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0906-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0906-
