6-05 — FRONT PANEL (#60353) — 412 parça

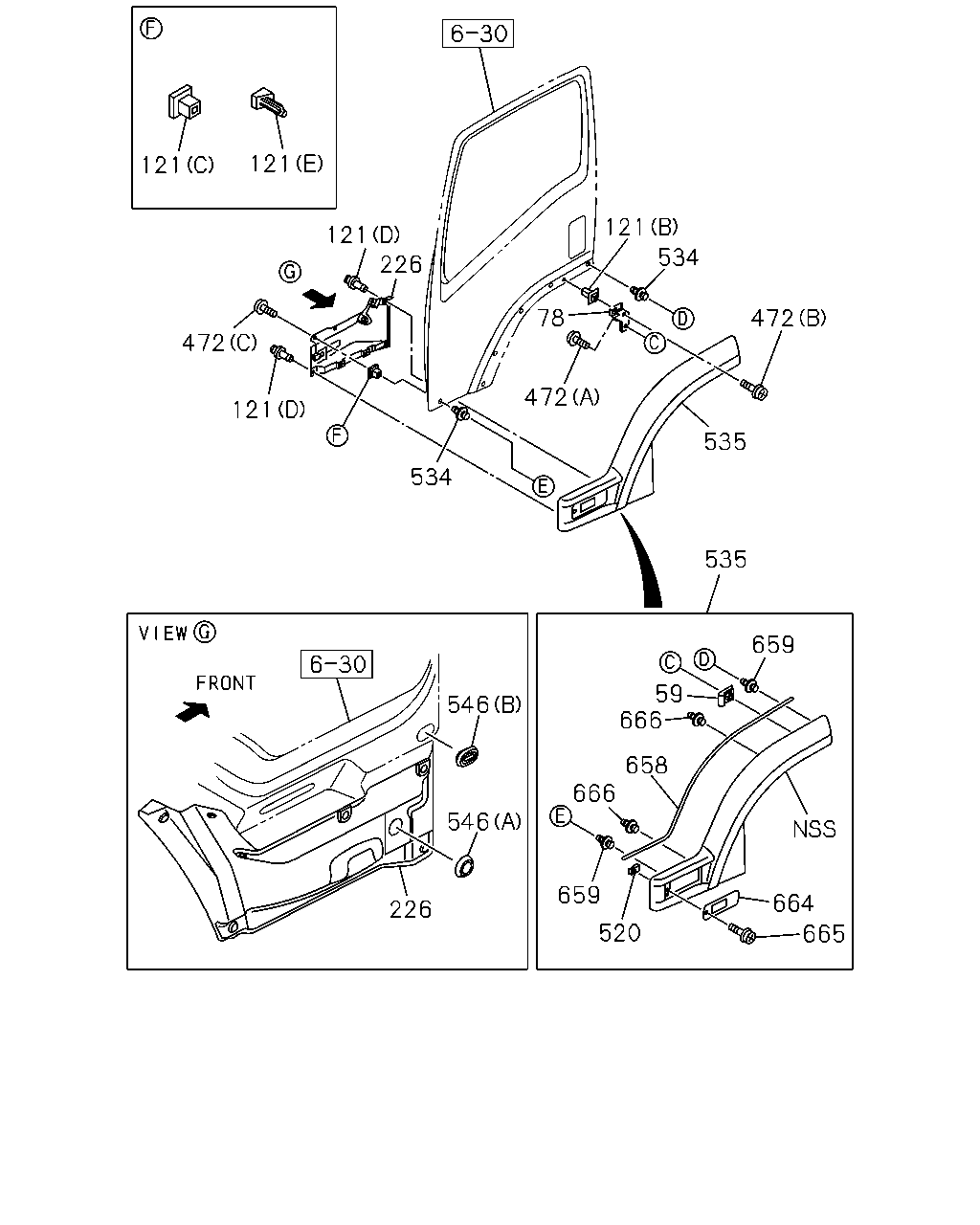

çizim 164472
121 121 121 121 534 226 78 472 472 472 121 535 534 535 659 59 666 546 658 666 546 659 664 226 520 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 0906-
59 GROMMET; SCREW 8-94279-723-0 08 1 0906-
78 BRACKET; FENDER 8-98041-166-1 01 1 0906-
78 BRACKET; FENDER 8-98041-165-1 01 1 0906-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0906-
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 0906-
121 GROMMET; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 0906-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 0906-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0906-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0906-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0906-
226 PROTECTOR; FRT 8-98080-915-1 01 1 0906-
226 PROTECTOR; FRT 8-98080-914-1 01 1 0906-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0906-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0906-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0906-
520 NUT; FENDER 8-94279-501-0 02 1 0906-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0906-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97417-718-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97417-728-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97417-719-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97417-729-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97417-720-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97417-730-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97417-721-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97417-731-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97417-722-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97417-732-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97417-723-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97417-733-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97417-724-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97417-734-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97417-725-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97417-735-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-726-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-736-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97417-727-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97417-737-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97412-855-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97412-848-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97412-856-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97412-849-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97412-859-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97412-852-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97412-858-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97412-851-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97412-857-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97412-850-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97412-860-3 01 1 0906-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97412-853-3 01 1 0906-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98080-876-2 01 1 0906-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> 		8-98080-875-2 01 1 0906-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0906-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0906-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0906-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0906-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 0906-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97418-016-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-609-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97418-055-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-620-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97418-018-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-610-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97418-056-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-621-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97418-020-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-611-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97418-057-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-622-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97418-022-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-612-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97418-058-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-623-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97418-024-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-613-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97418-059-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-624-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97418-026-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-614-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97418-060-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-625-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97418-028-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-615-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97418-061-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-626-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97418-030-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-616-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97418-062-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-627-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97418-053-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-617-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97418-063-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-628-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97418-054-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-618-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97418-064-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-629-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98075-506-0 01 1 0906-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98075-507-0 01 1 0906-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-143-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-597-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97413-142-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-469-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-627-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-637-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-621-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-471-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-630-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-481-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-624-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-477-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-629-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-479-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-623-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-475-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-628-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-640-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-622-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-473-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-631-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-483-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-625-0 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-634-0 01 1 1008-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 0906-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0906-

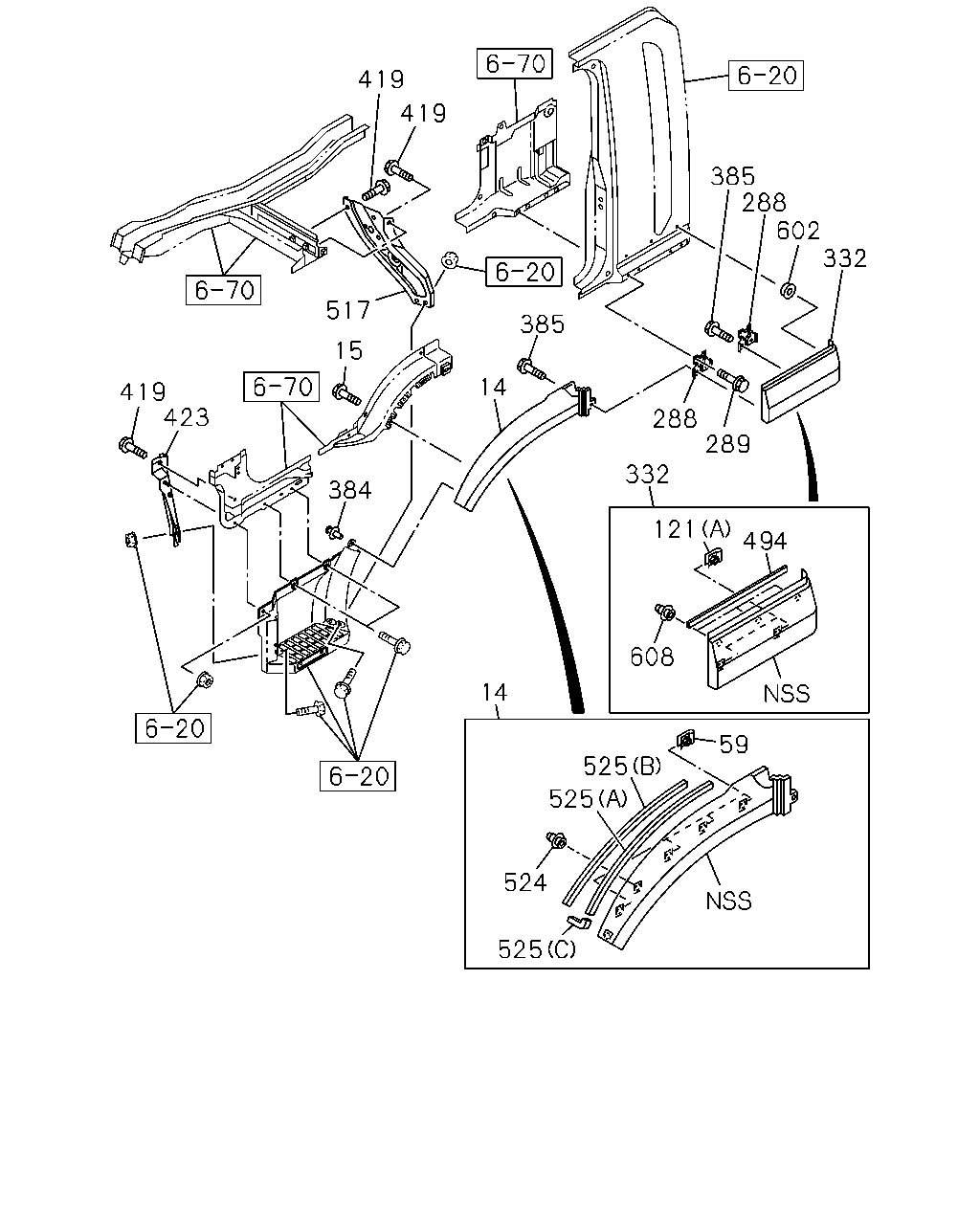

çizim 164474
419 419 385 288 602 332 517 385 15 14 419 423 288 289 332 384 121 494 608 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0906-
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0906-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0906-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0906-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 0906-
59 GROMMET; SCREW 8-94279-723-0 02 1 0906-
59 GROMMET; SCREW 8-94279-723-0 08 1 0906-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0906-
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 0906-
121 GROMMET; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 0906-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 0906-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0906-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0906-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0906-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 0906-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 0906-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 0906-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 0906-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 0906-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 0906-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 0906-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 0906-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 0906-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 0906-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 0906-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 0906-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 0906-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 0906-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 0906-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 0906-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 0906-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 0906-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 0906-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 0906-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 0906-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 0906-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 0906-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 0906-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 0906-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 0906-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 0906-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 0906-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 0906-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 0906-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 0906-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 0906-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 0906-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 0906-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 0906-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 0906-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0906-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 0906-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0906-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0906-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0906-
494 FINISHER; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98072-723-0 01 1 0906-
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98072-723-0 01 1 0906-
494 FINISHER; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-172-1 01 1 0906-
494 FINISHER; FENDER
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-172-1 01 1 0906-
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 0906-
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 0906-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0906-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0906-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0906-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0906-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 0906-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303-
608 CLIP 8-98282-490-0 02 1 1408-
608 CLIP
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 0906-
608 CLIP
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 0906-

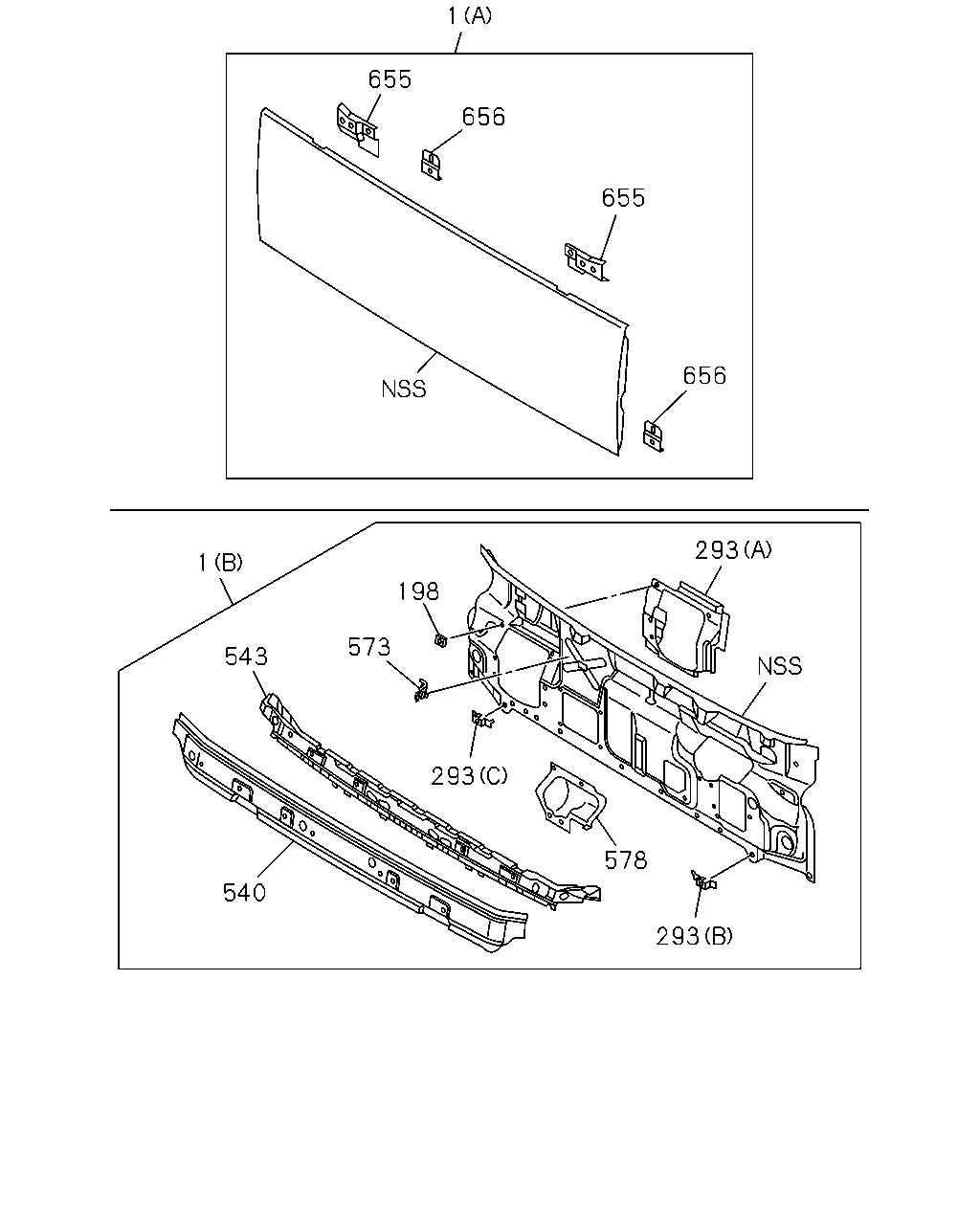

çizim 164482
1 655 656 655 656 293 1 198 573 543 293 578 540 293
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0906-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0906-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0906-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 0906-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0906-
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 0906-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 0906-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 0906-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 0906-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 0906-
655 PATCH; HINGE 8-98031-263-0 01 1 0906-
655 PATCH; HINGE 8-98031-264-0 01 1 0906-
656 PATCH; STRIKER 8-98031-265-0 02 1 0906-

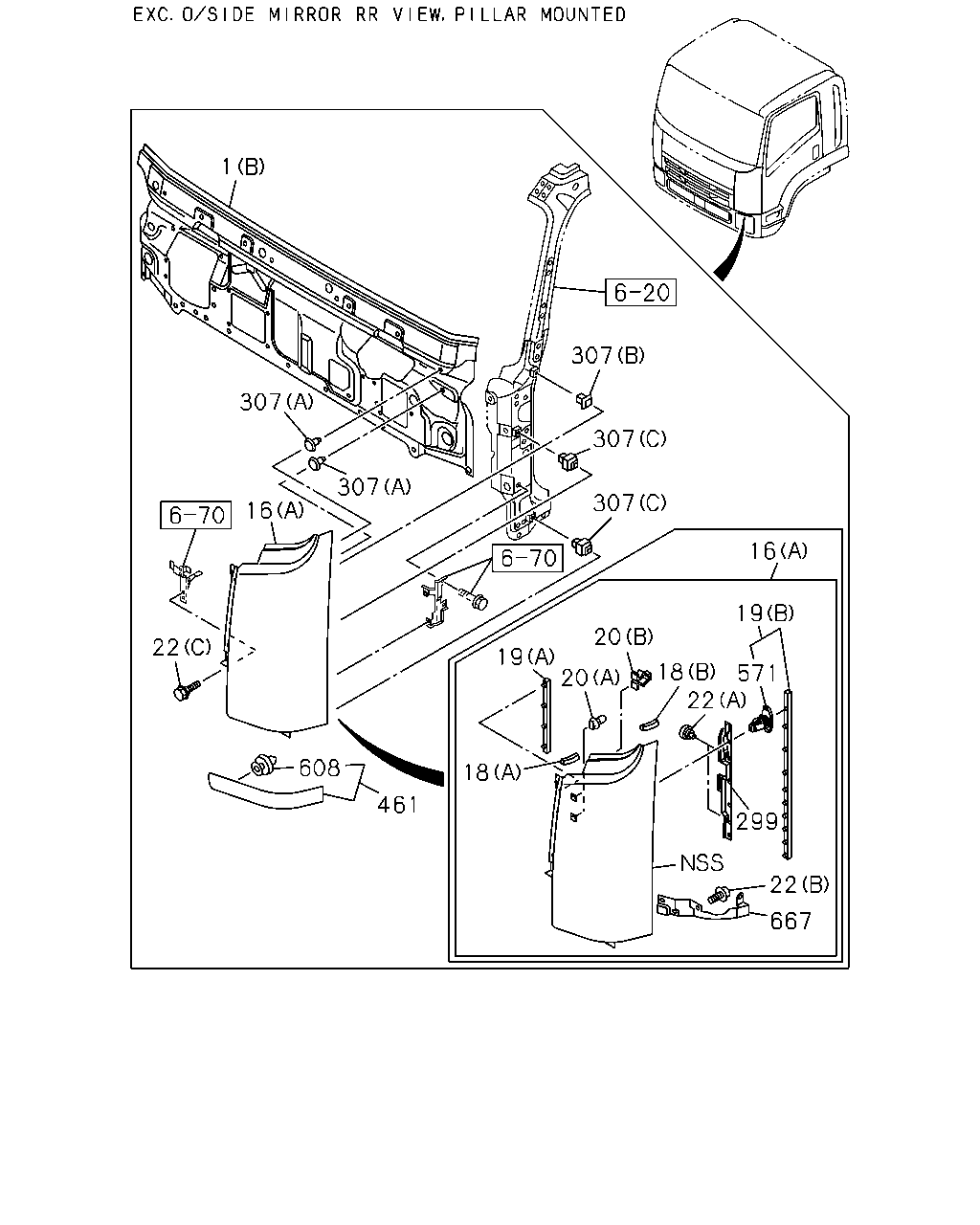

çizim 164487
1 307 307 16 22 608 461 307 307 307 16 19 20 19 20 18 18 571 22 299 22 667
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0906-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GRAY 		8-97413-779-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GRAY 		8-97413-789-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97413-769-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97417-664-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-780-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-790-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-770-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-665-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97413-781-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97413-791-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97413-771-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97417-666-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-782-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-792-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-772-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-667-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) DARK GREEN 		8-97413-783-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) DARK GREEN 		8-97413-793-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97413-773-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97417-668-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97413-784-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97413-794-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97413-774-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97417-669-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-785-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-795-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-775-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-670-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ORANGE 		8-97413-786-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ORANGE 		8-97413-796-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97413-776-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97417-671-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97417-661-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97417-662-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-663-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-672-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GREEN 		8-97413-788-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GREEN 		8-97413-798-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97413-778-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97417-673-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97408-245-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97408-244-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97409-902-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97408-246-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-729-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-724-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-739-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-734-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-732-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-727-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-742-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-737-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97411-731-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97411-726-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-741-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-736-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BEIGE 		8-97411-730-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BEIGE 		8-97411-725-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-740-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-735-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97411-733-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97411-728-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-743-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-738-4 01 1 0906-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0906-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0906-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0906-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0906-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0906-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0906-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0906-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0906-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0906-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0906-
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0906-1505
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0906-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0906-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0906-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0906-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0906-
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 0906-
461 PANEL; FRT SIDE 8-98058-164-2 01 1 0906-
461 PANEL; FRT SIDE 8-98058-163-2 01 1 0906-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0906-
608 CLIP 8-98282-490-0 02 1 1408-
608 CLIP
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 0906-
608 CLIP
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 0906-
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 0906-
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 0906-

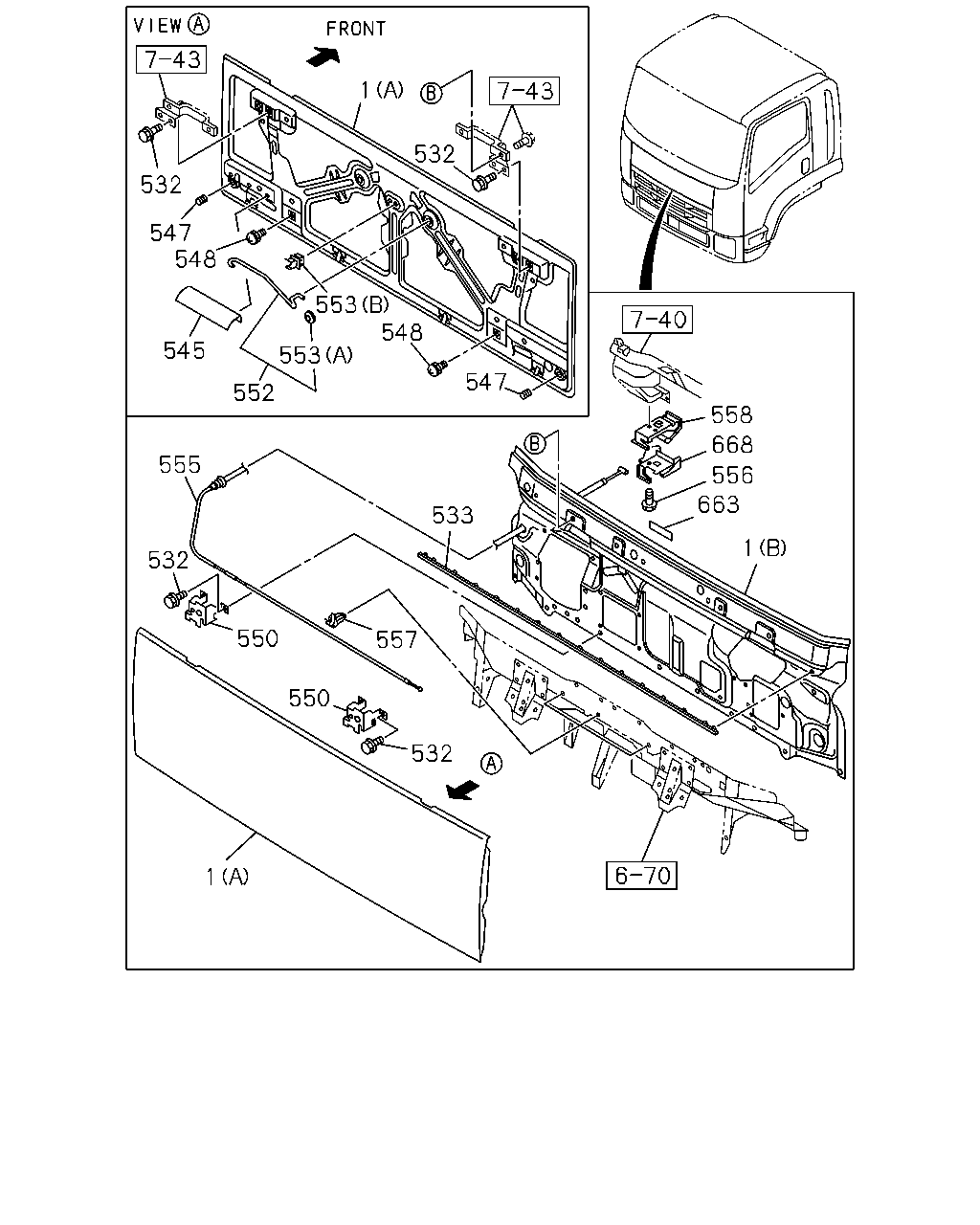

çizim 164489
1 532 532 547 548 553 548 545 553 547 552 558 668 555 556 663 533 1 532 550 557 550 532 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0906-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0906-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0906-
533 SEAL; FRT PANEL 8-98096-289-0 01 1 0906-
545 SEAL; FRT LID 8-98036-584-0 01 1 0906-0910
545 SEAL; FRT LID 8-98123-265-0 01 1 0911-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0906-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0906-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 0906-
552 STAY; FRT LID 8-98089-838-0 01 1 0906-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0906-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 0906-
555 CABLE; FRT LID 8-98036-574-1 01 1 0906-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0906-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0906-
558 LEVER; FRT LID 1-79338-007-1 01 1 0906-
663 TAPE; PROTECT
175X11 		8-98070-054-1 01 1 0906-0910
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 0906-

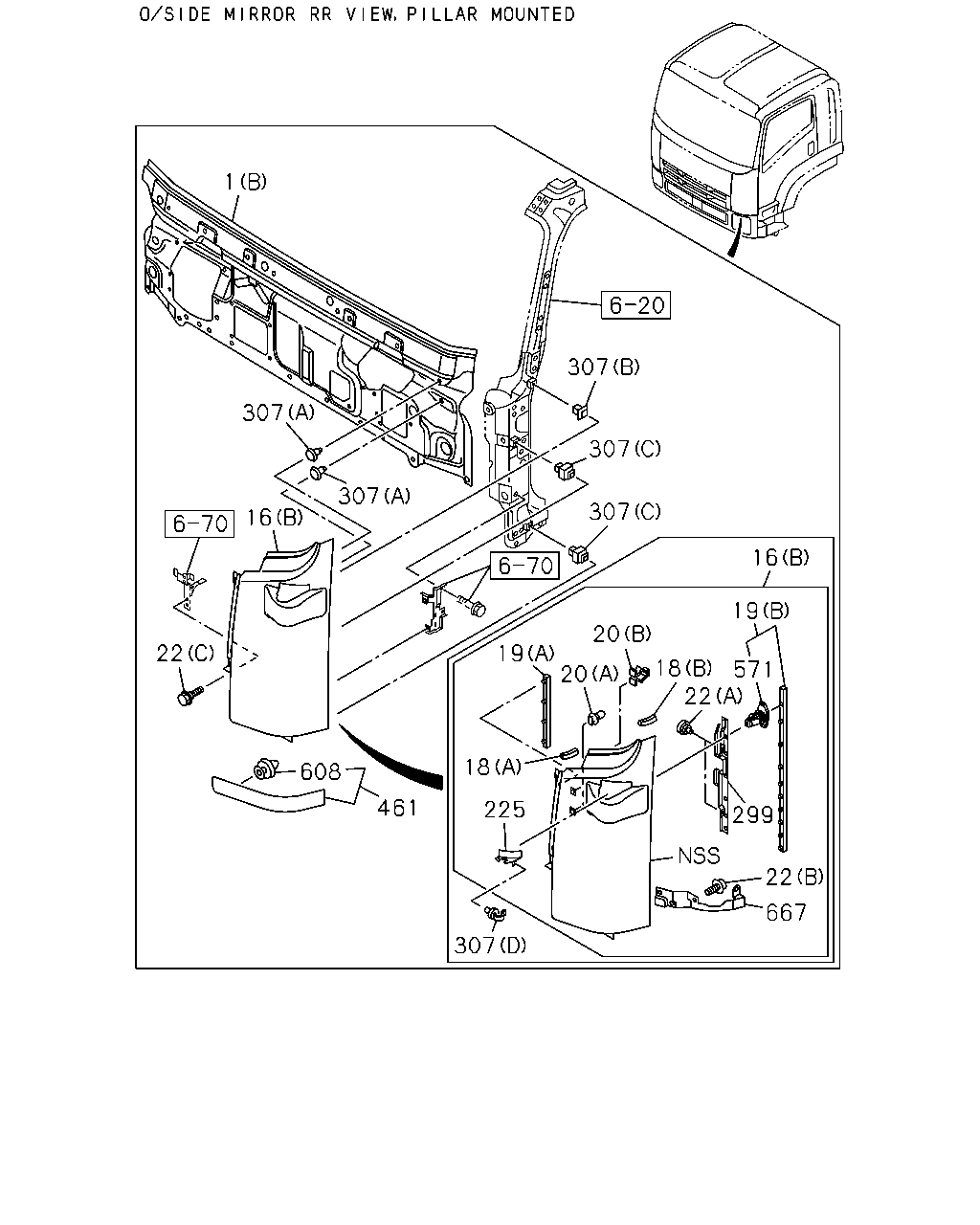

çizim 164491
16 19 18 20 19 20 571 22 299 22 667 307 225 18 461 608 22 16 307 307 1 307 307 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 0906-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GRAY 		8-97413-779-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GRAY 		8-97413-789-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97413-769-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GRAY 		8-97417-664-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-780-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-790-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-770-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-665-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97413-781-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97413-791-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97413-771-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97417-666-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-782-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-792-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-772-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-667-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) DARK GREEN 		8-97413-783-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) DARK GREEN 		8-97413-793-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97413-773-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) DARK GREEN 		8-97417-668-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97413-784-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97413-794-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97413-774-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97417-669-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-785-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97413-795-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97413-775-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97417-670-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ORANGE 		8-97413-786-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ORANGE 		8-97413-796-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97413-776-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ORANGE 		8-97417-671-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97417-661-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97417-662-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-663-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97417-672-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GREEN 		8-97413-788-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) GREEN 		8-97413-798-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97413-778-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) GREEN 		8-97417-673-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97408-245-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) WHITE 		8-97408-244-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97409-902-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) WHITE 		8-97408-246-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-729-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-724-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-739-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-734-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-732-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) RED 		8-97411-727-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-742-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) RED 		8-97411-737-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97411-731-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) YELLOW 		8-97411-726-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-741-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) YELLOW 		8-97411-736-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BEIGE 		8-97411-730-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BEIGE 		8-97411-725-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-740-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BEIGE 		8-97411-735-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97411-733-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLUE 		8-97411-728-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-743-4 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) BLUE 		8-97411-738-4 01 1 0906-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 0906-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 0906-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0906-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0906-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0906-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0906-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-1 04 1 0906-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 0906-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0906-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0906-
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0906-1505
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506-
225 COVER; SIDE,FRT
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98041-431-1 01 1 0906-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0906-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0906-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0906-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0906-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0906-
307 GROMMET; FRT PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98028-743-0 01 1 0906-
461 PANEL; FRT SIDE 8-98058-164-2 01 1 0906-
461 PANEL; FRT SIDE 8-98058-163-2 01 1 0906-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0906-
608 CLIP 8-98282-490-0 02 1 1408-
608 CLIP
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 0906-
608 CLIP
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 0906-
667 STAY; EXT,SIDE PANEL 8-98063-344-0 01 1 0906-
667 STAY; EXT,SIDE PANEL 8-98063-343-0 01 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
