◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11234 - FTR-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#60351) — 208 parça

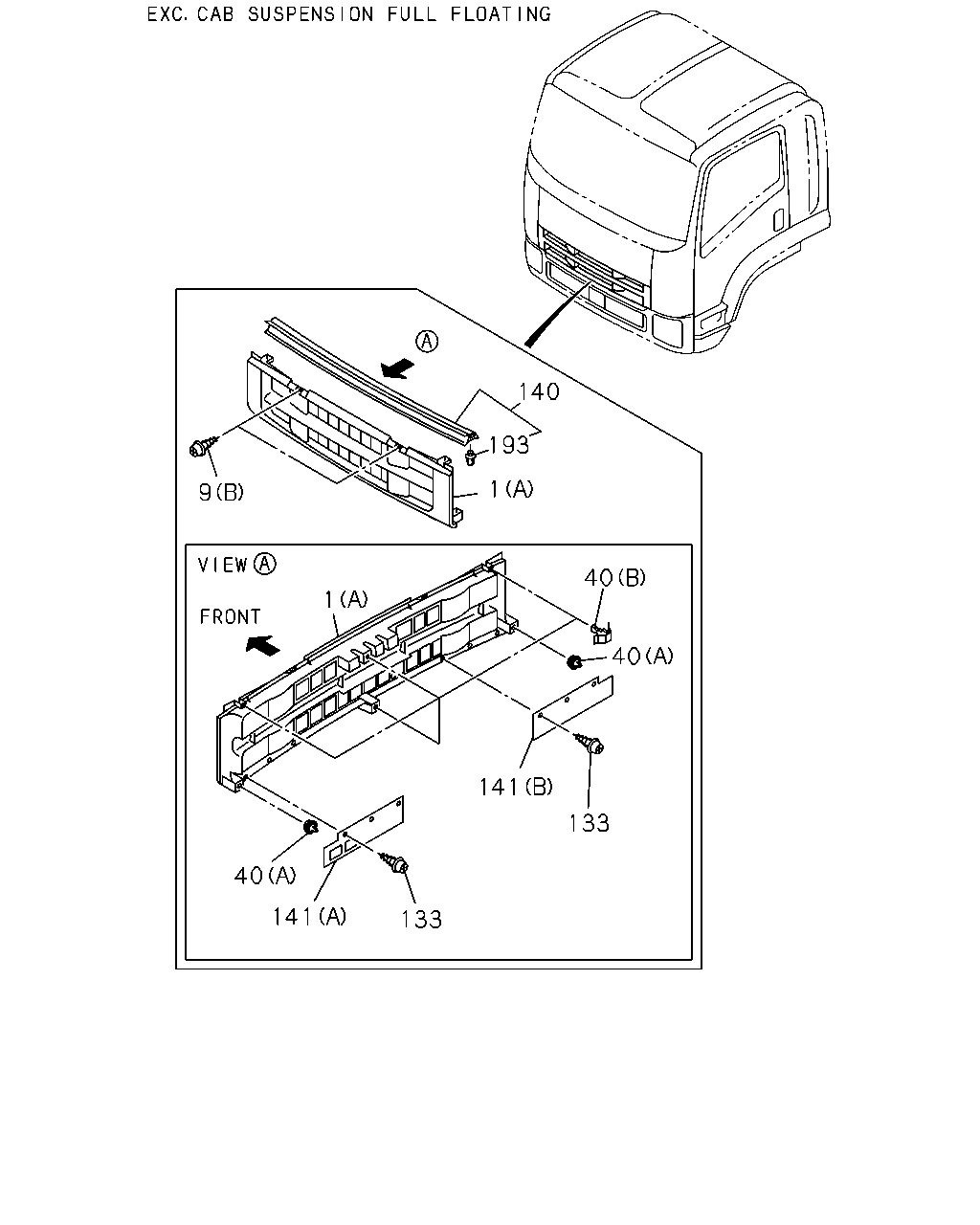

çizim 164456
140 193 1 9 40 1 40 141 133 40 141 133
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 0906-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE 		8-98078-847-2 01 1 0906-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE 		8-98046-507-7 01 1 0906-
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 0906-
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0906-
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (A) 		0-38050-620-0 04 1 0906-
9 SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 0906-
9 SCREW; RAD GRILLE
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 0906-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
133 SCREW; COVER
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>, CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 0906-
133 SCREW; COVER
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 0906-
133 SCREW; COVER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 0906-
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
141 COVER; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>, CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98041-013-1 01 1 0906-
141 COVER; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98041-013-1 01 1 0906-
141 COVER; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98041-013-1 01 1 0906-
141 COVER; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>, CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98060-784-0 01 1 0906-
141 COVER; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98060-784-0 01 1 0906-
141 COVER; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98060-784-0 01 1 0906-
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-

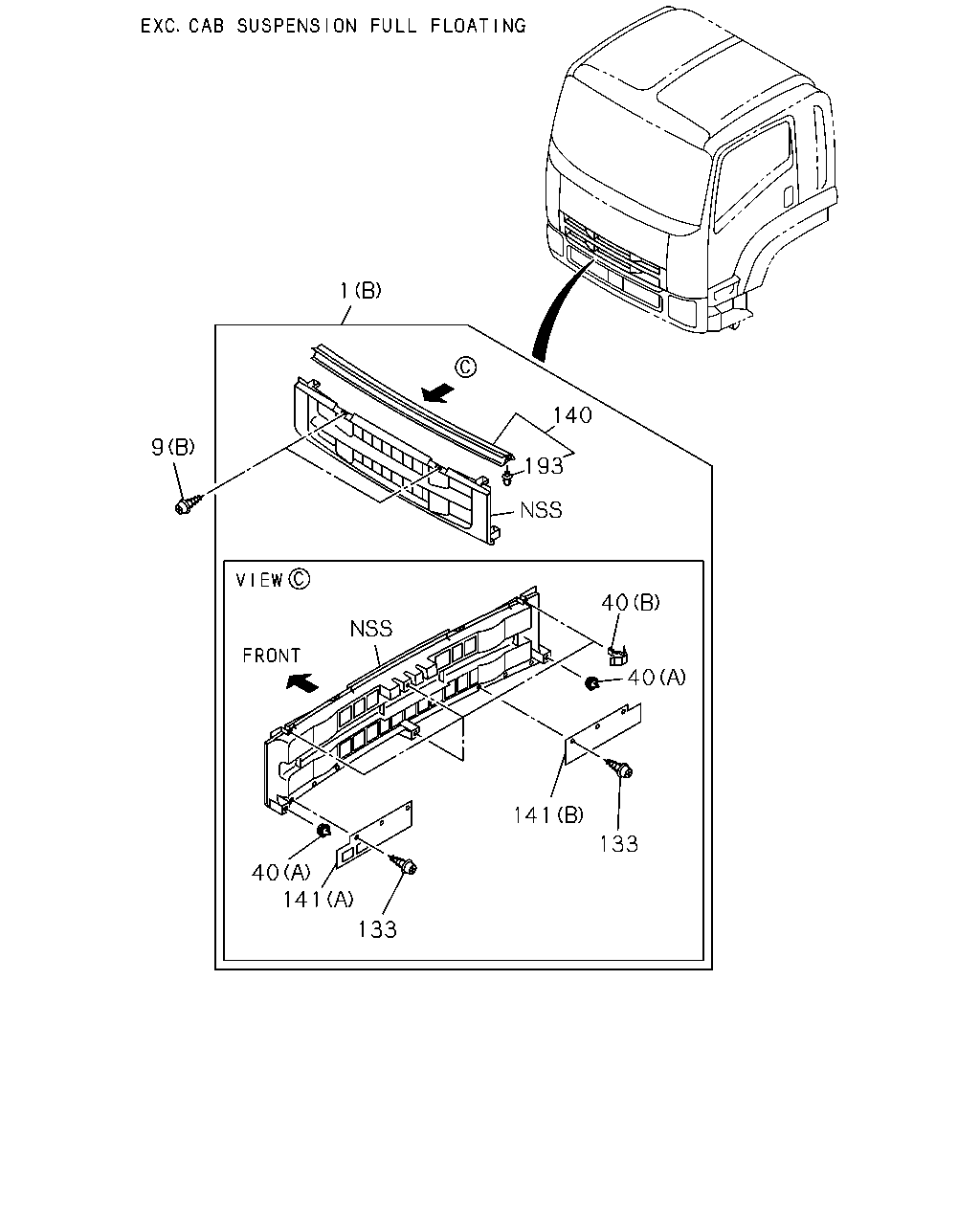

çizim 164466
1 140 9 193 40 40 141 133 40 141 133
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 0906-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE 		8-98078-847-2 01 1 0906-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE 		8-98046-507-7 01 1 0906-
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 0906-
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0906-
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (A) 		0-38050-620-0 04 1 0906-
9 SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 0906-
9 SCREW; RAD GRILLE
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 0906-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
133 SCREW; COVER
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>, CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 0906-
133 SCREW; COVER
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 0906-
133 SCREW; COVER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 0906-
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
141 COVER; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>, CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98041-013-1 01 1 0906-
141 COVER; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98041-013-1 01 1 0906-
141 COVER; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98041-013-1 01 1 0906-
141 COVER; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22>, CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98060-784-0 01 1 0906-
141 COVER; RAD GRILLE
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98060-784-0 01 1 0906-
141 COVER; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98060-784-0 01 1 0906-
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-

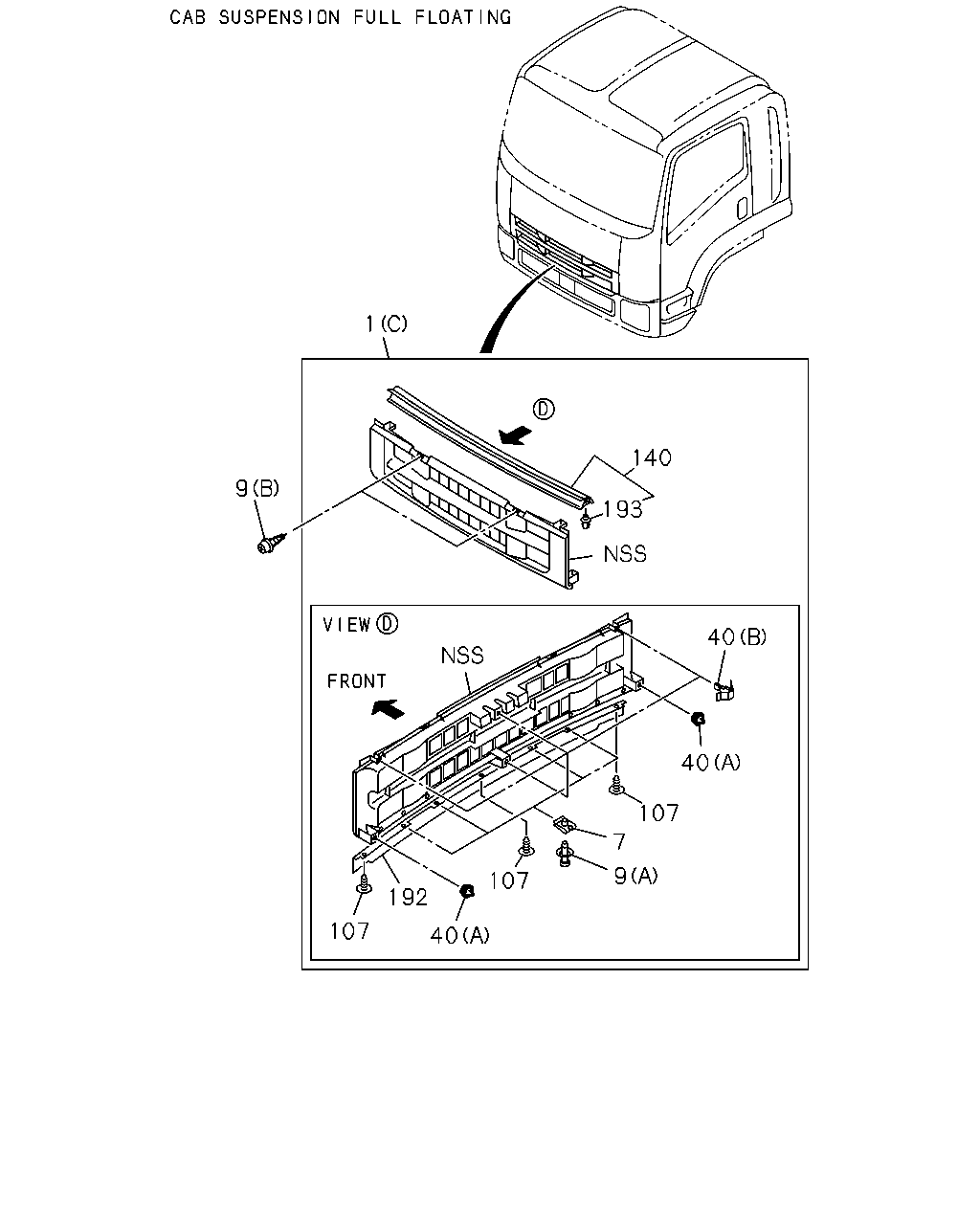

çizim 164467
1 140 9 193 40 40 107 7 9 107 192 107 40
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 0906-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE 		8-98078-847-2 01 1 0906-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE 		8-98046-507-7 01 1 0906-
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 0906-
7 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> 		8-94279-501-0 04 1 0906-
7 NUT; SPIRE,RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 0906-
7 NUT; SPIRE,RAD GRILLE
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 0906-
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0906-
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (A) 		0-38050-620-0 04 1 0906-
9 SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 0906-
9 SCREW; RAD GRILLE
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 0906-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
107 RIVET; ROCKER CVR
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> D8X13.5 		1-09987-248-1 03 1 0906-
107 RIVET; ROCKER CVR
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 0906-
107 RIVET; ROCKER CVR
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 0906-
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
192 EXTENSION; RAD GRILLE
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> 		8-98098-344-0 01 1 0906-
192 EXTENSION; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 0906-
192 EXTENSION; RAD GRILLE
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 0906-
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-

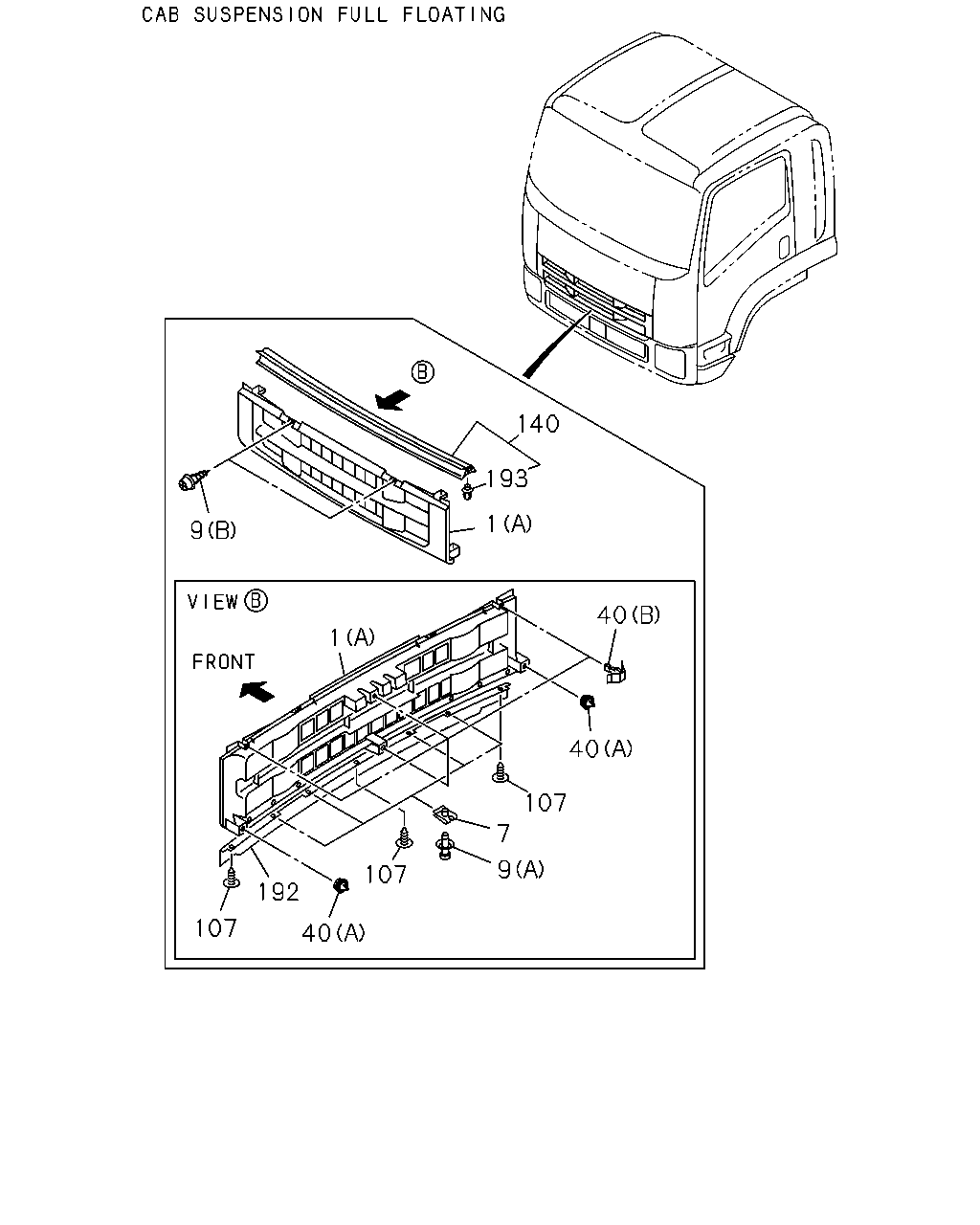

çizim 164475
140 193 1 9 40 1 40 107 7 9 107 192 107 40
BalonParca AdiParca NoAdetTipApplied Date
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 0906-
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 0906-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE 		8-98078-847-2 01 1 0906-
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE 		8-98046-507-7 01 1 0906-
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 0906-
7 NUT; SPIRE,RAD GRILLE
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> 		8-94279-501-0 04 1 0906-
7 NUT; SPIRE,RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 0906-
7 NUT; SPIRE,RAD GRILLE
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> 		8-94279-501-0 04 1 0906-
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0906-
9 SCREW; RAD GRILLE
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (A) 		0-38050-620-0 04 1 0906-
9 SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 0906-
9 SCREW; RAD GRILLE
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (A) 		0-38050-620-0 04 1 0906-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (A) 		8-97581-651-2 02 1 0906-
40 CLIP; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
40 CLIP; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> (B) 		8-98025-698-0 04 1 0906-
107 RIVET; ROCKER CVR
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> D8X13.5 		1-09987-248-1 03 1 0906-
107 RIVET; ROCKER CVR
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 0906-
107 RIVET; ROCKER CVR
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> D8X13.5 		1-09987-248-1 03 1 0906-
140 SEAL; RAD GRILLE
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
140 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> 		8-98060-340-0 01 1 0906-
192 EXTENSION; RAD GRILLE
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> 		8-98098-344-0 01 1 0906-
192 EXTENSION; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 0906-
192 EXTENSION; RAD GRILLE
CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> 		8-98098-344-0 01 1 0906-
193 CLIP; SEAL
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22>,CAB SUSPENSION FULL FLOATING<W16> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
193 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> CAB SUSPENSION FULL FLOATING<W16> EXC. BRIGHT RAD GRILLE<V22> NATURAL 		8-98027-457-0 13 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
