◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#6035) — 470 parça

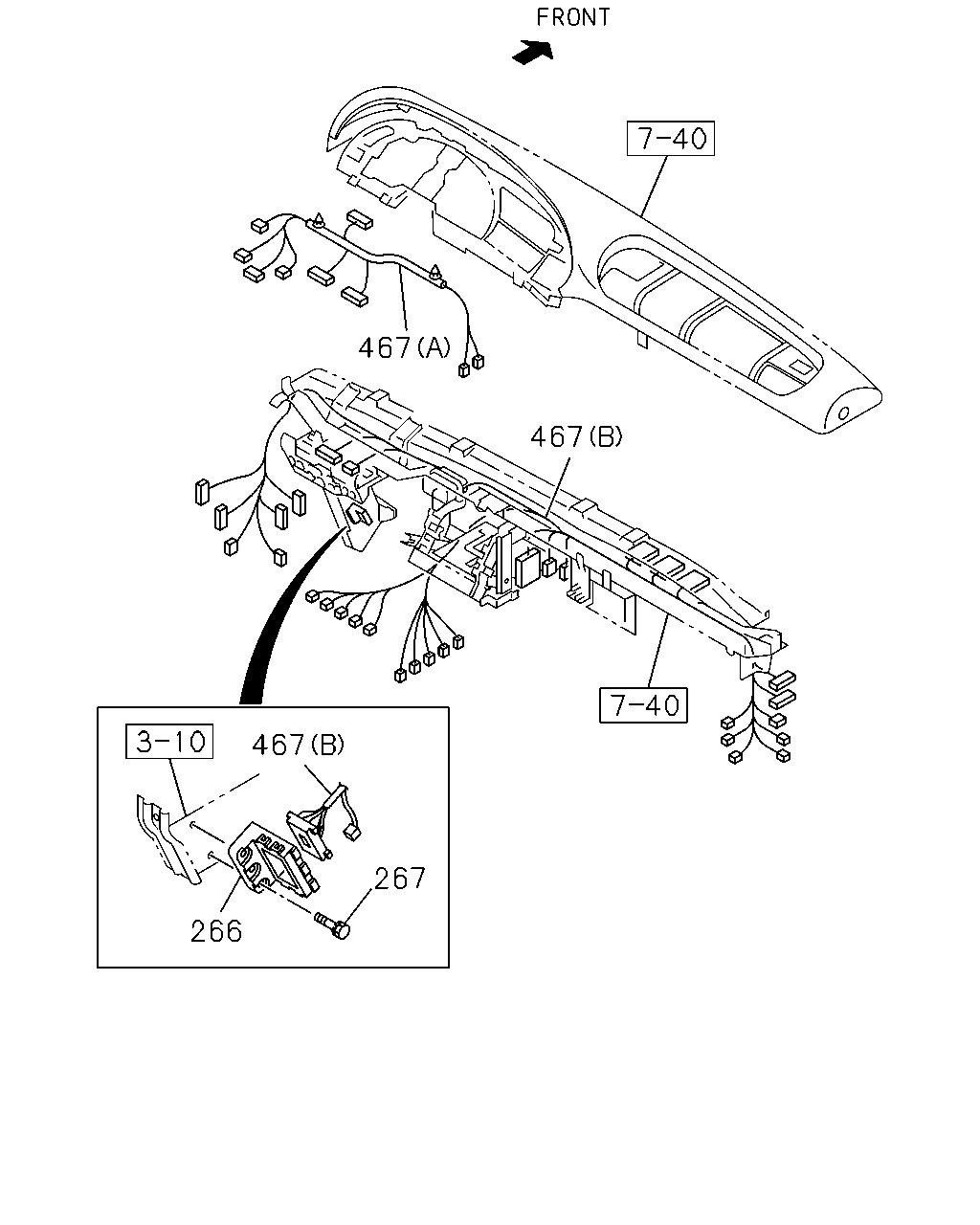

çizim 8916
467 467 467 267 266
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9812-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9812-
467 HARNESS; FACIA
(A) 		1-82628-112-4 01 1 9812-0003
467 HARNESS; FACIA
(A) 		1-82629-610-1 01 1 0004-
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-038-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-236-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-039-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82660-237-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-040-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-238-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-036-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-234-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82628-037-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82660-235-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82628-041-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82660-239-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-S(56L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-031-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-032-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-027-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-034-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-028-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-033-3 01 1 9905-9906
467 HARNESS; FACIA
6WG1 TC-C(72L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-044-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-044-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-242-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-045-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-045-2 01 1 9902-0001
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82629-607-0 01 1 0002-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82660-243-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-042-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-042-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-240-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-047-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-047-2 01 1 9902-0003
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-609-0 01 1 0004-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-245-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-043-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-043-2 01 1 9902-0001
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-606-0 01 1 0002-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82660-241-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-046-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-046-2 01 1 9902-0001
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-608-0 01 1 0002-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-244-0 01 1 0102-

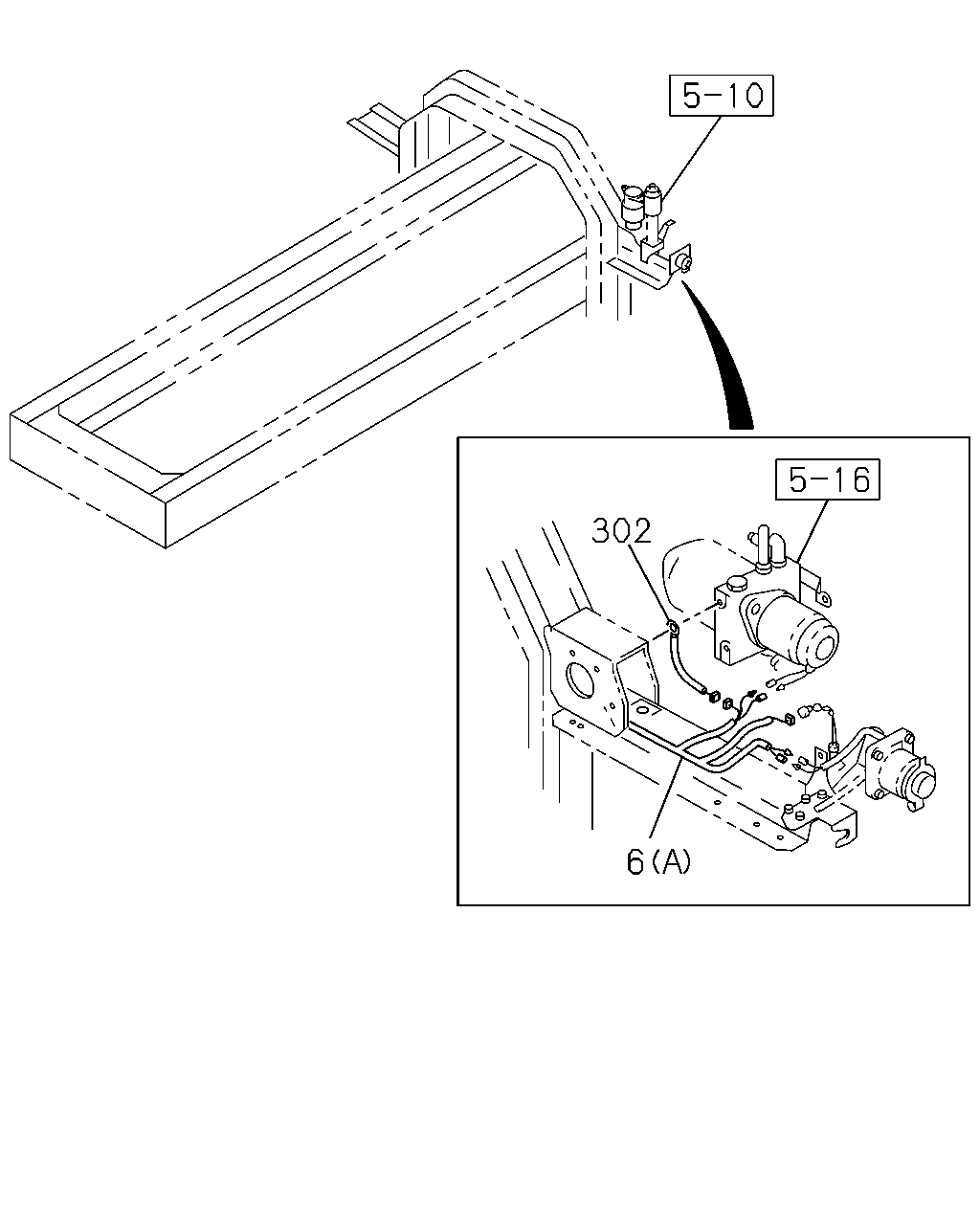

çizim 9015
302 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) 		1-82671-685-1 01 1 9902-
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) 		1-82671-686-1 01 1 9902-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-874-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-874-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82673-416-2 01 1 0002-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-722-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-873-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-707-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-708-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-721-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-136-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-705-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-706-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) 		1-82671-680-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB(W16) (A) 		1-82671-679-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-695-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-696-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-875-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-82671-876-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-694-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-698-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-693-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-697-2 01 1 9905-9906
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) 		1-82671-660-2 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) 		1-82671-660-2 01 1 9902-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82673-417-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) 		1-82671-659-2 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) 		1-82671-659-2 01 1 9902-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82673-418-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9901-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82673-419-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) 		1-82671-878-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) 		1-82671-879-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) 		1-82671-882-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) 		1-82671-882-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-82671-882-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CAB UP +110MM<TGG> (B) 		1-82671-704-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) 		1-82671-703-0 01 1 9812-9812
302 HARNESS; POWER CAB TILT
CAB UP +110MM<TGG> 		1-82639-938-0 01 1 9812-
302 HARNESS; POWER CAB TILT
EXC. CAB UP +110MM<TGG> 		1-82639-273-0 01 1 9812-
çizim 41145
189
BalonParca AdiParca NoAdetTipApplied Date
189 HARNESS; EXT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82673-735-0 06 1 0012-

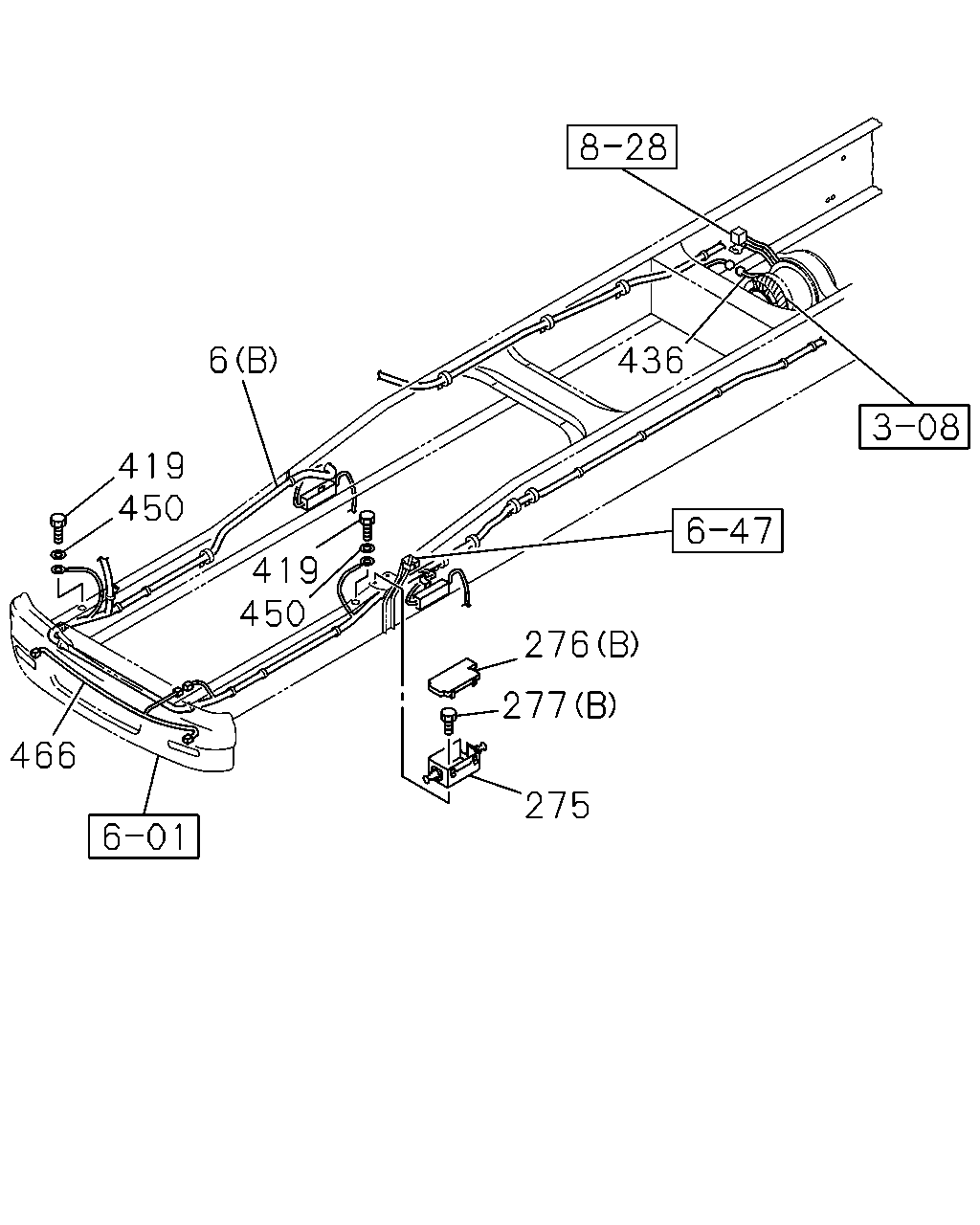

çizim 42428
436 6 419 450 419 450 276 277 466 275
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) 		1-82671-685-1 01 1 9902-
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) 		1-82671-686-1 01 1 9902-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-874-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-874-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82673-416-2 01 1 0002-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-722-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-873-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-707-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-708-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-721-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-136-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-705-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-706-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) 		1-82671-680-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB(W16) (A) 		1-82671-679-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-695-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-696-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-875-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-82671-876-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-694-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-698-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-693-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-697-2 01 1 9905-9906
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) 		1-82671-660-2 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) 		1-82671-660-2 01 1 9902-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82673-417-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) 		1-82671-659-2 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) 		1-82671-659-2 01 1 9902-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82673-418-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9901-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82673-419-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) 		1-82671-878-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) 		1-82671-879-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) 		1-82671-882-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) 		1-82671-882-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-82671-882-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CAB UP +110MM<TGG> (B) 		1-82671-704-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) 		1-82671-703-0 01 1 9812-9812
275 BOX ASM; FRAME HARNESS 1-82699-474-1 01 1 9812-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 9812-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 9812-
277 BOLT; BOX ASM FIX
(A) M6X35 W/LK&PL WASHER 		0-50140-635-0 02 1 9812-0007
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0008-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9812-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9812-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9812-
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82670-619-0 01 1 9902-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 9812-
466 HARNESS; BUMPER 1-82639-281-0 01 1 9812-9904
466 HARNESS; BUMPER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82639-281-0 01 1 9905-
466 HARNESS; BUMPER
REINFORCEMENT BUMPER<VG7> 		1-82639-227-3 01 1 9905-

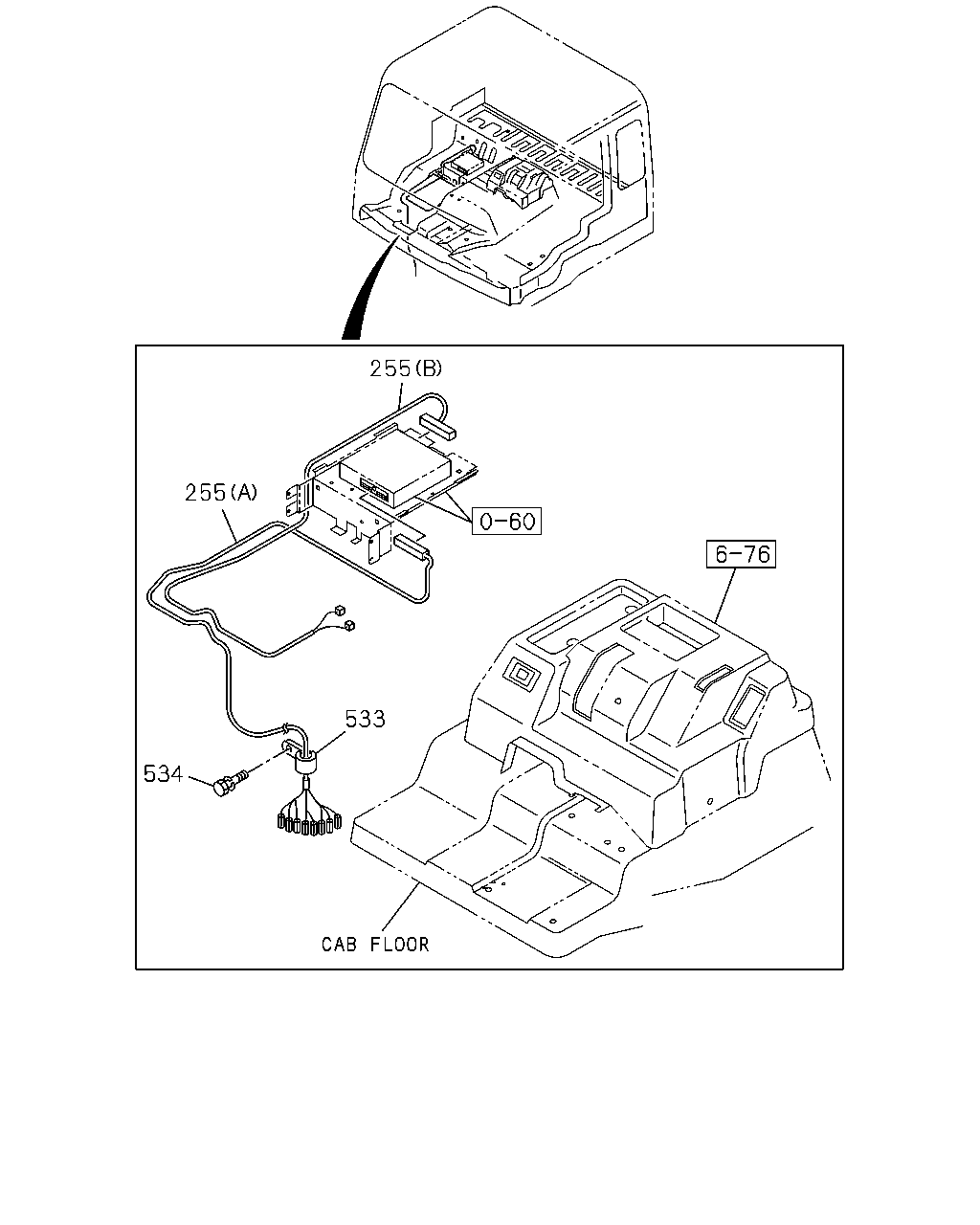

çizim 44233
255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
(B) 		1-82628-095-1 01 1 9812-9901
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) (B) 		1-82628-095-1 01 1 9902-0101
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) (B) 		1-82660-221-0 01 1 0102-
255 HARNESS; ELEC GOV
CAB UP +110MM<TGG> (A) 		1-82628-069-1 01 1 9812-9901
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (A) 		1-82628-069-1 01 1 9902-0101
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (A) 		1-82660-211-0 01 1 0102-
255 HARNESS; ELEC GOV
EXC. CAB UP +110MM<TGG> (A) 		1-82628-068-1 01 1 9812-9901
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (A) 		1-82628-068-1 01 1 9902-0101
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (A) 		1-82660-210-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82628-067-2 01 1 9902-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82660-205-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-094-1 01 1 9902-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-215-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A) 		1-82628-066-2 01 1 9902-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A) 		1-82660-204-0 01 1 0102-
533 CLIP
ID=19 L=32 		1-09701-235-0 02 1 9812-9901
533 CLIP
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) ID=19 L=32 		1-09701-235-0 02 1 9902-
533 CLIP
ELECTRONIC GOV RED3(KG5) ID=19 L=32 		1-09701-235-0 02 1 9902-
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9812-9901
534 BOLT
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9902-
534 BOLT
ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9902-

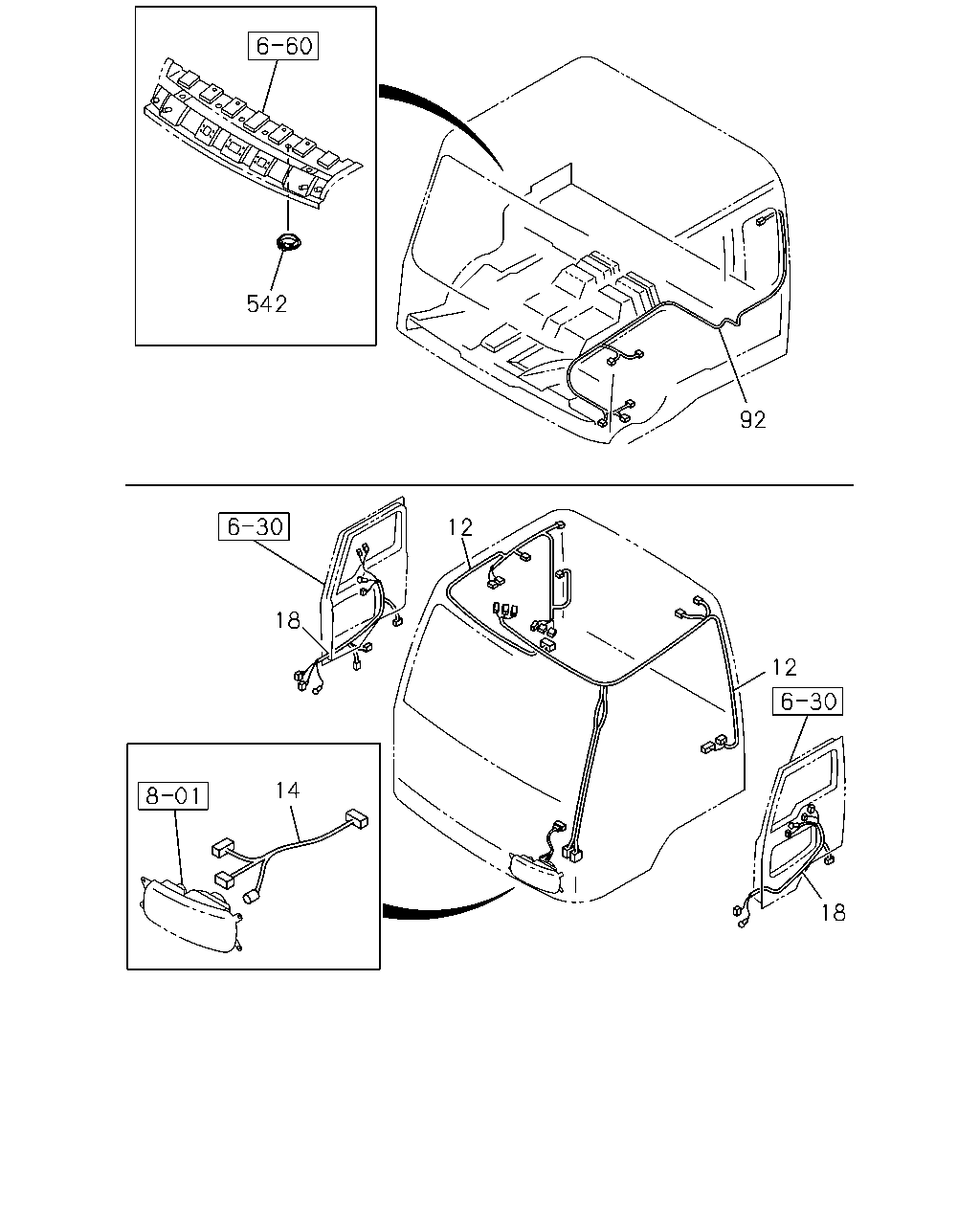

çizim 44234
542 92 12 18 12 14 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82628-106-0 01 1 9812-
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> PASSENGER SIDE 		1-82628-098-1 01 1 9812-
12 HARNESS; ROOF
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-102-2 01 1 9812-
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-103-3 01 1 9812-9901
12 HARNESS; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-103-3 01 1 9902-0003
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-103-3 01 1 0004-
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82628-104-2 01 1 9902-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-099-2 01 1 9812-9901
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-099-2 01 1 9902-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE 		1-82628-100-1 01 1 9902-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82628-107-0 01 1 9812-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		1-82671-664-2 02 1 9812-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		1-82670-022-1 02 1 9812-
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> 		1-82625-150-2 02 1 9905-
14 HARNESS; HEADLAMP
REINFORCEMENT BUMPER<VG7> 		1-82625-986-0 02 1 9905-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82626-788-0 01 1 9812-9904
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-435-0 01 1 9905-9905
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-584-0 01 1 9905-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82626-786-0 01 1 9812-9904
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-432-0 01 1 9905-9905
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 9905-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82626-785-0 01 1 9812-9904
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82626-785-0 01 1 9812-9904
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 9905-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 9905-
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> 		1-82628-115-0 01 1 9812-
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR> 		1-82628-116-0 01 1 9812-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 9812-

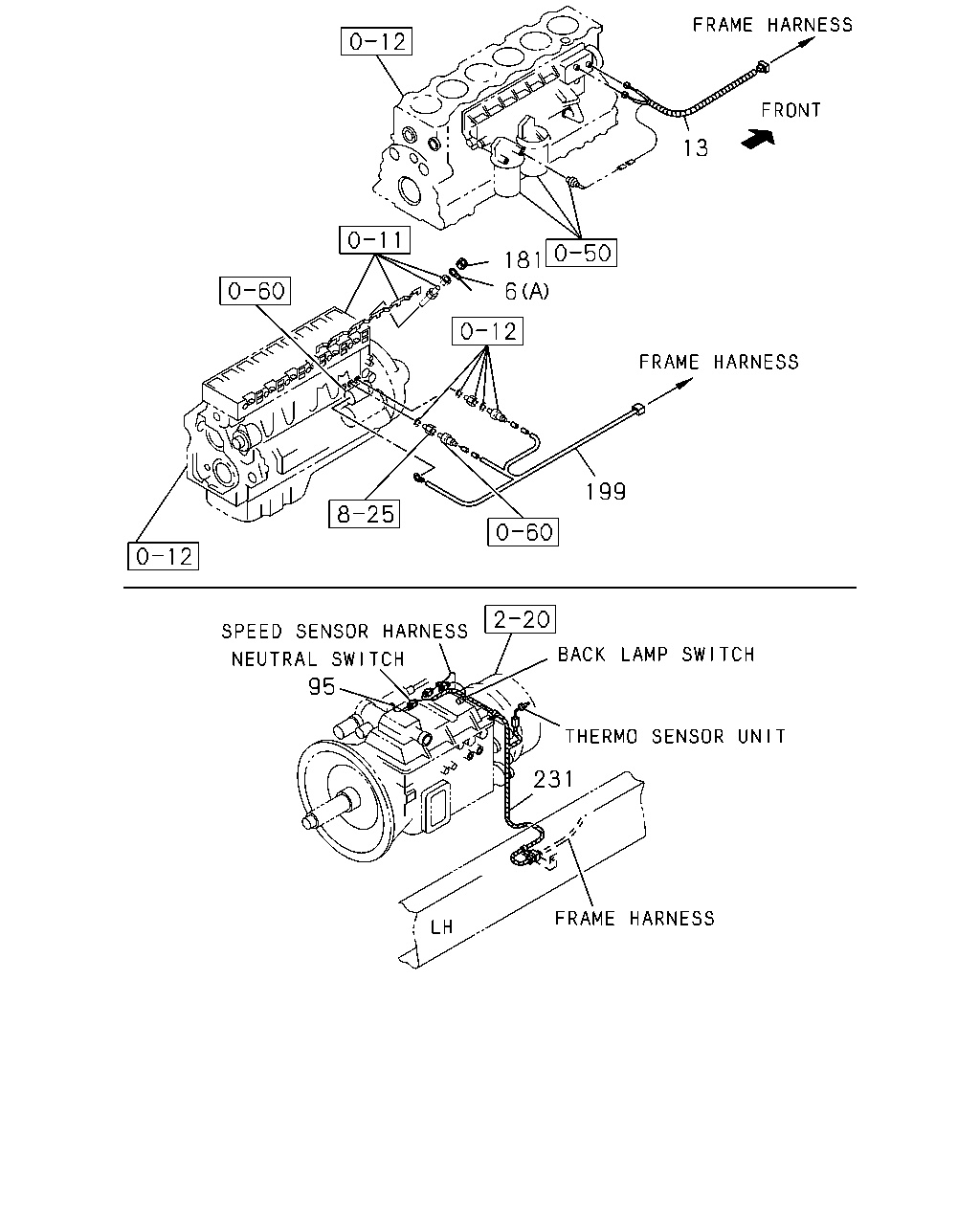

çizim 44235
13 181 6 199 95 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) 		1-82671-685-1 01 1 9902-
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) 		1-82671-686-1 01 1 9902-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-874-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-874-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82673-416-2 01 1 0002-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-722-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-873-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-707-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-708-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-721-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-136-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-705-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-706-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) 		1-82671-680-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB(W16) (A) 		1-82671-679-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-695-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-696-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-875-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-82671-876-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-694-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-698-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-693-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-697-2 01 1 9905-9906
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) 		1-82671-660-2 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) 		1-82671-660-2 01 1 9902-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82673-417-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) 		1-82671-659-2 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) 		1-82671-659-2 01 1 9902-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82673-418-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9901-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82673-419-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) 		1-82671-878-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) 		1-82671-879-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) 		1-82671-882-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) 		1-82671-882-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-82671-882-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CAB UP +110MM<TGG> (B) 		1-82671-704-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) 		1-82671-703-0 01 1 9812-9812
13 HARNESS; ENG 1-82640-553-4 01 1 9812-
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-82639-626-0 01 1 9905-9906
95 HARNESS; NEUTRAL SW
6WG1 TC-N(71L) TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> TRANSMISSION OIL COOLER<C2C> CLUTCH-15.5" TWIN PLATE SPICER(TEY) EXC. PTO ZF TRANS RR(BDM),CLUTCH HOUSING-AL<B1V>, TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		1-82639-626-0 01 1 9907-9912
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> P130 PROP SHAFT<BEE>,P115 PROP SHAFT<C5X> TRANSMISSION OIL COOLER<C2C> CLUTCH-15.5" TWIN PLATE SPICER(TEY) EXC. PTO ZF TRANS RR(BDM),CLUTCH HOUSING-AL<B1V>, TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		1-82639-626-0 01 1 0001-0002
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-82639-626-0 01 1 0003-
181 NUT; GLOW PLUG HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M4 FLANGE 		5-09440-007-0 01 1 9812-
199 HARNESS; STARTER 1-82640-734-0 01 1 9812-
231 HARNESS; TRANS
FULLER M/T<X9B> 		1-82638-903-3 01 1 9905-
231 HARNESS; TRANS
ISUZU M/T<X9A> 		1-82671-661-1 01 1 9905-

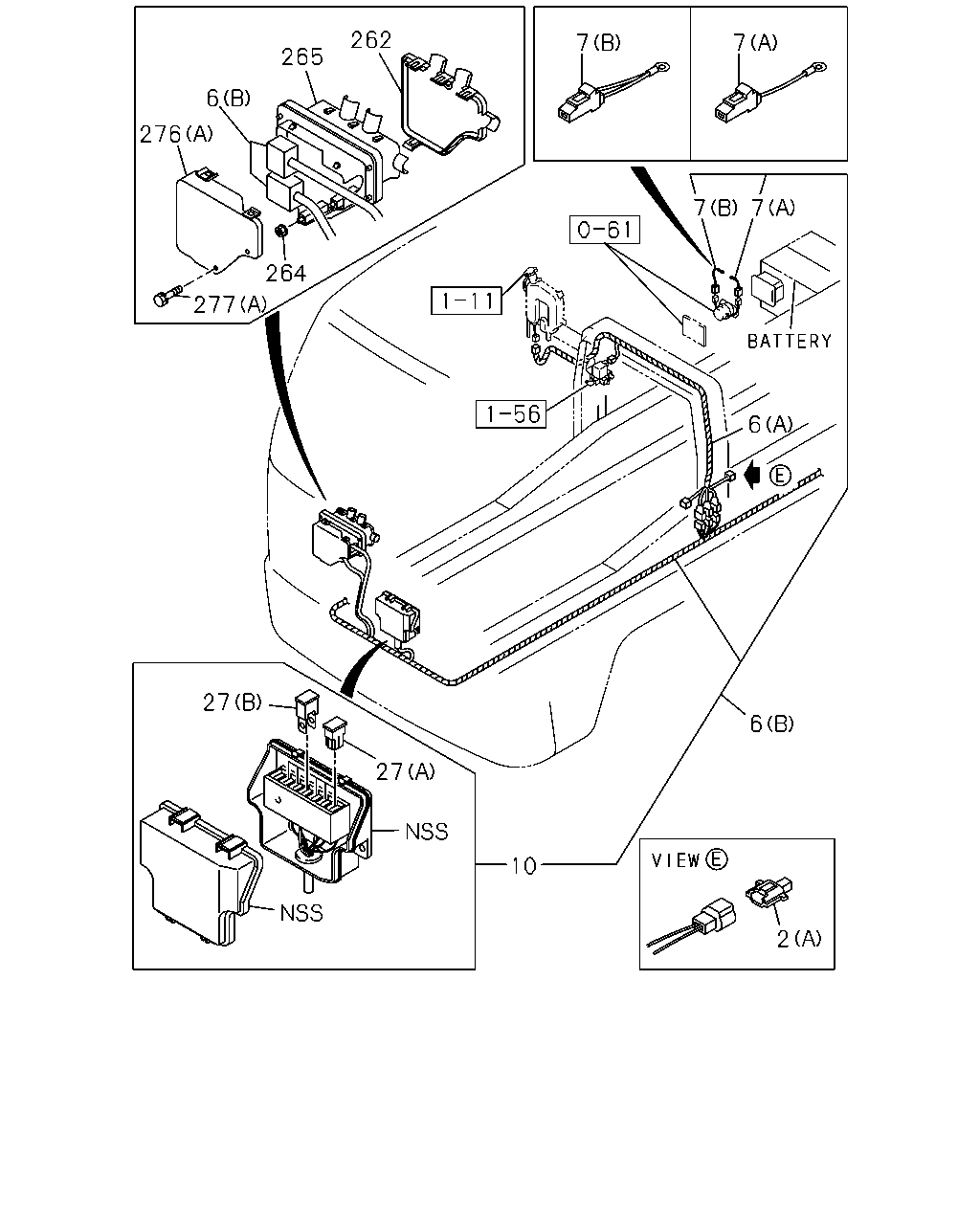

çizim 44237
262 7 7 265 6 276 7 7 264 277 6 27 6 27 10 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9812-
2 DIODE; CABLE HARNESS
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9812-9812
2 DIODE; CABLE HARNESS
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A 		1-81514-015-0 02 1 9901-9901
2 DIODE; CABLE HARNESS
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9901-9901
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9902-9904
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9902-9904
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9905-9906
2 DIODE; CABLE HARNESS
6WA1 TC-S(56L) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9905-9906
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9905-9906
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9907-
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9907-
2 DIODE; CABLE HARNESS
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9901-9901
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) 		1-82671-685-1 01 1 9902-
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) 		1-82671-686-1 01 1 9902-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-874-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-874-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82673-416-2 01 1 0002-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-722-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-873-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-707-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-708-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-721-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-136-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-705-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-706-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) 		1-82671-680-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB(W16) (A) 		1-82671-679-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-695-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-696-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-875-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-82671-876-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-694-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-698-2 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-693-1 01 1 9905-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-697-2 01 1 9905-9906
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) 		1-82671-660-2 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) 		1-82671-660-2 01 1 9902-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82671-724-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,SILENCER SINGLE VERTICAL<N28> (B) 		1-82673-417-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) 		1-82671-659-2 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) 		1-82671-659-2 01 1 9902-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82671-723-3 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28>,FULL FLOATING CAB(W16) (B) 		1-82673-418-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9901-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82672-137-2 01 1 9905-0001
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. SILENCER SINGLE VERTICAL<N28> (B) 		1-82673-419-2 01 1 0002-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) 		1-82671-878-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) 		1-82671-879-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) 		1-82671-881-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) 		1-82671-882-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) 		1-82671-882-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) 		1-82671-882-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) 		1-82671-709-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9812-9901
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9902-9904
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82671-710-4 01 1 9905-
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> FULL FLOATING CAB(W16) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CAB UP +110MM<TGG> (B) 		1-82671-704-0 01 1 9812-9812
6 HARNESS; FRAME
6WG1 TC-C(72L) SILENCER SINGLE VERTICAL<N28> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (B) 		1-82671-703-0 01 1 9812-9812
7 LINK ASM; FUSIBLE
CAB UP +110MM<TGG> (B) 		1-82659-085-0 01 1 9812-9904
7 LINK ASM; FUSIBLE
CAB UP +110MM<TGG> (B) 		1-82659-085-0 01 1 9905-9906
7 LINK ASM; FUSIBLE
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> (B) 		1-82659-085-0 01 1 9905-9906
7 LINK ASM; FUSIBLE
CAB UP +110MM<TGG> (B) 		1-82659-085-0 01 1 9907-
7 LINK ASM; FUSIBLE
CAB UP +110MM<TGG> (A) 60A BLUE 		1-82659-119-0 01 1 9812-9904
7 LINK ASM; FUSIBLE
CAB UP +110MM<TGG> (A) 60A BLUE 		1-82659-119-0 01 1 9905-9906
7 LINK ASM; FUSIBLE
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> (A) 60A BLUE 		1-82659-119-0 01 1 9905-9906
7 LINK ASM; FUSIBLE
CAB UP +110MM<TGG> (A) 60A BLUE 		1-82659-119-0 01 1 9907-
10 BOX; FUSE,HARNESS
CAB UP +110MM<TGG> 		1-82510-466-0 01 1 9812-9904
10 BOX; FUSE,HARNESS
CAB UP +110MM<TGG> 		1-82510-466-0 01 1 9905-9906
10 BOX; FUSE,HARNESS
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> 		1-82510-466-0 01 1 9905-9906
10 BOX; FUSE,HARNESS
CAB UP +110MM<TGG> 		1-82510-466-0 01 1 9907-
27 FUSE UNIT
CAB UP +110MM<TGG> (A) 40A GREEN 		8-94468-662-0 05 1 9812-9904
27 FUSE UNIT
CAB UP +110MM<TGG> (A) 40A GREEN 		8-94468-662-0 05 1 9905-9906
27 FUSE UNIT
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> (A) 40A GREEN 		8-94468-662-0 05 1 9905-9906
27 FUSE UNIT
CAB UP +110MM<TGG> (A) 40A GREEN 		8-94468-662-0 05 1 9907-
27 FUSE UNIT
CAB UP +110MM<TGG> (B) 80A BLACK 		8-94468-671-0 01 1 9812-9904
27 FUSE UNIT
CAB UP +110MM<TGG> (B) 80A BLACK 		8-94468-671-0 01 1 9905-9906
27 FUSE UNIT
6WA1 TC-S(56L) SILENCER SINGLE VERTICAL<N28> (B) 80A BLACK 		8-94468-671-0 01 1 9905-9906
27 FUSE UNIT
CAB UP +110MM<TGG> (B) 80A BLACK 		8-94468-671-0 01 1 9907-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 9812-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9812-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9812-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 9812-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 9812-
277 BOLT; BOX ASM FIX
(A) M6X35 W/LK&PL WASHER 		0-50140-635-0 02 1 9812-0007
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 0008-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9812-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9812-

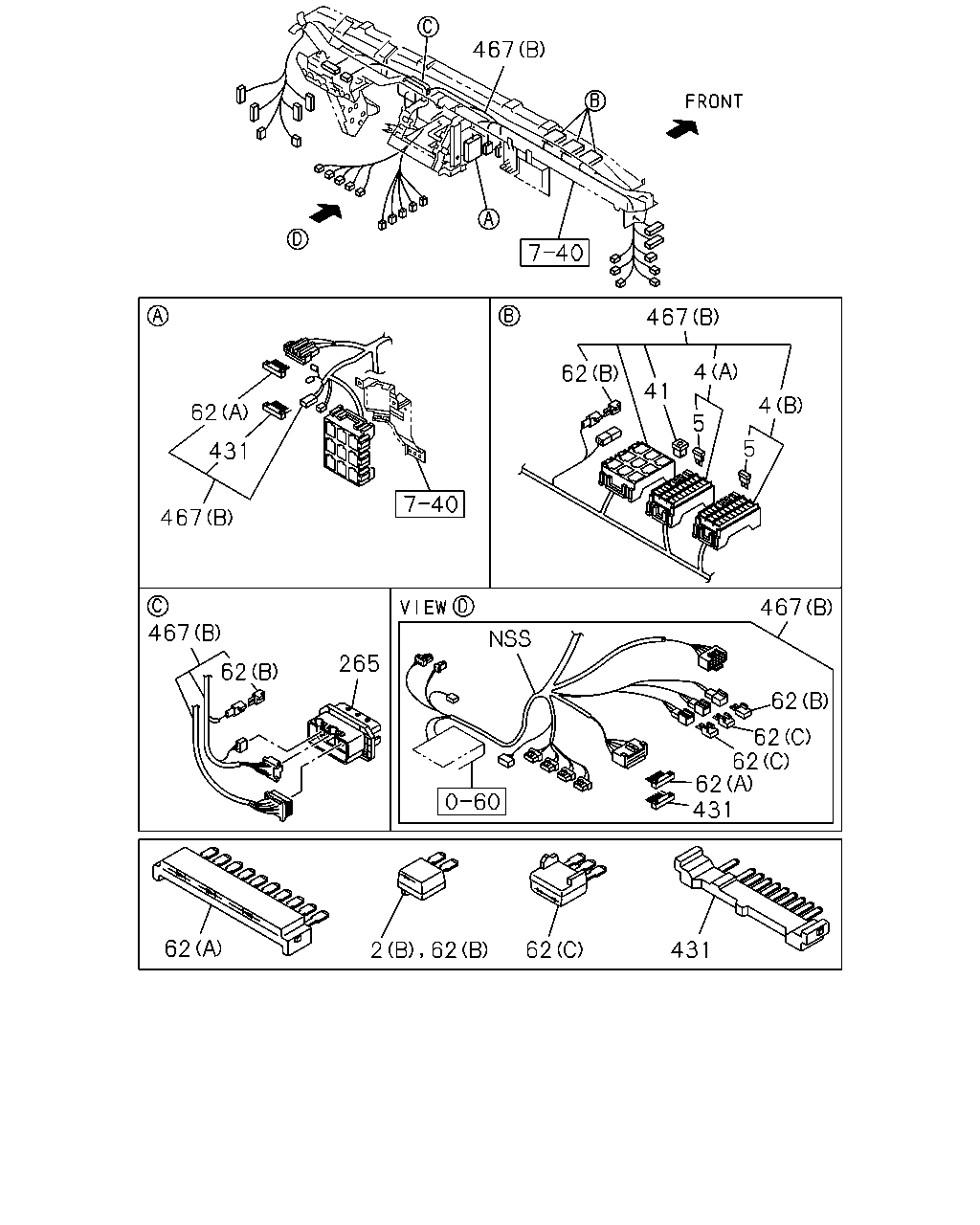

çizim 44321
467 467 4 62 41 4 62 5 5 431 467 467 467 265 62 62 62 62 62 431 62 431 62 2 62
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9812-
2 DIODE; CABLE HARNESS
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9812-9812
2 DIODE; CABLE HARNESS
6WG1 TC-C(72L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A 		1-81514-015-0 02 1 9901-9901
2 DIODE; CABLE HARNESS
6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9901-9901
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9902-9904
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9902-9904
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9905-9906
2 DIODE; CABLE HARNESS
6WA1 TC-S(56L) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9905-9906
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9905-9906
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9907-
2 DIODE; CABLE HARNESS
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG> (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9907-
2 DIODE; CABLE HARNESS
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9901-9901
4 BOX ASM; FUSE,HARNESS
(B) 15AX21 		1-82510-396-0 01 1 9812-9901
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 15AX21 		1-82510-396-0 01 1 9902-
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) (B) 15AX21 		1-82510-396-0 01 1 9902-
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 		1-82510-420-0 01 1 9812-9901
4 BOX ASM; FUSE,HARNESS
ELECTRONIC GOV RED3(KG5) (A) 7.5AX21 		1-82510-420-0 01 1 9902-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 7.5AX19 		1-82510-415-0 01 1 9902-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-S(56L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (A) 7.5AX17 		1-82510-393-0 01 1 9905-9906
4 BOX ASM; FUSE,HARNESS
6WA1 TC-S(56L) DELUXE CAB(W14) (A) 7.5AX17 		1-82510-393-0 01 1 9905-9906
4 BOX ASM; FUSE,HARNESS
6WA1 TC-S(56L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 15AX20 		1-82510-405-0 01 1 9905-9906
4 BOX ASM; FUSE,HARNESS
6WA1 TC-S(56L) DELUXE CAB(W14) (B) 15AX20 		1-82510-405-0 01 1 9905-9906
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 21 1 9812-9901
5 FUSE; FACIA HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 15A BLUE 		5-82516-003-0 21 1 9902-
5 FUSE; FACIA HARNESS
ELECTRONIC GOV RED3(KG5) 15A BLUE 		5-82516-003-0 21 1 9902-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 21 1 9812-9901
5 FUSE; FACIA HARNESS
ELECTRONIC GOV RED3(KG5) 7.5A BROWN 		8-94159-007-0 21 1 9902-
5 FUSE; FACIA HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 7.5A BROWN 		8-94159-007-0 19 1 9902-
5 FUSE; FACIA HARNESS
6WA1 TC-S(56L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) 15A BLUE 		5-82516-003-0 20 1 9905-9906
5 FUSE; FACIA HARNESS
6WA1 TC-S(56L) DELUXE CAB(W14) 15A BLUE 		5-82516-003-0 20 1 9905-9906
5 FUSE; FACIA HARNESS
6WA1 TC-S(56L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) 7.5A BROWN 		8-94159-007-0 17 1 9905-9906
5 FUSE; FACIA HARNESS
6WA1 TC-S(56L) DELUXE CAB(W14) 7.5A BROWN 		8-94159-007-0 17 1 9905-9906
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9812-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 9812-
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) (C) BLACK 3P-1.5A 		8-94416-438-1 01 1 9903-0101
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0102-
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9903-0101
62 DIODE; HARNESS
ELECTRONIC GOV RED3(KG5) (B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0102-
62 DIODE; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (C) BLACK 3P-1.5A 		8-94416-438-1 01 1 0102-
62 DIODE; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0102-
62 DIODE; HARNESS
6WA1 TC-S(56L) (C) BLACK 3P-1.5A 		8-94416-438-1 02 1 9905-9906
62 DIODE; HARNESS
6WA1 TC-S(56L) (B) BLACK 2P-1.5A 		8-94422-639-1 02 1 9905-9906
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 9812-
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 9812-9901
431 CONNECTOR; JOINT
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 9902-9904
431 CONNECTOR; JOINT
ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 9902-9904
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 9905-9906
431 CONNECTOR; JOINT
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 9907-
431 CONNECTOR; JOINT
ELECTRONIC GOV RED3(KG5) 10P BROWN 		1-82699-601-0 02 1 9907-
467 HARNESS; FACIA
(A) 		1-82628-112-4 01 1 9812-0003
467 HARNESS; FACIA
(A) 		1-82629-610-1 01 1 0004-
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-038-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-236-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-039-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82660-237-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-040-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-238-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-036-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-234-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82628-037-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82660-235-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82628-041-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82660-239-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-S(56L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-031-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-032-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-027-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-034-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-028-3 01 1 9905-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-033-3 01 1 9905-9906
467 HARNESS; FACIA
6WG1 TC-C(72L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-044-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82628-044-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-242-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-045-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82628-045-2 01 1 9902-0001
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82629-607-0 01 1 0002-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82660-243-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-042-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-042-2 01 1 9902-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-240-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-047-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-047-2 01 1 9902-0003
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-609-0 01 1 0004-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-245-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-043-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-043-2 01 1 9902-0001
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-606-0 01 1 0002-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82660-241-0 01 1 0102-
467 HARNESS; FACIA
6WG1 TC-C(72L) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-046-2 01 1 9812-9901
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-046-2 01 1 9902-0001
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-608-0 01 1 0002-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-244-0 01 1 0102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
