◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11234 - FTR-RHD EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#60349) — 10 parça

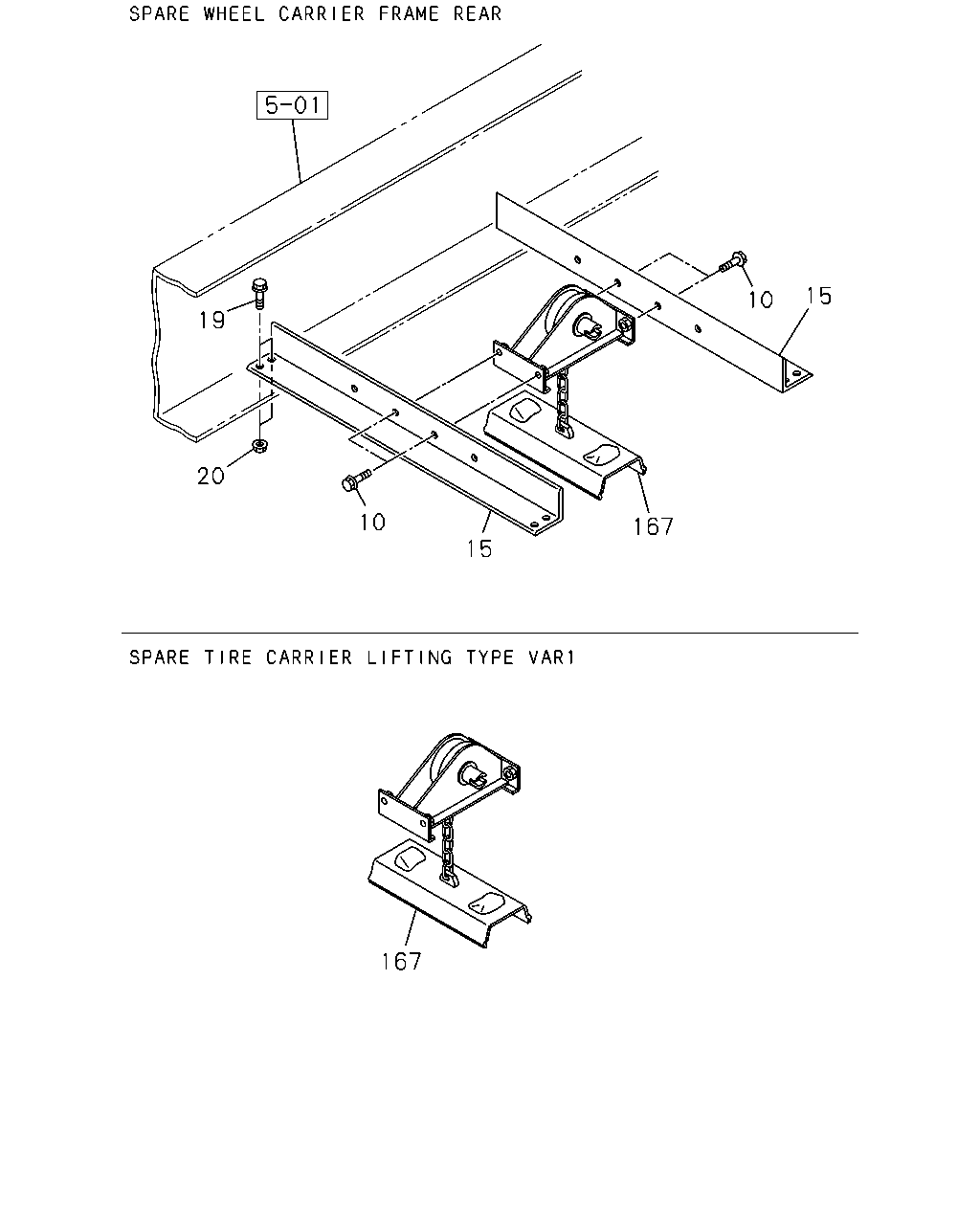

çizim 164473
15 10 19 20 10 167 15 167
BalonParca AdiParca NoAdetTipApplied Date
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0906-1107
10 BOLT; TIRE HANGER
SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 1108-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M12X30 FLANGE 		0-28651-230-0 04 1 1108-
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 0906-1107
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) 		1-53631-394-0 02 1 1108-
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0906-1107
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M10X25 FLANGE 		0-28051-025-0 08 1 1108-
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0906-1107
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) M10 FLANGE 		0-91180-210-0 08 1 1108-
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		1-53630-208-3 01 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
