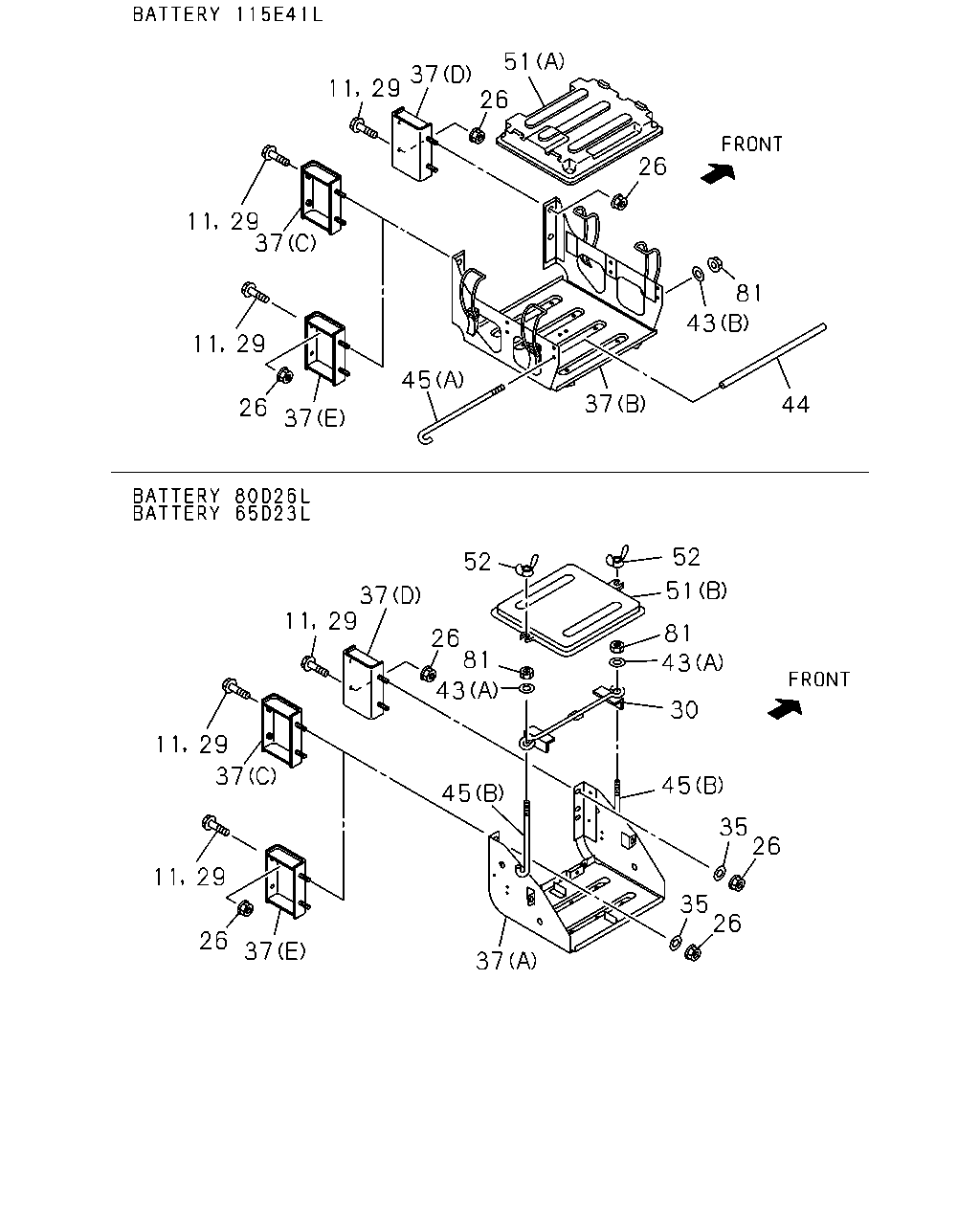

5-20 — BATTERY CARRIER (#60348) — 27 parça

11 29 11 29 11 29 26 37 37 45 37 44 43 81 26 51 26 37 52 81 43 51 30 45 26 35 26 35 37 45 43 81 26 37 11 29 11 29 37 11 29 26 37 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FIX WHEEL BASE 5500MM(55W) M10X35 FLANGE	0-28651-035-0	04	1	1005-
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0906-1004
26	NUT; BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	02	1	0906-1004
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1005-
26	NUT; BRKT WHEEL BASE 5500MM(55W) M10 FLANGE	0-91180-210-0	04	1	1005-
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0906-1004
29	BOLT; BRKT TO FRAME WHEEL BASE 5000MM(50W) M10X35 FLANGE	0-28651-035-0	04	1	1005-
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0906-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0906-
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W) (C)	8-98070-047-0	01	1	0906-0906
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W) (C)	8-98144-194-0	01	1	0907-1004
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W) (E)	8-98162-291-0	01	1	1005-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0906-1405
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0906-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0906-
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W) (D)	8-98088-828-0	01	1	0906-1004
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W) (D)	8-98088-828-0	01	1	1005-
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0906-
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0906-
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	0906-
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	0906-
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0906-
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0906-
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0906-
81	NUT; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	02	1	0906-
