5-10 — CAB MOUNTING; FRAME SIDE (#60344) — 112 parça

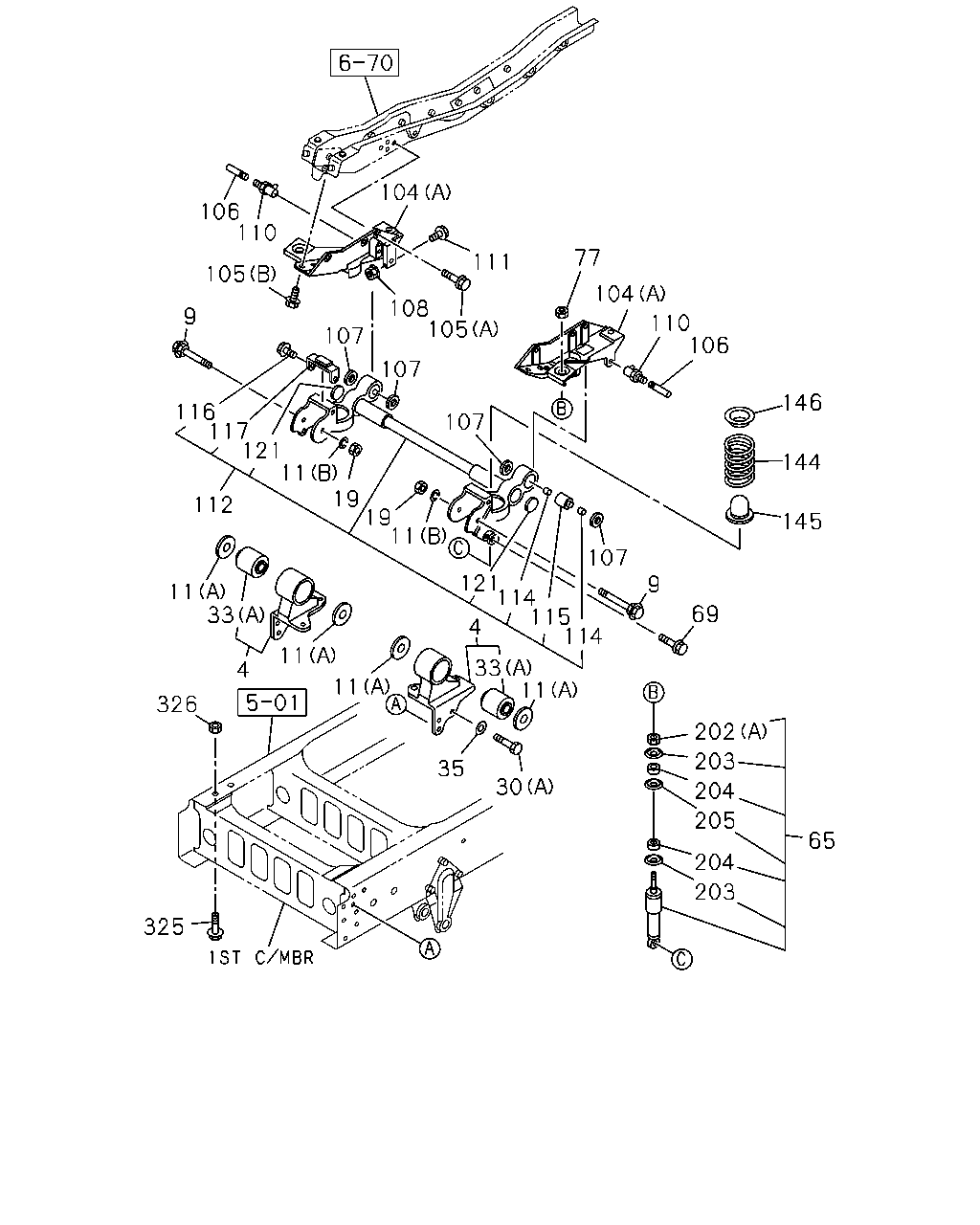

104 106 110 77 111 105 104 108 105 9 110 106 107 107 146 116 117 121 11 19 19 11 107 144 112 145 107 121 114 115 114 9 11 33 69 4 11 33 11 4 1 326 202 203 35 30 204 205 65 204 203 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-659-1	01	1	0906-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-658-1	01	1	0906-
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-270-0	01	1	0906-
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-269-0	01	1	0906-
9	BOLT CAB SUSPENSION FULL FLOATING<W16> M16X125	1-51361-023-0	02	1	0906-
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (B) ID=16.2	0-91510-816-0	02	1	0906-
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (A) ID=34.5	1-53458-281-1	04	1	0906-
19	NUT CAB SUSPENSION FULL FLOATING<W16> M16	0-91110-516-0	02	1	0906-
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> (A) M14X50	0-20951-450-0	10	1	0906-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> (B) M14X45 FLANGE	0-28861-445-0	10	1	0906-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (A)	1-53458-636-1	02	1	0906-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (C)	8-98010-759-2	02	1	0906-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0906-
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	8-98010-627-1	10	1	0906-
65	ABSORBER; SHOCK,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-51630-345-0	02	1	0906-
69	BOLT; S/ABS,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16> M12X60 FLANGE	0-28051-260-0	02	1	0906-
77	NUT CAB SUSPENSION FULL FLOATING<W16>	8-97359-039-0	02	1	0906-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-421-2	01	1	0906-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-420-2	01	1	0906-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98010-753-3	01	1	0906-1511
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98330-224-0	01	1	1512-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	0906-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (A) M10X30 FLANGE	0-28661-030-0	08	1	0906-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK> (C) M14X35 FLANGE	0-28661-435-0	01	1	0906-
106	PIN; BRKT TO LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-642-1	02	1	0906-
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO CAB SUSPENSION FULL FLOATING<W16>	1-53459-643-2	04	1	0906-
108	NUT; PIN LOCK BOLT CAB SUSPENSION FULL FLOATING<W16> M8 FLANGE	0-91180-108-0	02	1	0906-
110	NIPPLE; GREASE,LINK ARM PIN CAB SUSPENSION FULL FLOATING<W16> PT1/8 ELBOW	0-90301-610-0	02	1	0906-
111	BOLT; PIN LOCK,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X50 FLANGE	0-28050-850-0	02	1	0906-
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION FULL FLOATING<W16>	8-98082-922-0	01	1	0906-0910
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION FULL FLOATING<W16>	8-98148-517-0	01	1	0911-
114	BUSHING; FLOATING LINK PIN CAB SUSPENSION FULL FLOATING<W16>	1-09330-068-0	04	1	0906-
115	BUSHING; RUBBER,FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-315-2	02	1	0906-
116	BOLT; STOPPER RUBBER,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X20 FLANGE	0-28050-820-0	04	1	0906-
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53458-321-1	02	1	0906-
121	PLUG; FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	9-09860-031-0	02	1	0906-
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-09580-518-1	02	1	0906-
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	0906-
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-132-1	02	1	0906-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	0906-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	0906-
203	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=10.5 OD=38	9-51631-062-0	04	1	0906-
204	RUBBER; CUSHION,SHOCK CAB SUSPENSION FULL FLOATING<W16> TOKICO	9-51631-603-0	04	1	0906-
205	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=13 OD=38	9-51631-063-0	02	1	0906-
325	BOLT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12X40 FLANGE	0-28651-240-0	02	1	0906-
326	NUT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12	0-91110-512-0	02	1	0906-

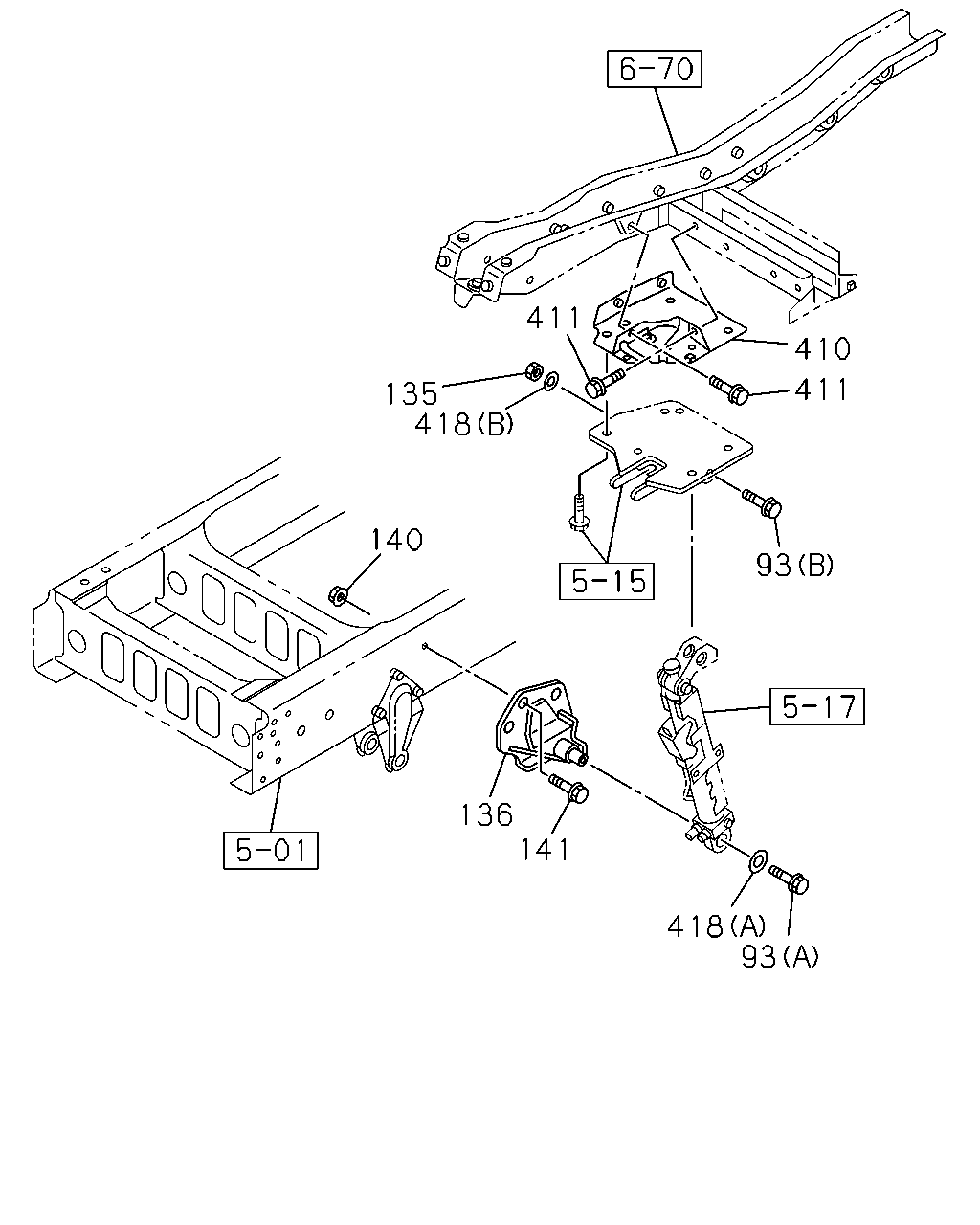

411 410 411 135 418 140 93 136 141 418 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	BOLT; PIN AUTO CAB TILT<WV2> (A) M10X20 FLANGE	0-28651-020-0	01	1	0906-
93	BOLT; PIN AUTO CAB TILT<WV2> (B) M14X70 FLANGE	0-29261-470-0	01	1	0906-
135	NUT; PIN AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	0906-
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	8-98077-938-0	01	1	0906-
140	NUT; BRKT AUTO CAB TILT<WV2> M14 FLANGE	0-91180-214-0	04	1	0906-
141	BOLT; BRKT AUTO CAB TILT<WV2> M14X40 FLANGE	0-28661-440-0	04	1	0906-
410	REINFORCEMENT; CAB TILT AUTO CAB TILT<WV2>	8-97588-837-5	01	1	0906-
411	BOLT; REINFORCEMENT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	0906-
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (B) ID=15	0-91610-514-0	01	1	0906-
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (A) ID=10.5 OD=32	0-91614-810-0	01	1	0906-

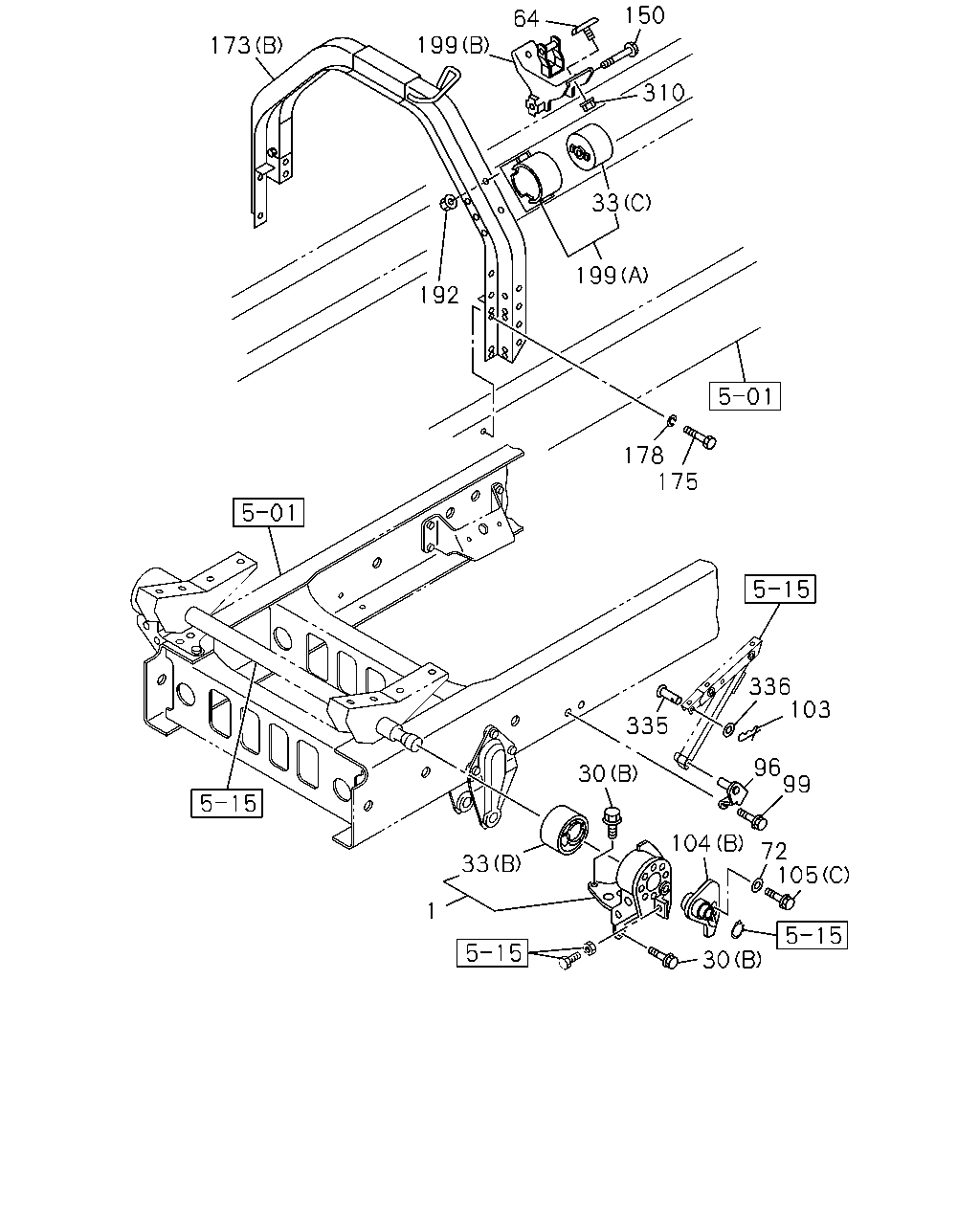

150 64 199 173 310 33 199 192 178 175 336 103 335 96 99 30 104 72 105 33 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-659-1	01	1	0906-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-658-1	01	1	0906-
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> (A) M14X50	0-20951-450-0	10	1	0906-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> (B) M14X45 FLANGE	0-28861-445-0	10	1	0906-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (A)	1-53458-636-1	02	1	0906-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (C)	8-98010-759-2	02	1	0906-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0906-
64	RUBBER; CUSHION	8-97113-340-0	04	1	0906-
72	WASHER; PL,BRKT TO FRAME CAB SUSPENSION SEMI FLOATING<SDK> ID=15 OD=36	0-91614-714-0	01	1	0906-
96	BRACKET; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>	1-62500-628-0	01	1	0906-
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK> M10X30 FLANGE	0-28661-030-0	02	1	0906-
103	PIN; SPLIT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK> L=32.6	8-98062-280-0	01	1	0906-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-421-2	01	1	0906-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-420-2	01	1	0906-
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98010-753-3	01	1	0906-1511
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98330-224-0	01	1	1512-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	0906-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (A) M10X30 FLANGE	0-28661-030-0	08	1	0906-
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK> (C) M14X35 FLANGE	0-28661-435-0	01	1	0906-
150	BOLT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M14X100	0-10956-400-0	02	1	0906-
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-592-8	01	1	0906-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-041-3	01	1	0906-0910
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98151-943-0	01	1	0911-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0906-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0906-
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK> M12 FLANGE	0-91180-212-0	04	1	0906-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	0906-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	0906-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98023-692-0	02	1	0906-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0906-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0906-
335	PIN; ADJ,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK> OD=10 L=48	1-09744-107-0	01	1	0906-
336	WASHER; PL,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK> ID=10.5 T=2.0	1-09985-183-0	01	1	0906-

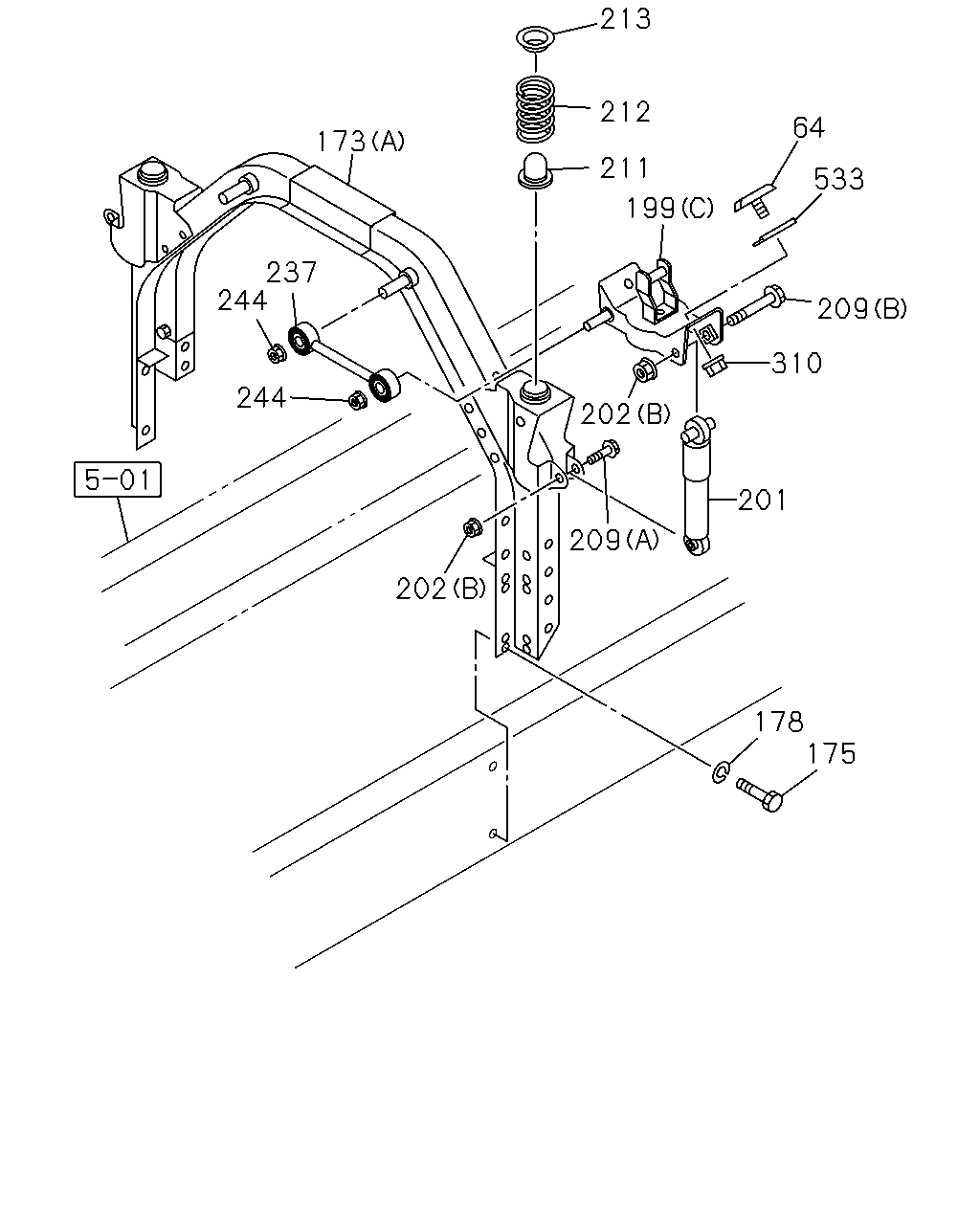

213 212 64 173 211 533 199 237 244 209 310 244 202 201 209 202 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	RUBBER; CUSHION	8-97113-340-0	04	1	0906-
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-592-8	01	1	0906-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98013-041-3	01	1	0906-0910
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98151-943-0	01	1	0911-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0906-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0906-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	0906-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	0906-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98023-692-0	02	1	0906-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0906-
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98022-450-0	02	1	0906-1401
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98269-510-0	02	1	1402-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	0906-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	0906-
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M12X60 FLANGE	0-28051-260-0	02	1	0906-
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12X100 FLANGE	0-28061-200-0	02	1	0906-
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	0906-
212	SPRING; COIL CAB SUSPENSION FULL FLOATING<W16>	1-09580-398-1	02	1	0906-
213	SEAT; SPR,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-062-2	02	1	0906-
237	ROD ASM; LATERAL CAB SUSPENSION FULL FLOATING<W16>	1-53459-585-2	02	1	0906-
244	NUT; LATERAL ROD CAB SUSPENSION FULL FLOATING<W16> M16 FLANGE	0-91180-216-0	04	1	0906-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0906-
533	SPACER; MTG RUBBER CAB SUSPENSION FULL FLOATING<W16>	8-98077-323-0	04	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
