◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11234 - FTR-RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#60342) — 27 parça

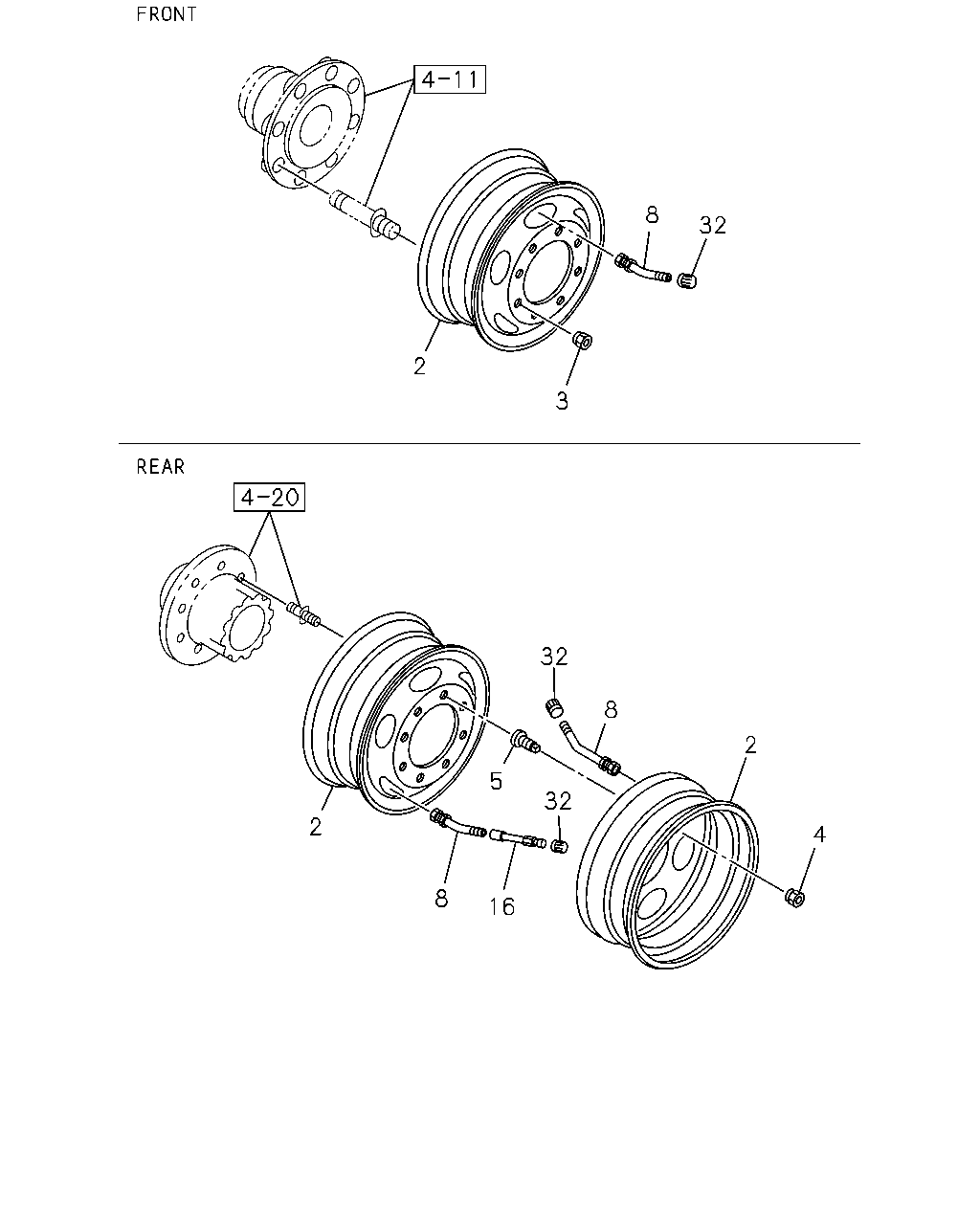

çizim 164436
2 8 3 32 4 2 8 32 5 32 16 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR 		1-42350-758-0 04 1 1005-1211
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR 		1-42350-758-0 06 1 1212-1310
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR 		8-98232-031-0 06 1 1311-
2 WHEEL; DISC
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) REAR 		1-42350-667-0 04 1 1005-1211
2 WHEEL; DISC
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT,REAR 		1-42350-667-0 06 1 1212-
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR 		1-42350-758-0 06 1 0906-1004
2 WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT 		1-42350-758-0 02 1 1005-1211
2 WHEEL; DISC
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT,REAR 		1-42350-667-0 06 1 0906-1004
2 WHEEL; DISC
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT 		1-42350-667-0 02 1 1005-1211
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42350-758-0 01 1 0906-1310
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		8-98232-031-0 01 1 1311-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE 		1-42350-667-0 01 1 0906-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 0906-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 0906-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0906-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0906-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0906-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0906-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE 		1-42370-048-0 01 1 1311-
8 VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT,REAR 		1-42370-048-0 06 1 1311-
8 VALVE; TIRE
FRONT.REAR 		1-42370-020-3 06 1 0906-1310
8 VALVE; TIRE
DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) FRONT,REAR 		1-42370-020-3 06 1 1311-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 		1-42370-020-3 01 1 0906-1310
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE 		1-42370-020-3 01 1 1311-
16 HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) L=170 		8-98167-052-0 02 1 1311-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 07 1 0906-
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> 		1-42374-001-0 06 1 0906-
