8-05 — INTERIOR LAMP (#6034) — 48 parça

34 35 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	COVER; STEP LAMP EXC. CORNARING LAMP<TDS>	1-71907-444-0	01	1	9812-
35	SCREW; STEP LAMP EXC. CORNARING LAMP<TDS> M4X20 TAPPING W/PL WASHER	0-74310-420-0	02	1	9812-
38	COVER; STEP LAMP,DOOR	1-74997-029-2	01	1	9812-

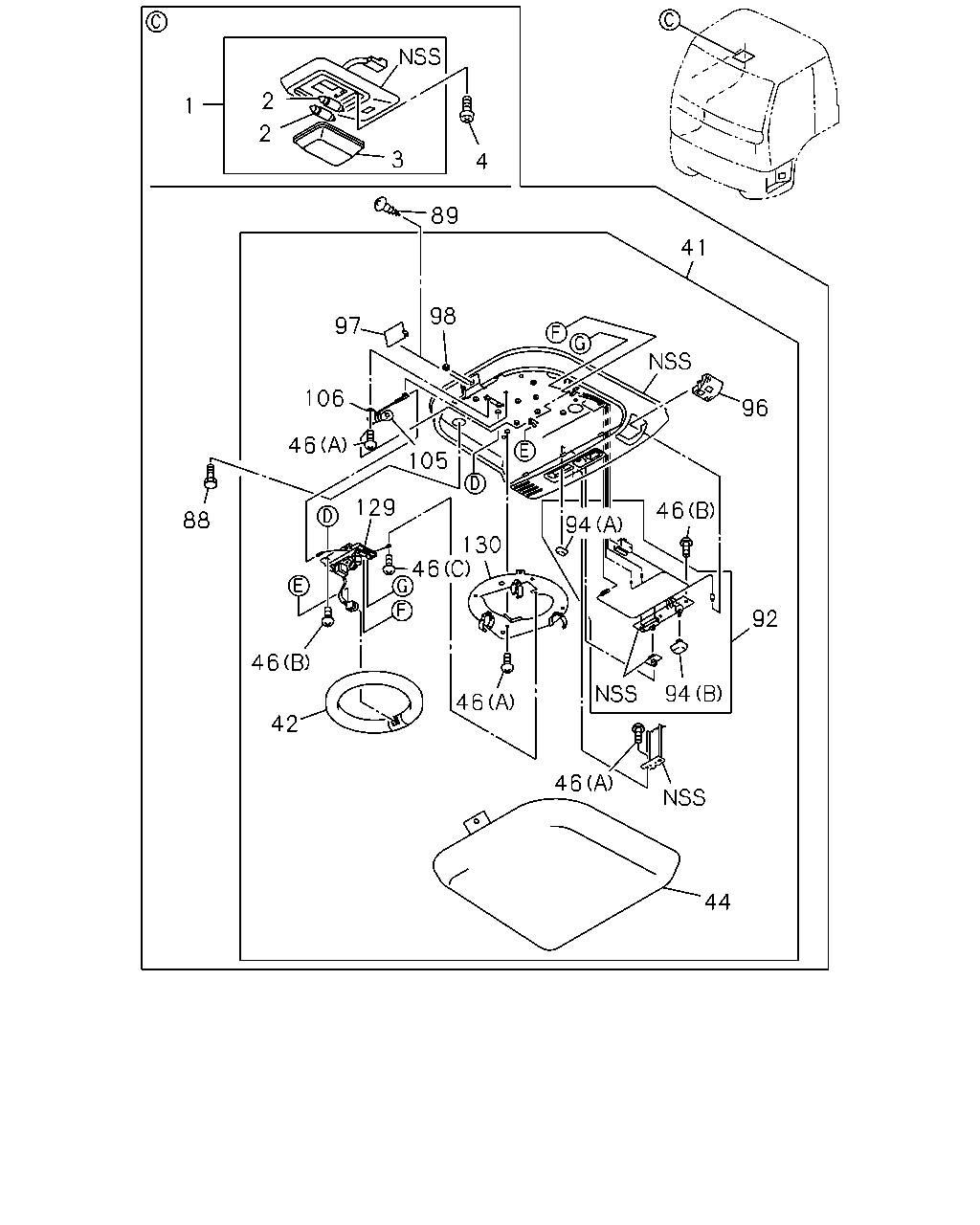

2 1 2 3 4 89 41 98 97 106 96 46 105 129 46 88 94 130 46 92 46 94 46 42 46 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; ROOM EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82140-050-1	01	1	9812-9909
1	LAMP ASM; ROOM EXC. ROOM LAMP FLUORESCENT<NGG>	1-82140-050-1	01	1	9910-
2	BULB; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> 24V 10W	1-82195-001-0	02	1	9812-9909
2	BULB; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> 24V 10W	1-82195-001-0	02	1	9910-
3	LENS; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82145-020-0	01	1	9812-9909
3	LENS; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG>	1-82145-020-0	01	1	9910-
4	SCREW; ROOM LAMP EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> M5X25	5-09981-093-0	03	1	9812-9909
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X25	5-09981-093-0	03	1	9910-9911
4	SCREW; ROOM LAMP EXC. ROOM LAMP FLUORESCENT<NGG> M5X20 TAPPING	9-07066-520-0	03	1	9912-
41	LAMP ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-305-2	01	1	9812-9909
41	LAMP ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-305-2	01	1	9910-
42	LAMP; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-094-1	01	1	9812-9909
42	LAMP; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-094-1	01	1	9910-
44	LENS; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-092-0	01	1	9812-9909
44	LENS; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-092-0	01	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (A) M5X10 TAPPING	1-86830-095-0	08	1	9812-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (A) M5X10 TAPPING	1-86830-095-0	08	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (B) M4X12	1-86830-202-0	07	1	9812-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (B) M4X12	1-86830-202-0	07	1	9910-
46	SCREW; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> (C) M3X6 TAPPING	1-86830-336-0	01	1	9812-9909
46	SCREW; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> (C) M3X6 TAPPING	1-86830-336-0	01	1	9910-
88	BOLT; LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9812-9909
88	BOLT; LAMP ROOM LAMP FLUORESCENT<NGG> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9910-
89	SCREW; LENS,FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> M5X10 TAPPING	9-07076-510-0	01	1	9812-9909
89	SCREW; LENS,FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> M5X10 TAPPING	9-07076-510-0	01	1	9910-
92	SWITCH ASM; FLUORESCENT LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-340-0	01	1	9812-9909
92	SWITCH ASM; FLUORESCENT ROOM LAMP FLUORESCENT<NGG>	1-86830-340-0	01	1	9910-
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (A)	1-86830-099-0	01	1	9812-9909
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (A)	1-86830-099-0	01	1	9910-
94	KNOB; ROOM LAMP SW LAMP-ROOM OPERATION W/CONSOLE<C93> (B)	1-86830-304-0	01	1	9812-9909
94	KNOB; ROOM LAMP SW ROOM LAMP FLUORESCENT<NGG> (B)	1-86830-304-0	01	1	9910-
96	CAP; SPOT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-282-0	01	1	9812-9909
96	CAP; SPOT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-282-0	01	1	9910-
97	CAP; LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-101-0	01	1	9812-9909
97	CAP; LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-101-0	01	1	9910-
98	GROMMET; SCREW,LENS FIX LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-102-0	01	1	9812-9909
98	GROMMET; SCREW,LENS FIX ROOM LAMP FLUORESCENT<NGG>	1-86830-102-0	01	1	9910-
105	BULB; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93> 28V 20W	1-86830-200-0	01	1	9812-9909
105	BULB; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG> 28V 20W	1-86830-200-0	01	1	9910-
106	SOCKET; BULB LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-201-0	01	1	9812-9909
106	SOCKET; BULB ROOM LAMP FLUORESCENT<NGG>	1-86830-201-0	01	1	9910-
129	INVERTER ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-338-0	01	1	9812-9909
129	INVERTER ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-338-0	01	1	9910-
130	PLATE ASM; FLUORESCENT LAMP LAMP-ROOM OPERATION W/CONSOLE<C93>	1-86830-339-0	01	1	9812-9909
130	PLATE ASM; FLUORESCENT LAMP ROOM LAMP FLUORESCENT<NGG>	1-86830-339-0	01	1	9910-
