Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#6033) — 193 parça

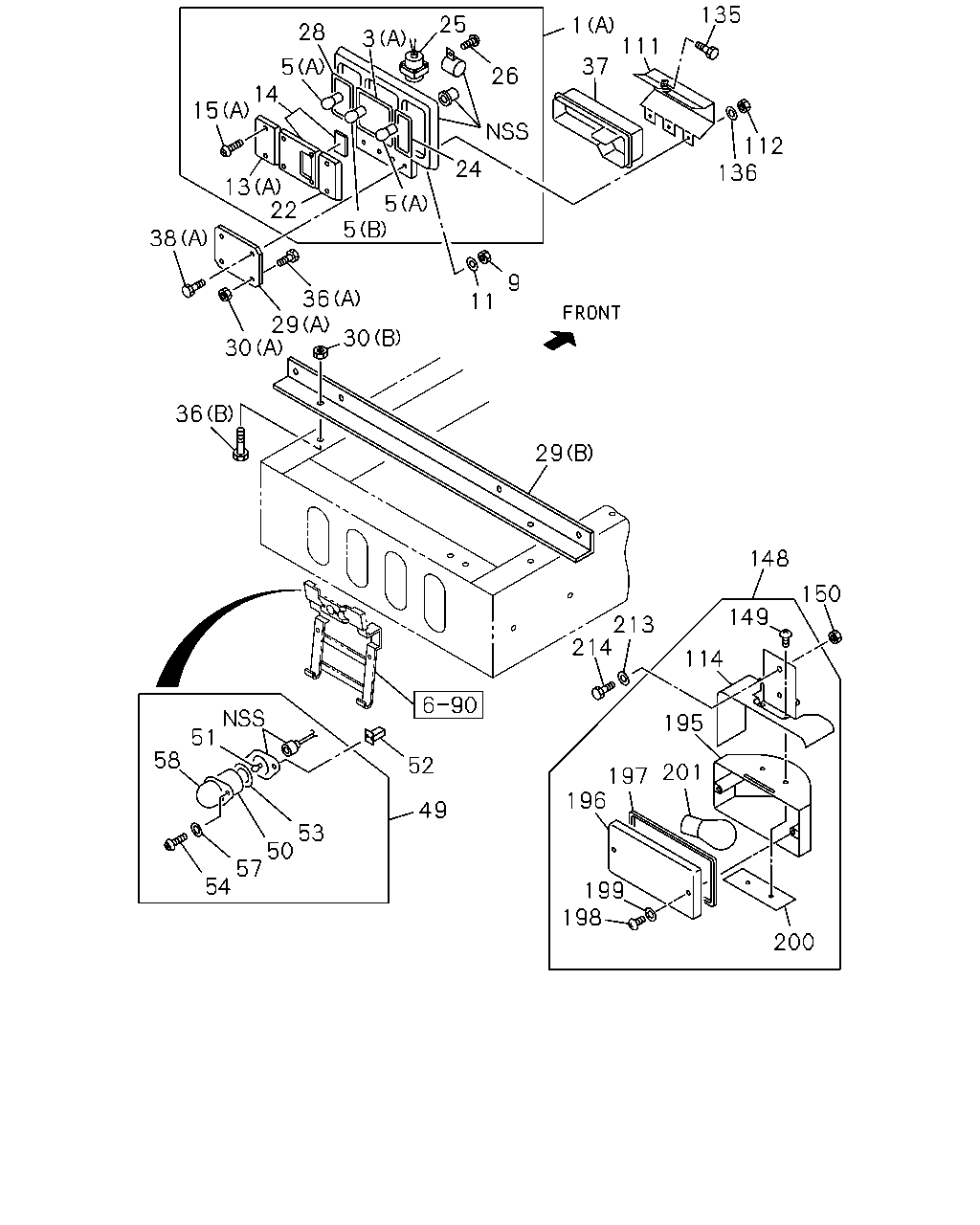

135 25 1 111 28 3 37 5 14 26 15 112 136 24 13 22 5 5 38 9 36 29 30 11 30 36 29 148 150 149 213 214 114 195 51 58 52 201 197 196 49 53 50 57 54 199 198 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) (A)	1-82230-135-2	01	1	9812-9904
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82230-135-2	01	1	9905-
1	LAMP ASM; RR COMB EXC. CHINA EQUIPMENT(YT2) (B)	1-82230-160-2	01	1	9902-9904
1	LAMP ASM; RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82230-160-2	01	1	9905-
1	LAMP ASM; RR COMB EXC. CHINA EQUIPMENT(YT2) (B)	1-82230-159-2	01	1	9902-9904
1	LAMP ASM; RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82230-159-2	01	1	9905-
1	LAMP ASM; RR COMB REVERSING WARNING BUZZER<YM9> (A)	1-82230-132-2	01	1	9812-9904
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (A)	1-82230-132-2	01	1	9905-
1	LAMP ASM; RR COMB EXC. REVERSING WARNING BUZZER<YM9> (A)	1-82230-134-2	01	1	9812-9904
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A)	1-82230-134-2	01	1	9905-
3	GASKET; RR COMB LAMP CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	02	1	9812-9904
3	GASKET; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	9905-
3	GASKET; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	9905-
3	GASKET; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82236-003-0	04	1	9902-9904
3	GASKET; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82236-003-0	04	1	9905-
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	04	1	9812-9904
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	02	1	9905-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	02	1	9905-
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	02	1	9812-9904
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	01	1	9905-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	01	1	9905-
5	BULB; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (C) 24V 21W	1-82194-036-0	02	1	9902-9904
5	BULB; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 24V 21W	1-82194-036-0	02	1	9905-
5	BULB; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (D) 24V 21/5W	1-82194-038-0	02	1	9902-9904
5	BULB; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 24V 21/5W	1-82194-038-0	02	1	9905-
9	NUT; LAMP,RR COMB CHINA EQUIPMENT(YT2) M6	9-09110-406-0	04	1	9812-9904
9	NUT; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6	9-09110-406-0	04	1	9905-
9	NUT; LAMP,RR COMB EXC. CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	9902-9904
9	NUT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	9905-
11	WASHER; PL,LAMP,RR COMB CHINA EQUIPMENT(YT2) ID=6.4 OD=18	9-09160-706-0	04	1	9812-9904
11	WASHER; PL,LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=6.4 OD=18	9-09160-706-0	04	1	9905-
13	LENS; TURN SIGNAL CHINA EQUIPMENT(YT2) (A)	1-82235-015-0	01	1	9812-9904
13	LENS; TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82235-015-0	01	1	9905-
13	LENS; TURN SIGNAL CHINA EQUIPMENT(YT2) (A)	1-82235-014-0	01	1	9812-9904
13	LENS; TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82235-014-0	01	1	9905-
13	LENS; TURN SIGNAL EXC. CHINA EQUIPMENT(YT2) (B)	1-82235-016-0	02	1	9902-9904
13	LENS; TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82235-016-0	02	1	9905-
14	LENS; TAIL & STOP,RR COMB LAMP CHINA EQUIPMENT(YT2)	8-94257-511-0	01	1	9812-9904
14	LENS; TAIL & STOP,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-511-0	01	1	9905-
14	LENS; TAIL & STOP,RR COMB LAMP CHINA EQUIPMENT(YT2)	8-94257-510-0	01	1	9812-9904
14	LENS; TAIL & STOP,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-510-0	01	1	9905-
15	SCREW; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	9812-9904
15	SCREW; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9905-
15	SCREW; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9905-
15	SCREW; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82239-019-0	16	1	9902-9904
15	SCREW; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82239-019-0	16	1	9905-
22	LENS; BACKUP,RR COMB LAMP CHINA EQUIPMENT(YT2)	8-94257-512-0	02	1	9812-9904
22	LENS; BACKUP,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-512-0	01	1	9905-
22	LENS; BACKUP,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-512-0	01	1	9905-
24	GASKET; BACK,LAMP CHINA EQUIPMENT(YT2)	8-94257-506-0	02	1	9812-9904
24	GASKET; BACK,LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-506-0	01	1	9905-
24	GASKET; BACK,LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-506-0	01	1	9905-
25	HORN ASM; BACK REVERSING WARNING BUZZER<YM9>	8-94257-518-0	01	1	9812-9904
25	HORN ASM; BACK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9>	8-94257-518-0	01	1	9905-
26	SCREW; BACK HORN CHINA EQUIPMENT(YT2) M4X12 TAPPING	9-07076-412-0	01	1	9812-9904
26	SCREW; BACK HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M4X12 TAPPING	9-07076-412-0	01	1	9905-
26	SCREW; BACK HORN REVERSING WARNING BUZZER<YM9> M4X14 TAPPING	9-07076-414-0	02	1	9812-9904
26	SCREW; BACK HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> M4X14 TAPPING	9-07076-414-0	02	1	9905-
26	SCREW; BACK HORN EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING	9-07076-410-0	01	1	9812-9904
26	SCREW; BACK HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING	9-07076-410-0	01	1	9905-
28	GASKET; TURN,LAMP CHINA EQUIPMENT(YT2)	8-94257-507-0	02	1	9812-9904
28	GASKET; TURN,LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-507-0	01	1	9905-
28	GASKET; TURN,LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-507-0	01	1	9905-
29	BRACKET; LAMP,RR COMB CHINA EQUIPMENT(YT2) (B)	1-82237-037-3	01	1	9812-9904
29	BRACKET; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-82237-037-3	01	1	9905-
29	BRACKET; LAMP,RR COMB CHINA EQUIPMENT(YT2) (A)	1-82237-050-1	02	1	9812-9904
29	BRACKET; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82237-050-1	02	1	9905-
30	NUT; BRKT,RR COMB CHINA EQUIPMENT(YT2) (A) M8 FLANGE	0-91150-108-0	02	1	9812-9904
30	NUT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8 FLANGE	0-91150-108-0	02	1	9905-9911
30	NUT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8 FLANGE	0-91150-108-0	04	1	9912-
30	NUT; BRKT,RR COMB CHINA EQUIPMENT(YT2) (B) M10 FLANGE	0-91150-210-0	02	1	9812-9904
30	NUT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M10 FLANGE	0-91150-210-0	02	1	9905-
36	BOLT; BRKT,RR COMB CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	02	1	9812-9904
36	BOLT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-9911
36	BOLT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	04	1	9912-
36	BOLT; BRKT,RR COMB CHINA EQUIPMENT(YT2) (B) M10X40 FLANGE	0-28681-040-0	02	1	9812-9904
36	BOLT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M10X40 FLANGE	0-28681-040-0	02	1	9905-
37	COVER; RR COMB LAMP CHINA EQUIPMENT(YT2)	1-82239-008-0	01	1	9812-9904
37	COVER; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82239-008-0	01	1	9905-
37	COVER; RR COMB LAMP CHINA EQUIPMENT(YT2)	1-82239-007-0	01	1	9812-9904
37	COVER; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82239-007-0	01	1	9905-
38	BOLT; LAMP,RR COMB CHINA EQUIPMENT(YT2) (A) M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	9812-9904
38	BOLT; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	9905-
38	BOLT; LAMP,RR COMB EXC. CHINA EQUIPMENT(YT2) (B) M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	9902-9904
38	BOLT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	9905-
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-0	01	1	9812-
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	9812-
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	9812-
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	9812-
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	9812-
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	9812-
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	9812-
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	9812-
111	PROTECTOR; RR COMB LAMP CHINA EQUIPMENT(YT2)	1-82239-014-1	01	1	9901-9904
111	PROTECTOR; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82239-014-1	01	1	9905-
111	PROTECTOR; RR COMB LAMP CHINA EQUIPMENT(YT2)	1-82239-013-1	01	1	9901-9904
111	PROTECTOR; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82239-013-1	01	1	9905-
112	NUT; PROTECTOR,RR COMB LAMP CHINA EQUIPMENT(YT2) M6	9-09110-406-0	04	1	9901-9904
112	NUT; PROTECTOR,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6	9-09110-406-0	04	1	9905-
114	BRACKET; RR FOG LAMP FOG LAMP REAR<NHD>	8-97108-583-0	01	1	0002-
135	BOLT; PROTECTOR,RR COMB LAMP CHINA EQUIPMENT(YT2) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9901-9904
135	BOLT; PROTECTOR,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9905-
136	WASHER; PL,PROTECTOR CHINA EQUIPMENT(YT2) ID=6.4 OD=18	9-09160-706-0	04	1	9901-9904
136	WASHER; PL,PROTECTOR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=6.4 OD=18	9-09160-706-0	04	1	9905-
148	LAMP ASM; RR FOG FOG LAMP REAR<NHD>	8-97181-002-0	01	1	0002-
149	SCREW; BRKT TO LAMP BODY FOG LAMP REAR<NHD>	8-94336-372-0	02	1	0002-
150	NUT; RR FOG LAMP FOG LAMP REAR<NHD> M6 FLANGE	5-09440-004-0	01	1	0002-
195	LAMP UNIT; RR FOG FOG LAMP REAR<NHD>	8-94336-322-0	01	1	0002-
196	LENS; RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-325-0	01	1	0002-
197	GASKET; RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-324-0	01	1	0002-
198	SCREW; LENS TO BODY FOG LAMP REAR<NHD>	0-71190-416-0	02	1	0002-
199	WASHER; LENS,RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-326-0	02	1	0002-
200	PLATE; SET,RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-323-0	01	1	0002-
201	BULB; RR FOG LAMP FOG LAMP REAR<NHD> 24V 21W	1-82194-036-0	01	1	0002-
213	WASHER; PL,RR FOG LAMP FOG LAMP REAR<NHD>	1-09985-144-0	01	1	0002-
214	BOLT; RR FOG LAMP FOG LAMP REAR<NHD> M6X20 FLANGE	0-28680-620-0	01	1	0002-

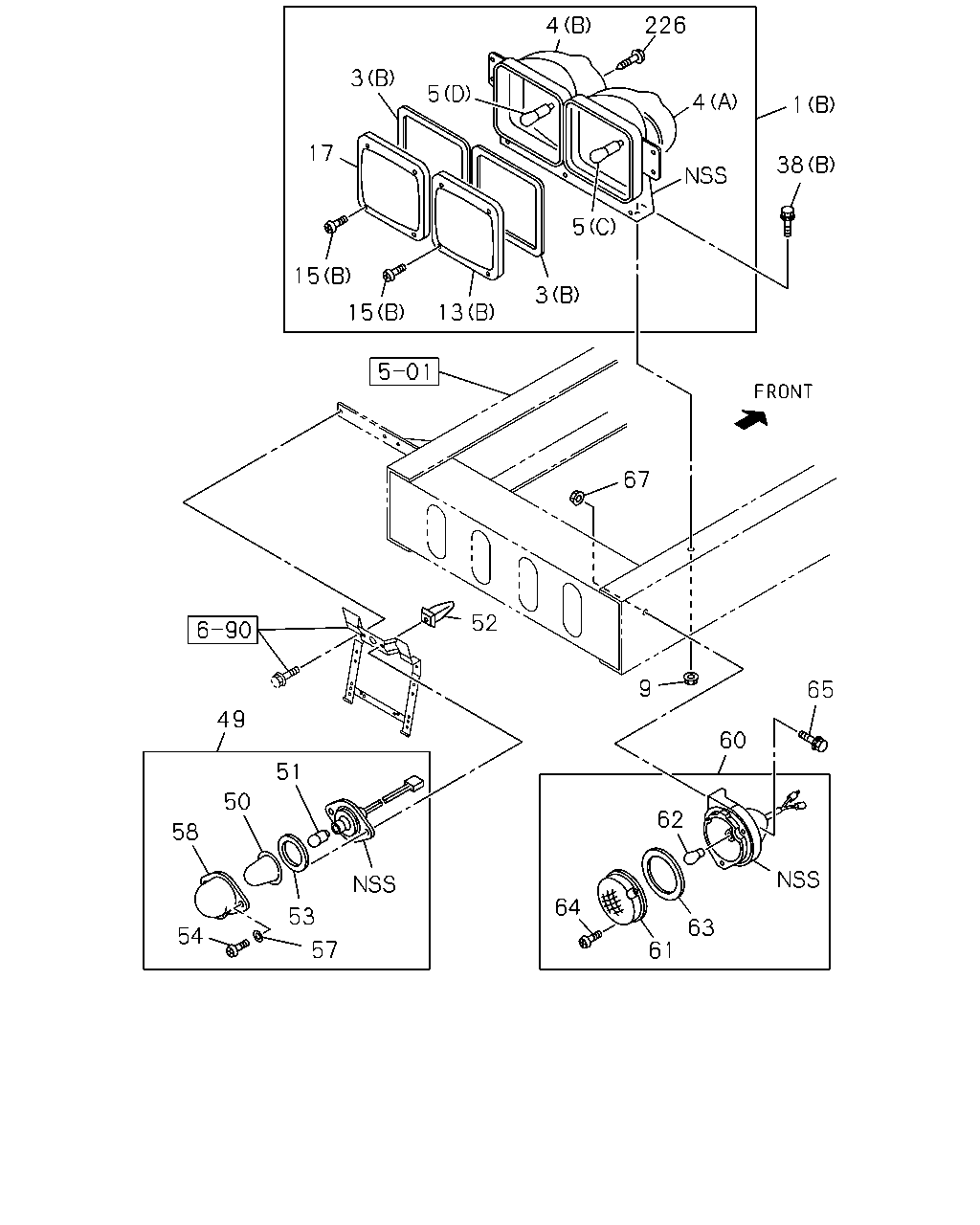

226 4 3 5 4 1 17 38 5 15 3 15 13 67 52 9 65 49 60 51 50 62 58 64 53 63 54 57 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; RR COMB CHINA EQUIPMENT(YT2) (A)	1-82230-135-2	01	1	9812-9904
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82230-135-2	01	1	9905-
1	LAMP ASM; RR COMB EXC. CHINA EQUIPMENT(YT2) (B)	1-82230-160-2	01	1	9902-9904
1	LAMP ASM; RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82230-160-2	01	1	9905-
1	LAMP ASM; RR COMB EXC. CHINA EQUIPMENT(YT2) (B)	1-82230-159-2	01	1	9902-9904
1	LAMP ASM; RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82230-159-2	01	1	9905-
1	LAMP ASM; RR COMB REVERSING WARNING BUZZER<YM9> (A)	1-82230-132-2	01	1	9812-9904
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (A)	1-82230-132-2	01	1	9905-
1	LAMP ASM; RR COMB EXC. REVERSING WARNING BUZZER<YM9> (A)	1-82230-134-2	01	1	9812-9904
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A)	1-82230-134-2	01	1	9905-
3	GASKET; RR COMB LAMP CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	02	1	9812-9904
3	GASKET; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	9905-
3	GASKET; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	9905-
3	GASKET; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82236-003-0	04	1	9902-9904
3	GASKET; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82236-003-0	04	1	9905-
4	COVER; RR,RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (A)	1-82239-033-0	02	1	9902-9904
4	COVER; RR,RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-82239-033-0	02	1	9905-
4	COVER; RR,RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82239-034-0	02	1	9902-9904
4	COVER; RR,RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82239-034-0	02	1	9905-
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	04	1	9812-9904
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	02	1	9905-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	02	1	9905-
5	BULB; RR COMB LAMP CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	02	1	9812-9904
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	01	1	9905-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	01	1	9905-
5	BULB; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (C) 24V 21W	1-82194-036-0	02	1	9902-9904
5	BULB; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 24V 21W	1-82194-036-0	02	1	9905-
5	BULB; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (D) 24V 21/5W	1-82194-038-0	02	1	9902-9904
5	BULB; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 24V 21/5W	1-82194-038-0	02	1	9905-
9	NUT; LAMP,RR COMB CHINA EQUIPMENT(YT2) M6	9-09110-406-0	04	1	9812-9904
9	NUT; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6	9-09110-406-0	04	1	9905-
9	NUT; LAMP,RR COMB EXC. CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	9902-9904
9	NUT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8 FLANGE	0-91150-108-0	02	1	9905-
13	LENS; TURN SIGNAL CHINA EQUIPMENT(YT2) (A)	1-82235-015-0	01	1	9812-9904
13	LENS; TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82235-015-0	01	1	9905-
13	LENS; TURN SIGNAL CHINA EQUIPMENT(YT2) (A)	1-82235-014-0	01	1	9812-9904
13	LENS; TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82235-014-0	01	1	9905-
13	LENS; TURN SIGNAL EXC. CHINA EQUIPMENT(YT2) (B)	1-82235-016-0	02	1	9902-9904
13	LENS; TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82235-016-0	02	1	9905-
15	SCREW; RR COMB LAMP CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	16	1	9812-9904
15	SCREW; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9905-
15	SCREW; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	9905-
15	SCREW; RR COMB LAMP EXC. CHINA EQUIPMENT(YT2) (B)	1-82239-019-0	16	1	9902-9904
15	SCREW; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82239-019-0	16	1	9905-
17	LENS; STOP,RR COMB LAMP EXC. CHINA EQUIPMENT(YT2)	1-82235-002-0	02	1	9902-9904
17	LENS; STOP,RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82235-002-0	02	1	9905-
38	BOLT; LAMP,RR COMB CHINA EQUIPMENT(YT2) (A) M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	9812-9904
38	BOLT; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	9905-
38	BOLT; LAMP,RR COMB EXC. CHINA EQUIPMENT(YT2) (B) M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	9902-9904
38	BOLT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	9905-
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-0	01	1	9812-
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	9812-
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	9812-
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	9812-
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	9812-
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	9812-
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	9812-
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	9812-
60	LAMP; BACKUP EXC. CHINA EQUIPMENT(YT2)	1-82130-023-1	01	1	9902-9904
60	LAMP; BACKUP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82130-023-1	01	1	9905-
61	LENS; BACKUP LAMP EXC. CHINA EQUIPMENT(YT2)	1-82135-003-0	01	1	9902-9904
61	LENS; BACKUP LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82135-003-0	01	1	9905-
62	BULB; BACKUP LAMP EXC. CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	01	1	9902-9904
62	BULB; BACKUP LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	01	1	9905-
63	GASKET; BACKUP LAMP EXC. CHINA EQUIPMENT(YT2)	1-82136-002-0	01	1	9902-9904
63	GASKET; BACKUP LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82136-002-0	01	1	9905-
64	SCREW; BACKUP LAMP EXC. CHINA EQUIPMENT(YT2)	1-82139-002-0	03	1	9902-9904
64	SCREW; BACKUP LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82139-002-0	03	1	9905-
65	BOLT; LAMP,BACKUP EXC. CHINA EQUIPMENT(YT2) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9902-9904
65	BOLT; LAMP,BACKUP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9905-
67	NUT; FLANGE EXC. CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	9902-9904
67	NUT; FLANGE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	9905-
226	SCREW; PROTECTOR EXC. CHINA EQUIPMENT(YT2)	1-82239-032-0	08	1	9902-9904
226	SCREW; PROTECTOR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82239-032-0	08	1	9905-

250 253 250 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	LAMP ASM; SEARCH LIGHT (A)	1-82180-013-0	01	1	9812-9906
250	LAMP ASM; SEARCH LIGHT (B)	1-82180-014-0	01	1	9907-
253	BULB; SEARCH LIGHT 24V 70W	1-82194-087-0	01	1	9812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
