Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#60310) — 274 parça

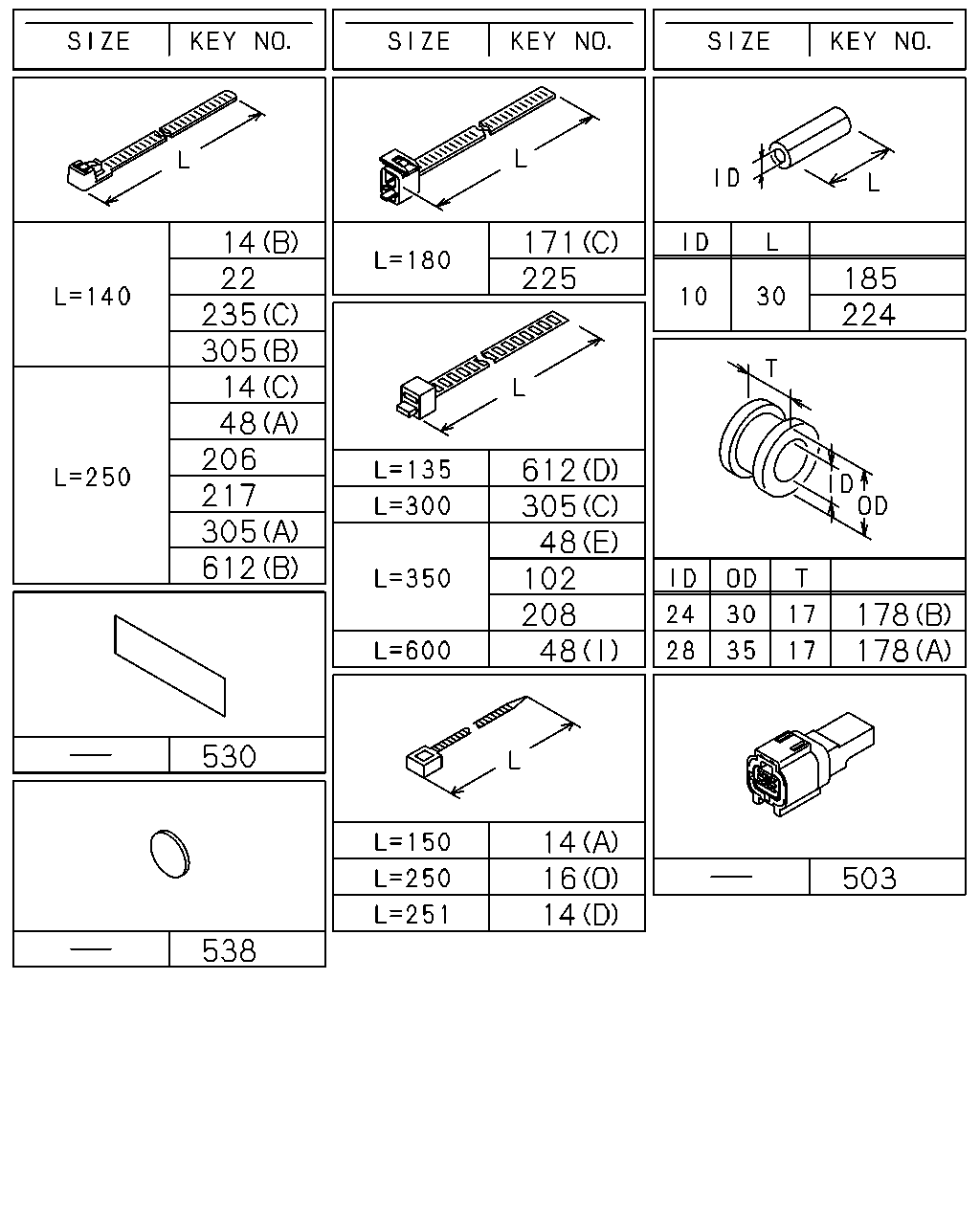

14 22 235 305 14 48 206 217 305 612 171 225 185 224 612 305 48 102 208 48 178 178 530 14 16 14 503 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	0906-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	30	1	0906-1205
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (C) L=250	5-09707-030-1	30	1	1206-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	02	1	0906-
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0906-
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=140	5-09707-031-1	02	1	0906-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	0906-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (H) ID=11X2 L=16	1-09700-734-0	01	1	0906-
16	CLIP; HARNESS (G) ID=28 L=32	1-09701-107-1	02	1	0906-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	0906-
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	03	1	0906-0911
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	02	1	0906-0911
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0906-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0906-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	0906-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	0906-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0906-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (K) ID=14 L=44	9-09917-427-0	07	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (K) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=14 L=44	9-09917-427-0	15	1	1008-
102	CLIP; BAND L=350	1-09707-183-0	01	1	0906-0911
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180	1-09707-162-1	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	0906-
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0906-1102
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0906-
178	GROMMET; HARNESS WHEEL BASE 3400MM(34W) (B) ID=24 OD=30 T=17	9-09956-092-1	02	1	0906-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0906-
178	GROMMET; HARNESS WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0906-
185	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0906-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0906-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0906-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1101-
217	CLIP; RR BODY HARNESS EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	0906-
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	0906-
225	CLIP; AIR TANK HARNESS L=180	1-09707-162-1	01	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=140	5-09707-031-1	01	1	0906-
305	CLIP; ENG HARNESS (C) L=300	1-09707-001-1	01	1	0906-
305	CLIP; ENG HARNESS (B) L=140	5-09707-031-1	02	1	0906-
305	CLIP; ENG HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250	5-09707-030-1	01	1	0906-
305	CLIP; ENG HARNESS (A) L=250	5-09707-030-1	01	1	0906-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	0906-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0906-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	15	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0906-1305
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0906-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0906-
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	0906-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0906-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-

150 150 139 38 139 139 377 38 386 38 386 150 93 38 38 313 139 139 313 150 139 139 38 139 524 294 219 515 219 525 294 524 47 84 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	03	1	0906-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	02	1	0906-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0906-
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0906-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ID=14.2	0-91510-814-0	02	1	0906-
93	BOLT; ECM HARNESS CLIP M8X20 FLANGE	0-28650-820-0	02	1	0906-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1101-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0906-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0906-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0906-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	0906-
139	BOLT; BRKT (F) M10X30 FLANGE	0-28651-030-0	01	1	0906-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28050-825-0	02	1	0906-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0906-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M8X65 FLANGE	1-09044-072-1	01	1	0906-
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0906-
150	BOLT; CLIP (D) M6X20 FLANGE	0-28050-620-0	02	1	1005-
150	BOLT; CLIP (C) M8X12 FLANGE	0-28050-812-0	01	1	0906-
150	BOLT; CLIP (A) M6X16 FLANGE	0-28650-616-0	01	1	0906-
150	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0906-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0906-
219	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-
219	NUT MLD6S M/T(X7W) (B) M10 FLANGE	0-91180-210-0	01	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0908-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0908-
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0908-
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-0907
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-0907
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0908-0912
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-0907
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-0907
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-0907
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-0907
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0908-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0906-1010
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1011-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1011-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0906-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0906-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0906-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0906-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	0906-
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	0906-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0906-1008
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-

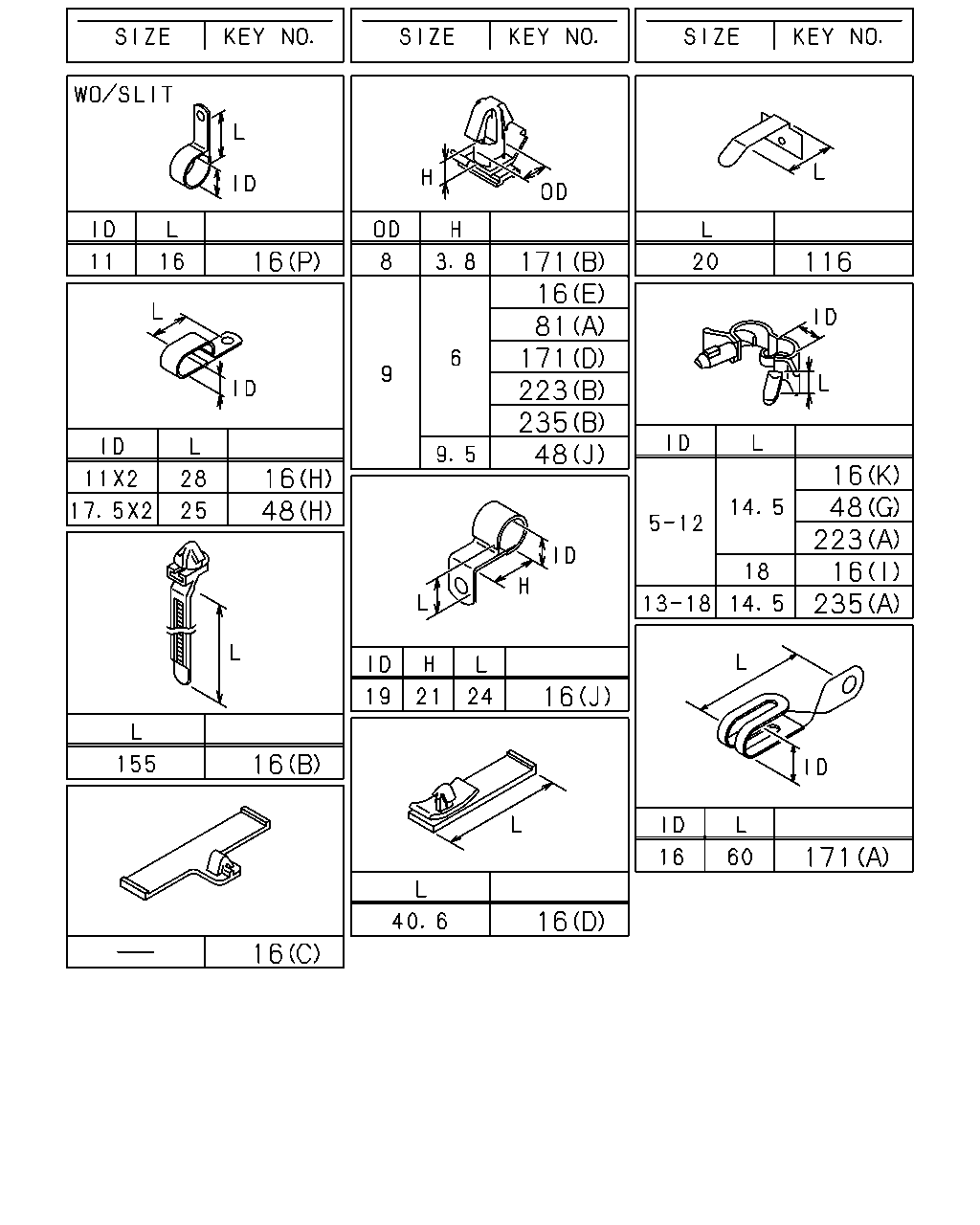

483 16 483 48 48 483 49 16 16 48 213 612 48 213 48 16 612 81 16 16 483 171 483 483 483 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (H) ID=11X2 L=16	1-09700-734-0	01	1	0906-
16	CLIP; HARNESS (G) ID=28 L=32	1-09701-107-1	02	1	0906-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	0906-
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	03	1	0906-0911
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	02	1	0906-0911
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0906-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0906-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	0906-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0906-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (K) ID=14 L=44	9-09917-427-0	07	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (K) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=14 L=44	9-09917-427-0	15	1	1008-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	0906-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	0906-1010
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0906-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180	1-09707-162-1	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	0906-
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0906-1102
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
213	CLIP; END CROSS HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0906-
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	07	1	0906-
483	CLIP; ENG HARNESS (H) ID=21 L=24	1-09701-201-0	01	1	1005-
483	CLIP; ENG HARNESS (D) ID=18 H=23 L=28	1-09700-860-0	01	1	0906-
483	CLIP; ENG HARNESS (F) ID=28 L=32	1-09701-107-1	01	1	0906-
483	CLIP; ENG HARNESS (G)	1-09987-281-0	01	1	0906-
483	CLIP; ENG HARNESS (E) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0906-
483	CLIP; ENG HARNESS (A) ID=18 L=25	8-94121-004-1	01	1	0906-
483	CLIP; ENG HARNESS (B) ID=21 L=47.5	8-94178-108-0	01	1	0906-
483	CLIP; ENG HARNESS (C) L=36	8-94224-891-1	01	1	0906-
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0906-
612	CLIP; HARNESS DPD (C) ID=4.76 & 10.0	1-09709-305-0	03	1	0906-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0906-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0906-

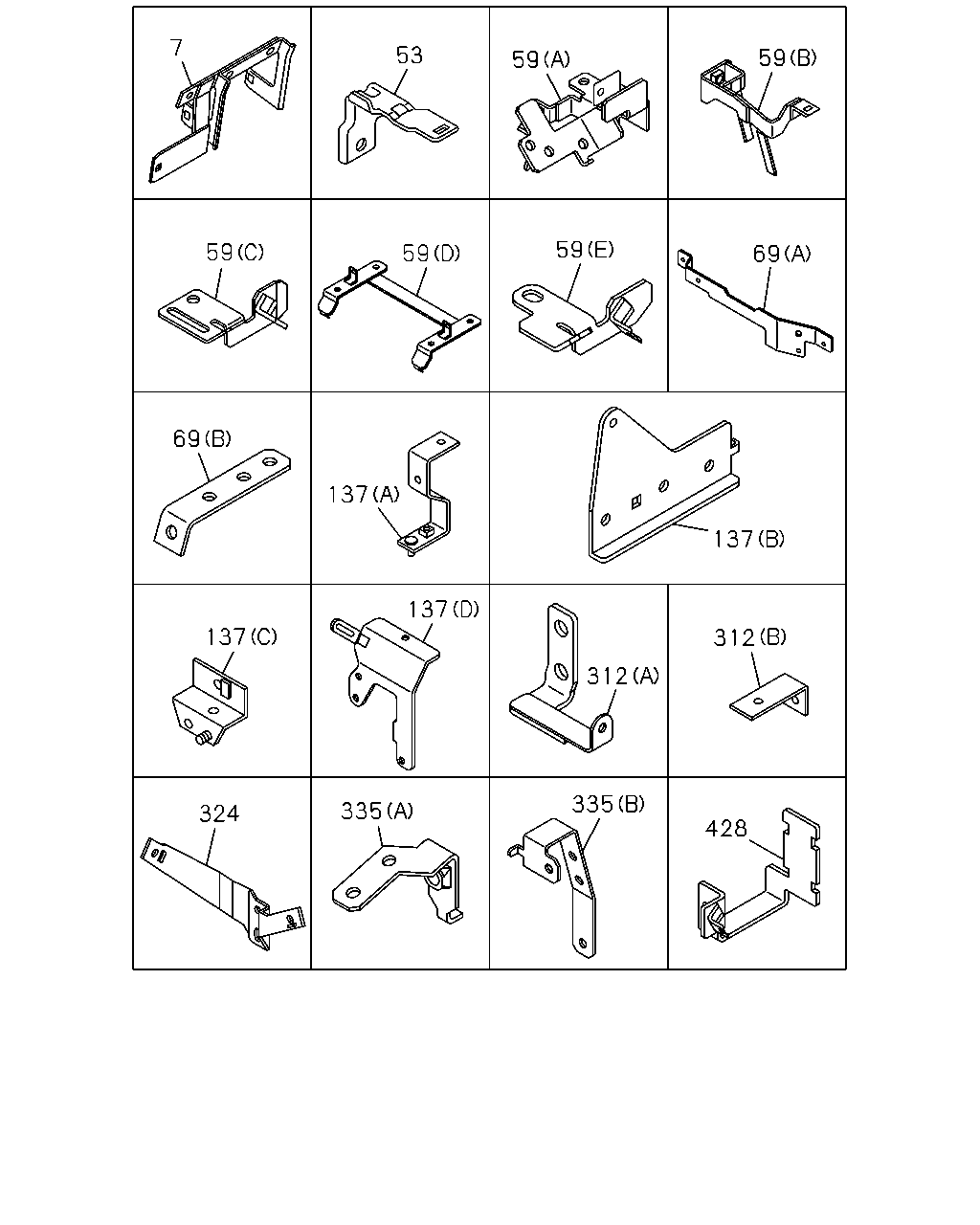

7 53 59 59 59 59 59 69 69 137 137 137 137 312 312 324 335 335 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0906-
53	BRACKET; HARNESS	8-98052-458-0	01	1	0906-
59	BRACKET; FRAME HARNESS (C)	8-97616-305-0	01	1	0906-1502
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (D)	8-97619-533-0	01	1	0906-
59	BRACKET; FRAME HARNESS (A)	8-97619-535-0	01	1	0906-
59	BRACKET; FRAME HARNESS (B)	8-98099-963-0	01	1	0906-
69	BRACKET; CLIP (A)	8-97614-738-0	01	1	0906-
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-82698-167-0	01	1	0906-
137	BRACKET; HARNESS CLAMP (A)	8-97624-016-0	01	1	0906-
137	BRACKET; HARNESS CLAMP (B)	8-98065-904-0	01	1	0906-
137	BRACKET; HARNESS CLAMP (C)	8-98058-354-1	01	1	0906-
137	BRACKET; HARNESS CLAMP (D)	8-97618-098-2	01	1	0906-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0906-
312	BRACKET; CLIP HARNESS (A)	8-98094-804-0	01	1	0906-
324	BRACKET; CLIP	8-98061-654-2	01	1	0906-
324	BRACKET; CLIP	8-98061-653-2	01	1	0906-
335	BRACKET; CONNECTOR WHEEL BASE 3400MM(34W) (A)	8-97619-478-1	01	1	0906-
335	BRACKET; CONNECTOR WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) (B)	8-97619-097-1	01	1	0906-
428	BRACKET	8-98116-461-0	01	1	0906-

16 171 16 81 171 223 235 48 116 16 48 223 16 235 16 48 16 16 171 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0906-
16	CLIP; HARNESS (H) ID=11X2 L=16	1-09700-734-0	01	1	0906-
16	CLIP; HARNESS (G) ID=28 L=32	1-09701-107-1	02	1	0906-
16	CLIP; HARNESS (O) L=250	1-09707-126-0	02	1	0906-
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	03	1	0906-0911
16	CLIP; HARNESS (N) ID=10 & 10	1-09709-277-1	04	1	0912-
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	02	1	0906-0911
16	CLIP; HARNESS (M) ID=10 & 12	1-09709-278-1	01	1	0912-
16	CLIP; HARNESS (I) ID=5-12 L=18	1-09709-287-0	02	1	0906-
16	CLIP; HARNESS (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-
16	CLIP; HARNESS (J) ID=19 H=21 L=24	5-09700-360-0	01	1	0906-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0906-
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0906-
16	CLIP; HARNESS (D) L=40.6	8-97229-357-0	02	1	0906-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0906-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0906-
16	CLIP; HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0906-
48	CLIP; FRAME HARNESS (J) OD=9 H=9.5	1-09709-179-0	01	1	0906-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS (I) L=600	1-09707-107-1	01	1	0906-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	0906-
48	CLIP; FRAME HARNESS (G) ID=5-12 L=14.5	1-09987-221-0	03	1	0906-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0906-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=35 L=50	1-09701-214-0	01	1	0906-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=32 L=50	1-09701-055-1	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (D) ID=20 L=50	9-09917-430-0	07	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3400MM(34W) (K) ID=14 L=44	9-09917-427-0	07	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (D) ID=20 L=50	9-09917-430-0	10	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4000MM(40W) (K) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (D) ID=20 L=50	9-09917-430-0	14	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (K) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (D) ID=20 L=50	9-09917-430-0	15	1	0906-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4900MM(49W) (K) ID=14 L=44	9-09917-427-0	15	1	1008-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	0906-1010
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0906-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0906-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) L=180	1-09707-162-1	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) OD=9 H=6	1-09709-178-0	01	1	0906-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) L=36	8-94224-891-1	01	1	0906-
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0906-1102
171	CLIP; STARTER HARNESS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8	1-09709-309-0	01	1	1103-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	02	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0906-
235	CLIP; HARNESS,SPD SENSOR,SSPS (C) L=140	5-09707-031-1	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
