7-70 — SEPARATER AND BED (#6031) — 126 parça

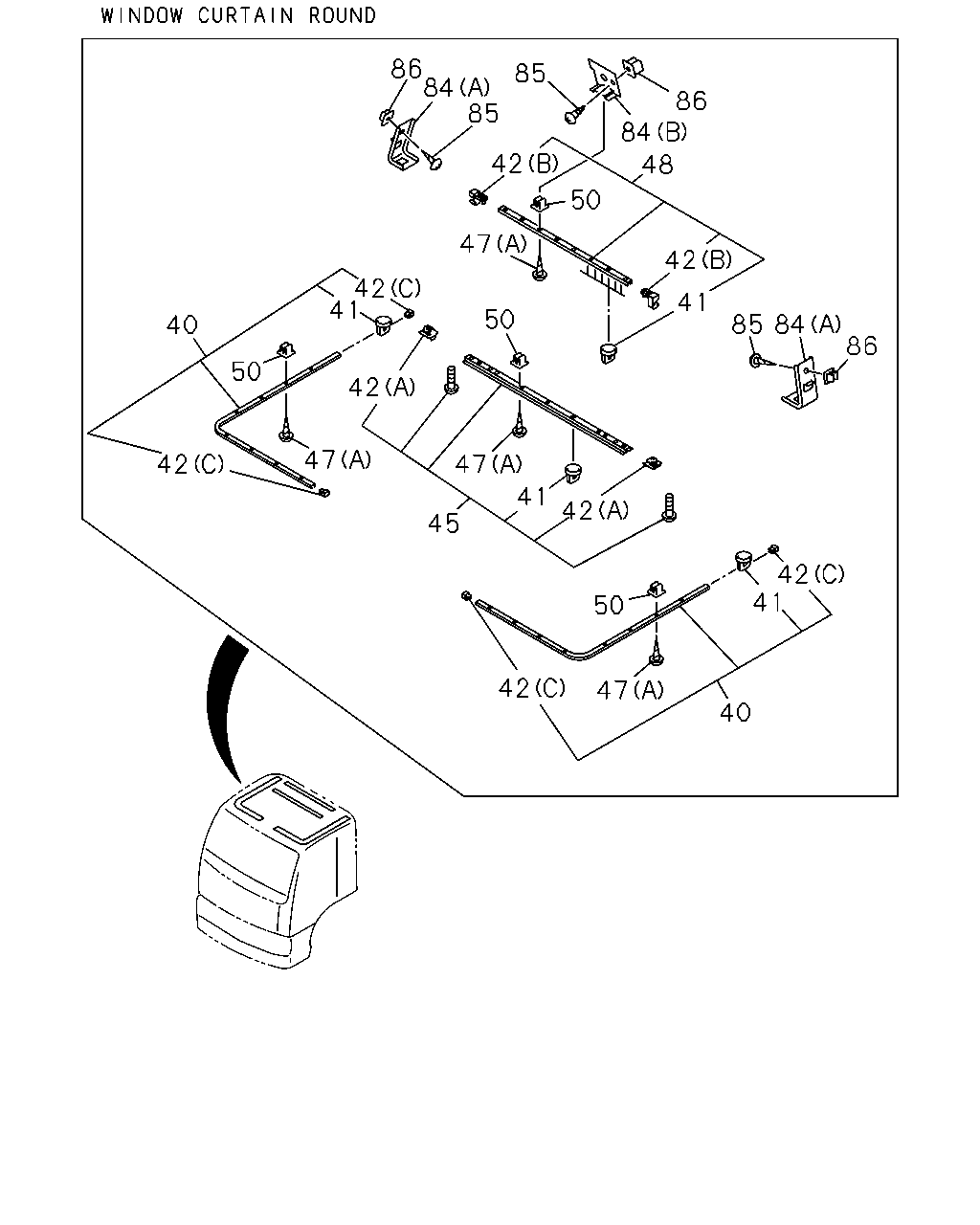

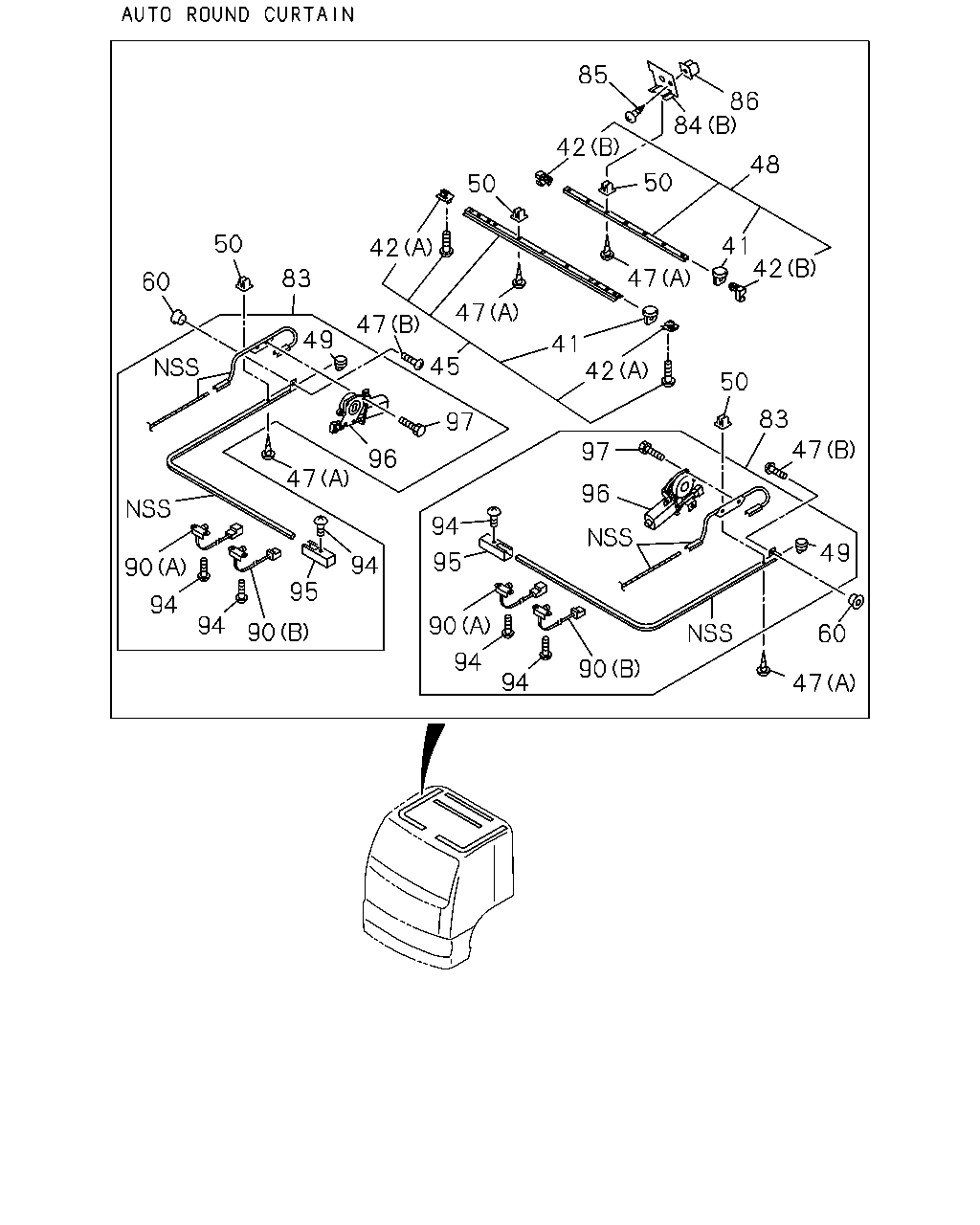

85 86 84 42 48 50 50 50 41 42 42 47 83 60 47 47 49 41 42 45 50 83 97 47 97 96 47 96 94 49 95 94 90 95 94 94 90 90 60 94 90 94 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9812-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9812-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9812-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9812-
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9812-
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9812-0002
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9812-0002
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9812-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9812-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9812-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9812-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9812-
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9812-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9812-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9812-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-
49	HOOK; CURTAIN AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	32	1	9812-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9812-
60	HOLDER AUTO ROUND CURTAIN<TAR>	1-79198-011-0	04	1	9812-
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-289-5	01	1	9812-
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-288-5	01	1	9812-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9812-
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9812-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9812-
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9812-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9812-
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9812-
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (A)	1-73996-224-2	02	1	9812-
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B)	1-73996-225-2	02	1	9812-
94	FIXING PARTS; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-256-0	10	1	9812-
95	COVER; SWITCH,CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-254-0	02	1	9812-
96	MOTOR ASM; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-255-0	02	1	9812-
97	SCREW; MOTOR,CURTAIN RAIL AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER	9-03910-625-0	04	1	9812-

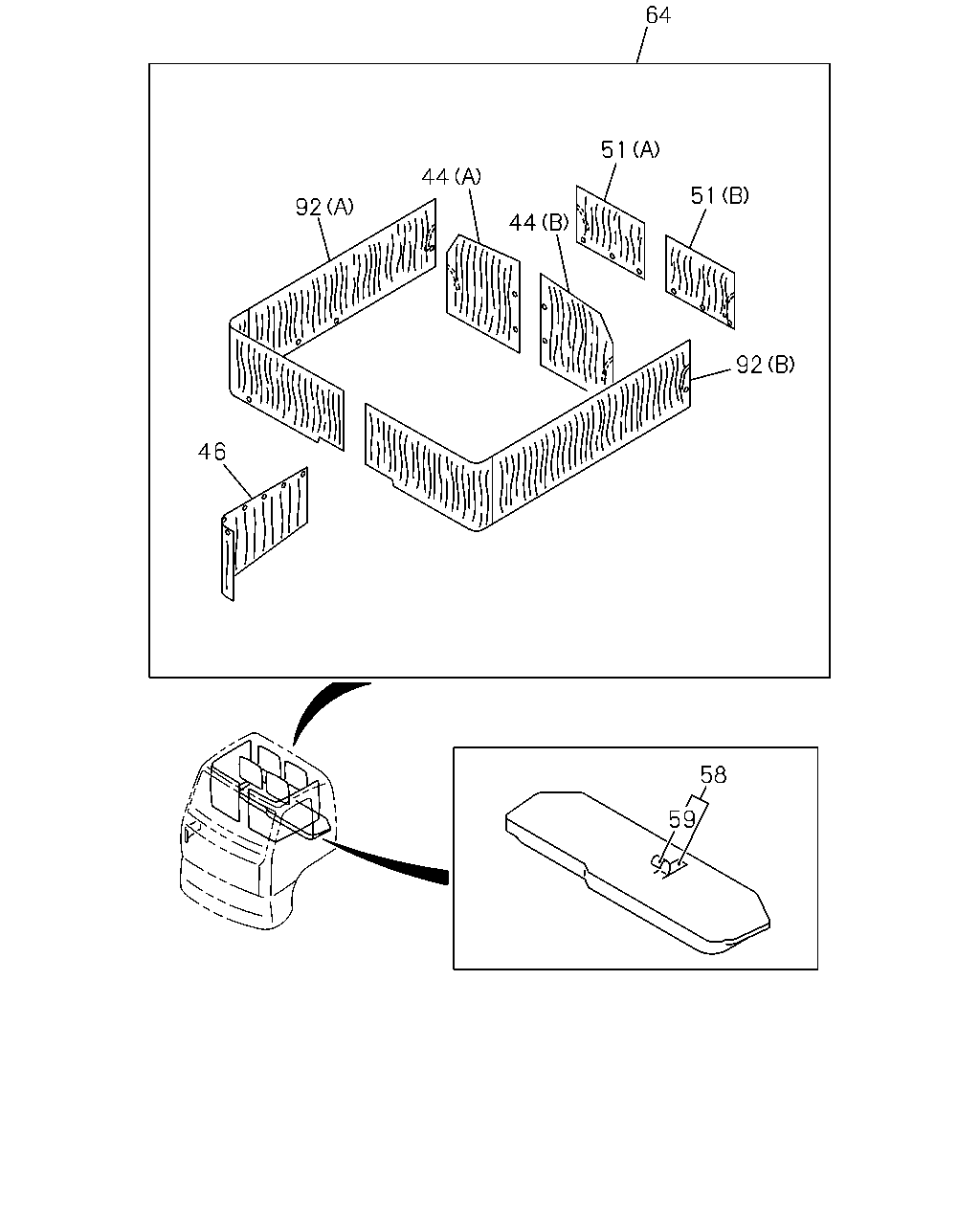

64 51 44 51 92 44 92 46 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B)	1-73907-498-0	01	1	9812-
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (A)	1-73907-497-0	01	1	9812-
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> (B)	1-73907-507-0	01	1	9812-
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> (A)	1-73907-506-0	01	1	9812-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B)	1-73907-505-0	01	1	9812-0102
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B)	1-73907-505-0	01	1	0103-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73907-504-0	01	1	9812-0102
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73907-504-0	01	1	0103-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (B)	1-73907-481-0	01	1	9812-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A)	1-73907-480-0	01	1	9812-
46	CURTAIN ASM; DOOR AUTO ROUND CURTAIN<TAR>	1-73907-501-0	01	1	9812-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-494-0	01	1	9812-
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR> (B)	1-73907-500-0	01	1	9812-
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR> (A)	1-73907-499-0	01	1	9812-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73907-483-0	01	1	9812-0102
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73907-483-0	01	1	0103-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73907-482-0	01	1	9812-0102
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73907-482-0	01	1	0103-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-828-3	01	1	9812-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-997-0	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-862-1	01	1	9812-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-086-0	01	1	0004-
64	CURTAIN KIT AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-579-0	01	1	9812-
64	CURTAIN KIT HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-580-0	01	1	9812-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-0	01	1	9812-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-0	01	1	9812-
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR> (A)	1-73907-495-0	01	1	9812-
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR> (B)	1-73907-496-0	01	1	9812-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73907-485-0	01	1	9812-0102
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73907-485-0	01	1	0103-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73907-484-0	01	1	9812-0102
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73907-484-0	01	1	0103-

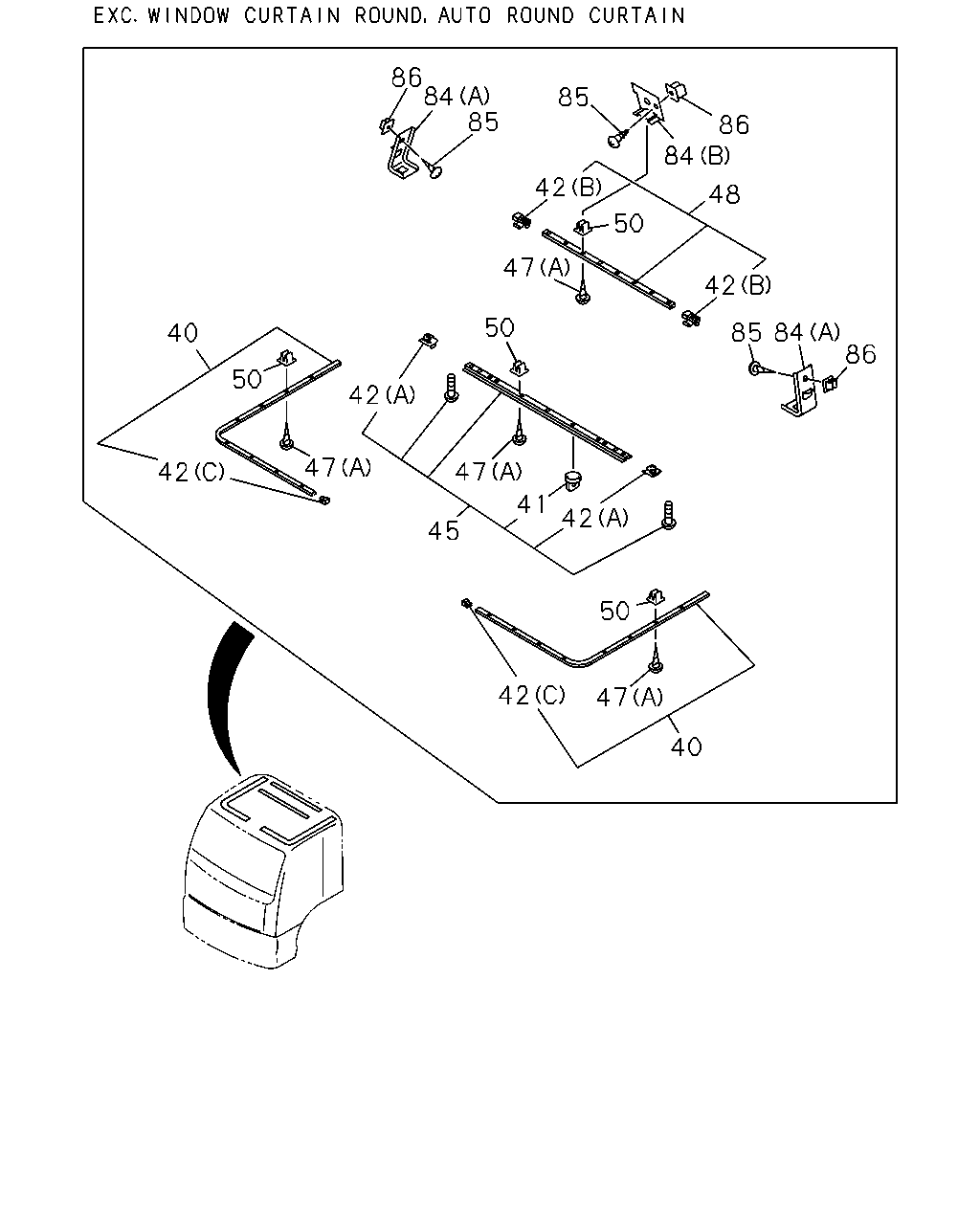

86 84 85 85 86 84 42 48 50 47 42 42 41 41 50 85 84 86 40 50 42 47 42 47 41 42 45 42 41 50 42 47 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-487-0	01	1	9812-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	0003-
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-486-0	01	1	9812-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	0003-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9812-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9812-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9812-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9812-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9812-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9812-
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9812-
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9812-0002
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9812-0002
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9812-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9812-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9812-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9812-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9812-
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9812-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9812-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9812-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9812-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9812-
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9812-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9812-
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9812-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9812-
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9812-

86 84 85 85 86 84 42 48 50 47 42 50 85 84 86 40 50 42 47 42 47 41 42 45 50 42 47 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-487-0	01	1	9812-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	0003-
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-486-0	01	1	9812-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	0003-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9812-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9812-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9812-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9812-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9812-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9812-
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9812-
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9812-0002
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9812-0002
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9812-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9812-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9812-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9812-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9812-
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9812-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9812-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9812-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9812-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9812-
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9812-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9812-
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9812-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9812-
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9812-
