Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#60309) — 516 parça

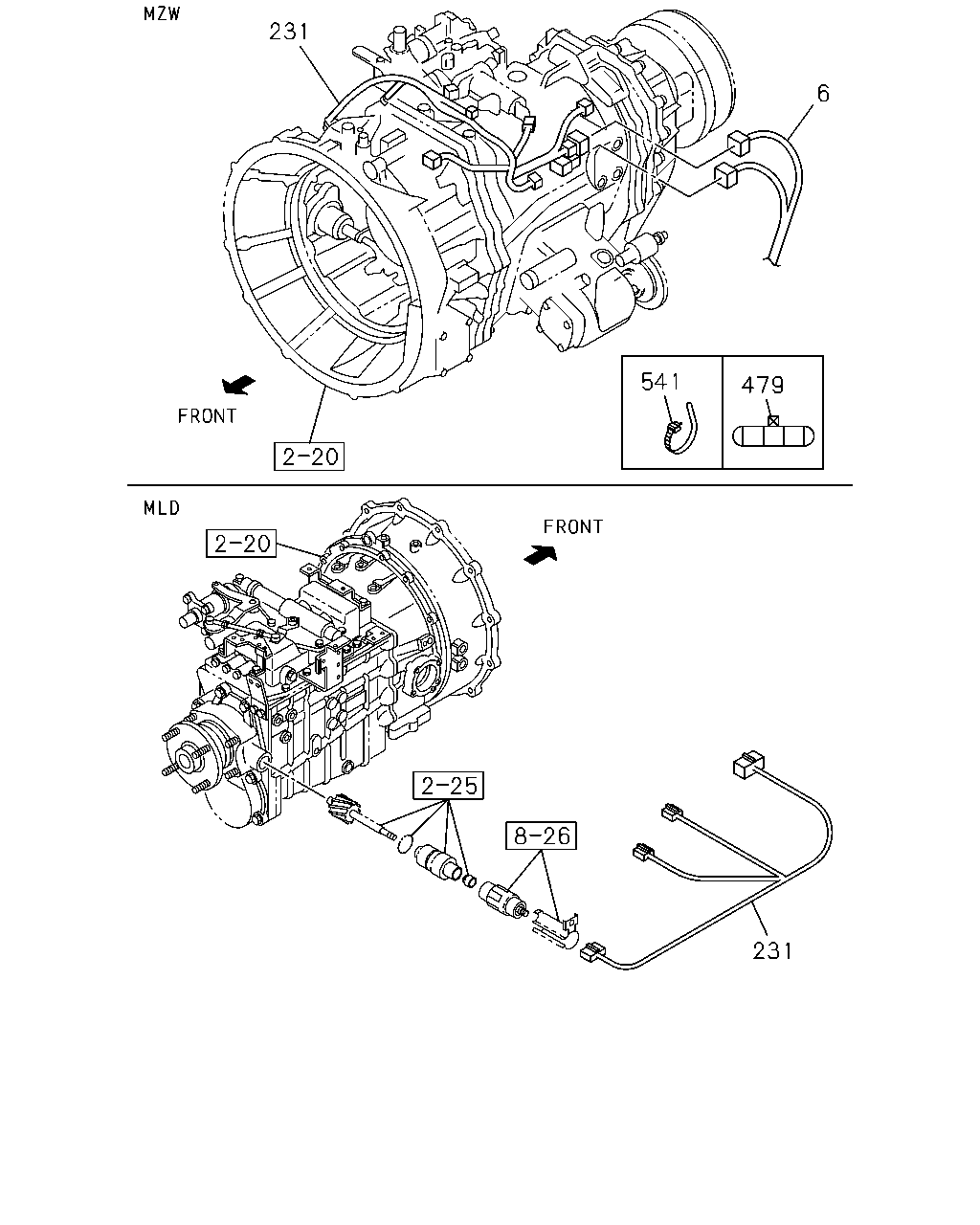

231 6 541 479 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-619-7	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-620-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-621-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-622-5	01	1	0906-
231	HARNESS; TRANS MLD6S M/T(X7W)	8-98114-228-1	01	1	0906-
231	HARNESS; TRANS MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97620-317-3	01	1	0906-
231	HARNESS; TRANS MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97618-933-1	01	1	0906-0908
231	HARNESS; TRANS MZW6P M/T(RSZ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98151-320-1	01	1	0909-
479	CAP; CONNECTOR MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82690-667-0	01	1	0909-1205
479	CAP; CONNECTOR MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-82690-667-0	01	1	1206-
541	CLIP MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180	1-09707-162-1	01	1	0909-1205
541	CLIP MZW6P M/T(RSZ) TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=180	1-09707-162-1	01	1	1206-

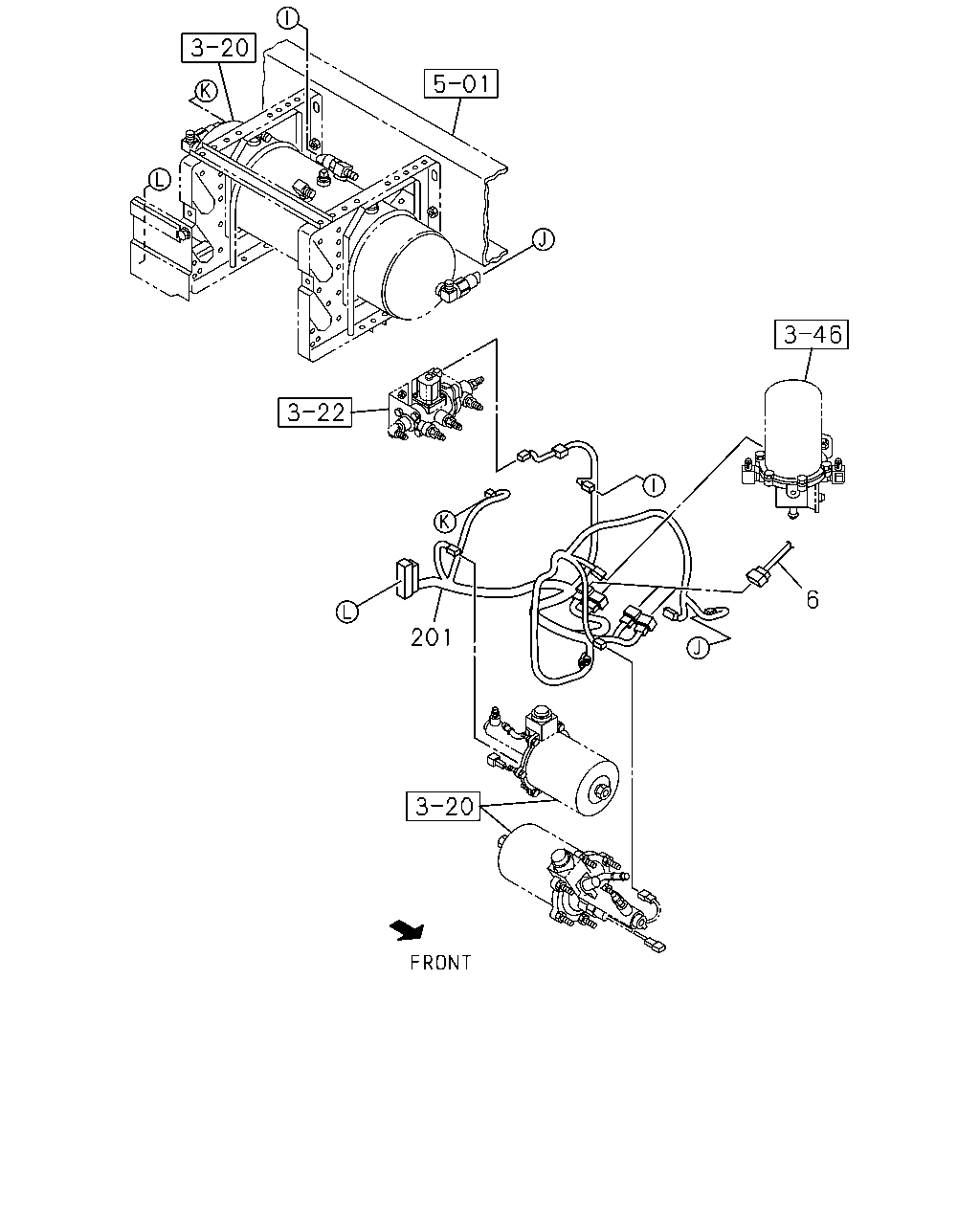

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-619-7	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-620-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-621-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-622-5	01	1	0906-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98064-339-2	01	1	0906-1001
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98156-704-2	01	1	1002-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98090-507-1	01	1	0906-1001
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-705-2	01	1	1002-
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98107-561-0	01	1	0906-1001
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH)	8-98156-709-2	01	1	1002-
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98107-559-0	01	1	0906-1001
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-707-2	01	1	1002-

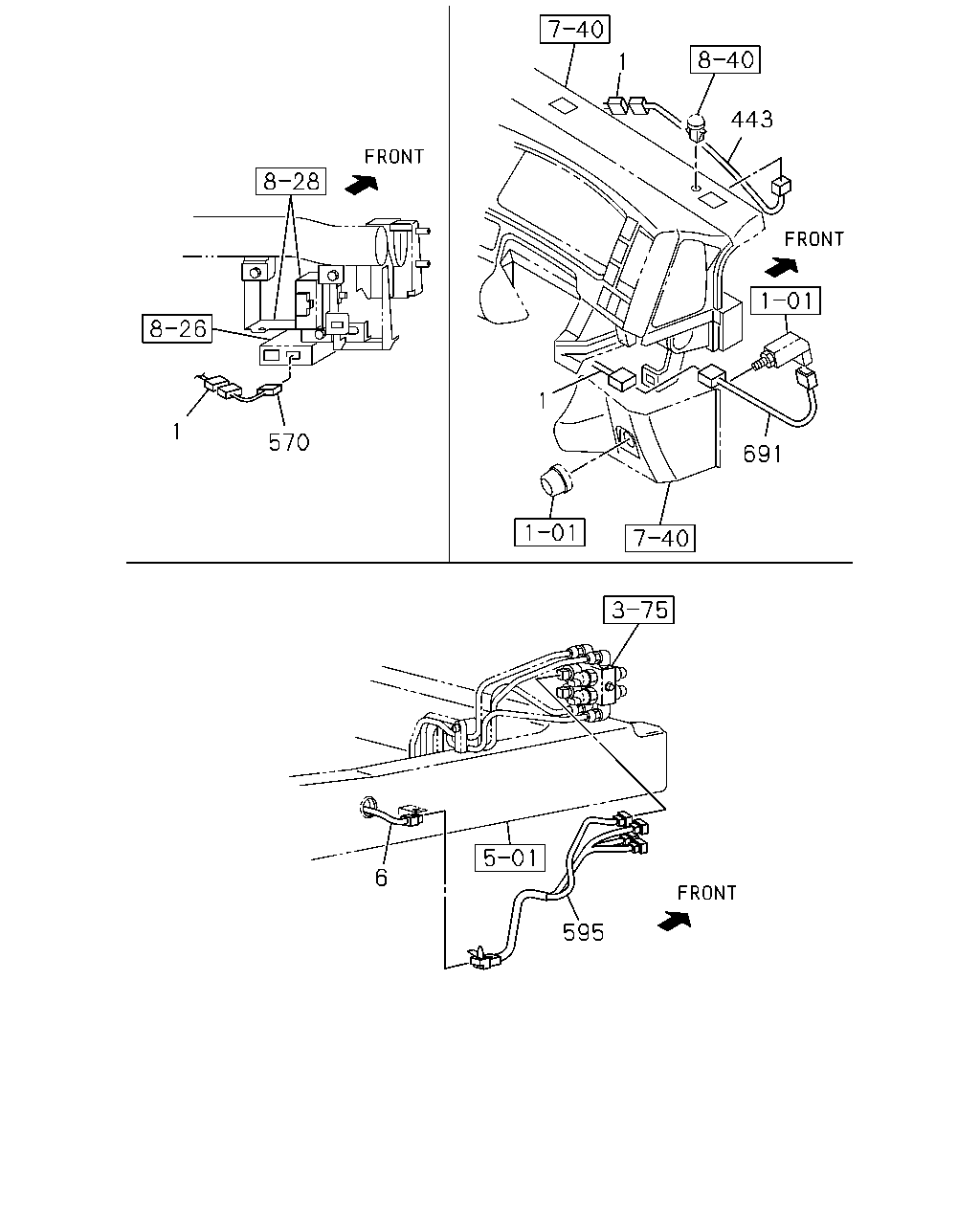

1 443 1 1 570 691 6 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-090-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-091-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-092-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-093-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-651-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-653-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-654-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-645-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-647-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-648-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-063-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-059-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-062-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-058-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-213-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-213-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-212-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-212-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-211-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-211-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-210-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-210-0	01	1	1110-1203
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-619-7	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-620-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-621-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-622-5	01	1	0906-
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	0906-
570	HARNESS; SPEED SENSOR	8-98058-327-1	01	1	0906-1109
570	HARNESS; SPEED SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98058-327-1	01	1	1110-1205
570	HARNESS; SPEED SENSOR TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98058-327-1	01	1	1206-
570	HARNESS; SPEED SENSOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98091-562-0	01	1	1110-1205
570	HARNESS; SPEED SENSOR TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98091-562-0	01	1	1206-
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	0906-
595	HARNESS; WARNING,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-003-3	01	1	0906-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	0906-

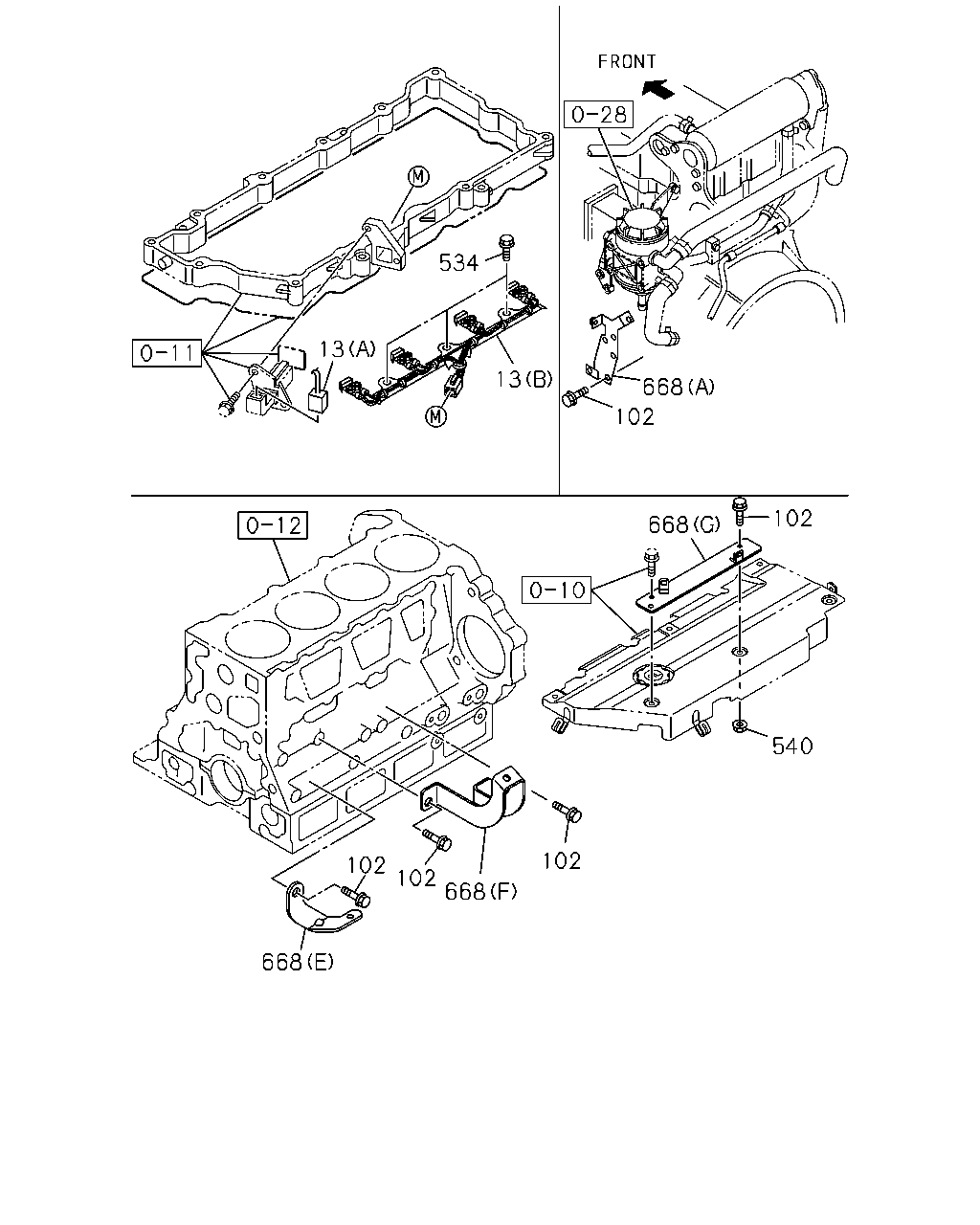

534 13 13 668 102 102 668 540 102 102 102 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0906-1007
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98098-162-4	01	1	0906-1004
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98162-659-1	01	1	1005-1405
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-039-0	01	1	1406-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98098-163-4	01	1	0906-1004
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98162-660-1	01	1	1005-1405
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-040-0	01	1	1406-

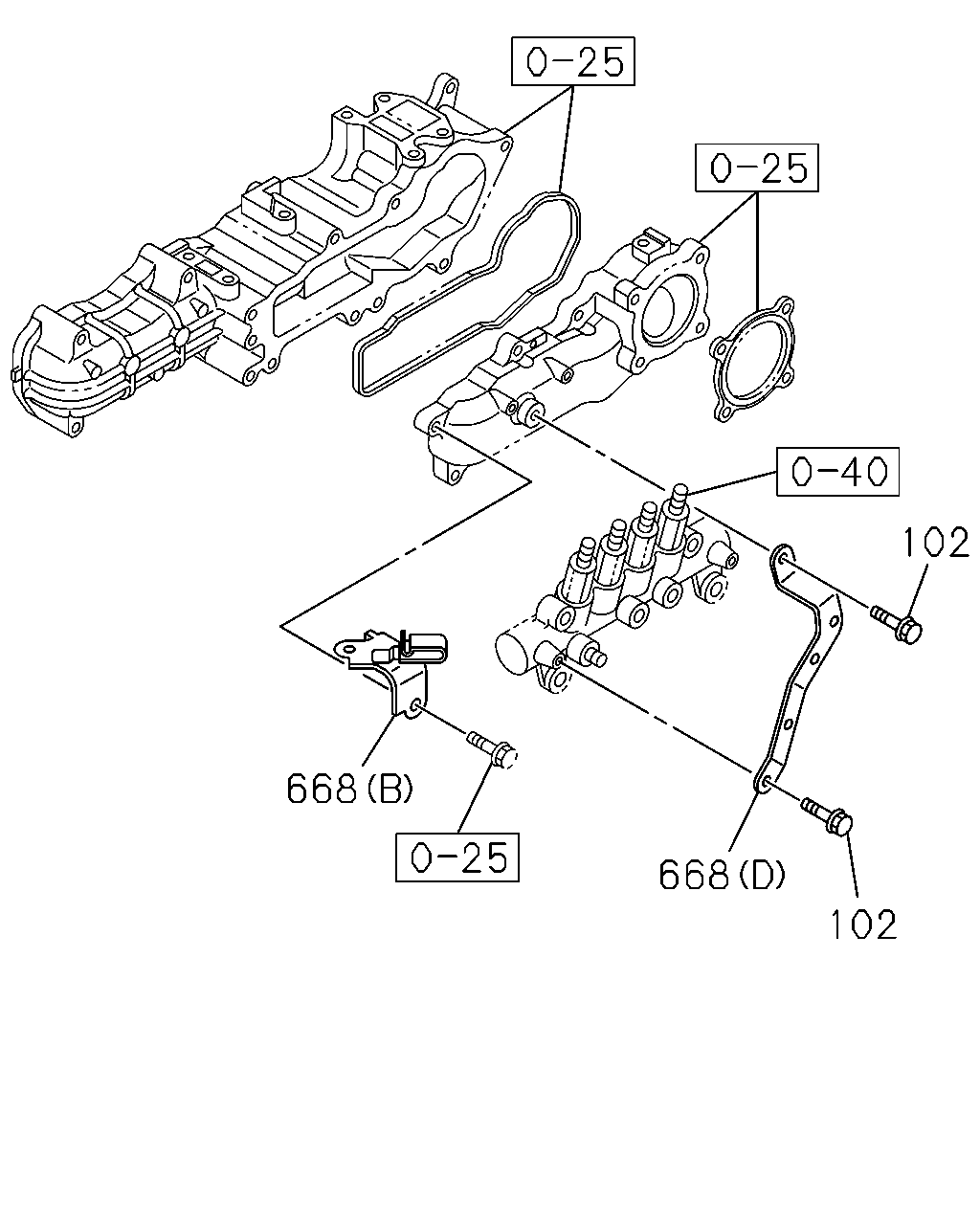

102	BOLT; BRKT,HARNESS CONNECTOR M6X25 FLANGE	0-28050-625-0	01	1	0906-1004
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	0906-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	0906-
534	BOLT M10X55 FLANGE	8-97365-449-0	03	1	0906-
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	01	1	0906-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	0906-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	0906-
668	BRACKET; HARNESS (G)	8-98022-106-1	01	1	0906-1004
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	0906-
668	BRACKET; HARNESS (B)	8-98061-780-0	01	1	0906-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	0906-
668	BRACKET; HARNESS (D)	8-98097-674-0	01	1	0906-

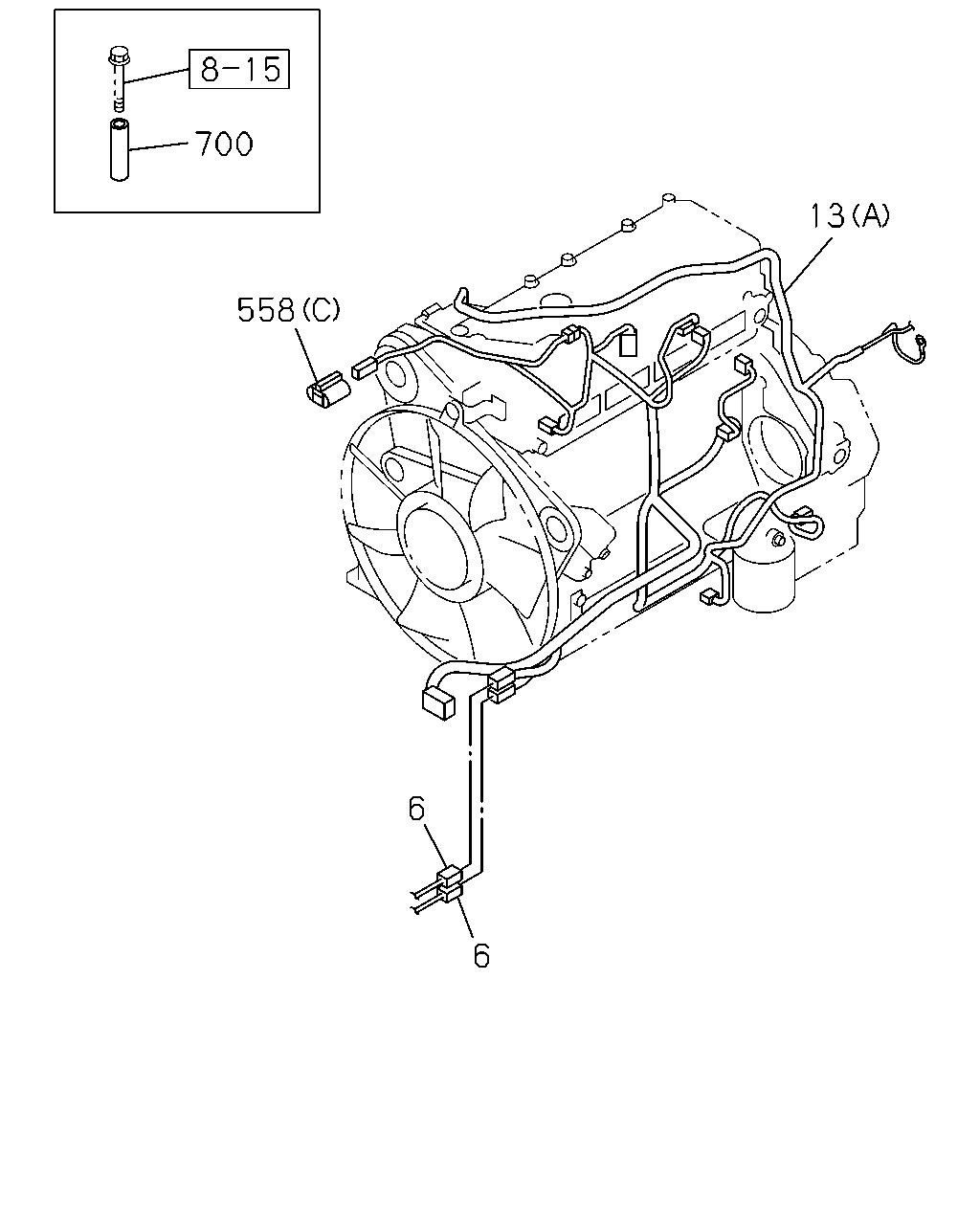

700 13 558 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-619-7	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-620-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-621-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-622-5	01	1	0906-
13	HARNESS; ENG (B)	8-97332-133-3	01	1	0906-1007
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1008-
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98098-162-4	01	1	0906-1004
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98162-659-1	01	1	1005-1405
13	HARNESS; ENG GENERATOR 24V50A(K89) (A)	8-98274-039-0	01	1	1406-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98098-163-4	01	1	0906-1004
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98162-660-1	01	1	1005-1405
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-040-0	01	1	1406-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	0908-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	0908-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	1-82690-668-0	01	1	0906-
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=51	1-11369-157-0	01	1	0906-

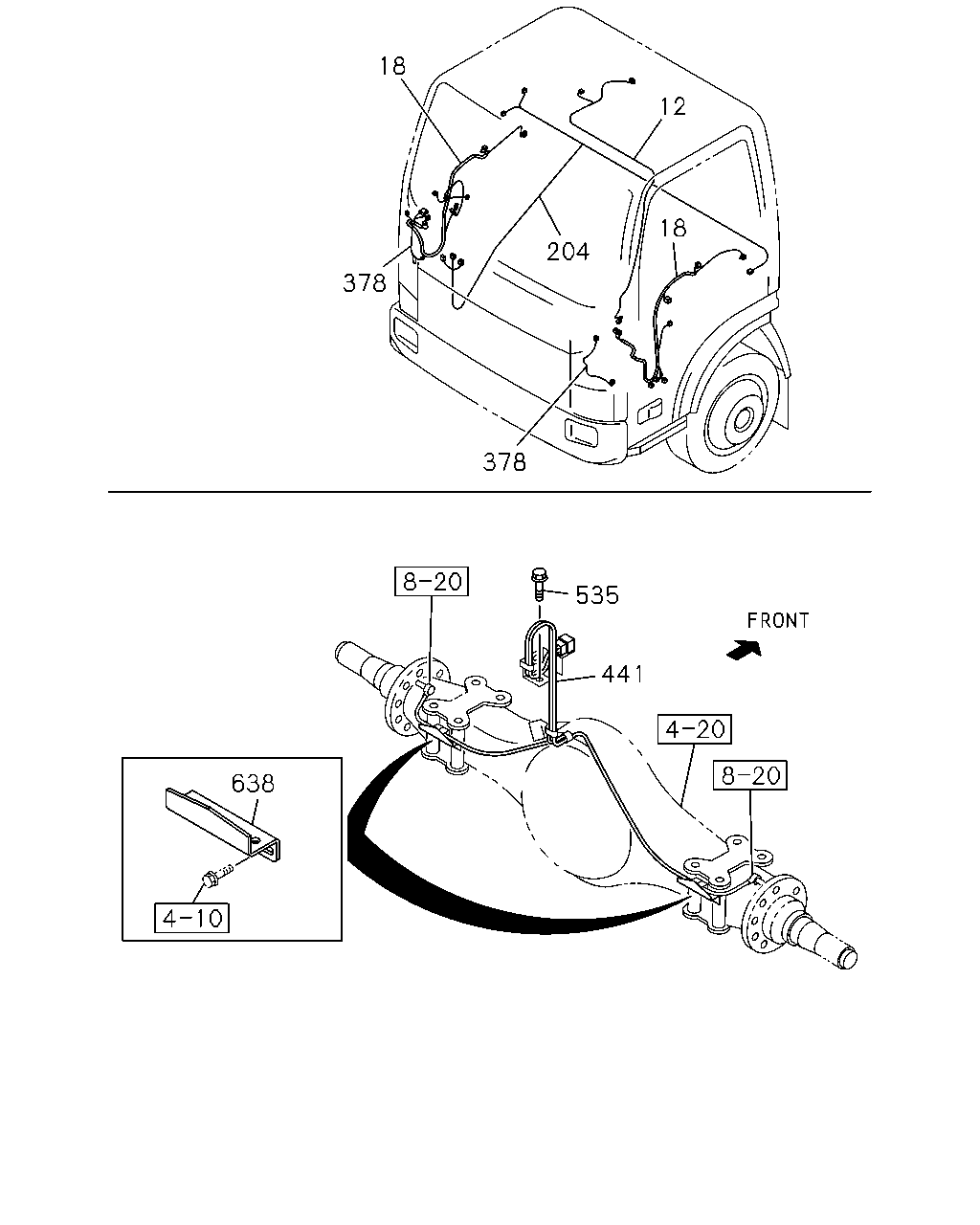

18 12 18 204 378 378 535 441 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98079-071-1	01	1	0906-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-247-0	01	1	0906-
18	HARNESS; DOOR	8-98084-283-3	01	1	0906-
18	HARNESS; DOOR	8-98084-288-3	01	1	0906-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-199-0	01	1	0906-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-200-2	01	1	0906-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-194-0	01	1	0906-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-195-1	01	1	0906-
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-212-0	01	1	0906-
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-213-2	01	1	0906-
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-208-1	01	1	0906-
204	HARNESS; CABLE,FLOOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-209-1	01	1	0906-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98125-653-0	02	1	0906-1201
378	HARNESS; EXT,MIRROR O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98125-653-0	02	1	1202-
378	HARNESS; EXT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-98125-654-0	02	1	0906-1201
378	HARNESS; EXT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV>	8-98125-654-0	02	1	1202-
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	0906-
535	BOLT; BRKT FIX M8X10 W/LK WASHER	8-98029-928-0	02	1	0906-
638	BRACKET; SPD SENSOR	8-98012-580-1	02	1	0906-

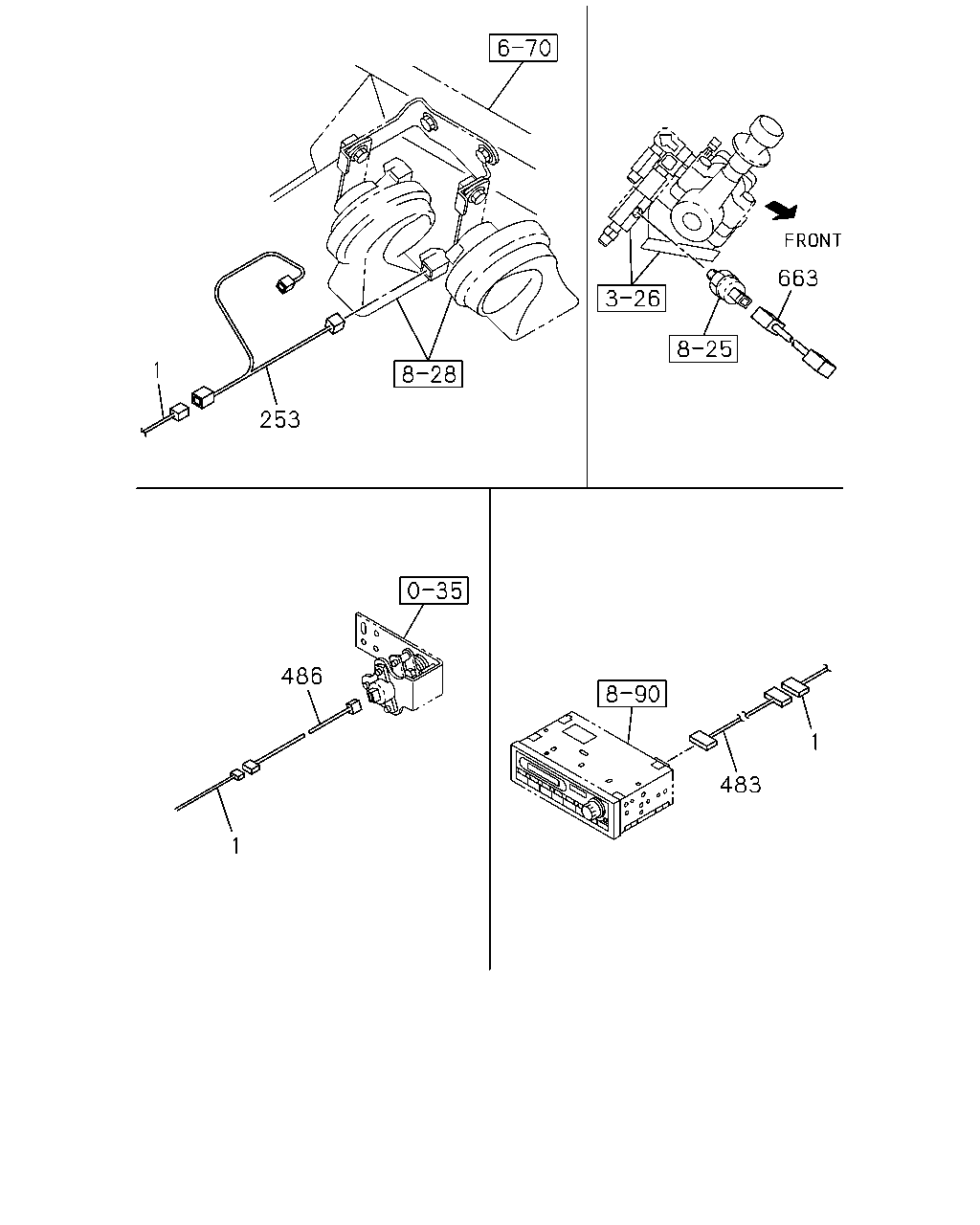

663 1 253 486 1 483 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-090-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-091-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-092-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-093-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-651-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-653-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-654-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-645-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-647-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-648-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-063-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-059-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-062-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-058-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-213-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-213-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-212-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-212-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-211-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-211-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-210-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-210-0	01	1	1110-1203
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	0906-
483	HARNESS; EXT,RADIO	8-98116-875-0	01	1	0906-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	0906-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98126-779-2	01	1	1008-

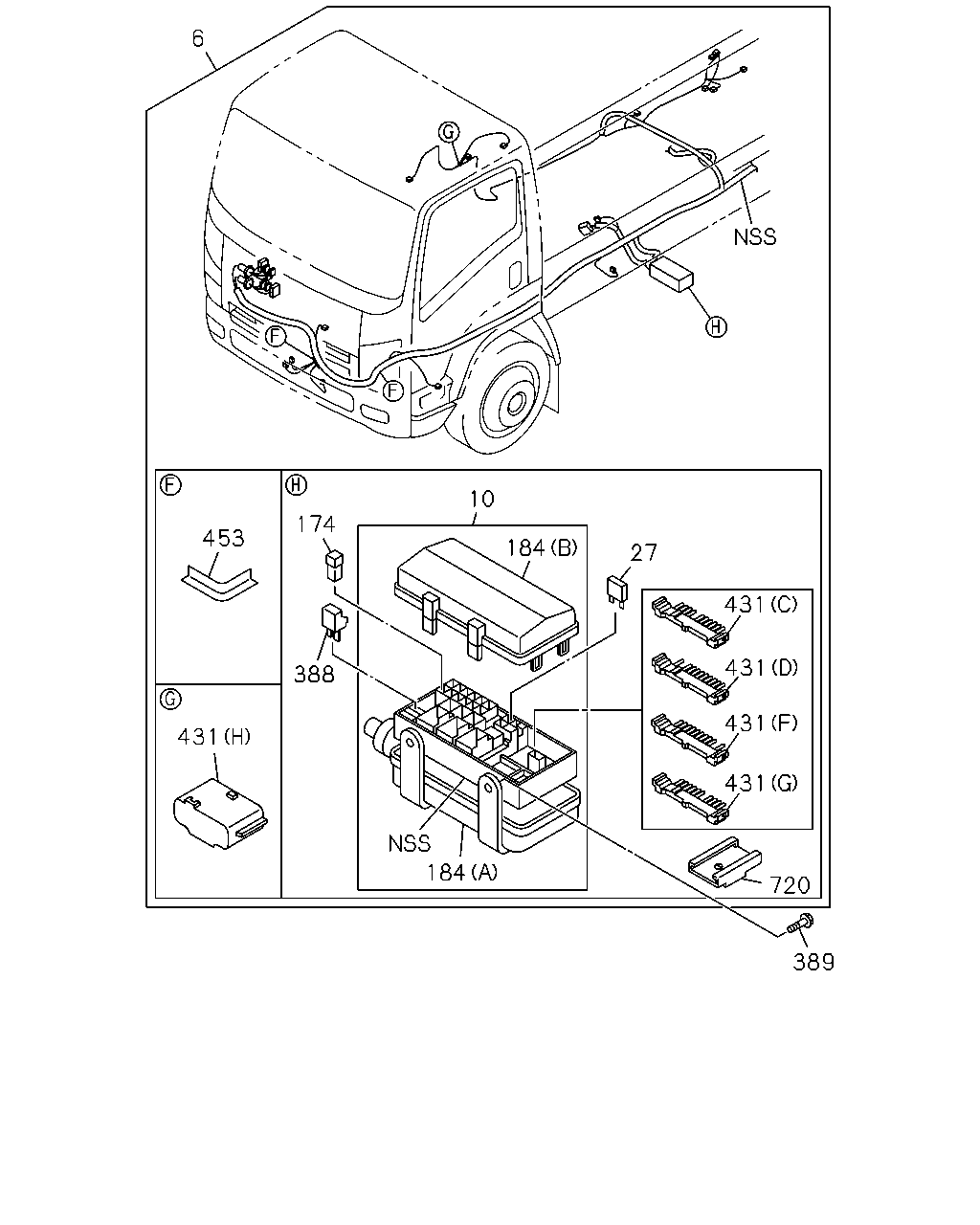

6 10 174 453 184 27 431 431 388 431 431 431 184 720 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-619-7	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-620-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-621-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-622-5	01	1	0906-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0906-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0906-
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	0906-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	0906-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	0906-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0906-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	03	1	0906-1106
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1107-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0906-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	0906-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0906-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0906-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1206-
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	0906-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0906-

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-090-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-091-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-092-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-093-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-651-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-653-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-654-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-645-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-647-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-648-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-063-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-059-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-062-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-058-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-213-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-213-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-212-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-212-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-211-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-211-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-210-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-210-0	01	1	1110-1203
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) BLACK 2P-1.5A	8-94422-639-1	01	1	1206-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0906-1205
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (A) BLACK 10P	1-82699-703-0	01	1	1206-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (A) BLACK 10P	1-82699-703-0	01	1	1206-
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK 10P	1-82699-703-0	01	1	1206-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0906-1205
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1206-
2	DIODE; CABLE HARNESS MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1206-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0906-1205
314	RESISTOR; HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> BLUE	1-82691-204-0	01	1	1206-
314	RESISTOR; HARNESS MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> BLUE	1-82691-204-0	01	1	1206-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1206-

102 668 668 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
102	BOLT; BRKT,HARNESS CONNECTOR M6X25 FLANGE	0-28050-625-0	01	1	0906-1004
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	0906-
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	0906-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	0906-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	0906-
668	BRACKET; HARNESS (G)	8-98022-106-1	01	1	0906-1004
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	0906-
668	BRACKET; HARNESS (B)	8-98061-780-0	01	1	0906-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	0906-
668	BRACKET; HARNESS (D)	8-98097-674-0	01	1	0906-

1 668 28 558 558 5 41 4 693 29 431 261 431 694 276 280 485 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-090-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-091-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-092-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-093-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-651-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-653-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-654-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-645-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-647-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-648-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-063-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-059-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-062-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-058-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-213-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-213-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-212-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-212-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-211-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-211-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-210-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-210-0	01	1	1110-1203
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-1205
4	BOX ASM; FUSE,HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98065-666-0	01	1	1206-
4	BOX ASM; FUSE,HARNESS MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98065-666-0	01	1	1206-
4	BOX ASM; FUSE,HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-666-0	01	1	1206-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0906-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0906-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0906-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	0906-
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE	0-28650-616-0	01	1	1006-
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0906-1005
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1006-
29	COVER; FUSE BOX	8-98056-968-0	01	1	0906-1205
29	COVER; FUSE BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98056-968-0	01	1	1206-
29	COVER; FUSE BOX MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98056-968-0	01	1	1206-
29	COVER; FUSE BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98056-968-0	01	1	1206-
41	PULLER; FUSE	8-98054-260-0	01	1	0906-1205
41	PULLER; FUSE AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98054-260-0	01	1	1206-
41	PULLER; FUSE MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98054-260-0	01	1	1206-
41	PULLER; FUSE AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98054-260-0	01	1	1206-
261	COVER; CONNECTOR BOX AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-986-1	01	1	1206-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0906-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0906-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (C) 10P BLUE	1-82699-598-0	01	1	1206-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0906-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (G) 10P GREEN	1-82699-599-0	01	1	1206-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (D) 10P BROWN	1-82699-601-0	09	1	1206-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (E) 10P	8-97077-943-0	02	1	1206-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) WHITE	8-98056-374-0	01	1	1206-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-1205
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-
431	CONNECTOR; JOINT MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC> (B) WHITE	8-98056-375-0	01	1	1206-
431	CONNECTOR; JOINT AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) WHITE	8-98056-375-0	01	1	1206-
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-1205
485	SEAL; CONNECTOR EXC. VIN MODEL YEAR 2012<VZC> 180X40	1-72498-019-1	01	1	1206-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	0908-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	0908-
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	1-82690-668-0	01	1	0906-
668	BRACKET; HARNESS (E)	8-98009-245-0	01	1	0906-1408
668	BRACKET; HARNESS (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS (F)	8-98011-484-0	01	1	0906-
668	BRACKET; HARNESS (G)	8-98022-106-1	01	1	0906-1004
668	BRACKET; HARNESS (A)	8-98024-765-0	01	1	0906-
668	BRACKET; HARNESS (B)	8-98061-780-0	01	1	0906-
668	BRACKET; HARNESS (C)	8-98095-653-2	01	1	0906-
668	BRACKET; HARNESS (D)	8-98097-674-0	01	1	0906-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0906-
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98057-771-0	01	1	1206-
694	BOX ASM; CONNECTOR	8-98063-269-0	01	1	0906-1205
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98063-269-0	01	1	1206-
694	BOX ASM; CONNECTOR MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98063-269-0	01	1	1206-
765	TAPE 100X40	1-72498-022-1	01	1	1409-

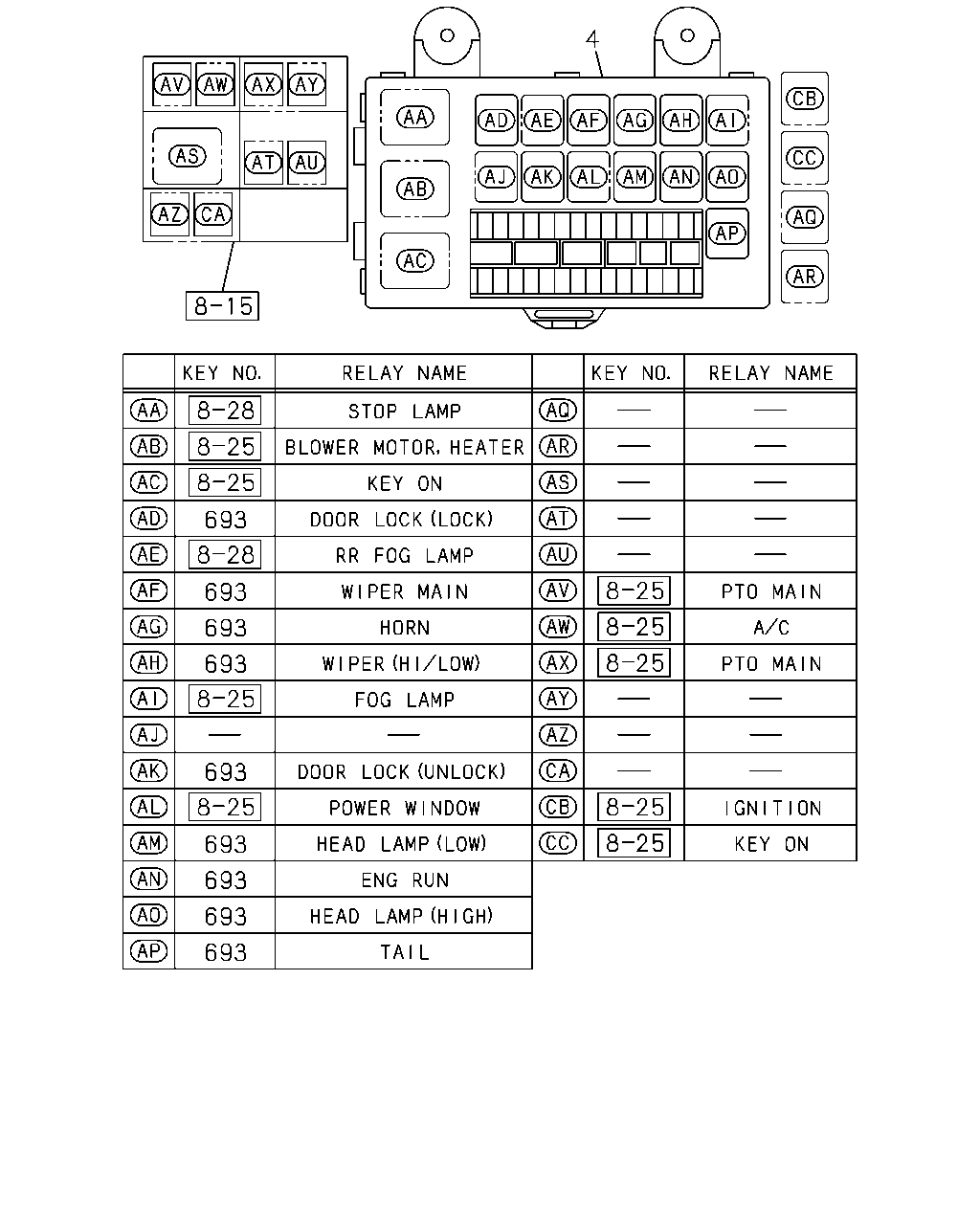

4 693 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-1205
4	BOX ASM; FUSE,HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98065-666-0	01	1	1206-
4	BOX ASM; FUSE,HARNESS MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98065-666-0	01	1	1206-
4	BOX ASM; FUSE,HARNESS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98065-666-0	01	1	1206-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0906-

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-619-7	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 3400MM(34W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-620-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-621-6	01	1	0906-
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-622-5	01	1	0906-
9	HARNESS; FRAME,RR WHEEL BASE 3400MM(34W)	8-98114-789-1	01	1	0906-1007
9	HARNESS; FRAME,RR WHEEL BASE 3400MM(34W)	8-98168-611-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W)	8-98114-791-1	01	1	0906-1007
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W)	8-98168-613-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98114-792-2	01	1	0906-1007
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98168-614-0	01	1	1008-
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98114-793-2	01	1	0906-1007
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W)	8-98168-615-0	01	1	1008-

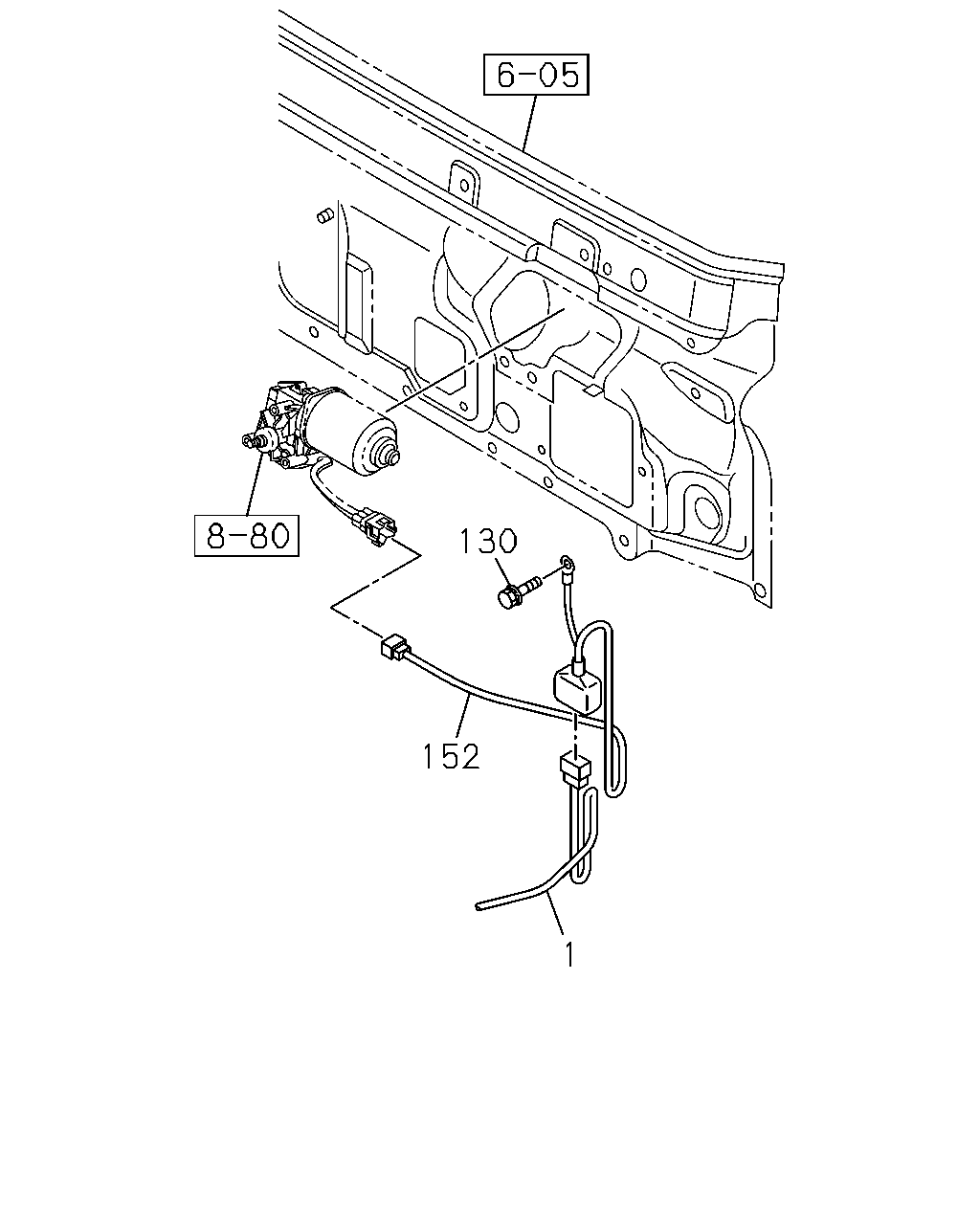

130 152 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-906-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-906-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-910-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-910-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-907-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-907-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-911-0	01	1	1204-1205
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2012<VZC>	8-98187-911-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-090-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-090-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-091-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-091-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-092-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-092-0	01	1	1206-
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98189-093-0	01	1	1204-1205
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2012<VZC>	8-98189-093-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-651-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-653-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-654-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-656-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98205-645-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98205-647-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-648-0	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) VIN MODEL YEAR 2012<VZC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98205-650-1	01	1	1206-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-063-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-063-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-059-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-059-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-062-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-062-0	01	1	1110-1203
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98108-058-0	01	1	0906-1109
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98108-058-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-213-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-213-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-212-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-212-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-211-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-211-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-210-0	01	1	0906-1109
1	HARNESS; CAB MZW6P M/T(RSZ) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IN HOUSE PRODUCTION<TKF>	8-98127-210-0	01	1	1110-1203
130	BOLT; HARNESS EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0906-1205
130	BOLT; HARNESS EARTH EXC. VIN MODEL YEAR 2012<VZC> M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	1206-1309
130	BOLT; HARNESS EARTH EXC. VIN MODEL YEAR 2012<VZC> M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-
152	HARNESS; WIPER	8-98148-961-0	01	1	0906-1205
152	HARNESS; WIPER EXC. VIN MODEL YEAR 2012<VZC>	8-98148-961-0	01	1	1206-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
