◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11236 - FRR RHD EUROPE EURO5 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#60306) — 112 parça
çizim 165176
331 357 399 355 432 431 32 36 44 47 49 15 421 448
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0906-1205
15 BULB; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 70W 		1-82194-106-0 02 1 1206-
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1206-1301
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1206-1301
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0906-0906
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0906-0906
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302-
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0906-1205
36 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-016-0 01 1 1206-
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0906-1205
36 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-015-0 01 1 1206-
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1205-1205
44 NUT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6 		8-98217-430-0 02 1 1206-
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205-1205
47 WASHER; PL,FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98217-429-0 02 1 1206-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0906-1205
49 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-435-0 01 1 1206-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0906-1205
49 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-436-0 01 1 1206-
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0906-0911
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0906-0911
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0906-
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0906-
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0906-
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97025-128-0 02 1 0906-0906
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0906-
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0906-
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0907-1205
448 CAP ASM; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97378-874-0 02 1 1206-

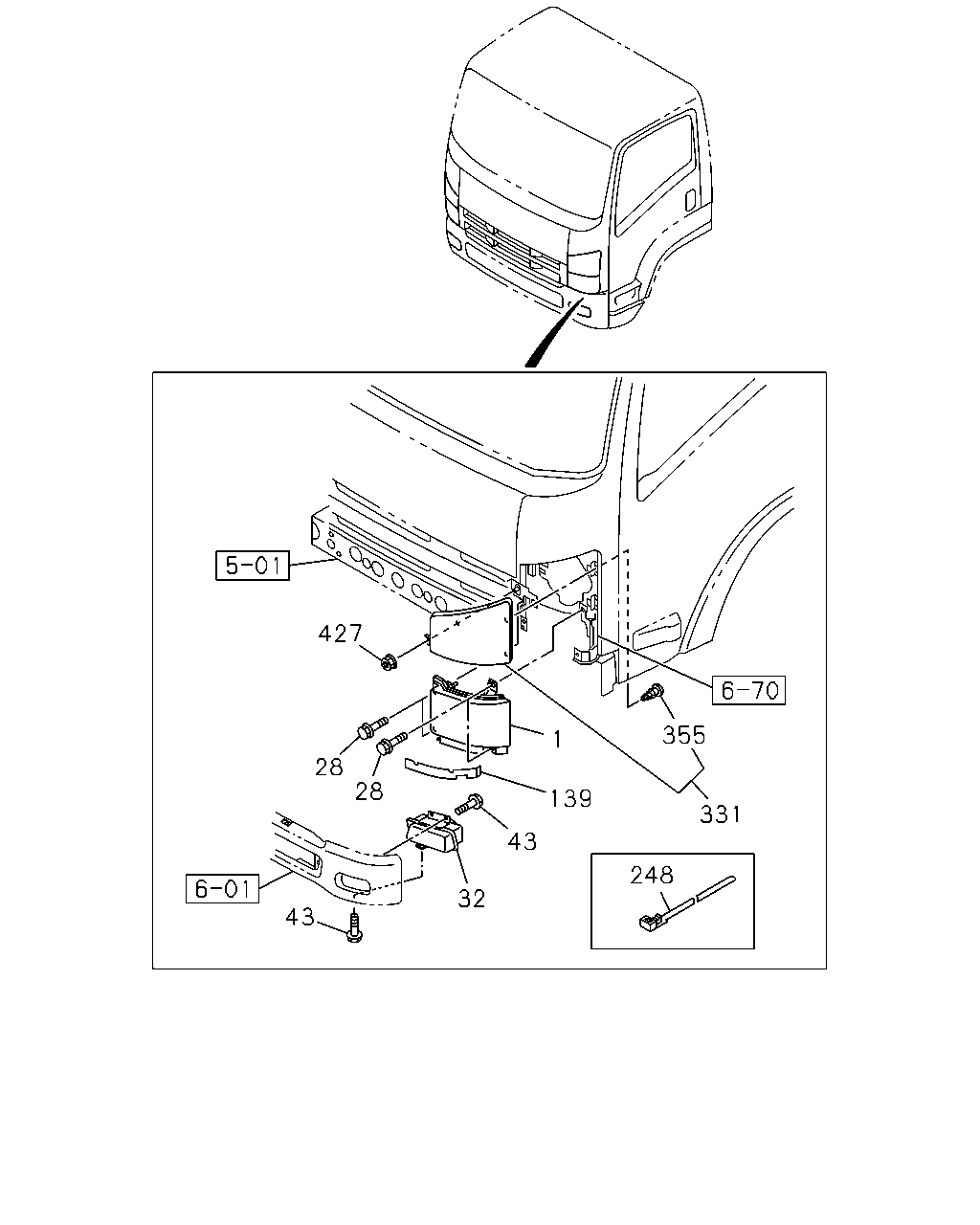

çizim 165188
427 355 1 28 28 139 331 43 248 32 43
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-98098-478-1 01 1 0906-1208
1 LAMP ASM; HEAD 8-98225-592-0 01 1 1209-1301
1 LAMP ASM; HEAD 8-98225-635-0 01 1 1302-1305
1 LAMP ASM; HEAD 8-98241-320-0 01 1 1306-
1 LAMP ASM; HEAD 8-98098-477-1 01 1 0906-1208
1 LAMP ASM; HEAD 8-98225-591-0 01 1 1209-1301
1 LAMP ASM; HEAD 8-98225-634-0 01 1 1302-1305
1 LAMP ASM; HEAD 8-98241-319-0 01 1 1306-
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0906-1005
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006-
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-094-1 01 1 1206-1301
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98186-095-1 01 1 1206-1301
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0906-0906
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0906-0906
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302-
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 0906-1205
43 BOLT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1206-
139 COVER; HEADLAMP 8-98054-342-0 02 1 0906-
248 CLIP; HARNESS
EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 1006-1205
248 CLIP; HARNESS
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> L=140 		5-09707-031-1 02 1 1206-
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0906-0911
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0906-0911
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0906-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0906-0907
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 04 1 0908-1209
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1210-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 1210-
çizim 165193
1 4 420 23 20 457 5 382 5 408 339 338
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 8-98098-478-1 01 1 0906-1208
1 LAMP ASM; HEAD 8-98225-592-0 01 1 1209-1301
1 LAMP ASM; HEAD 8-98225-635-0 01 1 1302-1305
1 LAMP ASM; HEAD 8-98241-320-0 01 1 1306-
1 LAMP ASM; HEAD 8-98098-477-1 01 1 0906-1208
1 LAMP ASM; HEAD 8-98225-591-0 01 1 1209-1301
1 LAMP ASM; HEAD 8-98225-634-0 01 1 1302-1305
1 LAMP ASM; HEAD 8-98241-319-0 01 1 1306-
4 HEADLAMP UNIT 8-98051-399-0 01 1 0906-1301
4 HEADLAMP UNIT 8-98226-181-0 01 1 1302-
4 HEADLAMP UNIT 8-98051-398-0 01 1 0906-1301
4 HEADLAMP UNIT 8-98226-180-0 01 1 1302-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0906-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0906-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0906-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0906-
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 1209-
339 GASKET; LEVELING 1-86830-158-0 02 1 1209-
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0906-1208
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0906-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0906-1301
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302-
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-

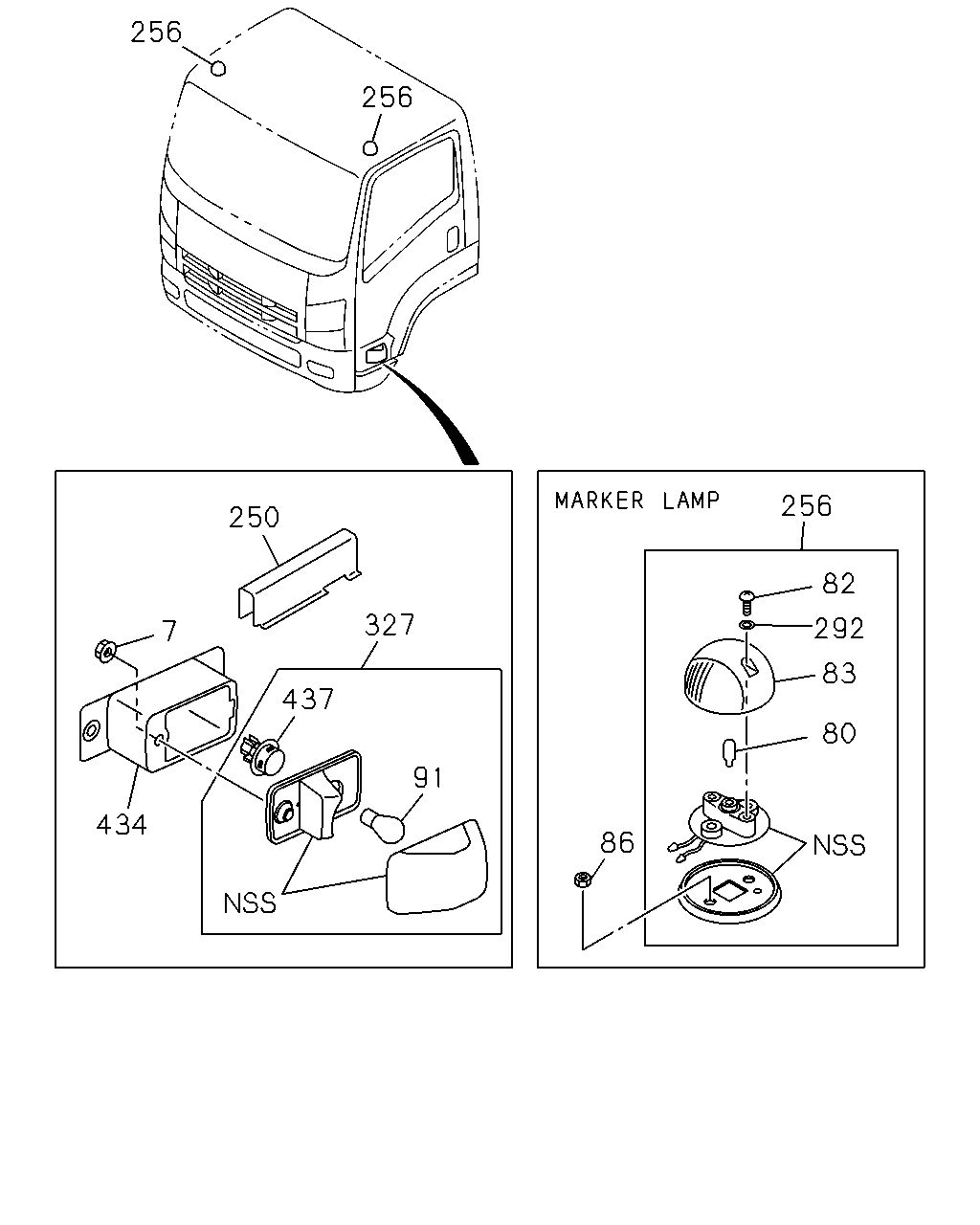

çizim 165199
256 256 256 250 82 327 292 7 83 437 80 91 434 86
BalonParca AdiParca NoAdetTipApplied Date
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 02 1 0906-0907
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0906-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0906-
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0906-
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0906-
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0906-
250 BRACKET ASM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> 		8-98113-165-0 01 1 0906-
250 BRACKET ASM
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> 		8-98113-164-0 01 1 0906-
256 LAMP; MARKER 8-98097-467-3 01 1 0906-
256 LAMP; MARKER 8-98097-466-3 01 1 0906-
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0906-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0906-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0906-
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> 		8-98112-355-0 01 1 0906-
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW LONG ARM<DH2>,MIR O/S RR VIEWEXTENDED LONG ARM<8MV> 		8-98112-354-0 01 1 0906-
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-727-1 01 1 0906-
434 BASE; LAMP,SIDE TURN SIGNAL
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98063-726-1 01 1 0906-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0906-
