Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#60303) — 260 parça

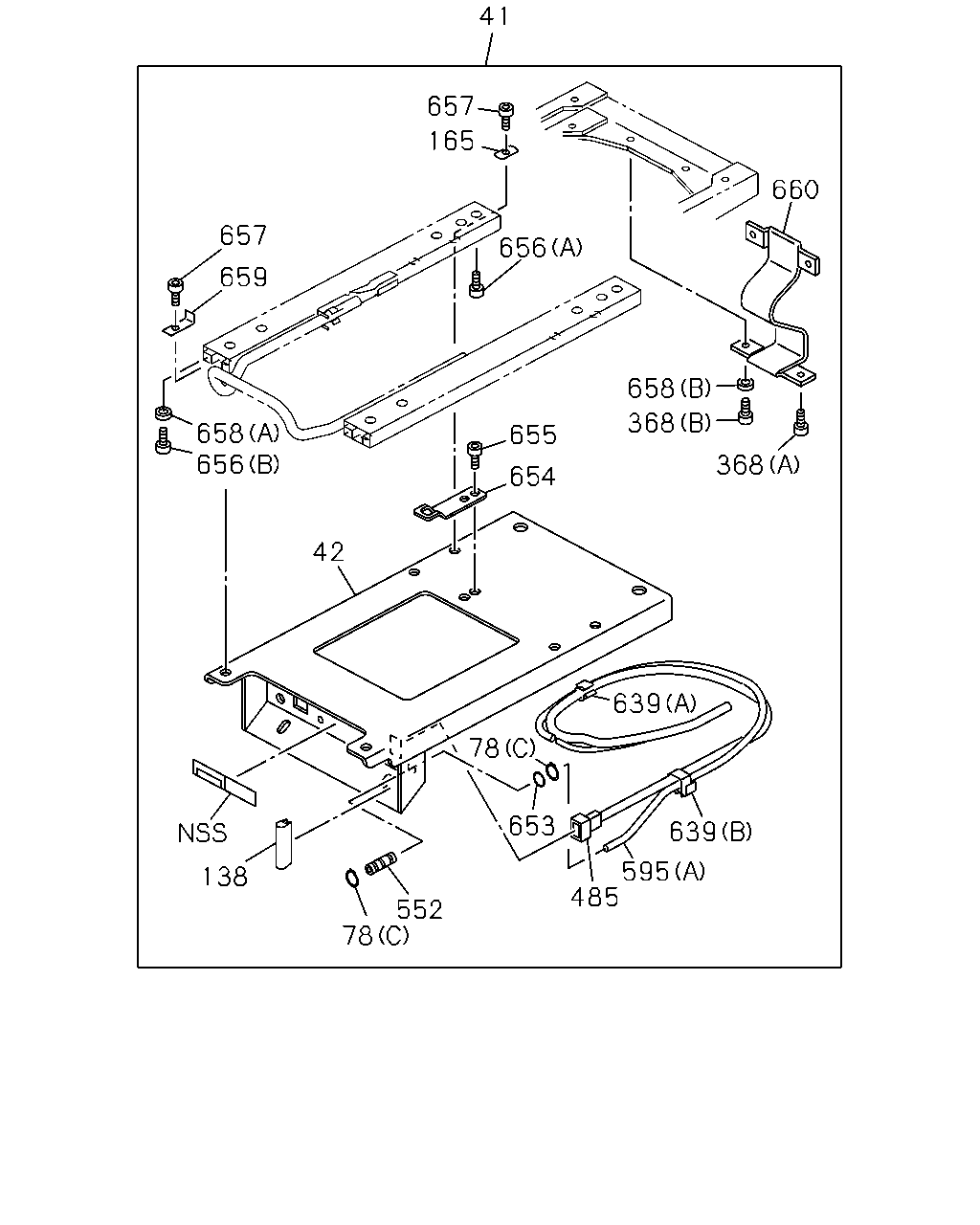

595 485 639 653 639 78 552 78 138 42 654 655 368 658 368 660 656 165 657 41 659 657 658 656

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0906-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-346-0	01	1	0906-1508
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98101-900-0	02	1	0906-1508
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0906-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0906-
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-351-0	01	1	0906-1508
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	1-75590-086-0	04	1	0906-1508
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-353-0	03	1	0906-1508
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98106-358-0	01	1	0906-1508
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	0906-1508
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98101-902-0	01	1	0906-1508
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-348-0	01	1	0906-1508
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98067-762-0	01	1	0906-
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-349-0	01	1	0906-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98106-350-0	01	1	0906-1508
653	GASKET DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98101-901-0	01	1	0906-1508
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-352-0	01	1	0906-1508
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-353-0	02	1	0906-1508
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	1-75590-085-0	04	1	0906-1508
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98106-354-0	02	1	0906-1508
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	1-75590-085-0	06	1	0906-1508
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-355-0	02	1	0906-1508
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98106-359-0	01	1	0906-1508
659	STOPPER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-356-0	02	1	0906-1508
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-357-0	01	1	0906-1508

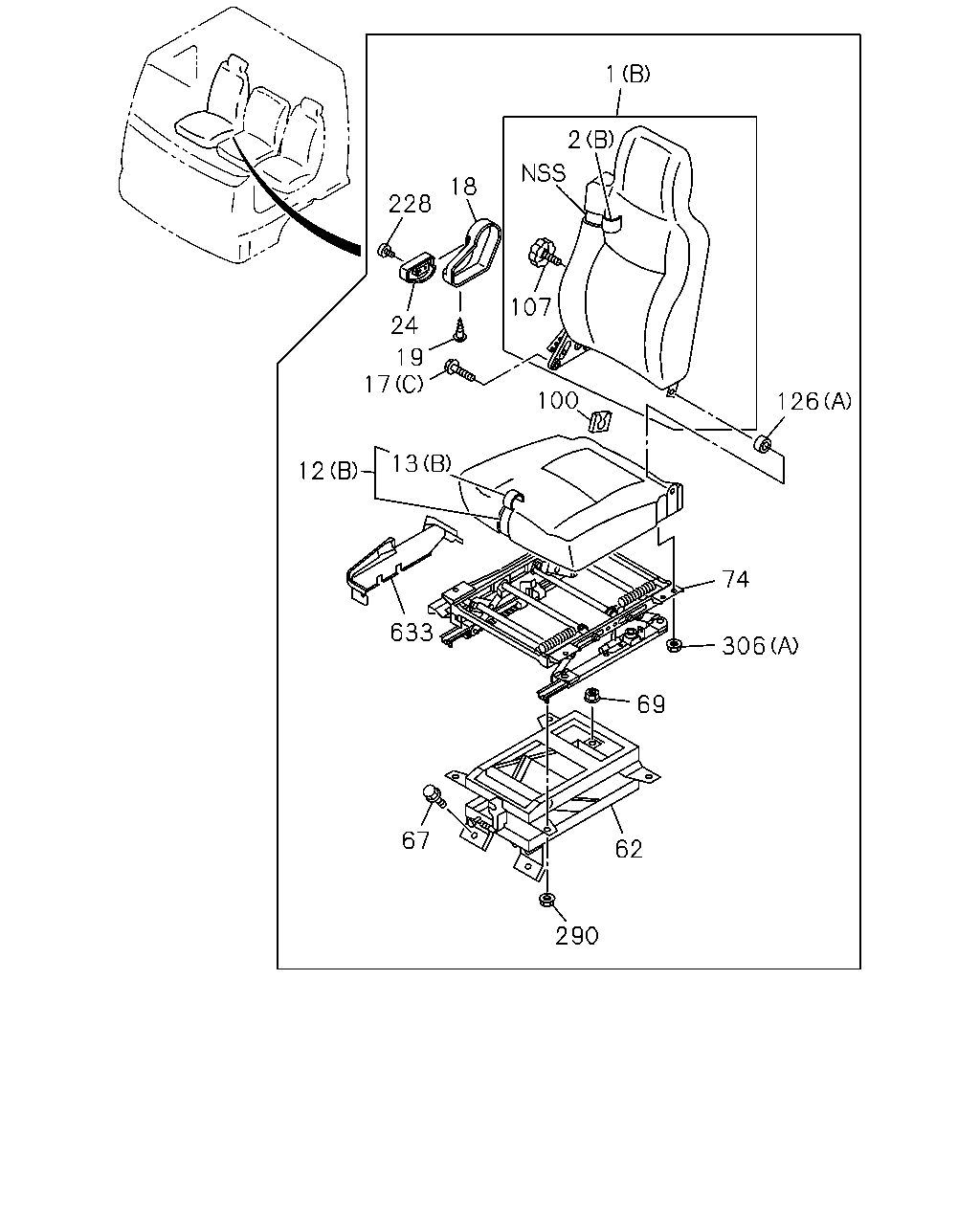

1 2 126 100 107 18 228 24 17 19 12 13 633 67 290 62 69 306 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	0906-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0906-1508
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	0906-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-966-0	01	1	0906-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98232-353-0	01	1	1301-1508
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-212-1	01	1	0906-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-398-2	01	1	1010-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-006-0	01	1	0906-1508
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-216-0	01	1	0906-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-402-2	01	1	1010-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-007-0	01	1	0906-1508
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98097-974-0	02	1	0906-1508
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0906-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (C) M10X20	8-98062-661-0	02	1	0906-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-332-0	01	1	0906-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56> M5	8-98062-663-0	01	1	0906-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-333-0	01	1	0906-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	0906-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0906-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0906-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	0906-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>	8-98203-070-0	01	1	1110-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	0906-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0906-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0906-
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56> M4	8-98062-662-0	01	1	0906-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	04	1	0906-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0906-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0906-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-956-0	01	1	0906-

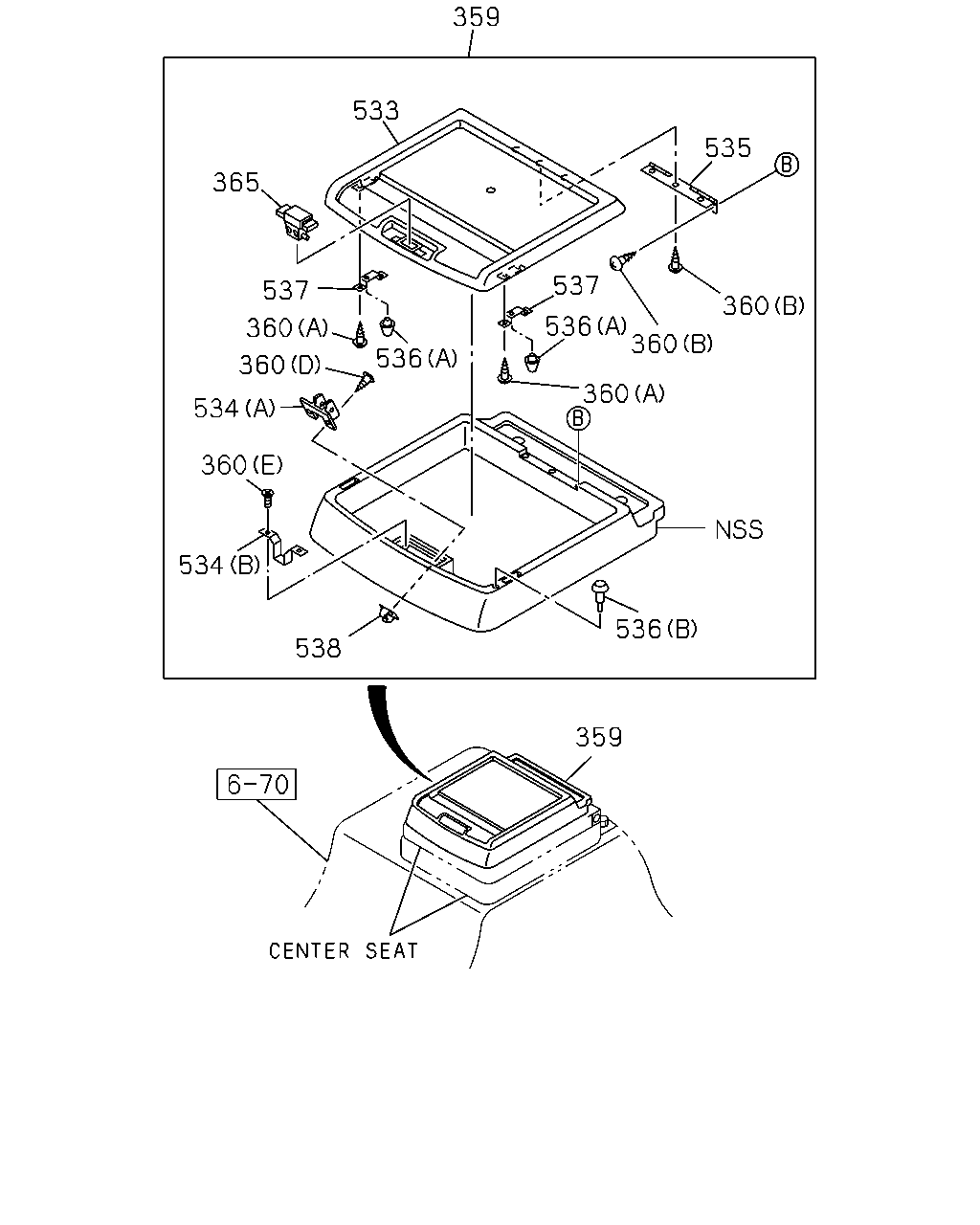

359 536 360 360 536 537 360 535 536 533 359 365 537 360 534 360 360 534 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0906-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0906-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0906-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0906-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0906-1009
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-972-0	01	1	0906-1508
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0906-
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	0906-1006
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A)	1-72538-181-0	01	1	0906-1009
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-190-0	01	1	1010-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC>	1-72447-391-1	01	1	0906-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A)	5-09983-002-1	02	1	0906-1009
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-187-0	02	1	1010-
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC>	1-72548-057-1	02	1	0906-1009
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC>	1-09983-165-0	02	1	0906-1009

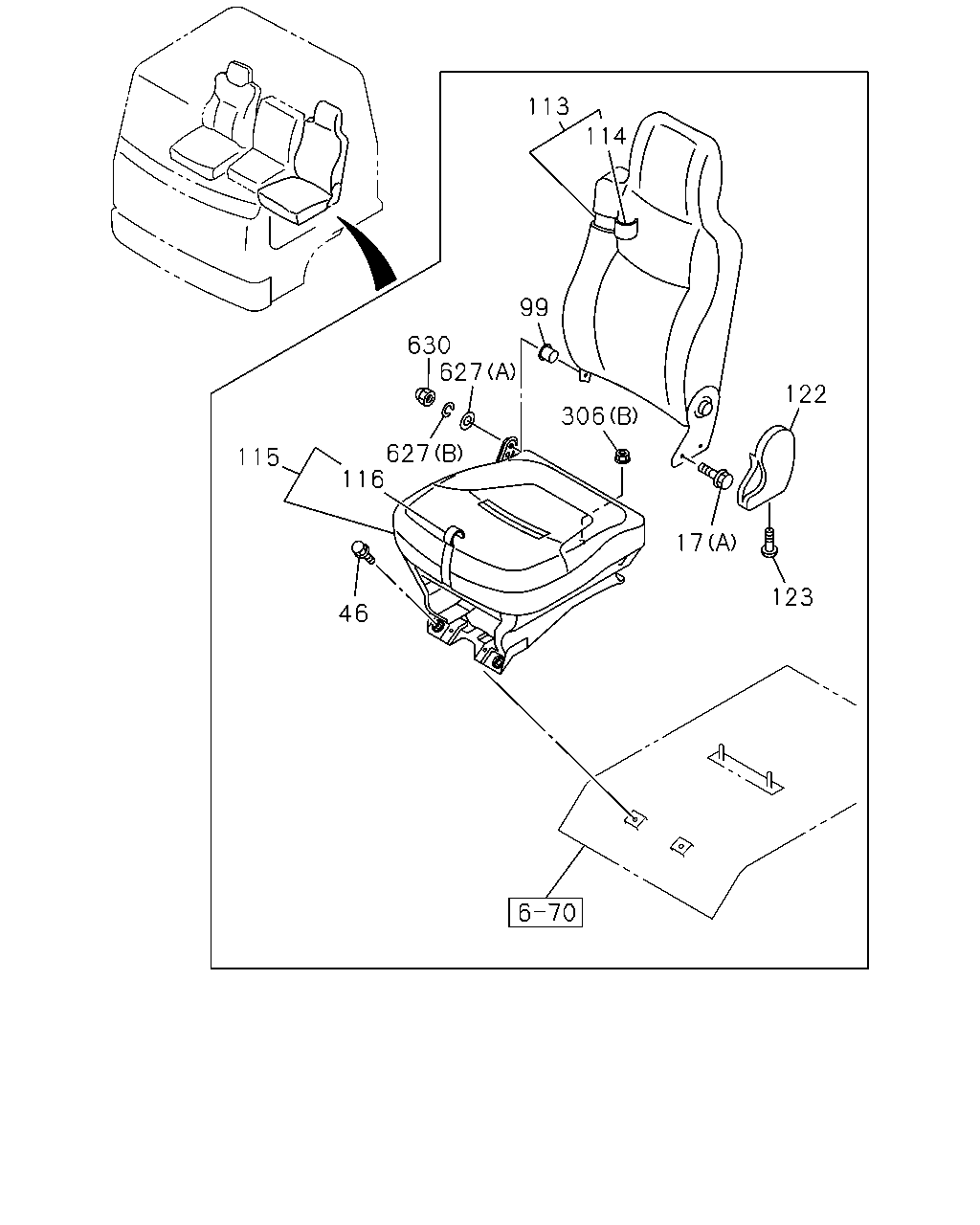

113 114 99 630 627 627 306 122 17 123 46 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98097-974-0	02	1	0906-1508
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0906-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (C) M10X20	8-98062-661-0	02	1	0906-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0906-
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	0906-1009
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-
113	BACK ASM; SEAT DARK GRAY	8-97416-221-0	01	1	0906-1009
113	BACK ASM; SEAT DARK GRAY	8-97421-422-0	01	1	1010-
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97416-223-0	01	1	0906-1009
114	COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-424-0	01	1	1010-
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-225-0	01	1	0906-1009
115	CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-418-1	01	1	1010-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97416-227-0	01	1	0906-1009
116	COVER; TRIM,PASSENGER SEAT,CUSHION DARK GRAY	8-97421-420-0	01	1	1010-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	0906-
123	SCREW; COVER,RECLINING	8-98070-026-0	01	1	0906-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	0906-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE	1-75538-207-0	06	1	0906-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0906-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0906-
630	NUT; CAP M8	8-98063-225-0	01	1	0906-

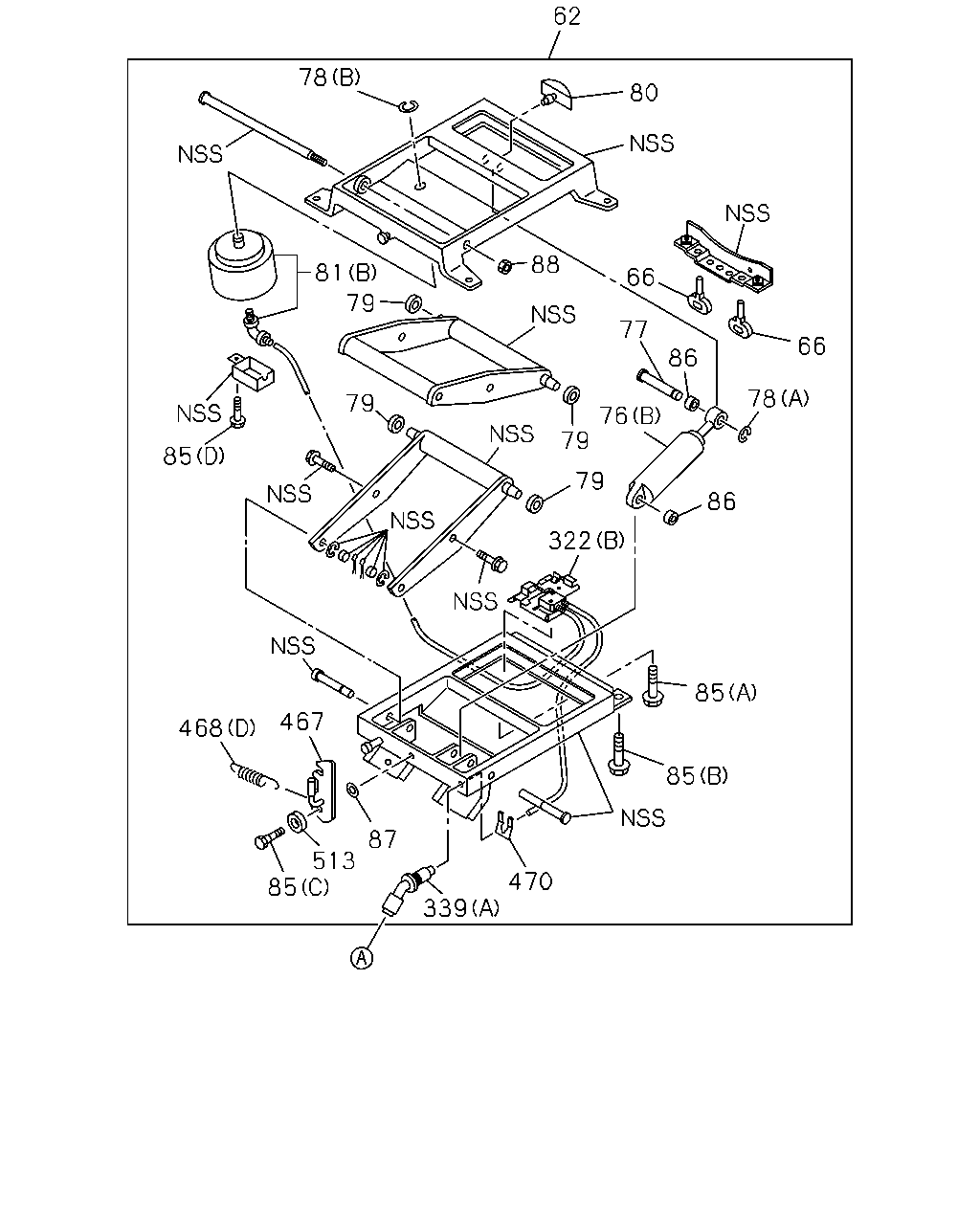

62 80 66 78 86 77 66 86 76 79 88 81 78 79 79 85 322 79 85 85 470 339 87 513 85 467 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	0906-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	0906-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0906-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-999-0	01	1	0906-1508
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	0906-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98101-900-0	02	1	0906-1508
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	0906-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	0906-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	0906-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56>	1-09987-123-0	01	1	0906-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0906-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-000-0	01	1	0906-1508
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	0906-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0906-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0906-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0906-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0906-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0906-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	0906-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-001-0	01	1	0906-1508
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0906-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	0906-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	0906-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0906-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0906-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0906-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0906-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	0906-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	0906-

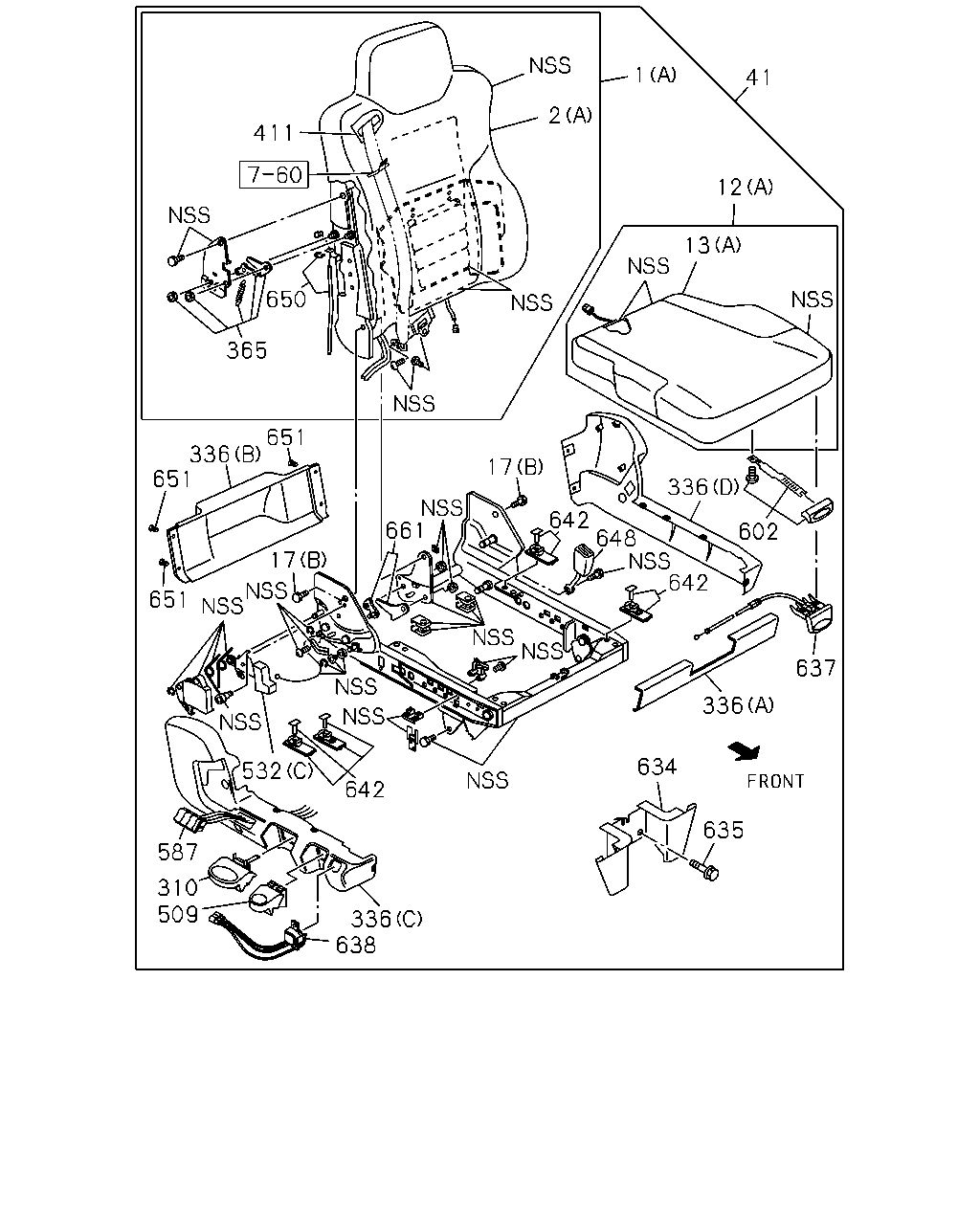

41 12 13 2 1 411 650 365 651 336 651 17 651 661 642 336 602 637 336 634 635 642 532 587 310 336 638 509 642 648 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	0906-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	0906-1508
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	0906-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-966-0	01	1	0906-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98232-353-0	01	1	1301-1508
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-212-1	01	1	0906-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-398-2	01	1	1010-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-006-0	01	1	0906-1508
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-216-0	01	1	0906-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-402-2	01	1	1010-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-007-0	01	1	0906-1508
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98097-974-0	02	1	0906-1508
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	0906-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56> (C) M10X20	8-98062-661-0	02	1	0906-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0906-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-992-0	01	1	0906-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D)	8-98097-978-0	01	1	0906-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-984-0	01	1	0906-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-995-0	01	1	0906-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B)	8-98097-996-0	01	1	0906-1508
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-972-0	01	1	0906-1508
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC>	1-72538-312-0	01	1	0906-
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-967-0	01	1	0906-1508
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-988-0	01	1	0906-1508
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	0906-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	0906-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-982-0	01	1	0906-1508
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-986-0	01	1	0906-1508
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98098-008-0	01	1	0906-1508
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98088-279-0	01	1	0906-
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT<SJA> M6X16	0-52000-616-0	02	1	0906-
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-989-0	01	1	0906-1508
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-994-0	01	1	0906-1508
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98192-932-0	04	1	0906-1508
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-976-0	01	1	0906-1508
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-973-0	01	1	0906-1212
650	CABLE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98232-354-0	01	1	1301-1508
651	RIVET DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98194-075-0	04	1	0906-1508
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98097-980-0	01	1	0906-1508

74 302 543 302 518 543 72 518 302 518 72 302 302 302 551 551 201 518 63 63 518 201 518 302 518 551 551 158 158 471 518 468 529 468 543 518 302 518 518 543 518 543 278 278 278 532 51 512 468 468 51 51 512 51 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56>	1-75518-325-1	04	1	0906-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-199-1	01	1	0906-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (C)	1-75518-323-0	01	1	0906-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-005-0	01	1	0906-1508
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-334-1	02	1	0906-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	0906-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>	1-75518-209-0	02	1	0906-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (A) L=667	1-75518-288-0	01	1	0906-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56> (B) L=605	1-75518-289-1	01	1	0906-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56>	1-75518-244-0	03	1	0906-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-266-2	02	1	0906-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-270-1	04	1	0906-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C)	1-75518-336-1	02	1	0906-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A)	1-75518-206-0	01	1	0906-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B)	1-75518-207-0	01	1	0906-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C)	1-75518-208-0	02	1	0906-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	0906-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98107-869-0	01	1	0906-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75518-243-1	02	1	0906-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (A)	1-75518-263-0	01	1	0906-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8	1-75518-264-0	04	1	0906-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE	1-75538-207-0	04	1	0906-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT	5-09984-020-0	02	1	0906-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE	8-94152-886-0	04	1	0906-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>	1-75518-262-0	01	1	0906-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A)	1-75518-203-0	01	1	0906-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B)	1-75518-204-1	01	1	0906-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C)	8-98097-982-0	01	1	0906-1508
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A)	1-75518-335-0	02	1	0906-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	0906-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56>	1-75518-265-0	04	1	0906-

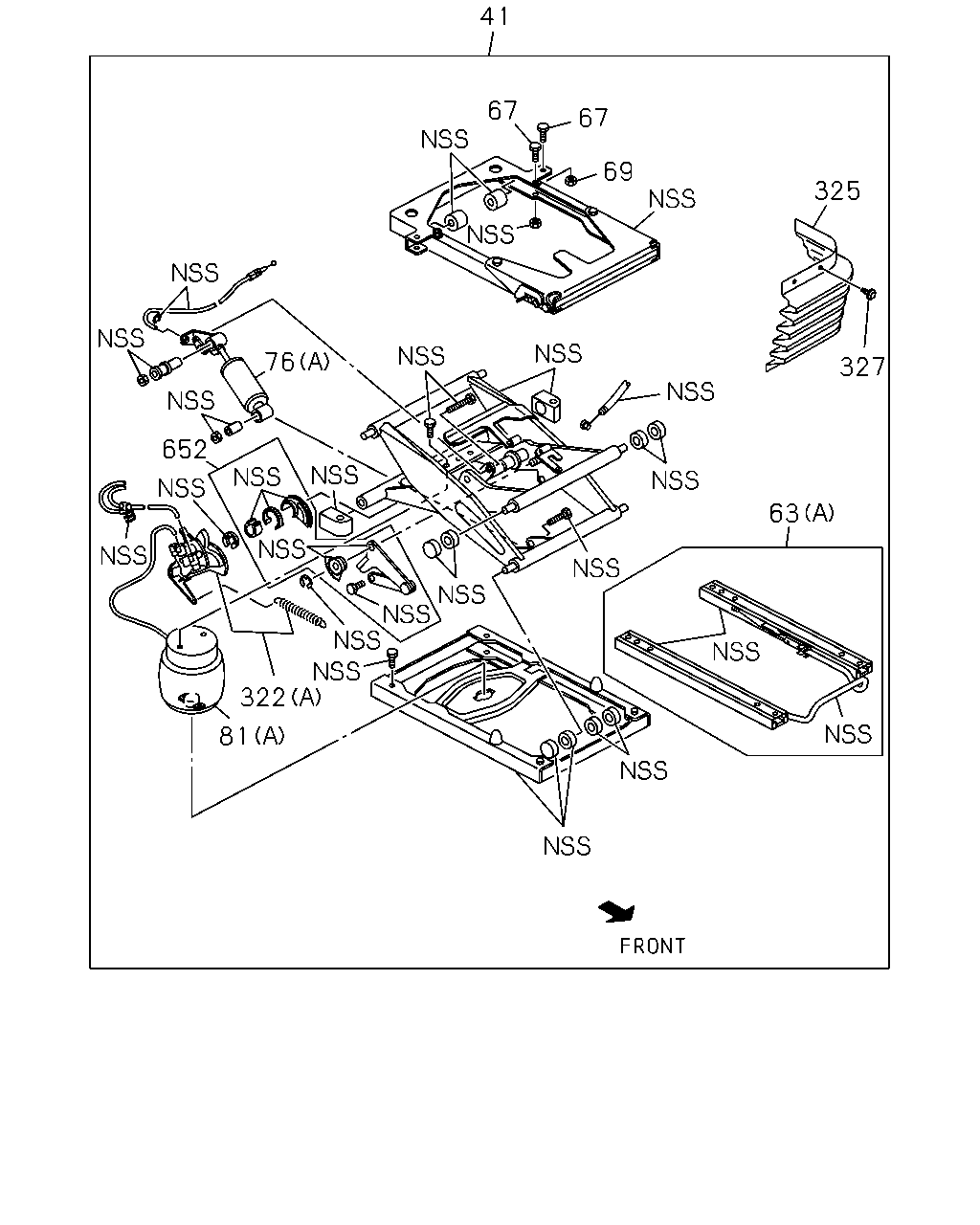

41 67 67 69 325 327 63 81 322 652 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	0906-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-0	01	1	1301-1508
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B)	1-75518-199-1	01	1	0906-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (C)	1-75518-323-0	01	1	0906-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-005-0	01	1	0906-1508
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	0906-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	0906-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B)	1-75538-139-0	01	1	0906-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-999-0	01	1	0906-1508
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	1-75538-151-2	01	1	0906-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-000-0	01	1	0906-1508
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	0906-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98098-001-0	01	1	0906-1508
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98098-003-0	01	1	0906-1508
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98098-004-0	01	1	0906-1508
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98098-002-0	01	1	0906-1508

403 182 179 188 16 188 175 176 506 360 126 359 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC>	1-75418-062-1	01	1	0906-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56> (A)	8-98063-218-0	01	1	0906-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B)	8-97854-900-0	01	1	0906-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-233-0	01	1	0906-1009
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-434-1	01	1	1010-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-234-0	01	1	0906-1009
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-435-1	01	1	1010-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-237-0	01	1	0906-1009
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-432-1	01	1	1010-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97416-235-0	01	1	0906-1009
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97421-430-3	01	1	1010-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE	1-75198-053-0	04	1	0906-
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	0906-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0906-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	0906-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0906-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20	9-09829-324-1	02	1	0906-1009
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE	0-91180-108-0	04	1	0906-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	0906-1006
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-

581 401 400 641 400 339 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	0906-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98014-971-0	01	1	0906-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	0906-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98098-996-0	02	1	0906-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE	0-91180-110-0	02	1	0906-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT<SJA>	8-97589-692-3	01	1	0906-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98106-348-0	01	1	0906-1508
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT<SJA> (B)	8-98067-762-0	01	1	0906-
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT<SJA>	8-98099-007-0	02	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
