◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11236 - FRR RHD EUROPE EURO5 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#60302) — 29 parça

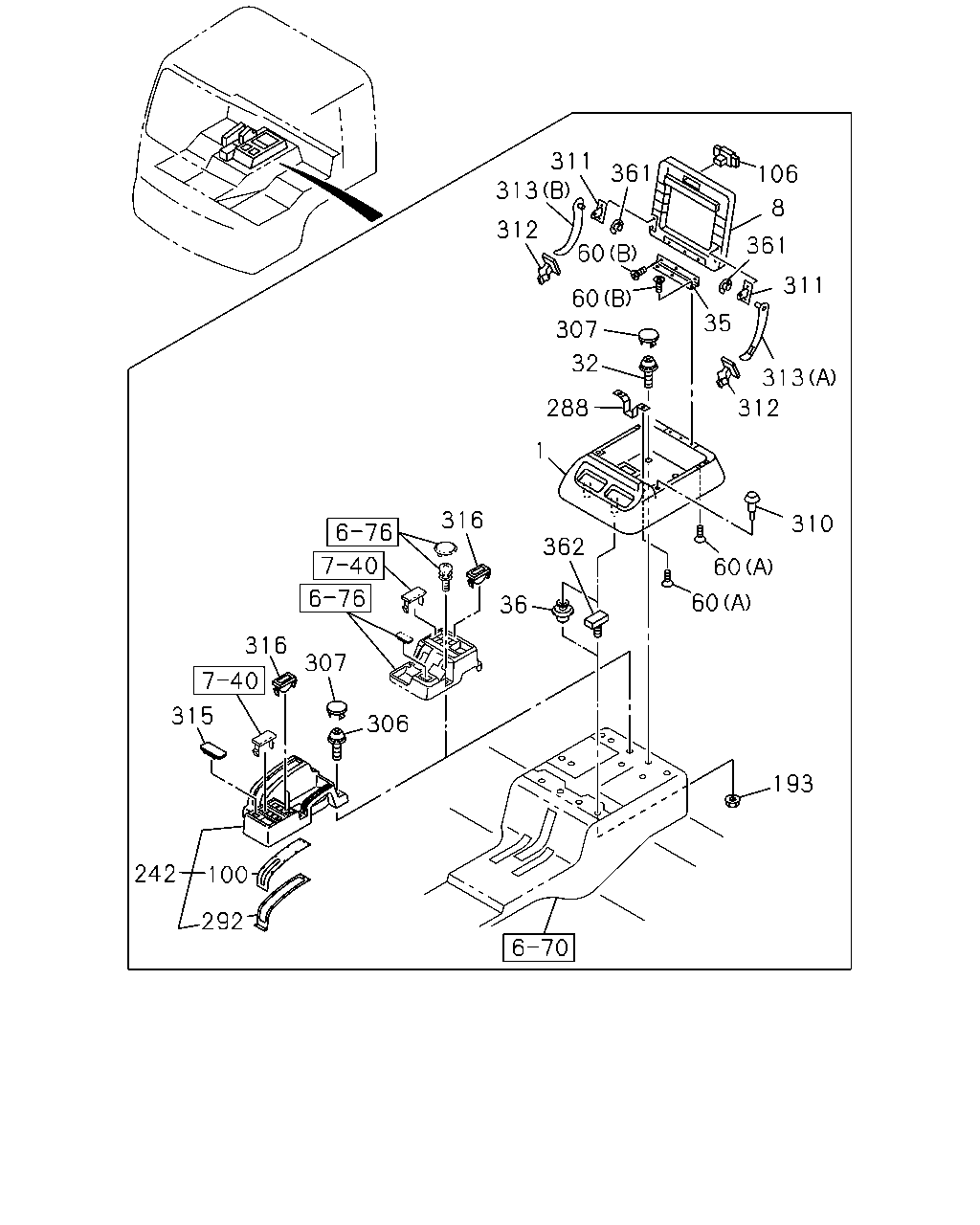

çizim 165185
311 361 313 312 60 60 307 32 288 312 313 35 311 361 8 106 316 1 362 36 60 60 310 307 316 306 315 100 242 292 193
BalonParca AdiParca NoAdetTipApplied Date
1 BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY 		8-97408-710-0 01 1 0906-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97408-712-0 01 1 0906-
32 SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16 		0-38050-616-0 02 1 0906-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-182-1 01 1 0906-
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9> EXC. ECE R29<EFE> 		1-09984-190-0 02 1 1006-
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0906-
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14 		8-94279-325-0 04 1 0906-
100 RUBBER; CONSOLE,FRT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-161-3 01 1 0906-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> 		1-72538-312-0 01 1 0906-
193 NUT; PARCEL BOX
CENTER SEAT DELETE<SP9> M8 FLANGE 		0-91180-108-0 02 1 0906-1005
193 NUT; PARCEL BOX
ECE R29<EFE> CENTER SEAT DELETE<SP9> M8 FLANGE 		0-91180-108-0 02 1 1006-
242 TRAY ASM; CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97407-950-1 01 1 0906-
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-190-0 01 1 0906-
292 RETAINER; COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-72538-162-1 01 1 0906-
306 SCREW; TRAY
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 		0-38050-616-0 04 1 0906-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-951-0 02 1 0906-
307 COVER; HOLE,CTR CONSOLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97407-951-0 04 1 0906-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-187-0 02 1 0906-
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-188-2 02 1 0906-
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-186-1 02 1 0906-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A) 		1-72538-184-3 01 1 0906-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B) 		1-72538-185-3 01 1 0906-
315 COVER; HOLE,SW
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY 		8-97409-339-0 01 1 0906-
316 BOX; COIN 8-94482-280-2 02 1 0906-1004
316 BOX; COIN
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94482-280-2 02 1 1005-1008
316 BOX; COIN 8-94482-280-2 02 1 1009-
361 RING; SNAP
CENTER SEAT DELETE<SP9> ID=5 		9-09185-405-0 02 1 0906-
362 STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9> 		1-72538-308-0 02 1 0906-1005
362 STUD; CONSOLE BOX
ECE R29<EFE> CENTER SEAT DELETE<SP9> 		1-72538-308-0 02 1 1006-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
