◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11236 - FRR RHD EUROPE EURO5 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#60299) — 179 parça

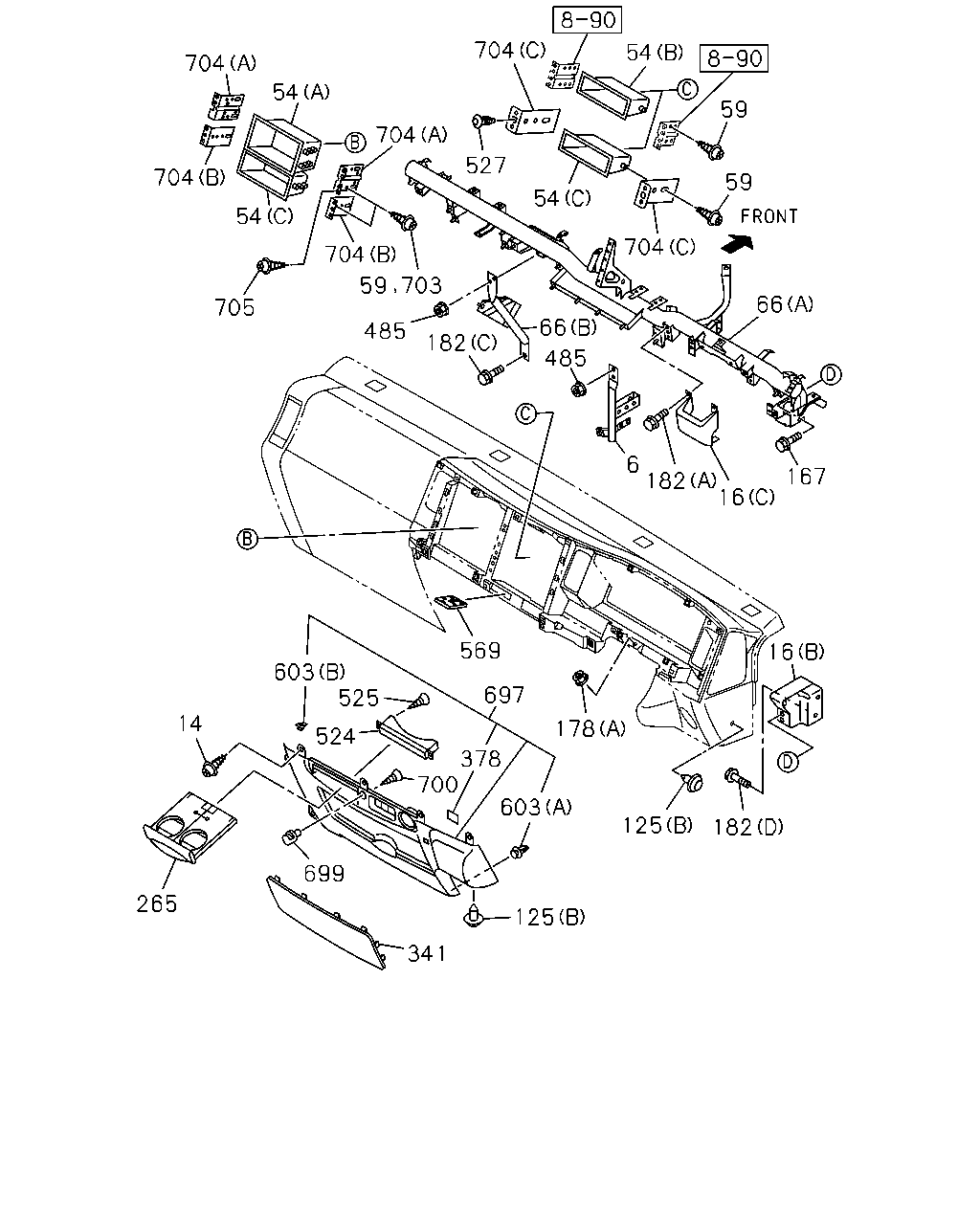

çizim 165126
704 704 54 54 705 704 704 704 527 54 54 59 59 704 66 167 16 182 6 485 66 182 485 703 59 16 182 125 178 569 697 603 525 524 378 700 603 125 341 699 265 14
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0906-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0906-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 0906-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0906-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0906-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0906-1012
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1101-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1101-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1101-1209
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0906-1209
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1210-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 0910-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0906-0909
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 0910-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-566-9 01 1 0906-1111
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-399-0 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-604-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-970-9 01 1 0906-1111
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-401-0 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-605-0 01 1 1407-
125 CLIP; INST PANEL
ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1004-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-1504
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),ECE R29 <EFE> (A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1003
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97408-063-0 02 1 1004-1007
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0906-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0906-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0906-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0906-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 1101-
569 HOLDER; CARD 8-97410-276-1 01 1 0906-
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98167-222-0 02 1 1005-
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98162-058-1 02 1 1004-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0906-1010
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0906-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0906-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 1101-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0906-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0906-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1101-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0906-1209
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-

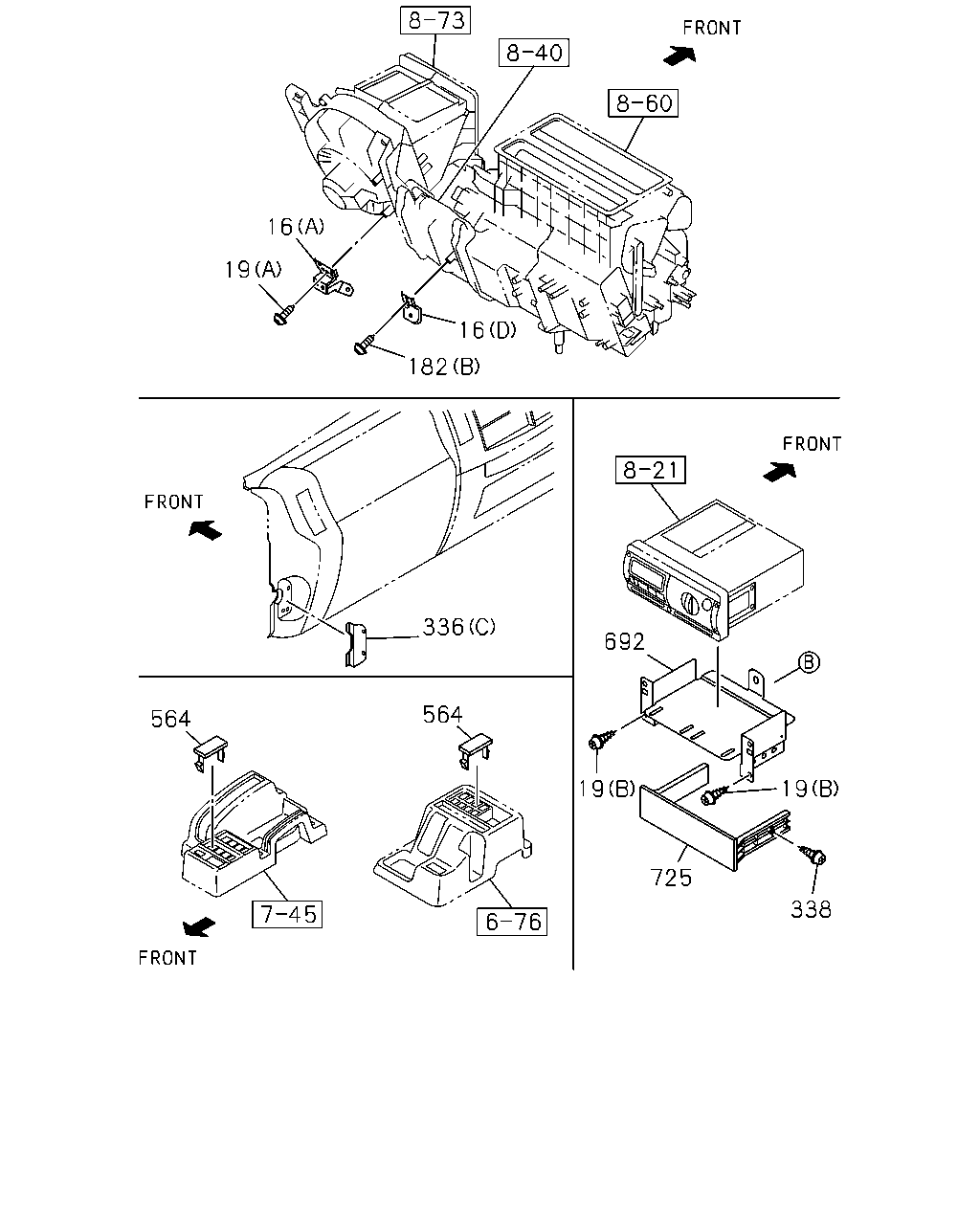

çizim 165127
16 19 16 182 336 564 564 725 338 19 692 19
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 0906-
19 SCREW; BRKT
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0906-1205
19 SCREW; BRKT
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1206-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0906-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0906-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0906-
338 SCREW; COVER
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-1205
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1206-
564 COVER; SW 8-97043-732-1 06 1 0906-
692 BRACKET; TACHOGRAPH 8-98094-271-0 01 1 0906-1205
692 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 		8-98094-271-0 01 1 1206-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-2 01 1 0906-1205
725 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> BLACK 		8-97407-896-2 01 1 1206-

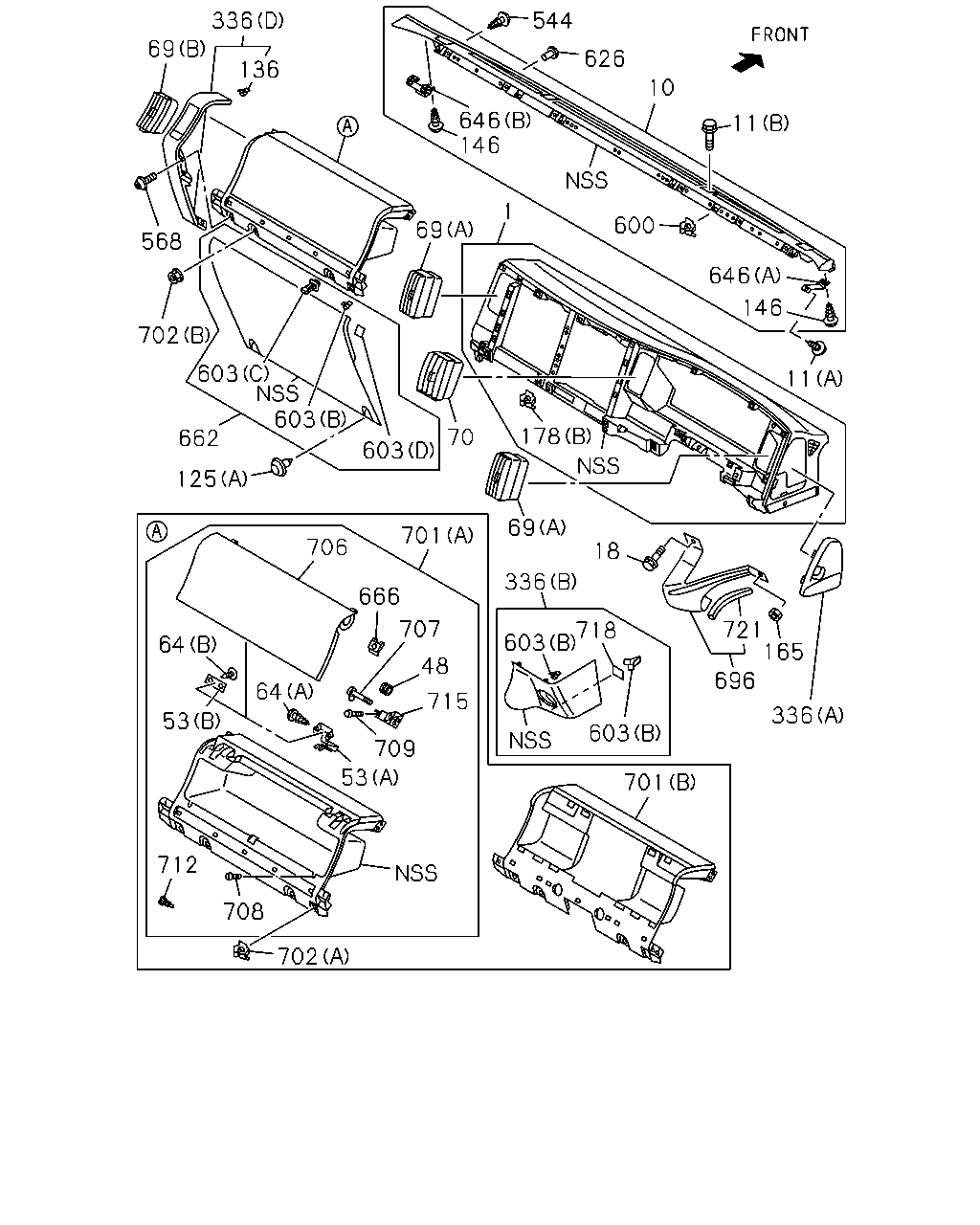

çizim 165130
69 336 136 568 702 603 662 125 603 603 69 70 178 146 646 544 626 10 11 600 646 146 11 721 696 165 336 18 69 336 603 718 603 701 701 706 666 707 48 715 709 53 702 708 712 53 64 64 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0906-
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 0906-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1009-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0906-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0906-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0906-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0906-1005
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1006-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0906-1005
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1006-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0906-1005
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1006-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0906-1005
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1006-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0906-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0906-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0906-
125 CLIP; INST PANEL
ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1004-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-1504
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),FULLAUTO AIR CONDITIONER(C68),ECE R29 <EFE> (A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1003
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97408-063-0 02 1 1004-1007
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
136 CLIP; INST COVER 8-98076-254-0 02 1 0906-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0906-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0906-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0906-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
600 NUT; PANEL 8-98037-629-0 02 1 0906-1008
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98167-222-0 02 1 1005-
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98162-058-1 02 1 1004-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0906-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0906-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0906-
662 COVER; LWR,INST PANEL
ECE R29<EFE> GRAY 		8-97419-960-2 01 1 1004-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0906-1003
662 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97407-428-2 01 1 1004-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0906-1005
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1006-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 0906-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1005
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1006-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0906-1005
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1006-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0906-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0906-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0906-1005
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1006-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0906-1005
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1006-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0906-1005
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1006-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0906-1005
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1006-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0906-1005
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1006-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0906-1005
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1006-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0906-1005
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1006-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0906-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
