◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11236 - FRR RHD EUROPE EURO5 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#60296) — 14 parça

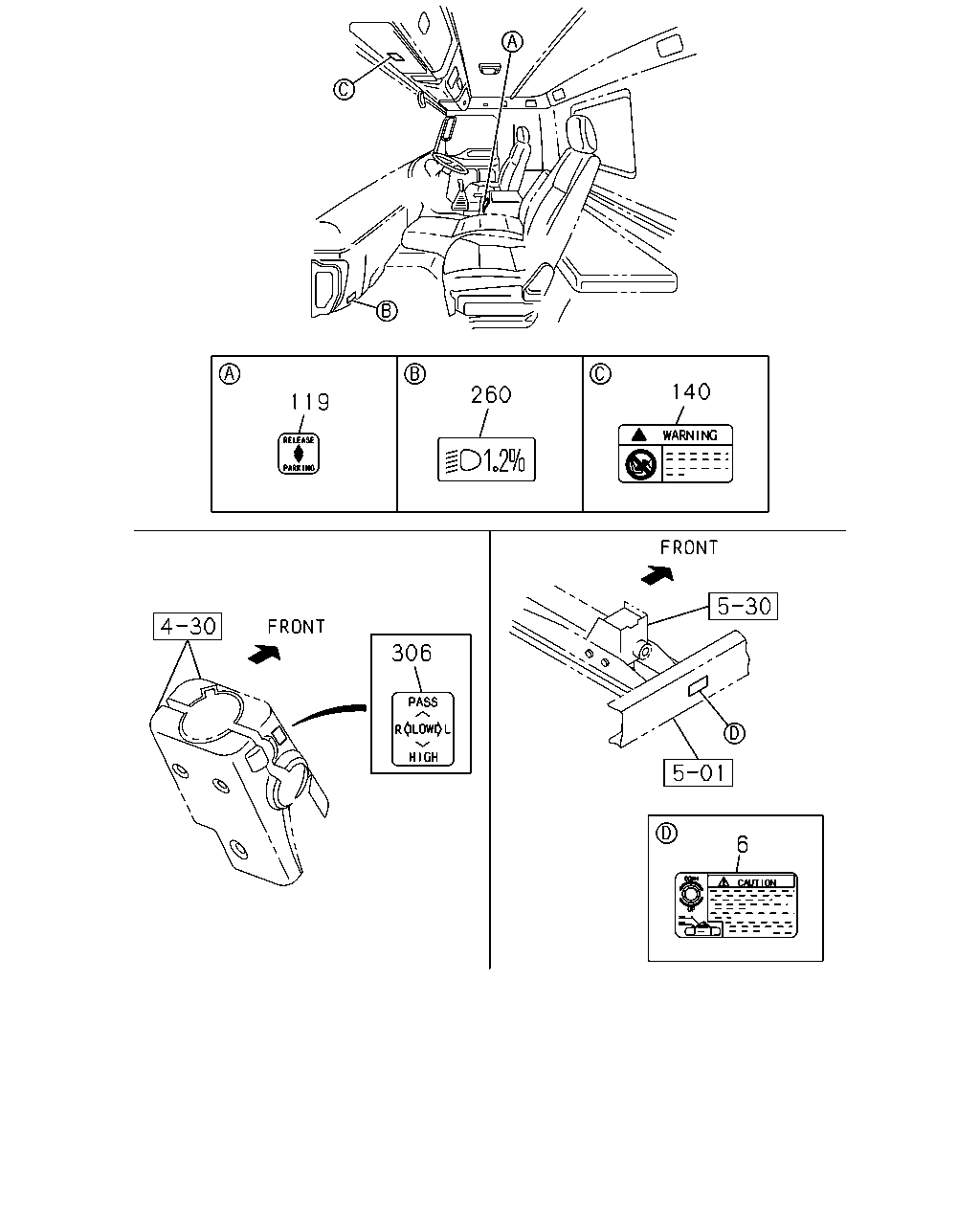

çizim 165145
140 260 119 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		8-98082-437-0 01 1 0906-
119 PLATE; CAUTION,HAND BRK LEVER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-85881-759-0 01 1 0906-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0906-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0906-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0906-

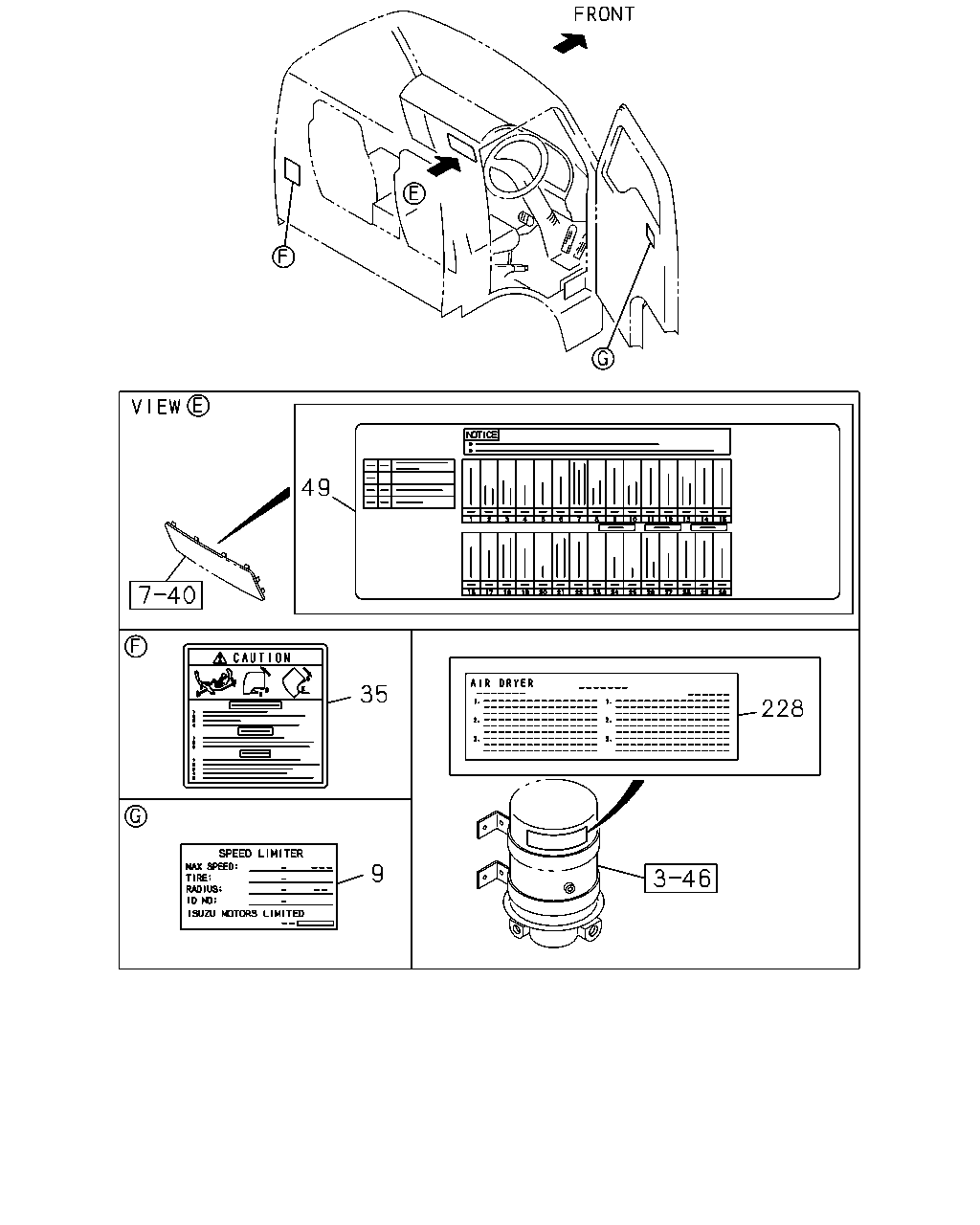

çizim 165146
49 35 228 9
BalonParca AdiParca NoAdetTipApplied Date
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER(8GF) 6 PER 1 SHEET 		8-98142-981-0 01 1 0906-1201
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) 6 PER 1 SHEET 		8-98142-981-0 01 1 1202-
9 PLATE; NAME,SPD RANGE
AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 6 PER 1 SHEET 		8-98142-979-0 01 1 0906-1201
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 6 PER 1 SHEET 		8-98142-979-0 01 1 1202-
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-980-0 01 1 0906-1201
9 PLATE; NAME,SPD RANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30> 6 PER 1 SHEET 		8-98142-976-0 01 1 0906-1201
35 PLATE; CAUTION,CAB 8-98065-363-0 01 1 0906-
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0906-
228 PLATE; CAUTION,AIR DRYER 1-48199-325-0 01 1 0906-1001
