◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#6029) — 1137 parça

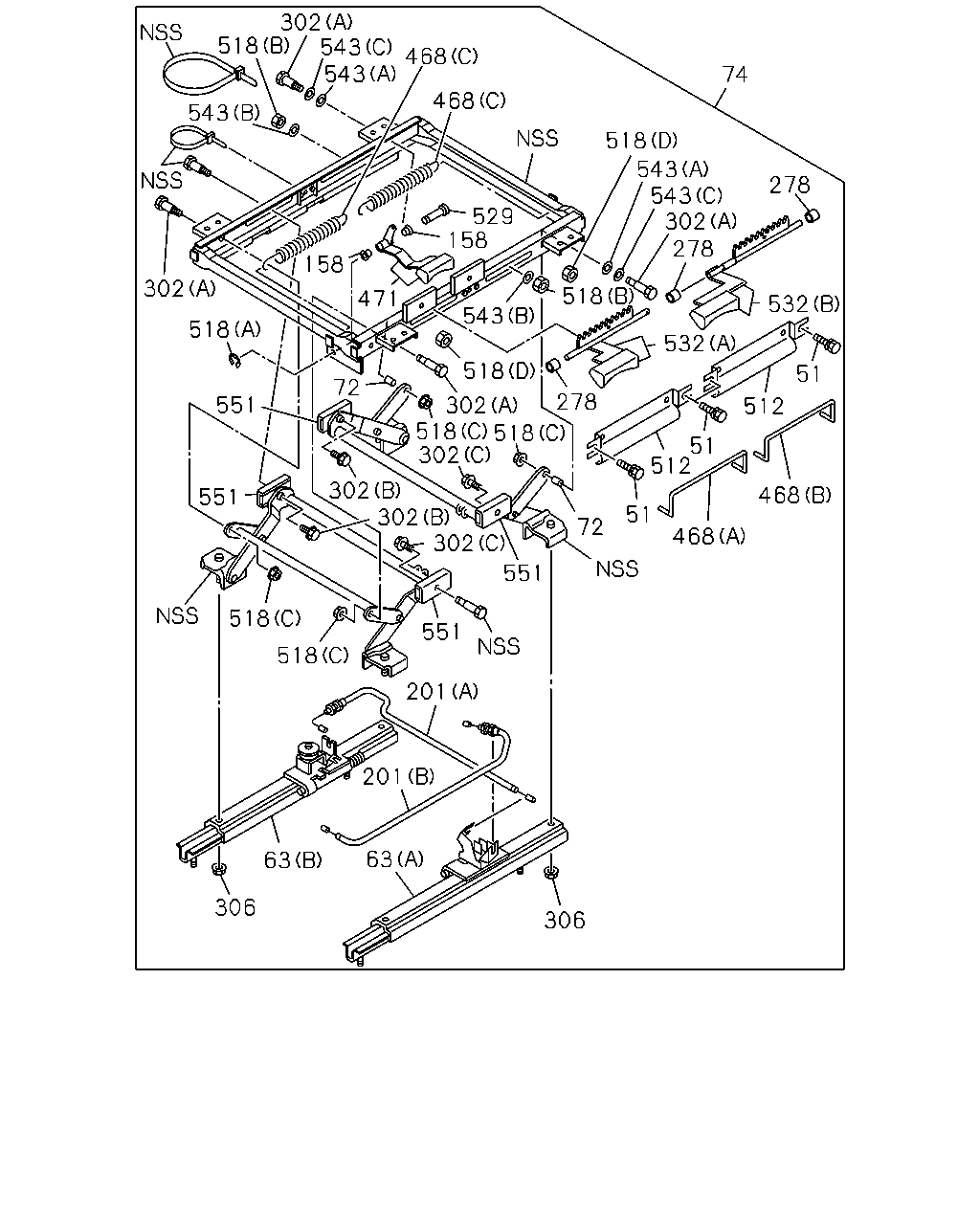

çizim 5727
302 518 543 468 543 74 468 543 518 543 543 302 278 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0101-0102
51 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 08 1 0103-
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9812-0003
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0004-0012
51 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0101-0102
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0101-0102
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0101-0102
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-325-0 04 1 0103-
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-325-0 04 1 0103-
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 16 1 0004-0012
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 08 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 04 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 02 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 02 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 02 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) (C) 		1-75517-953-0 01 1 9812-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9812-9910
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9812-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 04 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 02 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 02 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 02 1 0103-
72 SPACER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-0 02 1 0101-0102
72 SPACER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-0 04 1 0103-
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-269-0 02 1 9812-0003
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 02 1 0004-0012
72 SPACER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-334-0 02 1 0103-
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-334-0 02 1 0103-
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 08 1 0004-0012
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 04 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 02 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9812-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 04 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 02 1 0101-0102
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 9812-0003
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004-0012
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0101-0102
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0101-0102
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0103-
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 0103-
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 08 1 0004-0012
158 BUSHING; LINK ARM
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 04 1 0101-0102
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 04 1 0101-0102
158 BUSHING; LINK ARM
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 04 1 0103-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 9812-0003
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004-0012
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0101-0102
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0101-0102
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0103-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 0103-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-0 01 1 9812-0003
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 01 1 0004-0012
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-0 01 1 0101-0102
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 01 1 0101-0102
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-1 01 1 0103-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-1 01 1 0103-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 04 1 0004-0012
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 02 1 0101-0102
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 02 1 0101-0102
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 02 1 0103-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 04 1 0004-0012
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 02 1 0101-0102
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 02 1 0101-0102
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 02 1 0103-
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 9812-0003
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0004-0012
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0101-0102
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0101-0102
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0103-
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 0103-
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 12 1 0004-0012
278 COLLAR; FRT SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 06 1 0101-0102
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 06 1 0101-0102
278 COLLAR; FRT SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 06 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-0 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-0 04 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-0 02 1 9812-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-0 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-1 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-1 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 9812-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-0 04 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-0 04 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-271-1 02 1 9812-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-271-1 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-336-0 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-336-0 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 08 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 04 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 04 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-1 04 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 16 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 08 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 08 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 08 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 08 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 04 1 0101-0102
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9812-9912
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 06 1 0001-0003
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004-0012
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 06 1 0101-0102
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0101-0102
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 06 1 0103-
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 06 1 0103-
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 24 1 0004-0012
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0101-0102
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0101-0102
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9812-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9812-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9812-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 04 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0101-0102
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0101-0102
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 04 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 02 1 0101-0102
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 02 1 0101-0102
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 08 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0101-0102
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0101-0102
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0103-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9812-
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-290-0 01 1 9812-0003
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0004-0012
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-290-0 01 1 0101-0102
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0101-0102
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-290-0 01 1 0103-
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-290-0 01 1 0103-
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 04 1 0004-0012
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 02 1 0101-0102
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 02 1 0101-0102
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 02 1 0103-
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-245-0 02 1 9812-0003
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0004-0012
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-245-0 02 1 0101-0102
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0101-0102
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-245-1 02 1 0103-
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-245-1 02 1 0103-
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 08 1 0004-0012
512 COVER; LEVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 04 1 0101-0102
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 04 1 0101-0102
512 COVER; LEVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-1 04 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 9812-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004-0012
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0101-0102
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0101-0102
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 9812-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004-0012
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-264-0 04 1 0101-0102
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0101-0102
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-264-0 04 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9812-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004-0012
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0101-0102
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0101-0102
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 9812-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004-0012
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE 		8-94152-886-0 04 1 0101-0102
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0101-0102
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE 		8-94152-886-0 04 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 04 1 0004-0012
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 02 1 0101-0102
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 02 1 0101-0102
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 02 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 16 1 0004-0012
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 08 1 0101-0102
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 08 1 0101-0102
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 08 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 08 1 0004-0012
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 04 1 0101-0102
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 04 1 0101-0102
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 04 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 16 1 0004-0012
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 08 1 0101-0102
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 08 1 0101-0102
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 08 1 0103-
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 9812-0003
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004-0012
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0101-0102
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0101-0102
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0103-
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 0103-
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 04 1 0004-0012
529 PIN; LINK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 02 1 0101-0102
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 02 1 0101-0102
529 PIN; LINK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 02 1 0103-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-221-0 01 1 9812-0003
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0004-0012
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-221-0 01 1 0101-0102
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0101-0102
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-221-0 01 1 0103-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-221-0 01 1 0103-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-222-1 01 1 9812-0003
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0004-0012
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-222-1 01 1 0101-0102
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0101-0102
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-222-1 01 1 0103-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-222-1 01 1 0103-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 04 1 0004-0012
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 02 1 0101-0102
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 02 1 0101-0102
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 02 1 0103-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 04 1 0004-0012
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 02 1 0101-0102
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 02 1 0101-0102
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 02 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-335-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-335-0 04 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-337-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-337-0 04 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) ID=6.4 		9-09160-506-0 04 1 9812-0003
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=6.4 		9-09160-506-0 04 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) ID=6.4 		9-09160-506-0 04 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=6.4 		9-09160-506-0 04 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) ID=6.4 		9-09160-506-0 04 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) ID=6.4 		9-09160-506-0 04 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (B) ID=10.5 		9-09164-510-0 02 1 9812-0003
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 02 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) ID=10.5 		9-09164-510-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-335-0 02 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-335-0 02 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=6.4 		9-09160-506-0 16 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=6.4 		9-09160-506-0 08 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=6.4 		9-09160-506-0 08 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=6.4 		9-09160-506-0 08 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 08 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10.5 		9-09164-510-0 04 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-337-0 02 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-337-0 02 1 0103-
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 9812-0003
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004-0012
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0101-0102
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0101-0102
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0103-
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 0103-
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 16 1 0004-0012
551 SLIDER; HEIGHT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 08 1 0101-0102
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 08 1 0101-0102
551 SLIDER; HEIGHT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 08 1 0103-

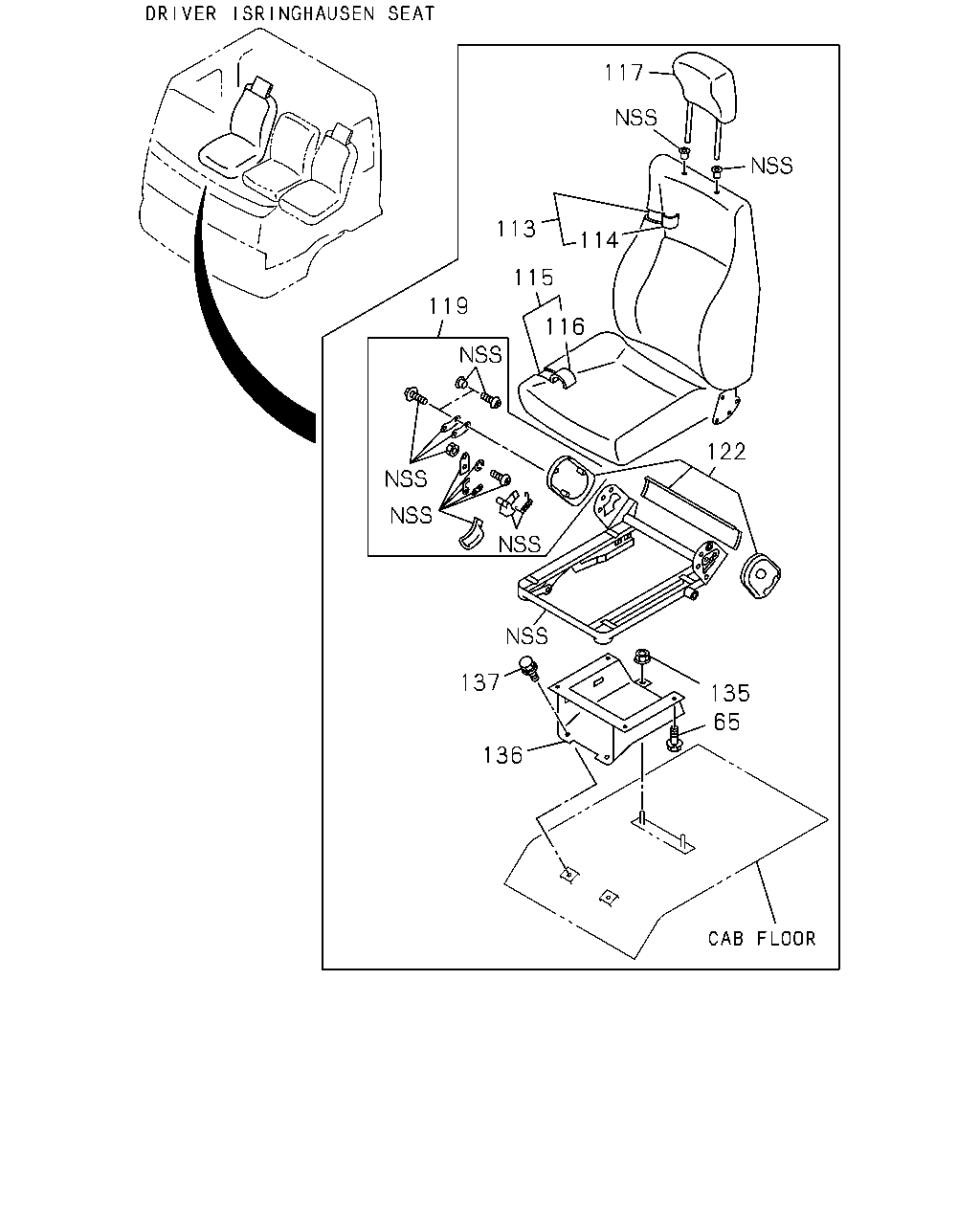

çizim 9230
117 113 114 115 119 116 122 137 135 65 136
BalonParca AdiParca NoAdetTipApplied Date
65 SCREW; ADJ TO SEAT
ISRINGHAUSEN SEAT(SJA) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9812-0003
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004-0105
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-547-1 01 1 0106-
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9812-0003
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004-0105
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75208-060-1 01 1 0106-
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9812-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9812-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9812-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9812-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9812-0003
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9812-0003
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9812-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9812-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9812-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9812-
117 REST; HD
ISRINGHAUSEN SEAT(SJA) 		1-75658-052-0 01 1 9812-
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75418-064-0 01 1 9812-
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9812-
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9812-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9812-
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9812-9904
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-7 01 1 9905-
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9812-

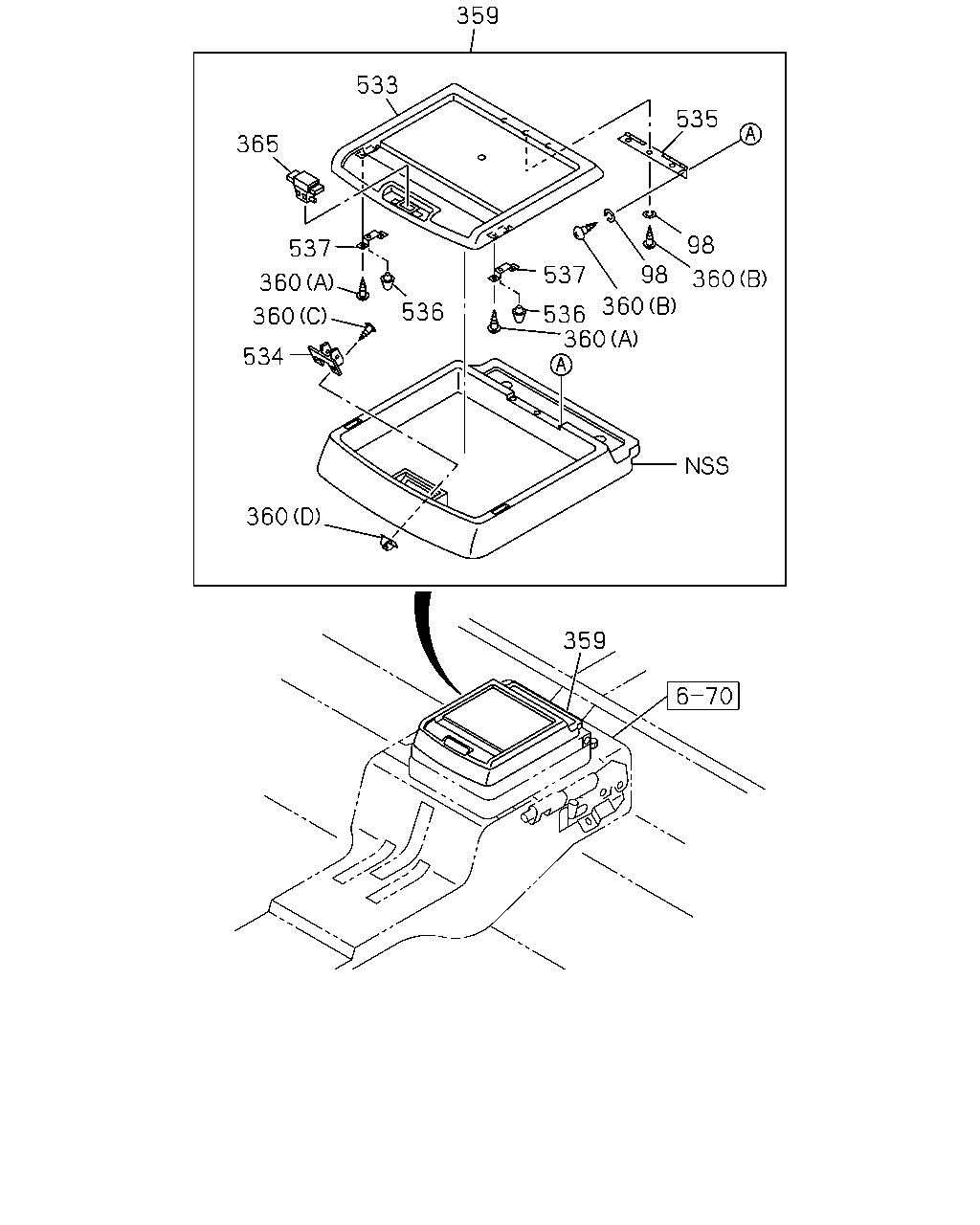

çizim 41103
359 533 535 365 98 537 98 537 360 360 360 536 536 360 360 534 360 359
BalonParca AdiParca NoAdetTipApplied Date
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9812-
359 BOX; PARCEL 1-72538-157-3 01 1 9812-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9812-
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9812-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9812-
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9812-
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9812-
533 LID; PARCEL BOX 1-72538-194-2 01 1 9812-
534 STRIKER; PARCEL BOX 1-72538-181-0 01 1 9812-
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9812-
536 RUBBER; CUSHION 5-09983-002-1 02 1 9812-
537 BRACKET; RUBBER 1-72548-057-1 02 1 9812-

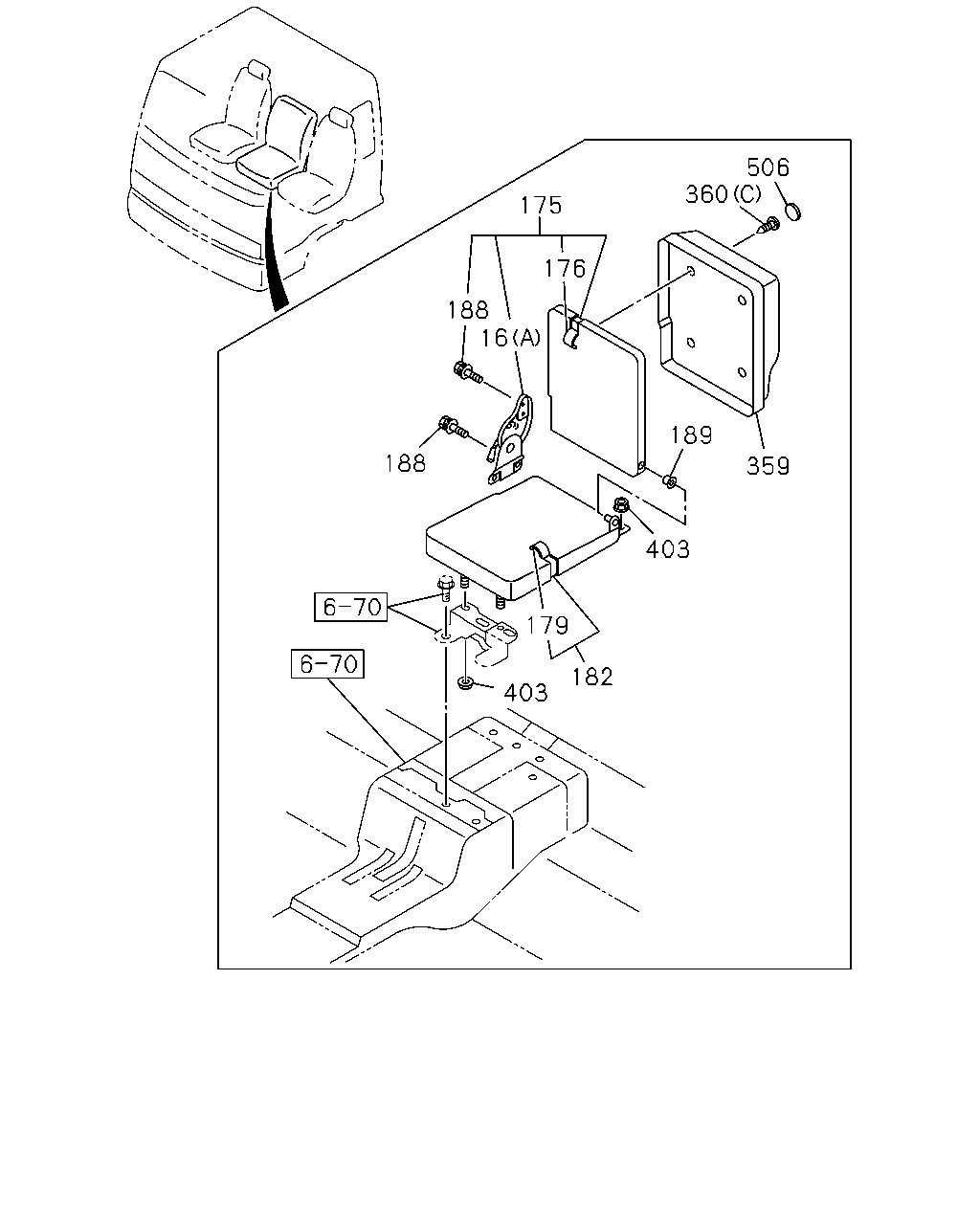

çizim 43327
506 360 175 176 188 16 189 188 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-062-0 01 1 9812-
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) (B) 		1-75417-601-0 01 1 9812-
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75027-598-1 01 1 9812-0003
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-255-0 01 1 0004-
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75027-864-0 01 1 9812-0003
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-257-0 01 1 0004-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75116-884-0 01 1 9812-0003
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-075-0 01 1 0004-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75117-941-0 01 1 9812-0003
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-077-0 01 1 0004-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-931-0 01 1 9812-0003
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-068-0 01 1 0004-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75117-932-0 01 1 9812-0003
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-069-0 01 1 0004-
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75027-830-0 01 1 9812-0003
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-247-1 01 1 0004-
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75027-858-0 01 1 9812-0003
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-248-1 01 1 0004-
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9812-
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 9812-
359 BOX; PARCEL 1-72538-157-3 01 1 9812-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9812-
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9812-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9812-
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9812-
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9812-
506 CAP; PARCEL BOX 1-09983-164-1 04 1 9812-

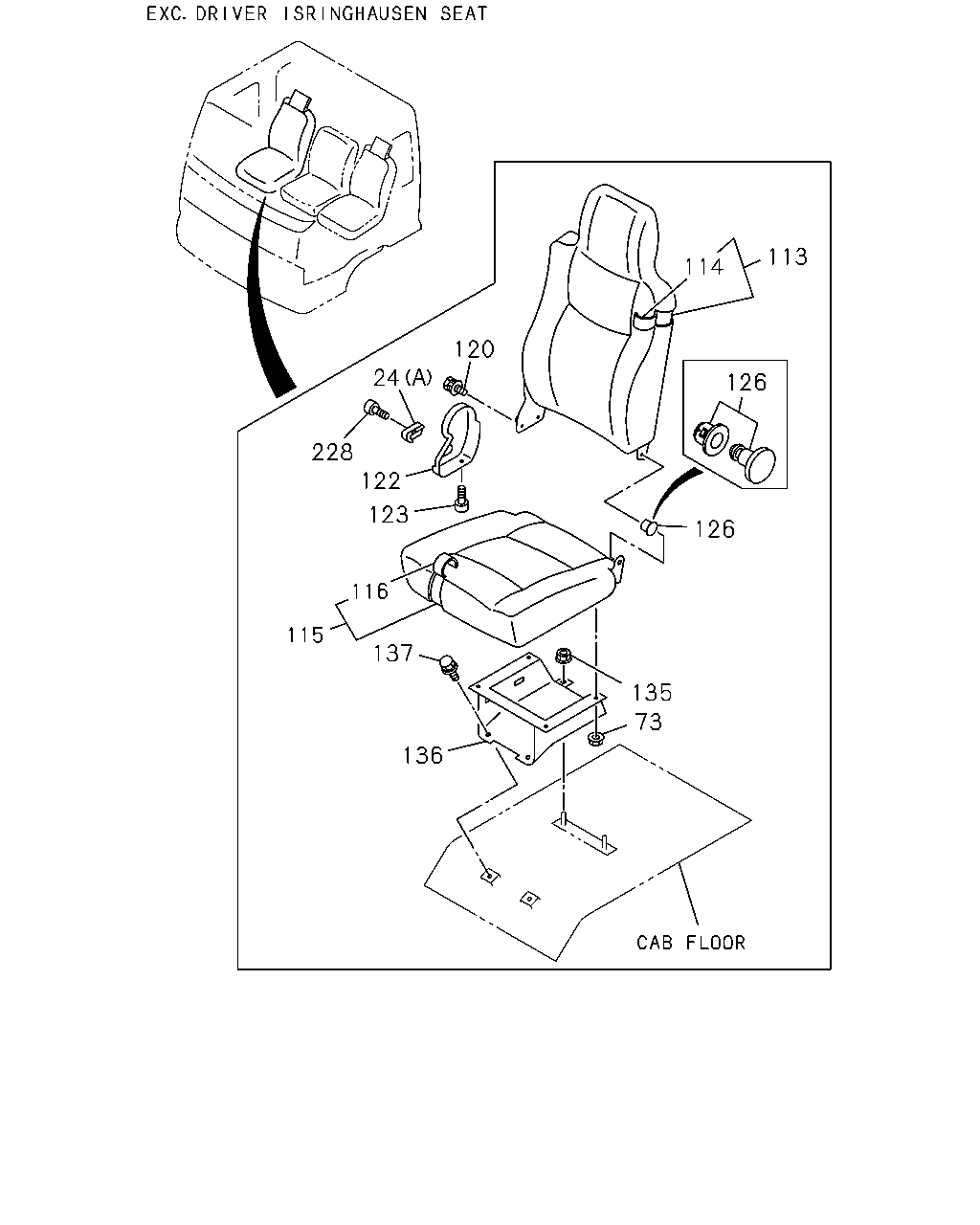

çizim 43840
113 114 120 24 126 228 122 123 126 116 115 137 135 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 9812-0003
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9812-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 04 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9812-0003
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9812-0003
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 32 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0103-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9812-0003
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004-0105
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-547-1 01 1 0106-
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9812-0003
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004-0105
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75208-060-1 01 1 0106-
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9812-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9812-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9812-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9812-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9812-0003
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9812-0003
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9812-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9812-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9812-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9812-
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9812-0003
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0004-
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9812-
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9812-
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9812-
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9812-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9812-
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9812-9904
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-7 01 1 9905-
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9812-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9812-0003
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9812-0003
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 04 1 0004-0012
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0101-0102
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0101-0102
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0103-

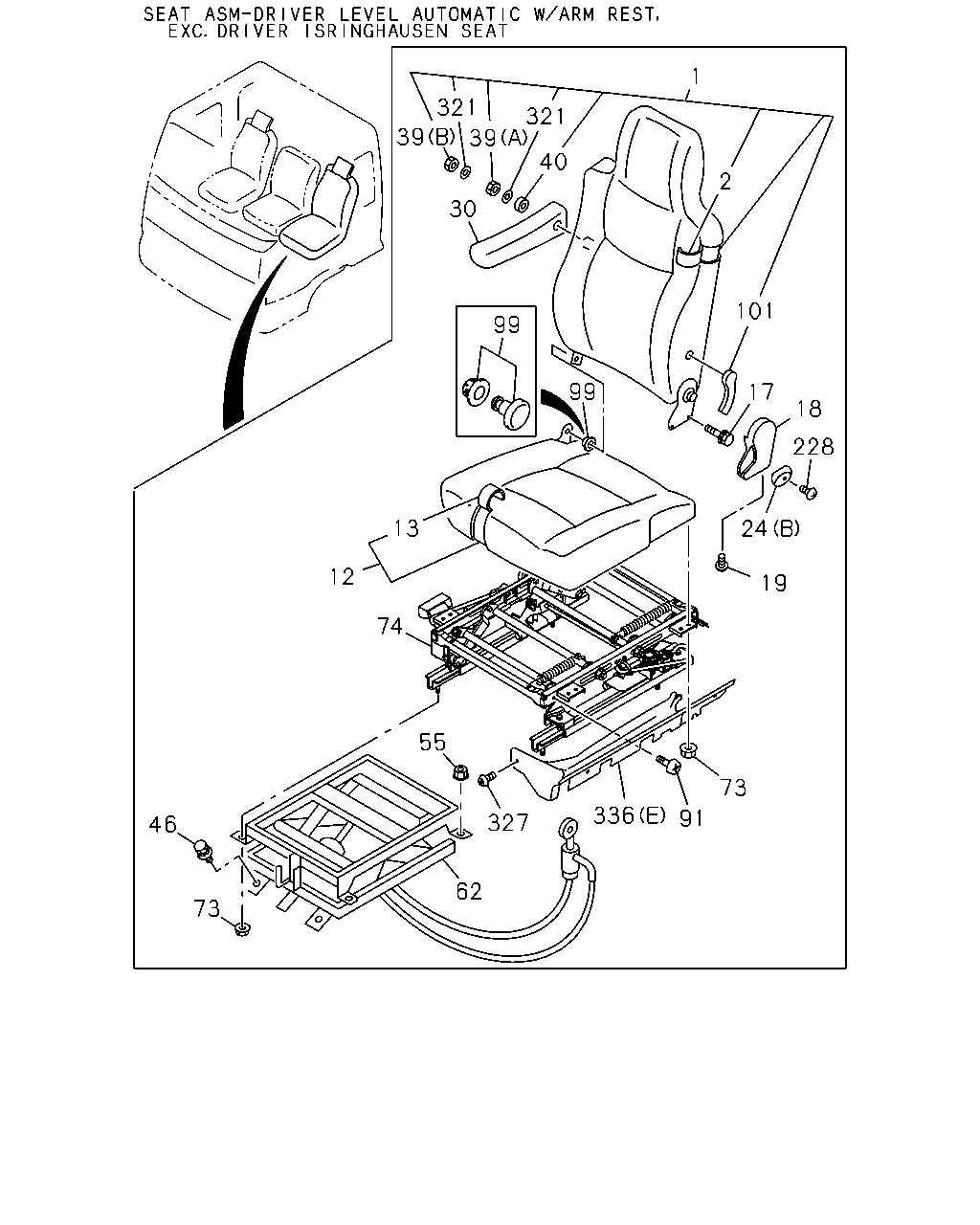

çizim 43954
1 321 321 39 39 40 2 30 101 99 99 17 18 228 24 13 12 19 74 55 73 336 91 327 46 62 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9812-
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9812-9910
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 04 1 0004-0012
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-457-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9812-9910
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 04 1 0004-0012
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0106-
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0101-0102
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0102
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9812-
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9812-9910
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 04 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9812-9910
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 04 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9812-
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9812-9910
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 04 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9812-9910
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 04 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9812-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9812-9910
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 04 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9812-9910
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 04 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9812-0003
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0101-0102
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0101-0102
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 08 1 0004-0012
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 04 1 0101-0102
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 04 1 0101-0102
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 04 1 0103-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 9812-0003
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0004-0012
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0101-0102
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0101-0102
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 04 1 0004-0012
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 02 1 0101-0102
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 02 1 0101-0102
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 02 1 0103-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9812-0003
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0012
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0004-0012
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 9812-0003
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9812-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 04 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0103-
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9812-9910
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 04 1 0004-0012
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 02 1 0101-0102
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004-0012
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-012-0 01 1 0101-0102
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0101-0102
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0103-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-012-0 01 1 0103-
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0103-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 04 1 0004-0012
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 02 1 0101-0102
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9812-9910
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9911-0003
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		8-94279-521-0 01 1 9911-0003
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 04 1 0004-0012
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 02 1 0101-0102
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0004-0012
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) M8 		1-75147-657-0 01 1 0101-0102
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0101-0102
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0103-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) M8 		1-75147-657-0 01 1 0103-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0103-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0004-0012
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M10 		9-09110-410-0 01 1 0101-0102
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0101-0102
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0103-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M10 		9-09110-410-0 01 1 0103-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0103-
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9812-9910
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 08 1 0004-0012
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 04 1 0101-0102
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004-0012
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0101-0102
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0101-0102
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0103-
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0103-
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0103-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9812-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9812-
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9812-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9812-0003
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9812-0003
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 32 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 02 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9812-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 04 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812-0003
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 08 1 0004-0012
91 SCREW; SEAT ADJ COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0101-0102
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0101-0102
91 SCREW; SEAT ADJ COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0103-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9812-0003
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0012
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0101-0102
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0101-0102
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 04 1 0004-0012
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 02 1 0101-0102
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 02 1 0101-0102
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 02 1 0103-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9812-0003
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0012
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0101-0102
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0101-0102
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 04 1 0004-0012
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 02 1 0101-0102
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 02 1 0101-0102
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 02 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9812-0003
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9812-0003
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 04 1 0004-0012
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0101-0102
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0101-0102
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0103-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 04 1 0004-0012
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 02 1 0101-0102
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9812-9910
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 04 1 0004-0012
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 02 1 0101-0102
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0004-0012
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-0102
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-0102
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0103-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=10.5 OD=22 		9-09160-610-0 01 1 0103-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0103-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0004-0012
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-0102
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-0102
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0103-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=8.4 OD=22 		9-09164-708-0 01 1 0103-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0103-
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9812-0003
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0101-0102
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 04 1 0004-0012
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0101-0102
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0101-0102
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0103-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9812-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-194-2 01 1 9812-0003
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 0004-0012
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (E) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (E) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 04 1 0004-0012
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0101-0102
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0101-0102
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0103-
çizim 44260
2 1 101 99 17 18 99 24 228 19 13 12 74 327 73 91 55 336 46 73 42
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9812-
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9812-9910
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 04 1 0004-0012
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-457-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9812-9910
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 04 1 0004-0012
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0106-
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0101-0102
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0102
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9812-
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9812-9910
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 04 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9812-9910
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 04 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9812-
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9812-9910
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 04 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9812-9910
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 04 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9812-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9812-9910
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 04 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9812-9910
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 04 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9812-0003
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0101-0102
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0101-0102
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 08 1 0004-0012
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 04 1 0101-0102
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 04 1 0101-0102
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 04 1 0103-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 9812-0003
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0004-0012
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0101-0102
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0101-0102
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 04 1 0004-0012
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 02 1 0101-0102
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 02 1 0101-0102
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 02 1 0103-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9812-0003
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0012
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0004-0012
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 9812-0003
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9812-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 04 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 02 1 0103-
42 STAND; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 02 1 0101-0102
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 02 1 0101-0102
42 STAND; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 02 1 0103-
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9812-0003
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 04 1 0004-0012
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0101-0102
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0103-
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0103-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9812-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9812-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9812-0003
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9812-0003
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 32 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 02 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9812-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 04 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9812-0003
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 08 1 0004-0012
91 SCREW; SEAT ADJ COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0101-0102
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0101-0102
91 SCREW; SEAT ADJ COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0103-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9812-0003
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0012
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0101-0102
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0101-0102
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 04 1 0004-0012
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 02 1 0101-0102
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 02 1 0101-0102
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 02 1 0103-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9812-0003
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0012
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0101-0102
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0101-0102
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 04 1 0004-0012
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 02 1 0101-0102
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 02 1 0101-0102
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 02 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9812-0003
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9812-0003
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 04 1 0004-0012
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0101-0102
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0101-0102
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0103-
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9812-0003
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0101-0102
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 04 1 0004-0012
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0101-0102
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0101-0102
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0103-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9812-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-194-2 01 1 9812-0003
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 0004-0012
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (E) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (E) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 04 1 0004-0012
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0101-0102
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0101-0102
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0103-
çizim 44323
27 1 2 13 12 336 336 16 336 587 63 325 55 336 590 46 81 76 582 582 582 582 581
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9812-
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9812-9910
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 04 1 0004-0012
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 02 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-457-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9812-9910
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 04 1 0004-0012
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 02 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0106-
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0101-0102
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0102
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0103-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9812-
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9812-9910
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 04 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 02 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9812-9910
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 04 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 02 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0103-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9812-
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9812-9910
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 04 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 02 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9812-9910
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 04 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 02 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-0 01 1 0103-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9812-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9812-9910
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 04 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 02 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9812-9910
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 04 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 02 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0103-
16 ADJUSTER ASM; RECLINING
(A) 		1-75418-062-0 01 1 9812-
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) (B) 		1-75417-601-0 01 1 9812-
27 REST; HD,FRT SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75657-029-0 01 1 9812-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9812-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9812-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 04 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 02 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 02 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 02 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) (C) 		1-75517-953-0 01 1 9812-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9812-9910
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9812-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 04 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 02 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 02 1 0101-0102
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 02 1 0103-
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) (A) 		1-75537-276-0 01 1 9812-
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75537-230-2 01 1 9812-
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) (A) 		1-75537-275-0 01 1 9812-
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75538-151-1 01 1 9812-
325 COVER; SUSPENSION DEVICE
ISRINGHAUSEN SEAT(SJA) 		1-75537-274-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9812-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9812-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-194-2 01 1 9812-0003
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 0004-0012
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (E) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (E) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 04 1 0004-0012
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0101-0102
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0101-0102
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-194-2 02 1 0103-
581 PIPE; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-73907-606-2 01 1 9812-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-09980-619-1 02 1 9812-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9812-9903
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9904-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9904-
587 VALVE; LUMBAR SUPPORT
ISRINGHAUSEN SEAT(SJA) 		1-75197-006-0 01 1 9812-
590 KNOB KIT; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75417-599-0 01 1 9812-
çizim 44422
62 80 78 81 66 88 79 66 79 77 78 86 79 79 76 322 339 86 78 78 85 467 468 85 87 513 85 470
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9812-
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 9812-
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) (A) 		1-75537-276-0 01 1 9812-
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75537-230-2 01 1 9812-
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 9812-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 9812-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 		9-09185-410-0 02 1 9812-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 		9-09185-415-0 01 1 9812-
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 9812-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 9812-
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) (A) 		1-75537-275-0 01 1 9812-
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75538-151-1 01 1 9812-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9812-0102
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75538-208-0 02 1 0103-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9812-0003
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 9812-
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9812-
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 9812-
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-273-1 01 1 9812-
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-2 01 1 9812-
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-1 01 1 9812-
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 9812-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9812-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9812-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9812-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 04 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0101-0102
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0101-0102
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 04 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 02 1 0101-0102
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 02 1 0101-0102
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 08 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0101-0102
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0101-0102
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 04 1 0103-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9812-
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 9812-
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 9812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
