Isuzu WW
▶
TRUCKS
▶
FRR
▶
11236 - FRR RHD EUROPE EURO5 SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

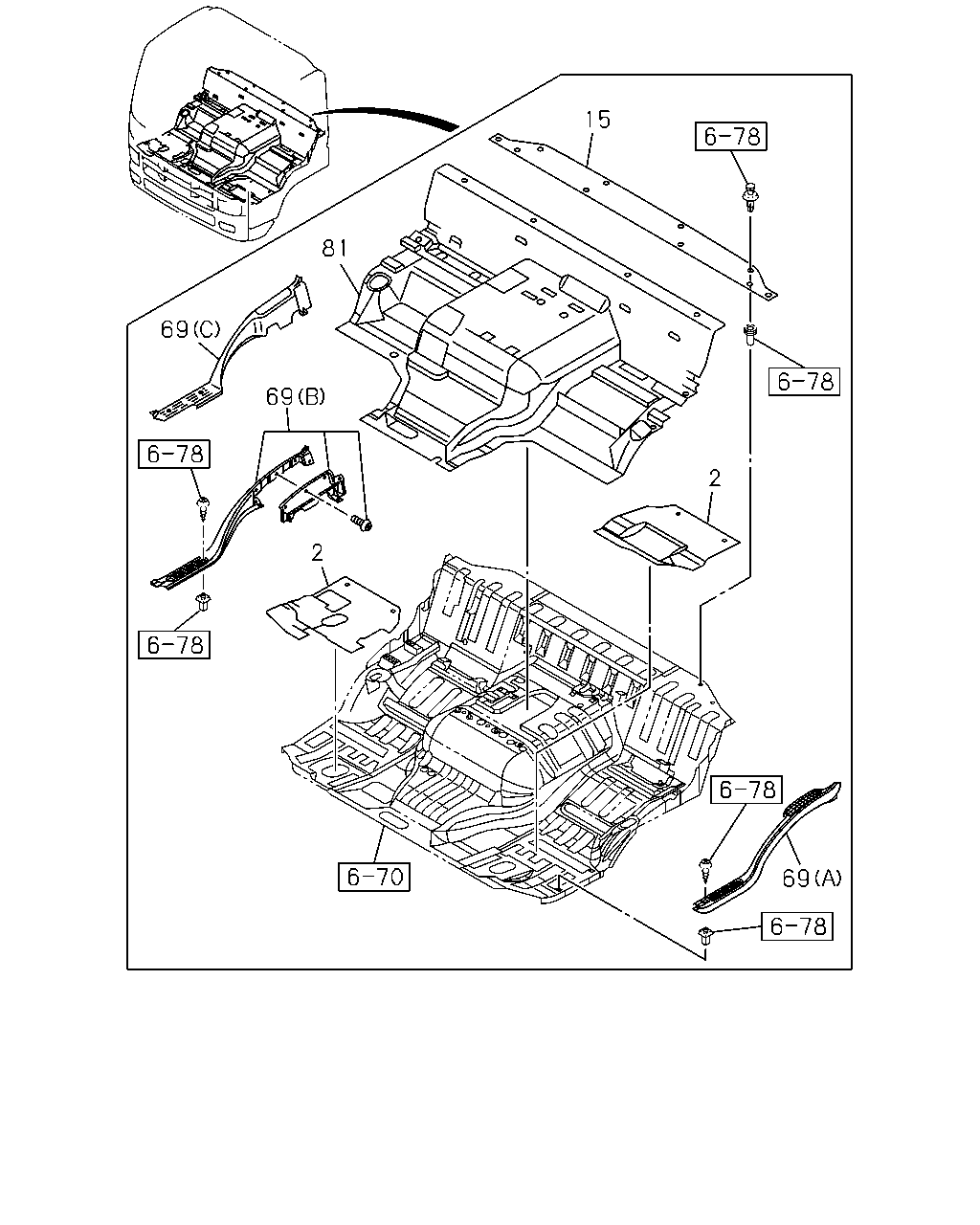

6-75 — MAT AND CARPET
(#60288) — 11 parça
15
81
69
69
2
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
GRAY
8-97407-747-1
01
1
0906-0906
2
MAT; FLOOR
GRAY
8-97407-745-2
01
1
0907-
2
MAT; FLOOR
GRAY
8-97412-936-2
01
1
0906-
15
MAT; FLOOR REAR
GRAY
8-97407-517-1
01
1
0906-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY
8-97412-927-0
01
1
0906-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY
8-97412-928-1
01
1
0906-
69
COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY
8-97412-926-0
01
1
0906-
81
MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY
8-97411-790-3
01
1
0906-
81
MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DRIVER ISRINGHAUSEN SEAT<SJA> GRAY
8-97411-791-3
01
1
0906-
81
MAT; FLOOR,CENTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. DRIVER ISRINGHAUSEN SEAT<SJA> GRAY
8-97407-407-3
01
1
0906-
81
MAT; FLOOR,CENTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), DRIVER ISRINGHAUSEN SEAT<SJA> GRAY
8-97407-405-3
01
1
0906-
