◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11236 - FRR RHD EUROPE EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#60287) — 61 parça

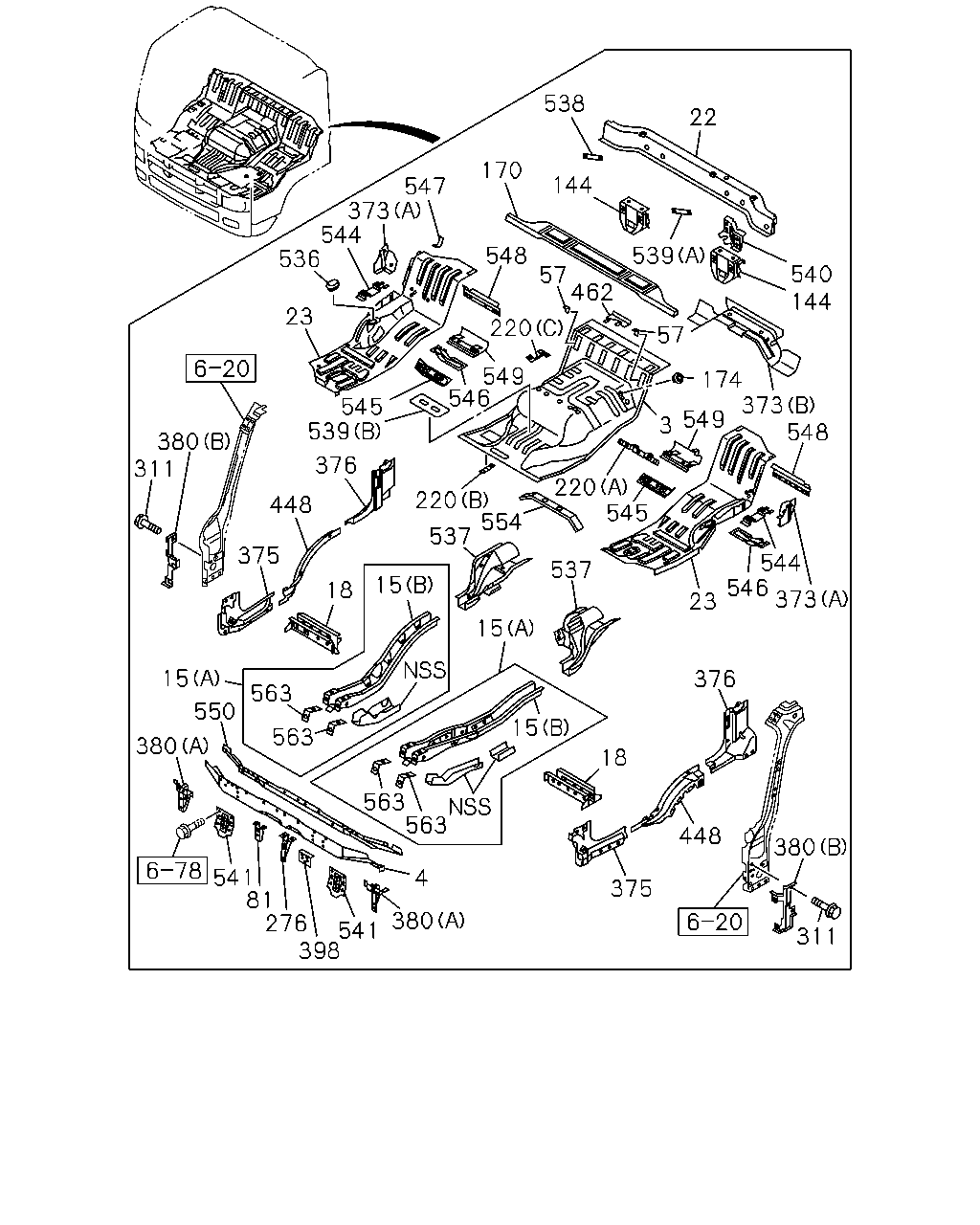

çizim 165240
380 541 398 276 81 541 380 550 15 18 15 563 563 563 563 15 18 375 448 380 311 376 23 373 546 544 548 373 549 3 174 144 540 539 22 538 144 170 547 373 544 536 23 548 57 462 220 549 546 545 539 376 448 375 380 311 220 537 554 537 15 545 220 57 4
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-356-4 01 1 0906-
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-872-9 01 1 0906-1004
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1005-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0906-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0906-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0906-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0906-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0906-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 0906-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0906-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 0906-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 0906-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0906-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0906-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0906-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0906-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0906-
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 0906-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0906-
220 PATCH
(A) 		8-97588-840-4 01 1 0906-
220 PATCH
(B) 		8-97589-603-3 01 1 0906-
220 PATCH
(C) 		8-97589-627-2 01 1 0906-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0906-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0906-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0906-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0906-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 0906-1507
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0906-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0906-
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 0906-
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 0906-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0906-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0906-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0906-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0906-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0906-
448 CLOSING; ROCKER 8-97589-551-2 01 1 0906-
448 CLOSING; ROCKER 8-97589-552-2 01 1 0906-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0906-1002
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0906-
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 0906-
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 0906-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0906-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1406-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0906-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0906-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0906-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0906-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0906-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0906-
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0906-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0906-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0906-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0906-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0906-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0906-
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0906-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0906-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0906-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0906-
