◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#6026) — 98 parça

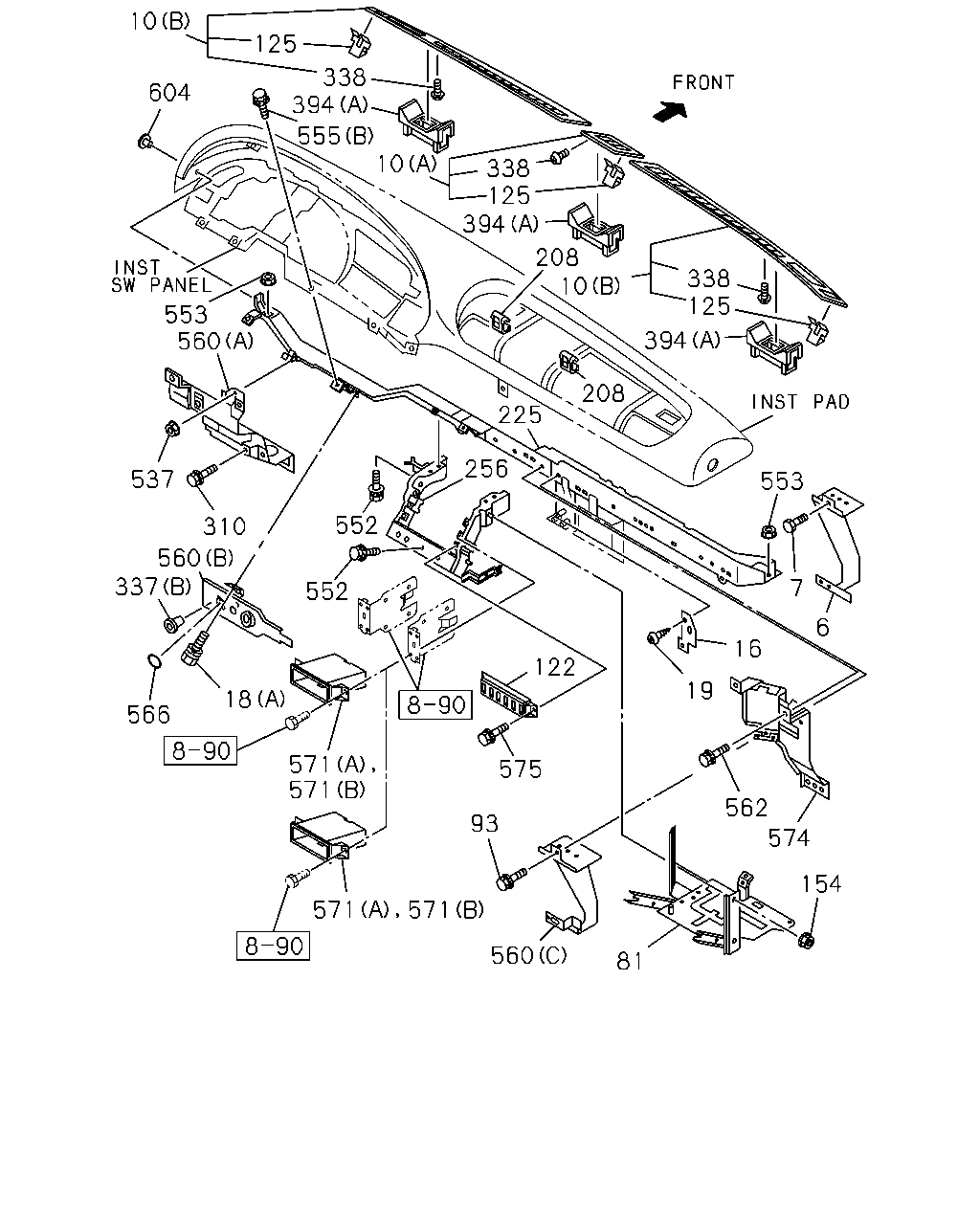

çizim 8202
10 125 338 394 604 555 10 338 125 394 208 10 338 125 553 560 394 208 225 256 537 553 552 310 560 337 7 552 6 16 122 19 18 566 571 571 575 562 93 574 154 571 560 81 571
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION A/C DELETE(TFA) 		1-65681-062-2 01 1 9812-
6 SUPPORT; INST PANEL
HEATER VENTILATION A/C DELETE(TFA) 		1-65681-061-2 01 1 9812-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION A/C DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9812-
10 PANEL ASM; GARNISH
HEATER VENTILATION A/C DELETE(TFA) (A) 		1-72437-592-1 01 1 9812-
10 PANEL ASM; GARNISH
HEATER VENTILATION A/C DELETE(TFA) (B) 		1-72438-158-1 01 1 9812-
10 PANEL ASM; GARNISH
HEATER VENTILATION A/C DELETE(TFA) (B) 		1-72438-157-1 01 1 9812-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION A/C DELETE(TFA) (A) 		1-72437-540-5 01 1 9812-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION A/C DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-4 01 1 9812-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION A/C DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-4 01 1 9812-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION A/C DELETE(TFA) 		1-73908-023-2 01 1 9812-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9812-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9812-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9812-
19 SCREW; BRKT
EXC. HEATER VENTILATION A/C DELETE(TFA) M5X14 		8-94279-325-0 02 1 9812-
81 BRACKET; ELEC CONT UNIT 1-73907-405-6 01 1 9812-
93 BOLT; PANEL BRKT
HEATER VENTILATION A/C DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9812-
125 CLIP; INST PANEL 8-97853-939-4 01 1 9812-9812
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-
125 CLIP; INST PANEL 8-97853-939-4 10 1 9812-9812
125 CLIP; INST PANEL 8-97217-066-0 10 1 9901-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9812-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9812-
225 FRAME; FACIA 1-65671-727-3 01 1 9812-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 9812-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9812-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 9812-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9812-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9812-
338 SCREW; COVER
EXC. HEATER VENTILATION A/C DELETE(TFA) M5X14 		8-94279-325-0 12 1 9812-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9812-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9812-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9812-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9812-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9812-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9812-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-
560 BRACKET
(A) 		1-65681-045-5 01 1 9812-
560 BRACKET
(B) 		1-65681-160-0 01 1 9812-9901
560 BRACKET
ELECTRONIC GOV RED3(KG5) (B) 		1-65681-160-0 01 1 9902-
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65681-043-2 01 1 9902-
560 BRACKET
HEATER VENTILATION A/C DELETE(TFA) (C) 		1-65671-749-0 01 1 9812-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9812-
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9812-9812
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9812-9812
571 BEZEL; POCKET
(A),(B) 		1-72438-151-1 01 1 9901-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (A),(B) 		1-72438-151-1 01 1 9901-
574 PANEL; RELAY BOX 1-73907-407-3 01 1 9812-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9812-
604 CLIP; INST PAD 1-09983-123-0 01 1 9812-

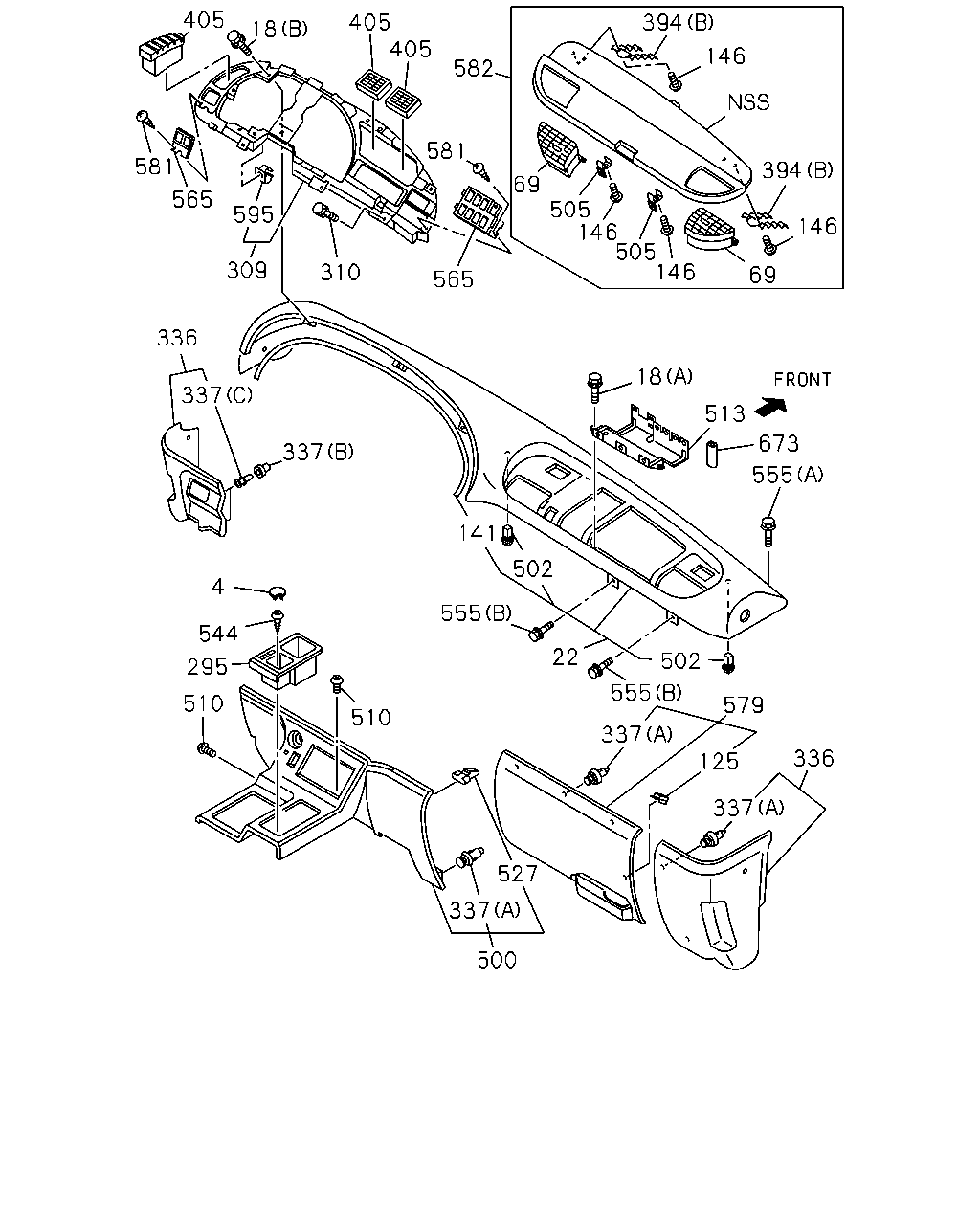

çizim 8203
405 405 405 394 18 146 582 581 581 394 69 565 505 146 505 146 595 146 309 310 69 565 336 18 337 513 673 337 555 141 502 4 555 544 22 502 295 555 510 579 510 337 336 125 337 527 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 9812-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9812-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9812-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9812-
22 PAD; INST 1-72317-337-2 01 1 9812-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9812-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9812-
125 CLIP; INST PANEL 8-97853-939-4 01 1 9812-9812
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901-
125 CLIP; INST PANEL 8-97853-939-4 10 1 9812-9812
125 CLIP; INST PANEL 8-97217-066-0 10 1 9901-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9812-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9812-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 9812-
309 PANEL; SW,INST 1-72418-018-3 01 1 9812-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9812-
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9812-
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9812-
337 FASTENER; COVER
(A) 		1-72438-124-2 11 1 9812-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9812-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 9812-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9812-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9812-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 9812-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 9812-
500 CLUSTER; INST CENTER 1-72437-573-1 01 1 9812-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9812-
505 LOCK; LID 1-72558-024-2 02 1 9812-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9812-
513 BRACKET; RELAY 8-97865-168-2 01 1 9812-
527 CLIP; INST CLUSTER 8-97853-939-4 05 1 9812-9812
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 9901-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9812-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9812-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-
565 BEZEL; SW PANEL 1-72418-021-0 01 1 9812-
565 BEZEL; SW PANEL 1-72418-020-0 01 1 9812-
579 COVER; INST PNL 1-72438-128-1 01 1 9812-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9812-
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9812-
595 NUT; HOOK 1-72418-013-0 10 1 9812-
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-
çizim 44589
18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9812-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9812-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9812-
554 BRACKET; CENTER BEZEL 1-65671-733-0 01 1 9812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
