8-40 — HEATER SYSTEM (#60256) — 56 parça

223 50 476 206 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	VALVE ASM; HTR	8-98080-998-1	01	1	1112-
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1112-
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1112-
407	JOINT; HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-758-0	01	1	1112-
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1112-

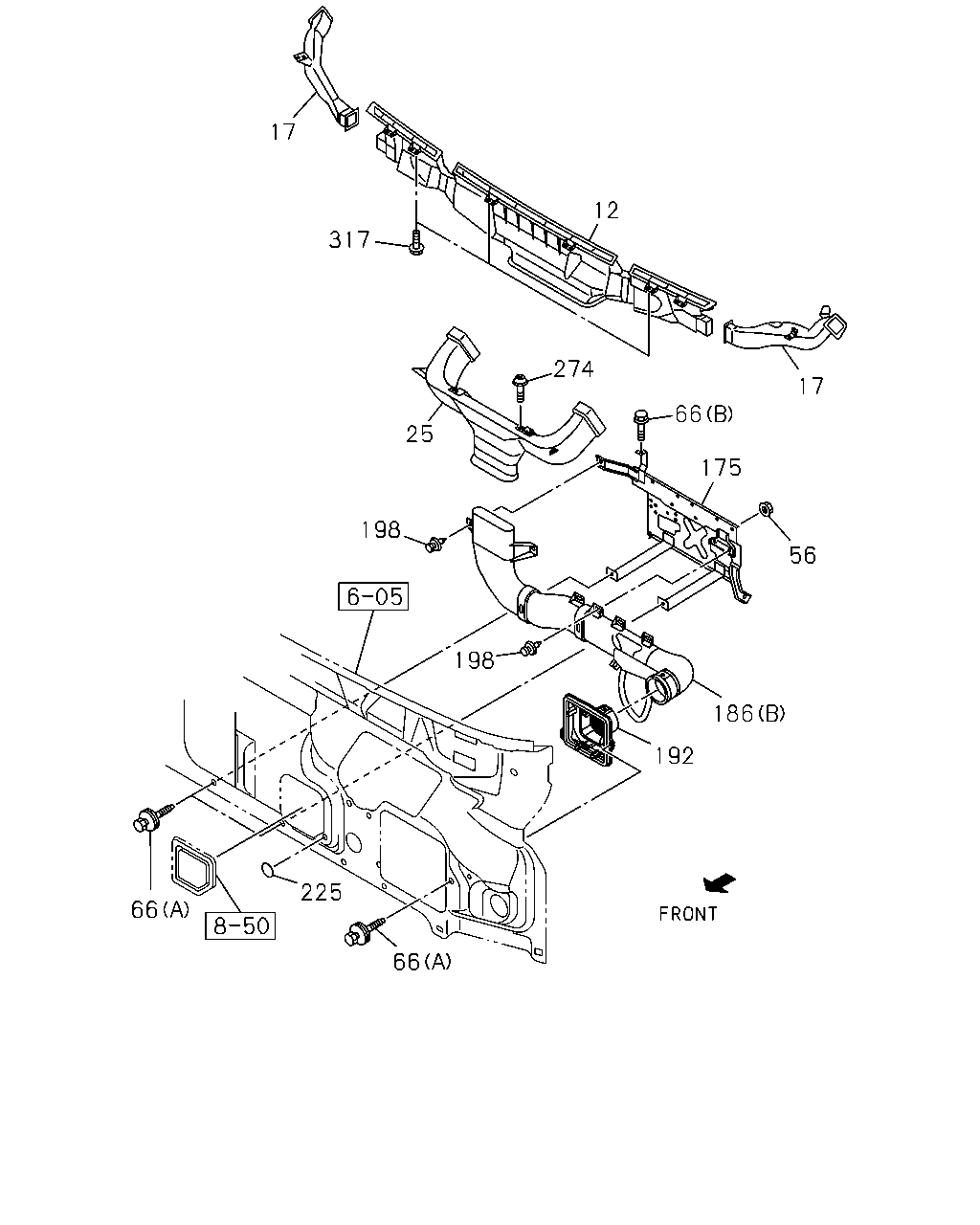

17 12 317 274 17 66 25 175 198 56 198 186 192 225 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	1112-
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98040-018-1	01	1	1112-
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98040-013-1	01	1	1112-
25	DUCT; CENTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98102-121-0	01	1	1112-
56	NUT; INL DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	1112-
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X16 FLANGE	0-28650-616-0	01	1	1112-
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X20 W/LK&PL WASHER	8-98081-175-0	04	1	1112-
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98140-759-0	01	1	1112-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-97585-489-4	01	1	1112-1410
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98285-571-0	01	1	1411-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98174-737-0	01	1	1112-1410
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98285-574-0	01	1	1411-
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-128-2	01	1	1112-
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98090-393-2	01	1	1112-
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98056-059-0	05	1	1112-
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	01	1	1112-1301
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	1302-
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1112-
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	1112-
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1112-

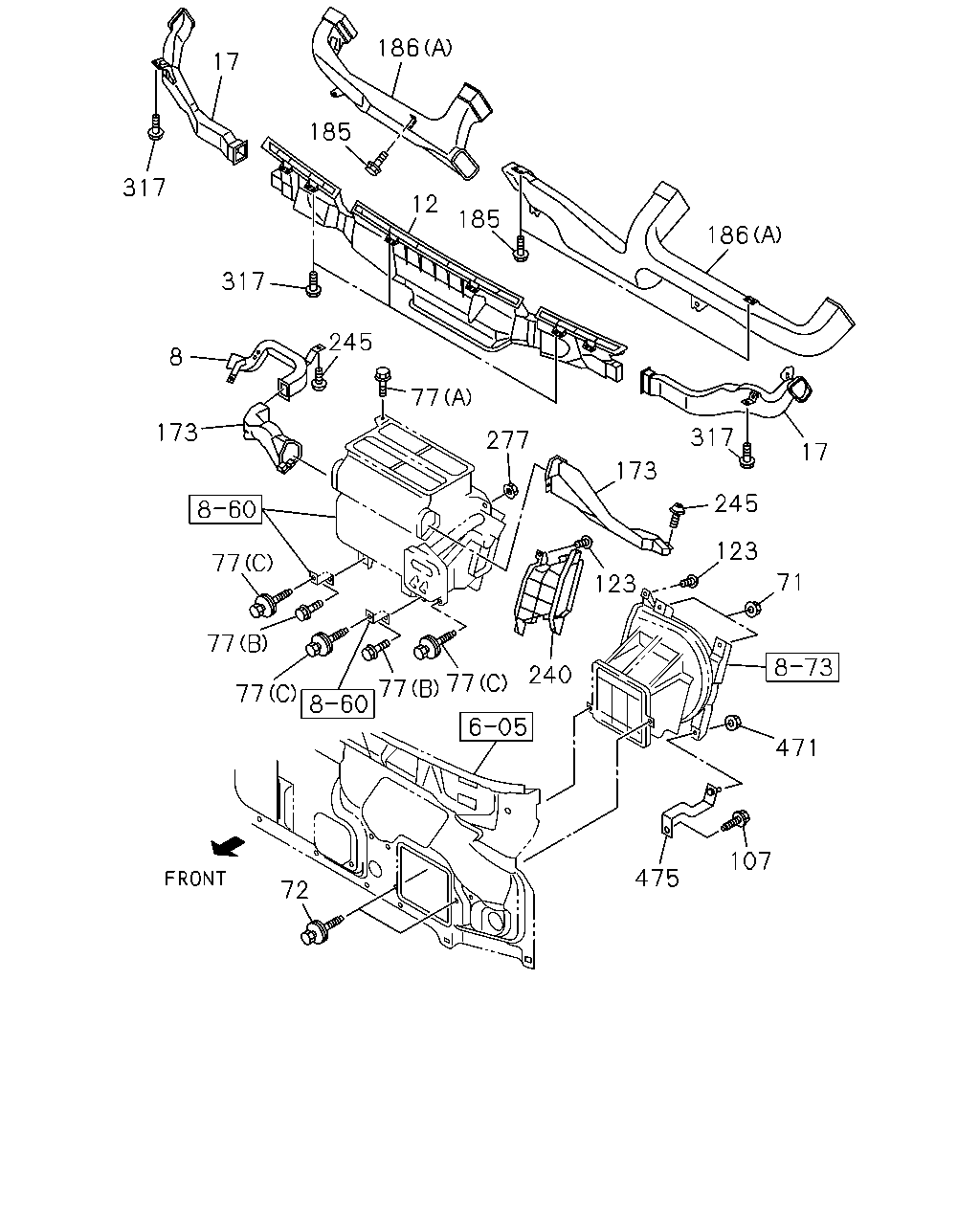

186 17 185 317 12 185 186 317 245 8 77 173 317 277 17 173 245 123 77 71 123 77 240 77 77 77 471 475 72 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97585-499-1	01	1	1112-1410
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98290-098-0	01	1	1411-
12	NOZZLE; DEFROSTER	8-98040-009-3	01	1	1112-
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98040-018-1	01	1	1112-
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98040-013-1	01	1	1112-
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	02	1	1112-
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1112-
77	BOLT; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	02	1	1302-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16 FLANGE	0-28650-616-0	01	1	1112-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X20 FLANGE	0-28650-620-0	02	1	1112-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1112-1301
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	03	1	1302-
107	BOLT; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M8X25 W/LK&PL WASHER	8-98018-439-0	01	1	1112-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1112-
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97585-506-2	01	1	1112-
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98036-922-2	01	1	1112-1410
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98290-097-0	01	1	1411-
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1112-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-97585-489-4	01	1	1112-1410
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98285-571-0	01	1	1411-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98174-737-0	01	1	1112-1410
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98285-574-0	01	1	1411-
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98102-128-2	01	1	1112-
240	DUCT; AIR,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98041-402-1	01	1	1112-
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-059-0	03	1	1112-1410
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98056-059-0	04	1	1411-
277	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	1112-
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	06	1	1112-
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1112-
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	0-91180-106-0	01	1	1112-
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98043-500-1	01	1	1112-
