8-28 — CHASSIS ELECTRICAL
(#60255) — 32 parça
◀

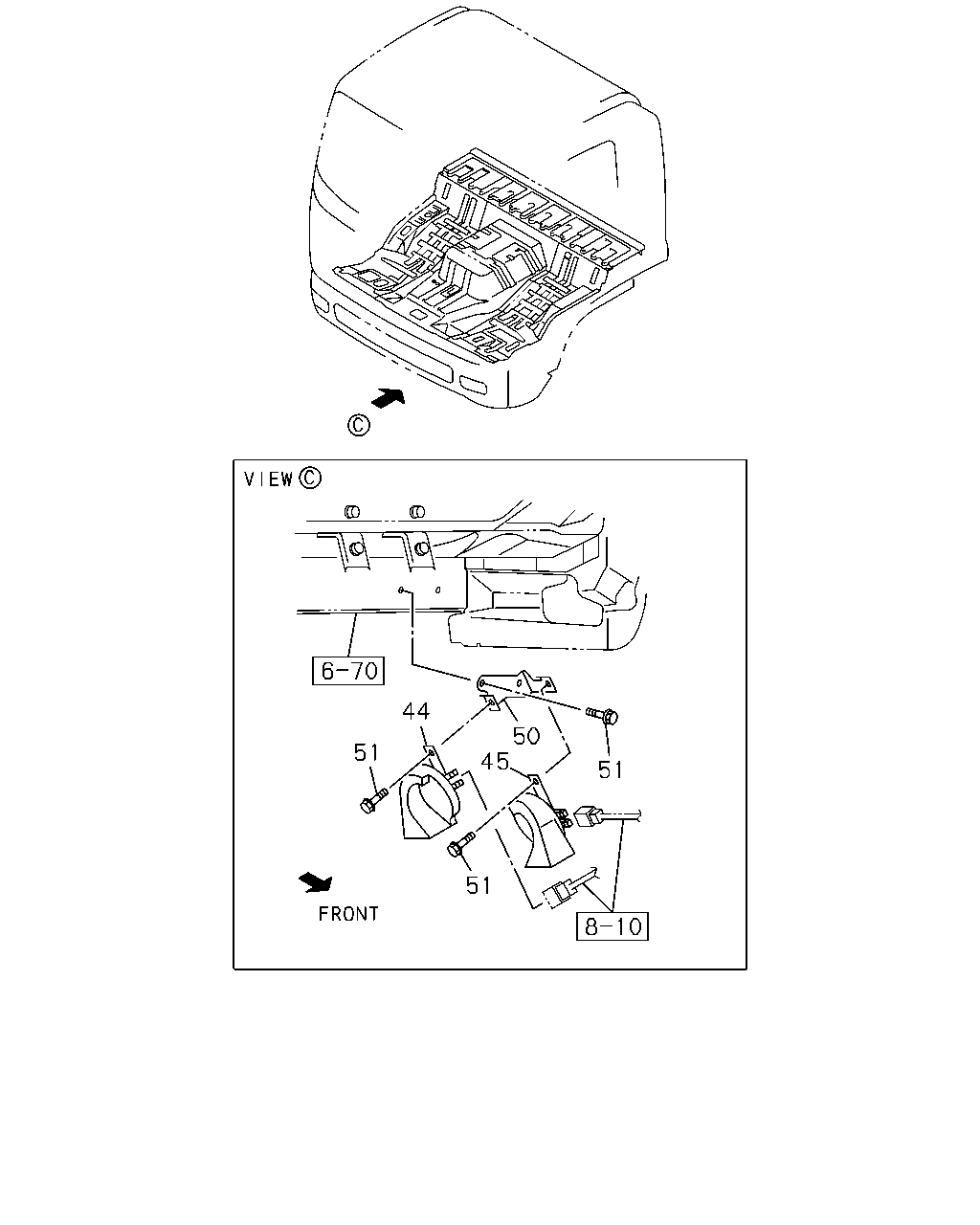

[828A] FRONT SIDE NO.2 (4 parça)

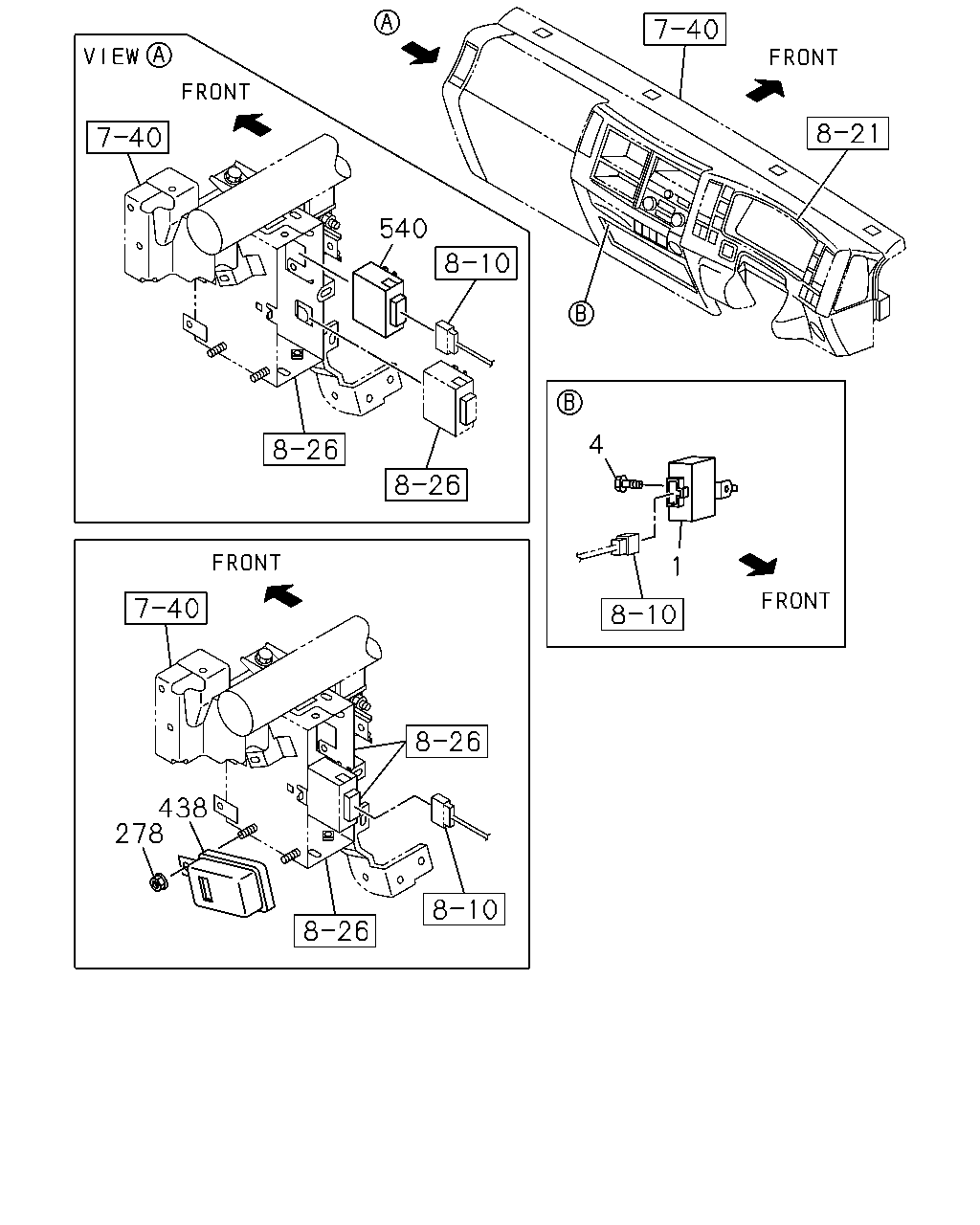

[828A] FRONT SIDE NO.1 (7 parça)

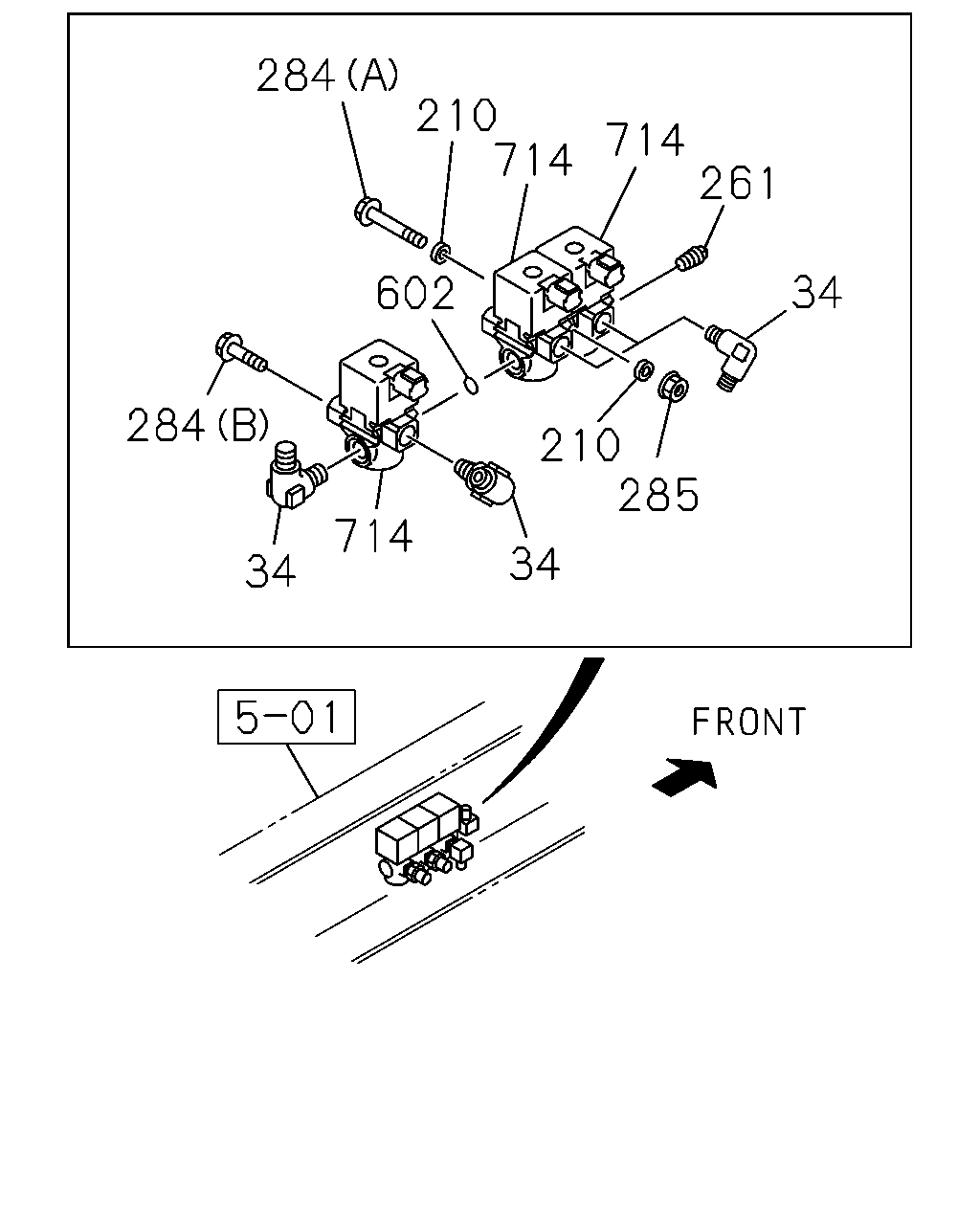

[828A] MAGNETIC VALVE;TRANS, LOW TO HIGH (10 parça)

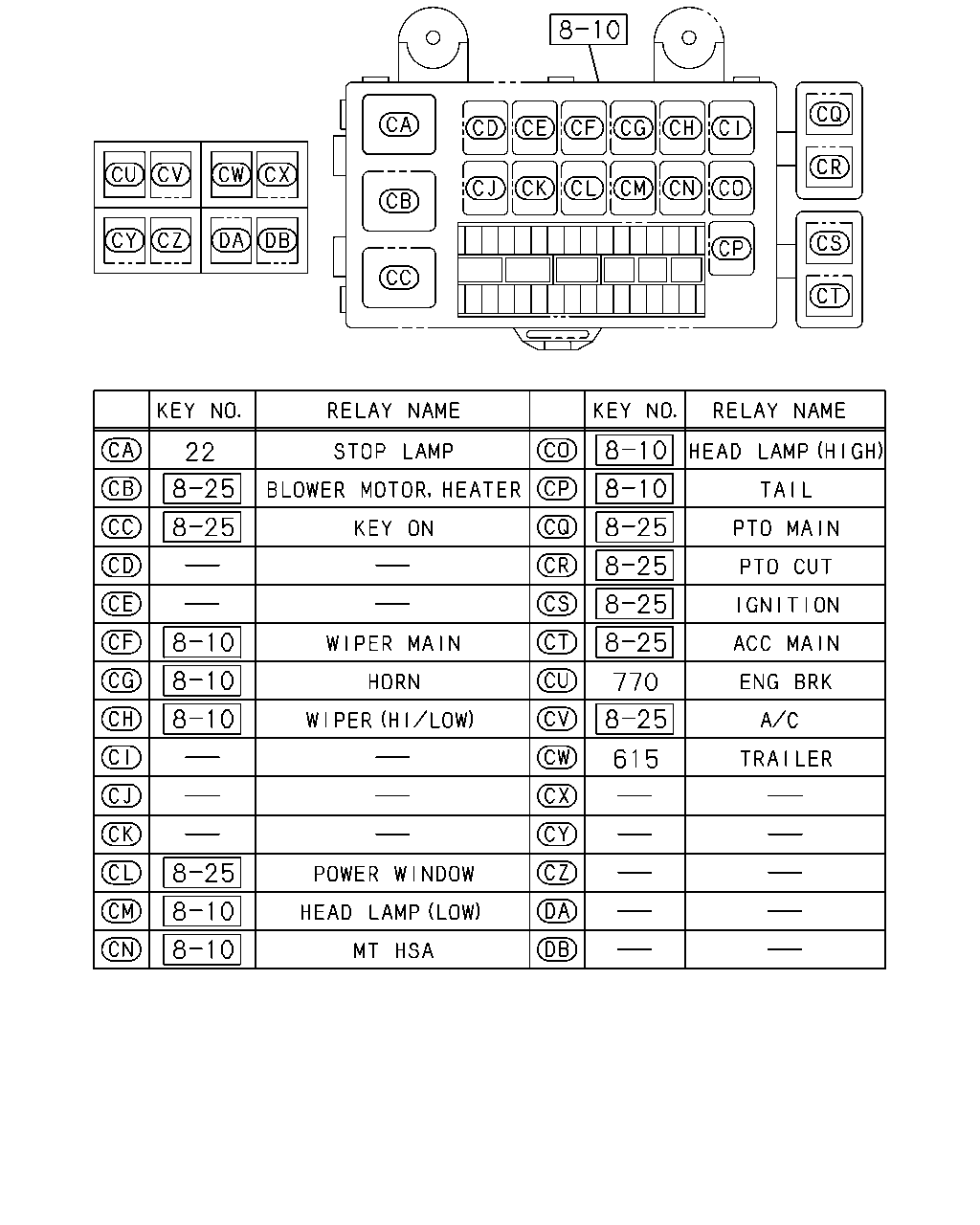

[828A] RELAY;CAB HARNESS (3 parça)
[828A] MAGNETIC VALVE;PTO CONT (8 parça)
▶
44
50
45
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
HORN; HIGH NOTE
8-98022-022-0
01
1
1112-
45
HORN; LOW NOTE
8-98022-023-0
01
1
1112-
50
BRACKET; HORN
8-97613-300-2
01
1
1112-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
04
1
1112-
540
4
1
438
278
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
1112-
4
SCREW; FLASHER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) BOLT M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1112-
4
SCREW; FLASHER UNIT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE
0-28650-616-0
01
1
1112-
278
NUT; CONT UNIT
M6 FLANGE
0-91180-106-0
01
1
1112-
438
UNIT; SPD CONTROL
1-82550-271-0
01
1
1112-
540
RELAY; WIPER INTERVAL
8-98060-388-0
01
1
1112-1308
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1309-
284
210
714
714
261
602
34
284
210
285
714
34
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 ELBOW
1-09650-430-0
04
1
1112-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1112-
210
WASHER; PL,BRKT
1-82569-266-0
04
1
1112-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1112-
261
PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1112-
284
BOLT; MAG VLV
(A) M6X50 FLANGE
0-28050-650-0
02
1
1112-
284
BOLT; MAG VLV
(B) M8X25 FLANGE
0-28650-825-0
03
1
1112-
285
NUT; MAG VLV
M6 FLANGE
0-91180-106-0
02
1
1112-
602
GASKET; MAG VLV
ID=16.8
9-09565-117-0
02
1
1112-
714
VALVE; MAG,TRANS,LOW TO HIGH
1-82563-871-2
03
1
1112-
22
770
615
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1112-
615
RELAY; TRAILER
24V 10A PANASONIC
8-97173-035-1
01
1
1112-
770
RELAY; ENG BRK
24V 10A PANASONIC
8-97173-035-1
01
1
1112-
39
35
34
33
36
34
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6>
1-82563-871-2
01
1
1112-
34
CONNECTOR; MAG VLV,INL PORT
M12 & PT1/4 ELBOW
1-09650-430-0
04
1
1112-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1112-
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
8-98034-702-0
01
1
1112-
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
02
1
1112-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X30 FLANGE
0-28651-030-0
02
1
1112-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1112-
261
PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1112-
