◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11405 - FTS(RHD)EURO1 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#60254) — 16 parça

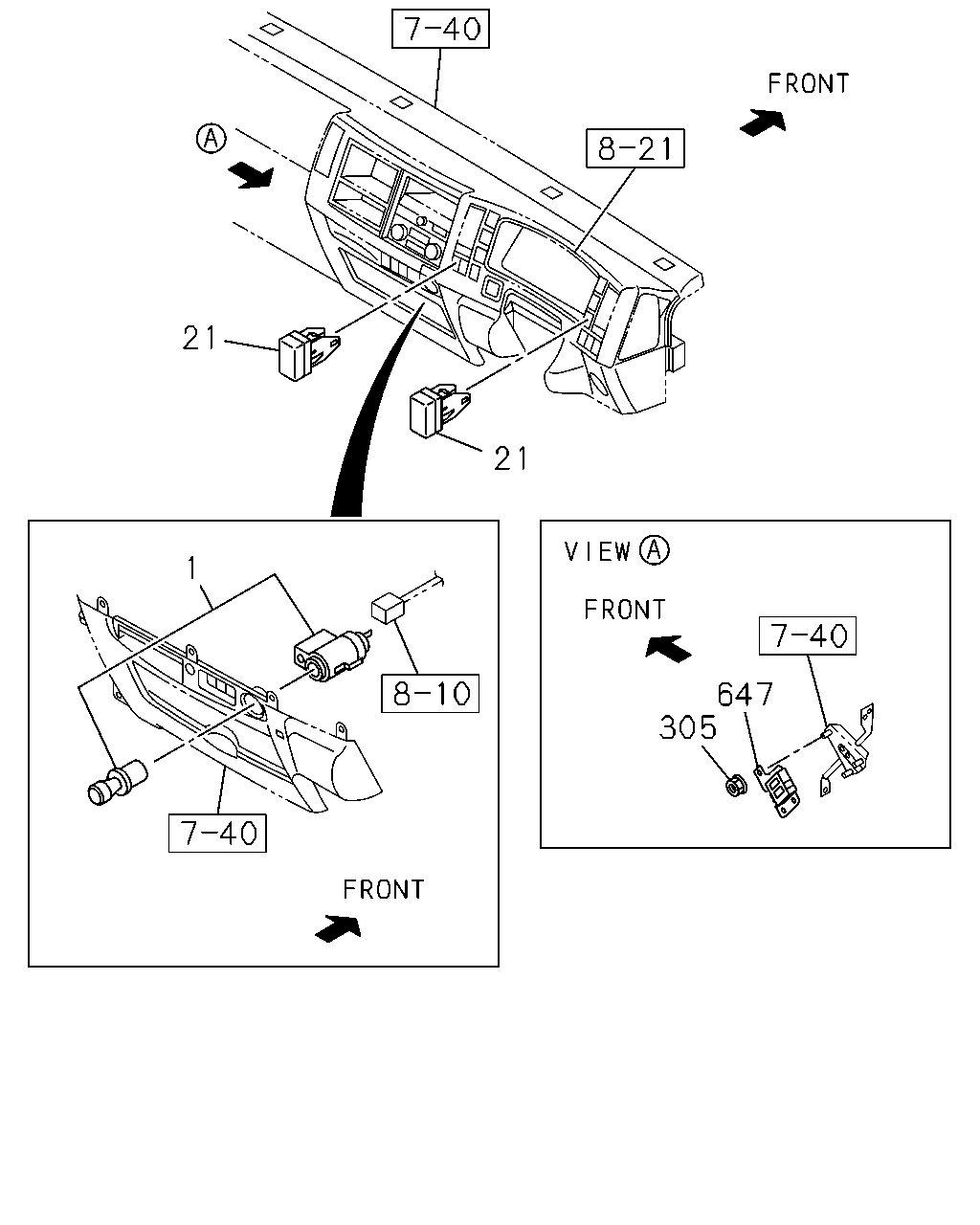

çizim 150659
21 21 1 647 305
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1112-
21 COVER; HOLE 8-98025-954-1 01 1 1112-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 03 1 1112-
647 CONTROL UNIT; GLOW PLIG 8-98175-424-0 01 1 1112-

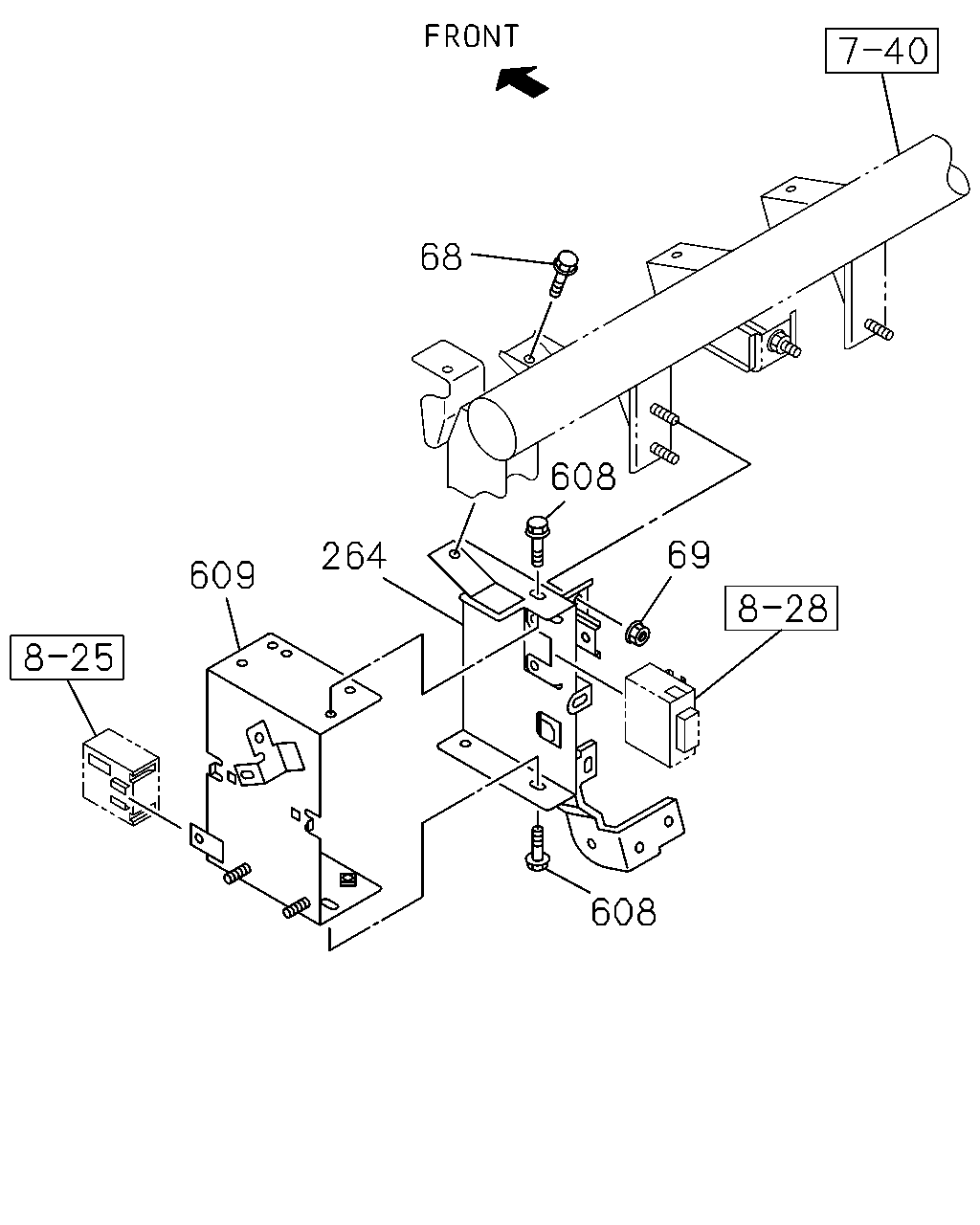

çizim 150666
68 608 69 264 609 608
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1112-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1112-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1112-
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1112-
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 1112-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309-

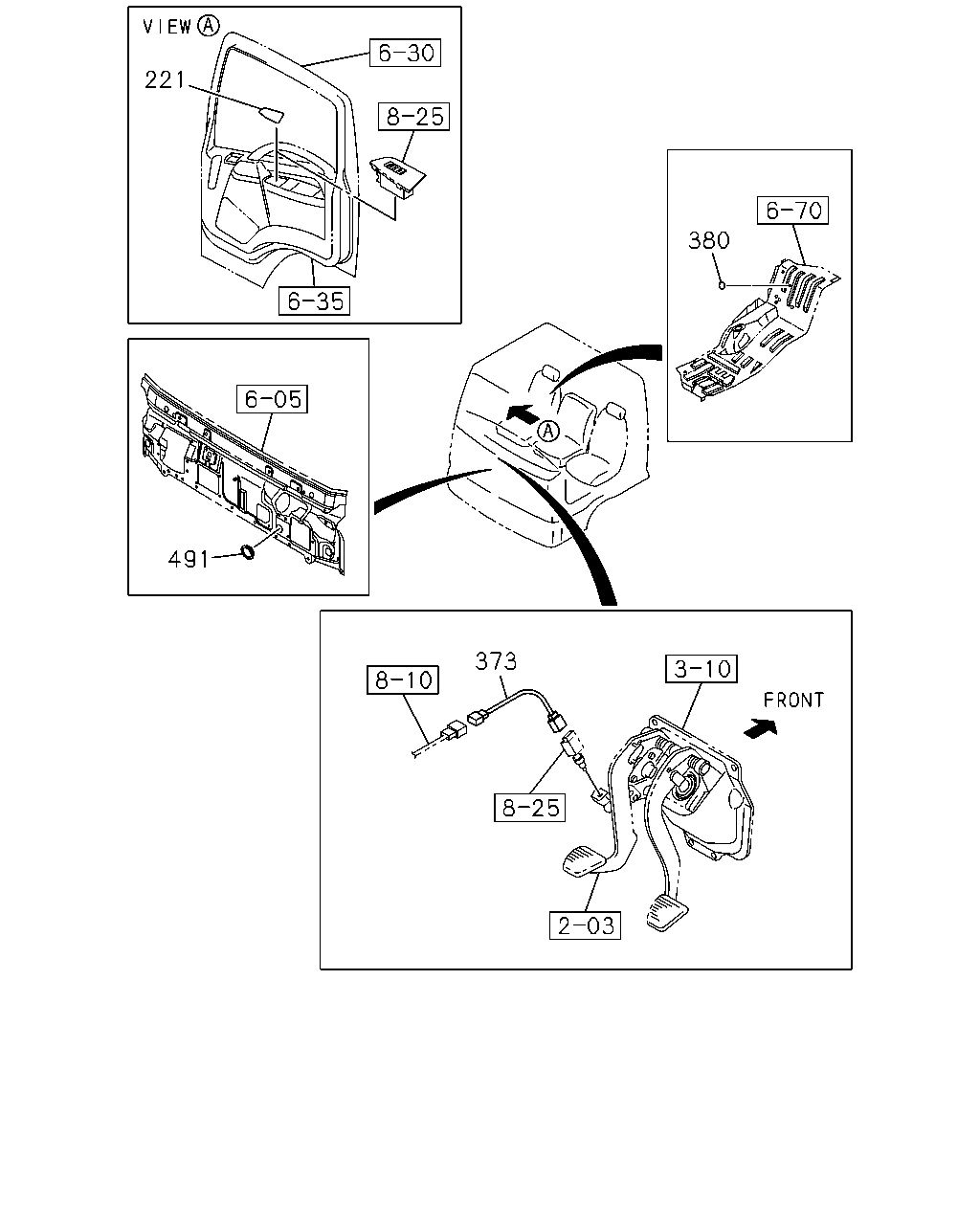

çizim 150687
221 380 491 373
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1112-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1112-
373 HARNESS; CLU SWITCH 8-98053-829-3 01 1 1112-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1112-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1112-

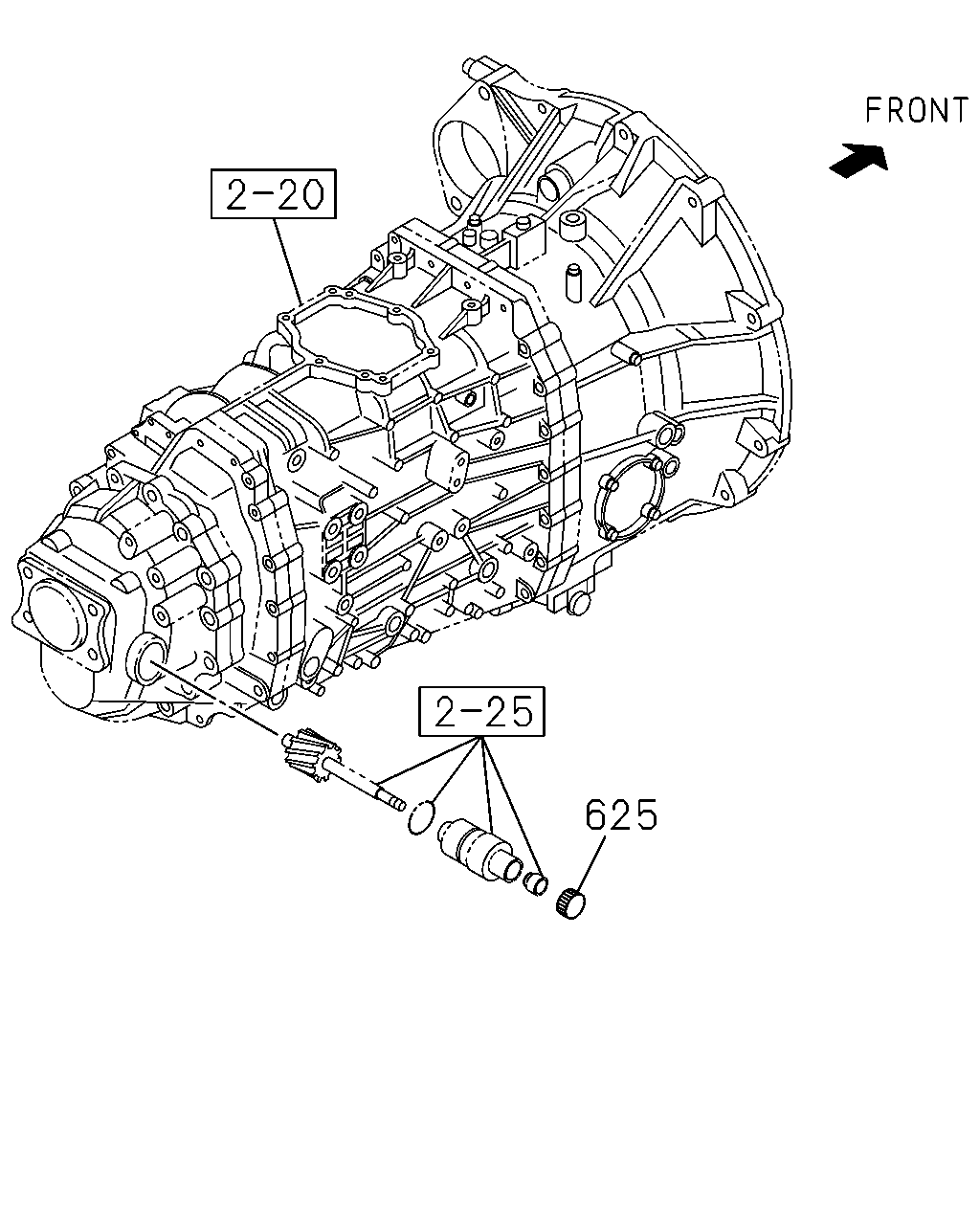

çizim 150693
625
BalonParca AdiParca NoAdetTipApplied Date
625 CAP; SPEED SENSOR 1-83129-133-0 01 1 1112-
