8-15 — FIXING PARTS; WIRING HARNESS (#60251) — 122 parça

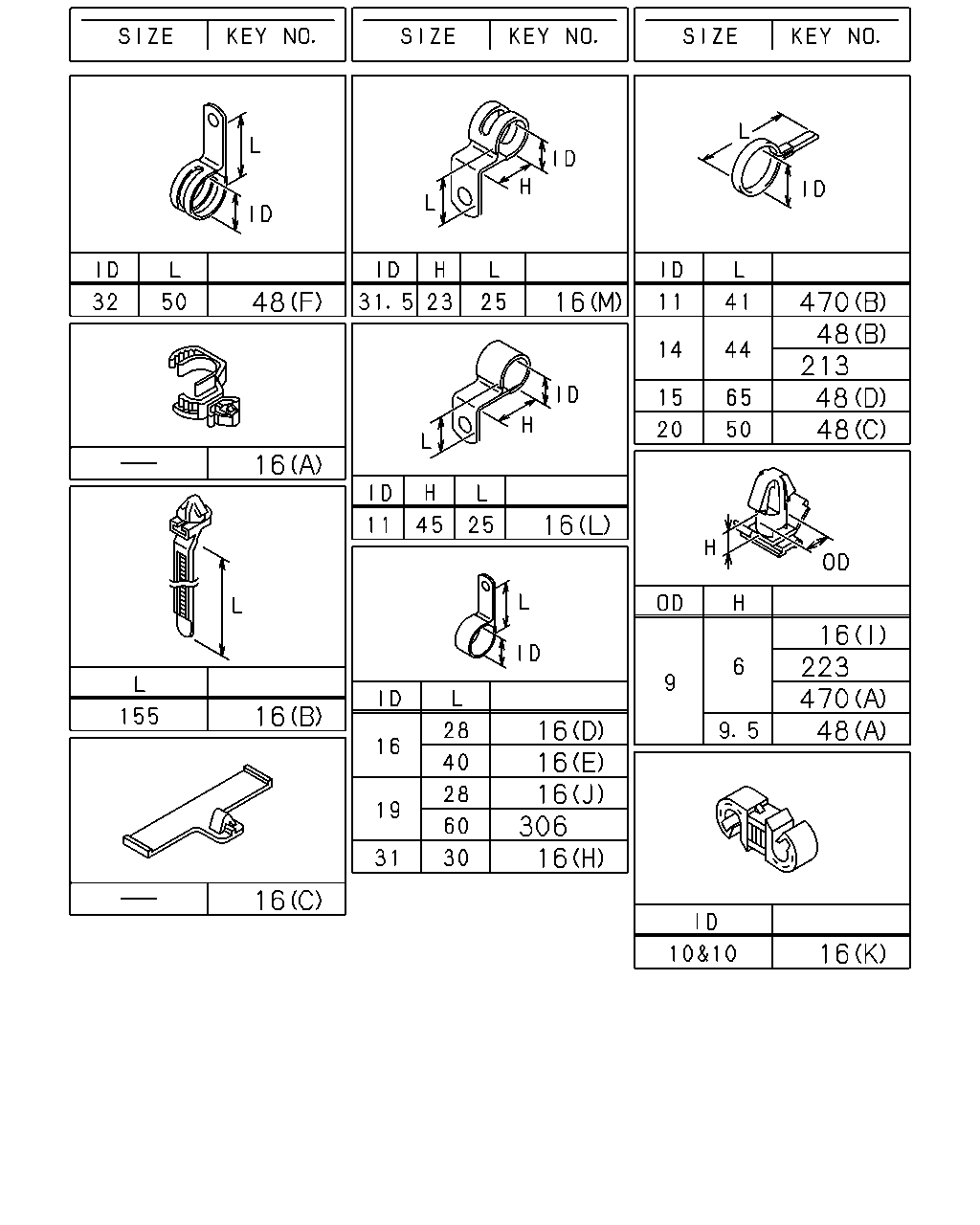

çizim 150655
16 470 48 213 48 48 16 16 223 470 48 16 16 16 306 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=31 L=30 		1-09700-969-0 01 1 1112-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1112-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1112-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1112-
16 CLIP; HARNESS
(D) ID=16 L=28 		0-95235-556-0 02 1 1112-
16 CLIP; HARNESS
(E) ID=16 L=40 		0-95235-576-0 01 1 1112-
16 CLIP; HARNESS
(J) ID=19 L=28 		0-95235-856-0 01 1 1112-
16 CLIP; HARNESS
(L) ID=11 H=45 L=25 		1-09700-866-0 02 1 1112-
16 CLIP; HARNESS
(N) L=175 		1-09707-178-0 01 1 1112-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1112-
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 1112-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1112-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1112-
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 1112-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1112-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1112-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 01 1 1112-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1112-
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1112-
48 CLIP; FRAME HARNESS
(G) L=250 		5-09707-030-1 01 1 1112-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 13 1 1112-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 15 1 1202-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 02 1 1112-1201
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1112-
223 CLIP; AIR TANK HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1112-
306 CLIP; HARNESS,ELEC GOV
ID=19 L=60 		0-95235-896-0 01 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1112-
470 CLIP; HARNESS,LICENSE LAMP
PINTLE HOOK<PP7> (B) ID=11 L=41 		1-09700-403-0 01 1 1112-

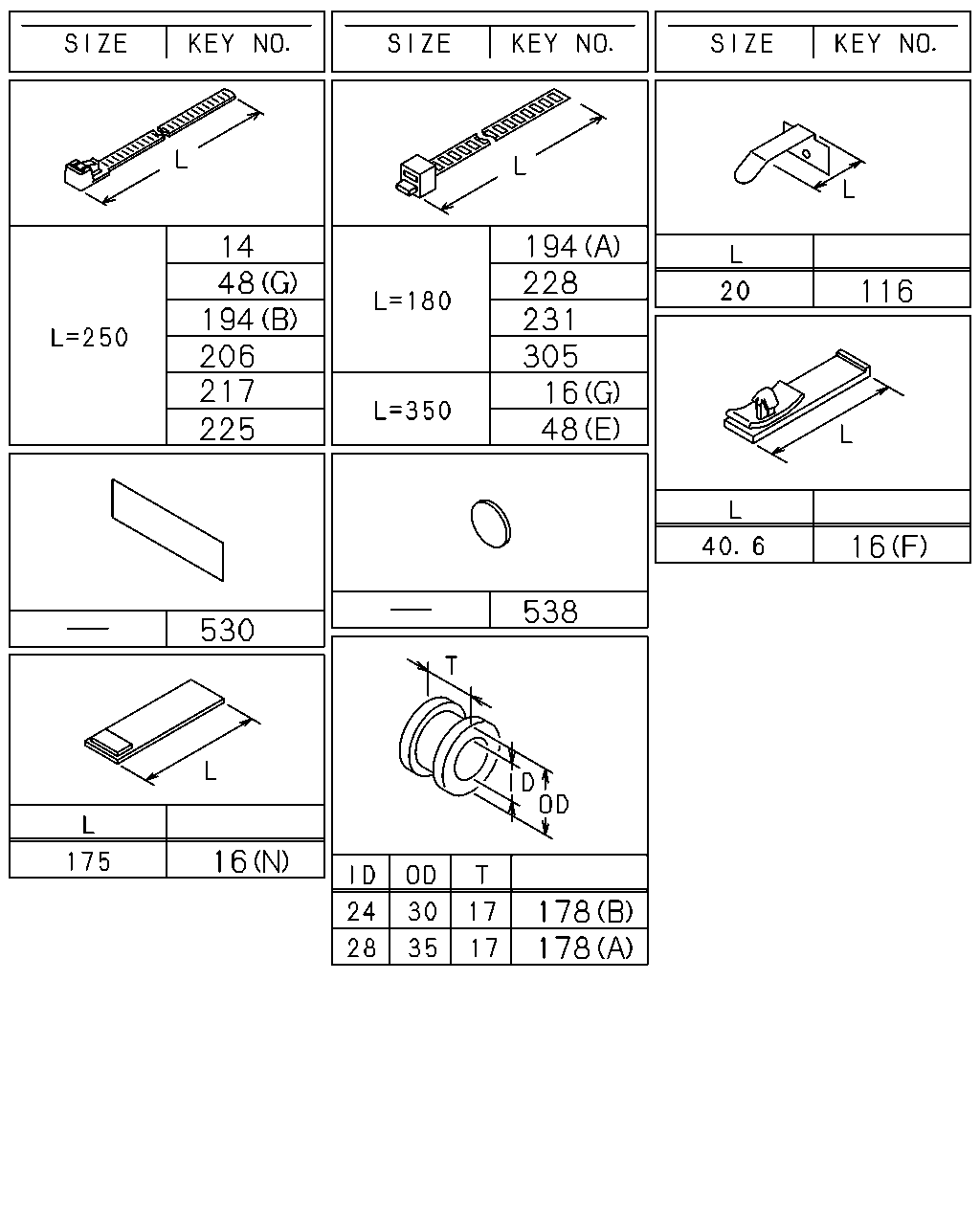

çizim 150672
194 228 231 305 16 48 14 48 194 206 217 225 116 16 538 530 16 178 178
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 01 1 1112-1205
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(H) ID=31 L=30 		1-09700-969-0 01 1 1112-
16 CLIP; HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1112-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1112-
16 CLIP; HARNESS
(M) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 1112-
16 CLIP; HARNESS
(D) ID=16 L=28 		0-95235-556-0 02 1 1112-
16 CLIP; HARNESS
(E) ID=16 L=40 		0-95235-576-0 01 1 1112-
16 CLIP; HARNESS
(J) ID=19 L=28 		0-95235-856-0 01 1 1112-
16 CLIP; HARNESS
(L) ID=11 H=45 L=25 		1-09700-866-0 02 1 1112-
16 CLIP; HARNESS
(N) L=175 		1-09707-178-0 01 1 1112-
16 CLIP; HARNESS
(G) L=350 		1-09707-183-0 02 1 1112-
16 CLIP; HARNESS
(K) ID=10 & 10 		1-09709-277-1 05 1 1112-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1112-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1112-
16 CLIP; HARNESS
(F) L=40.6 		8-97229-357-0 02 1 1112-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1112-
48 CLIP; FRAME HARNESS
(F) ID=32 L=50 		1-09701-055-1 01 1 1112-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 01 1 1112-
48 CLIP; FRAME HARNESS
(E) L=350 		1-09707-183-0 01 1 1112-
48 CLIP; FRAME HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 1112-
48 CLIP; FRAME HARNESS
(G) L=250 		5-09707-030-1 01 1 1112-
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 13 1 1112-1201
48 CLIP; FRAME HARNESS
(B) ID=14 L=44 		9-09917-427-0 15 1 1202-
48 CLIP; FRAME HARNESS
(C) ID=20 L=50 		9-09917-430-0 02 1 1112-1201
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1112-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1112-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 1112-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 1112-
194 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 1112-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1112-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1112-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 02 1 1112-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1112-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 1112-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 1112-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1112-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 17 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1112-1305
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1112-
çizim 150921
312 246 312 335 428 428 428 312 312
BalonParca AdiParca NoAdetTipApplied Date
246 BRACKET; CLIP,SPD SENSOR
L=62 		1-21464-170-2 01 1 1112-
312 BRACKET; CLIP HARNESS
(D) 		8-97985-452-0 01 1 1112-
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 1112-
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 1112-
312 BRACKET; CLIP HARNESS
(A) 		8-98097-366-0 01 1 1112-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 1112-
428 BRACKET
(A) 		1-47475-519-0 01 1 1112-
428 BRACKET
(B) 		8-98049-870-2 01 1 1112-
428 BRACKET
(C) 		8-98090-953-1 01 1 1112-

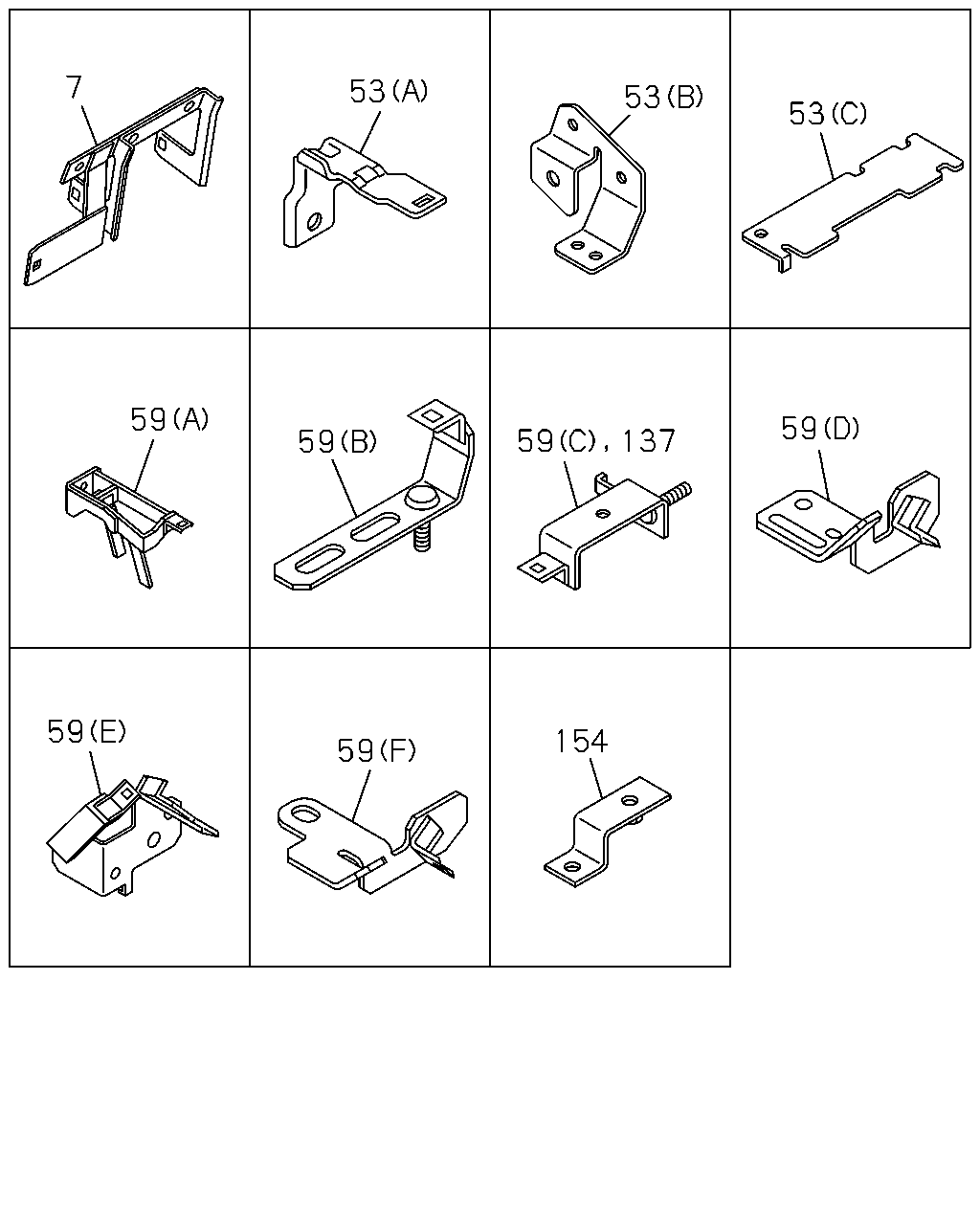

çizim 150931
7 59 59 59 59 154 59 137 59 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1112-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1112-
53 BRACKET; HARNESS
(C) 		8-98127-093-0 01 1 1112-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98084-590-0 01 1 1112-
59 BRACKET; FRAME HARNESS
(E) 		8-97622-828-0 01 1 1112-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1112-
59 BRACKET; FRAME HARNESS
(C) 		8-98018-251-1 01 1 1112-
59 BRACKET; FRAME HARNESS
(B) 		8-98047-730-0 02 1 1112-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1112-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
137 BRACKET; HARNESS CLAMP 8-98018-251-1 01 1 1112-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 1112-

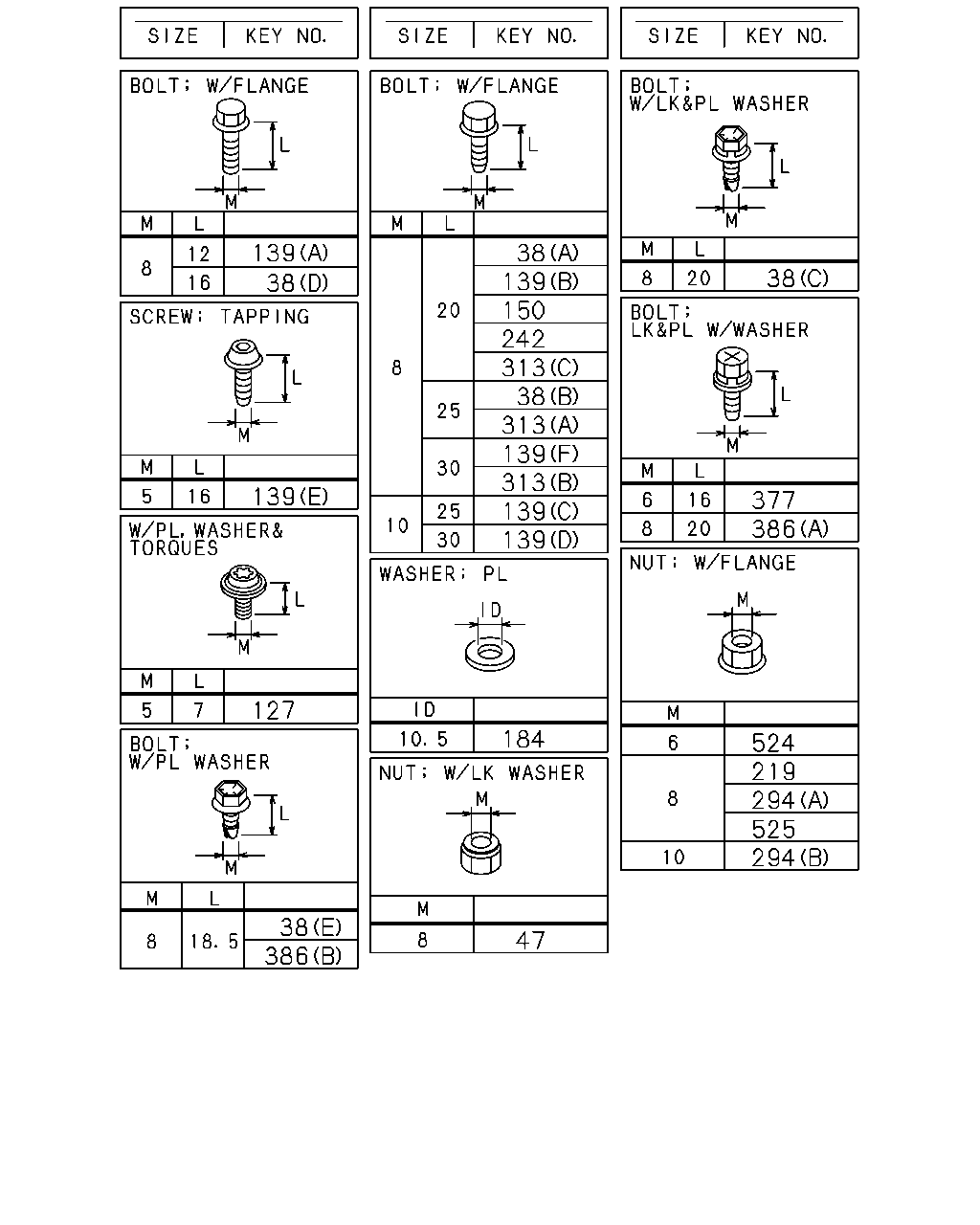

çizim 150933
139 38 139 127 38 386 38 139 150 242 313 38 313 139 313 139 139 184 47 38 377 386 524 219 294 525 294
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1112-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1112-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1112-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1112-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1112-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1112-1201
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1112-
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1112-
139 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1112-
139 BOLT; BRKT
(F) M8X30 FLANGE 		0-28650-830-0 01 1 1112-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1112-
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28651-030-0 01 1 1112-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (E) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1112-
150 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1112-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1112-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1112-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1112-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1112-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1112-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1112-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 1112-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1112-
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1112-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1112-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1112-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1112-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1112-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1112-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1112-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1112-
