11405 - FTS(RHD)EURO1
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

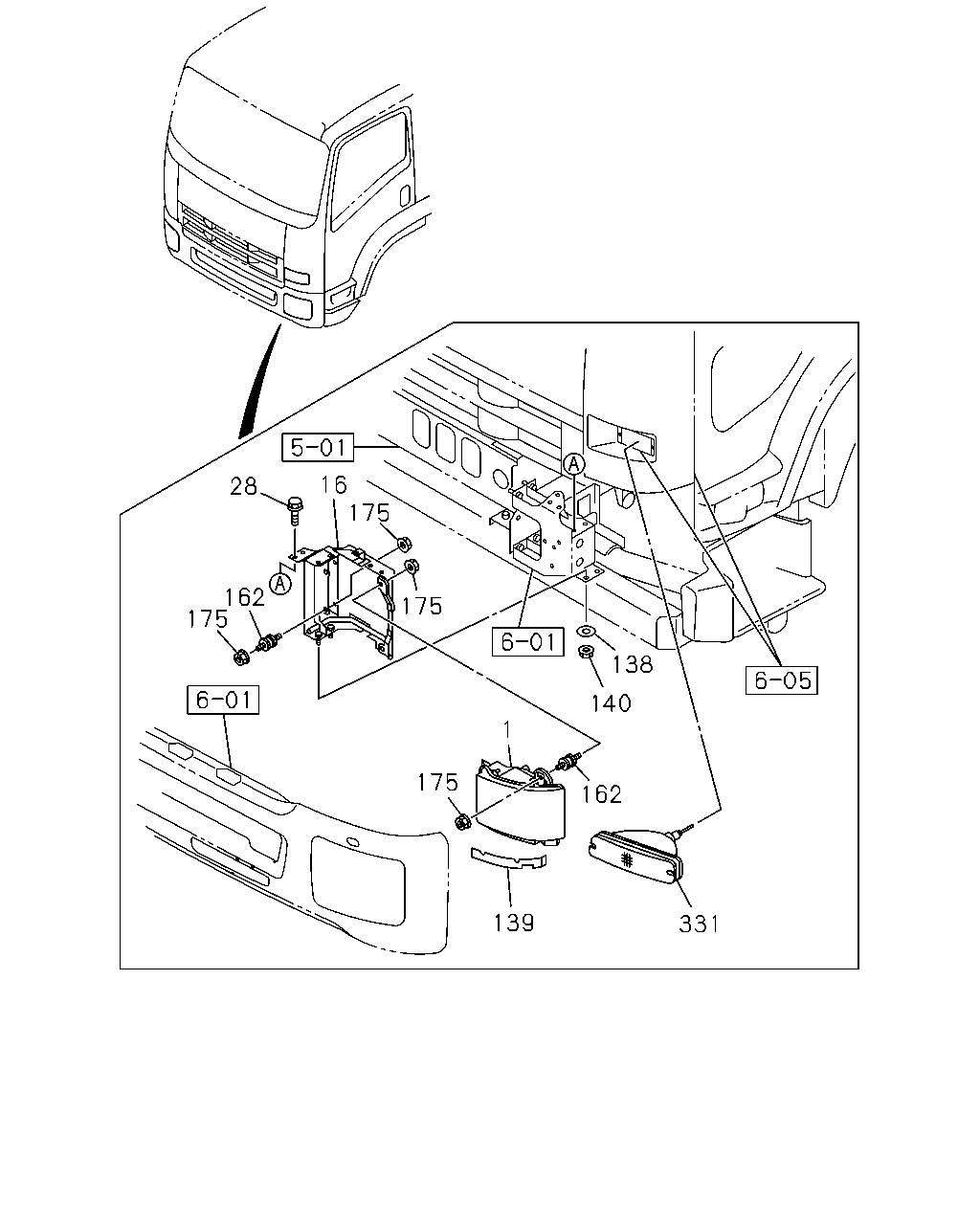

8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#60247) — 52 parça
◀
[801A] REFLECTOR (6 parça)
[801A] COMPONENT;HEADLAMP (18 parça)
[801A] SIDE TURN SIGNAL LAMP,TURN SIGNAL LAMP (12 parça)
[801A] FIXING;HEADLAMPS (16 parça)
▶
250
123
161
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
121
REFLECTOR; REFLEX
1-82290-066-0
02
1
1112-
123
NUT; REFLECTOR
M6 FLANGE
0-91180-106-0
02
1
1112-
161
NUT; BRKT
M8 CAP NUT FLANGE
8-97372-242-0
04
1
1112-1312
161
NUT; BRKT
M8 CAP NUT FLANGE
8-98261-347-0
04
1
1401-
250
BRACKET ASM
8-98070-243-1
01
1
1112-
250
BRACKET ASM
8-98070-242-1
01
1
1112-
1
4
408
420
20
23
5
5
382
457
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98193-582-0
01
1
1112-1208
1
LAMP ASM; HEAD
8-98225-619-0
01
1
1209-1305
1
LAMP ASM; HEAD
8-98241-311-0
01
1
1306-
1
LAMP ASM; HEAD
8-98193-581-0
01
1
1112-1208
1
LAMP ASM; HEAD
8-98225-618-0
01
1
1209-1305
1
LAMP ASM; HEAD
8-98241-310-0
01
1
1306-
4
HEADLAMP UNIT
8-98199-565-0
01
1
1112-
4
HEADLAMP UNIT
8-98199-564-0
01
1
1112-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1112-
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1112-
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1112-
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1112-
382
PLUG; SOCKET,HEADLAMP
8-98069-364-0
02
1
1112-1208
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1209-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1112-
420
SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
1112-1208
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1209-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1306-
327
437
91
427
331
124
125
127
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1112-
124
BULB; FRT TURN SIGNAL
24V 21W
8-98051-496-0
02
1
1112-
125
GASKET; FRT TURN SIGNAL
8-94334-881-0
02
1
1112-
127
LENS; FRT TURN SIGNAL
8-94117-030-0
01
1
1112-
127
LENS; FRT TURN SIGNAL
8-94112-723-0
01
1
1112-
129
SCREW; FRT TURN SIGNAL
0-91190-435-0
04
1
1112-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1112-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1112-
331
LAMP; TURN SIGNAL
8-98079-896-0
01
1
1112-
331
LAMP; TURN SIGNAL
8-98079-895-0
01
1
1112-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1112-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1112-
16
175
28
162
175
175
138
140
1
175
162
139
331
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
8-98193-582-0
01
1
1112-1208
1
LAMP ASM; HEAD
8-98225-619-0
01
1
1209-1305
1
LAMP ASM; HEAD
8-98241-311-0
01
1
1306-
1
LAMP ASM; HEAD
8-98193-581-0
01
1
1112-1208
1
LAMP ASM; HEAD
8-98225-618-0
01
1
1209-1305
1
LAMP ASM; HEAD
8-98241-310-0
01
1
1306-
16
BRACKET; HEADLAMP
8-98086-432-1
01
1
1112-
16
BRACKET; HEADLAMP
8-98086-431-1
01
1
1112-
28
BOLT; HEADLAMP
M10X25 FLANGE
0-28651-025-0
04
1
1112-
138
WASHER; LK BRKT HD LAMP
ID=10.5 OD=26
0-91614-710-0
04
1
1112-
139
COVER; HEADLAMP
8-98054-342-0
02
1
1112-
140
NUT
M10 FLANGE
0-91180-210-0
08
1
1112-
162
RUBBER; CUSHION UPR
1-82117-086-0
08
1
1112-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE
0-91180-108-0
16
1
1112-
331
LAMP; TURN SIGNAL
8-98079-896-0
01
1
1112-
331
LAMP; TURN SIGNAL
8-98079-895-0
01
1
1112-
