7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#60244) — 71 parça
◀

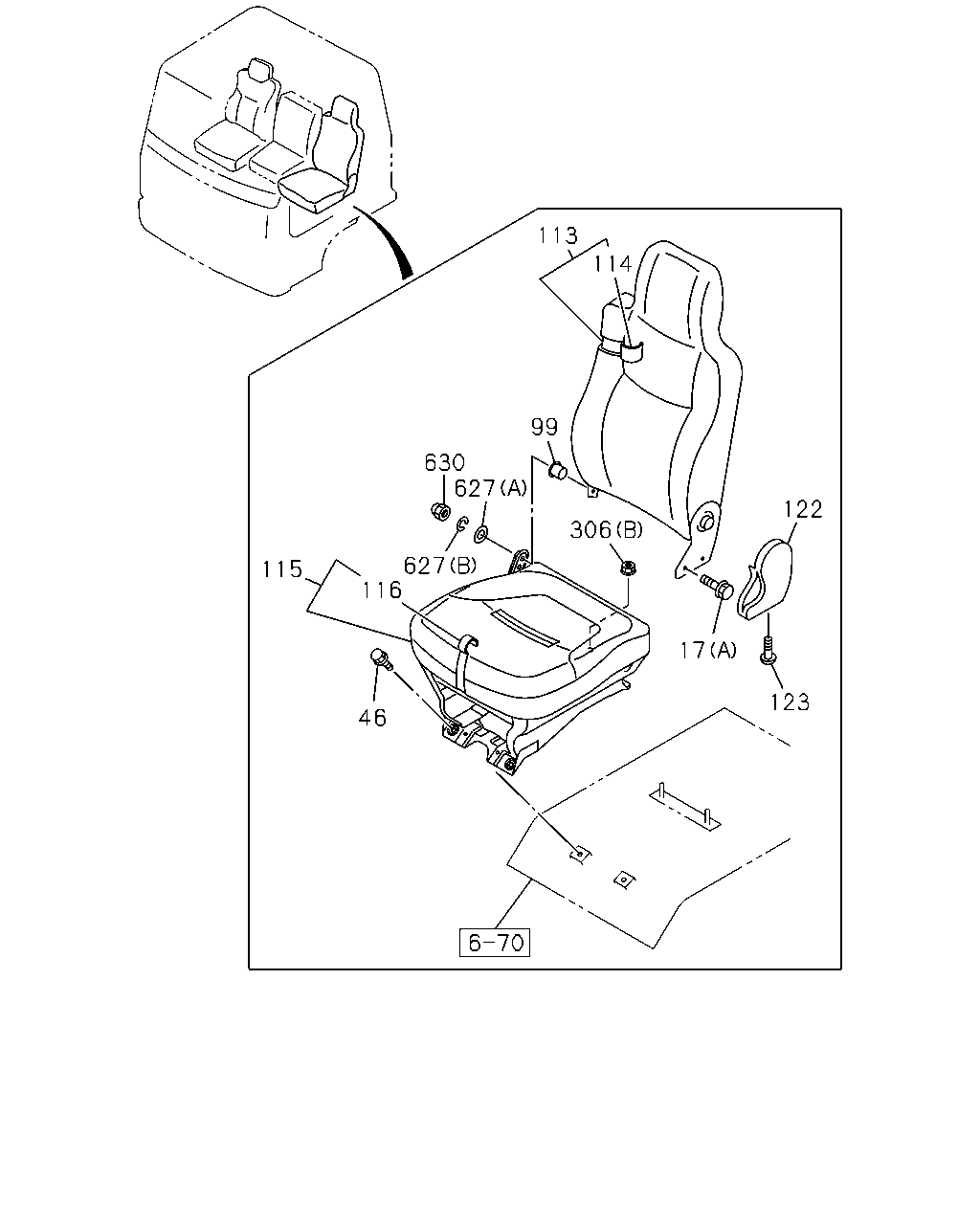

[750A] PASSENGER (15 parça)
[750A] CENTER (14 parça)

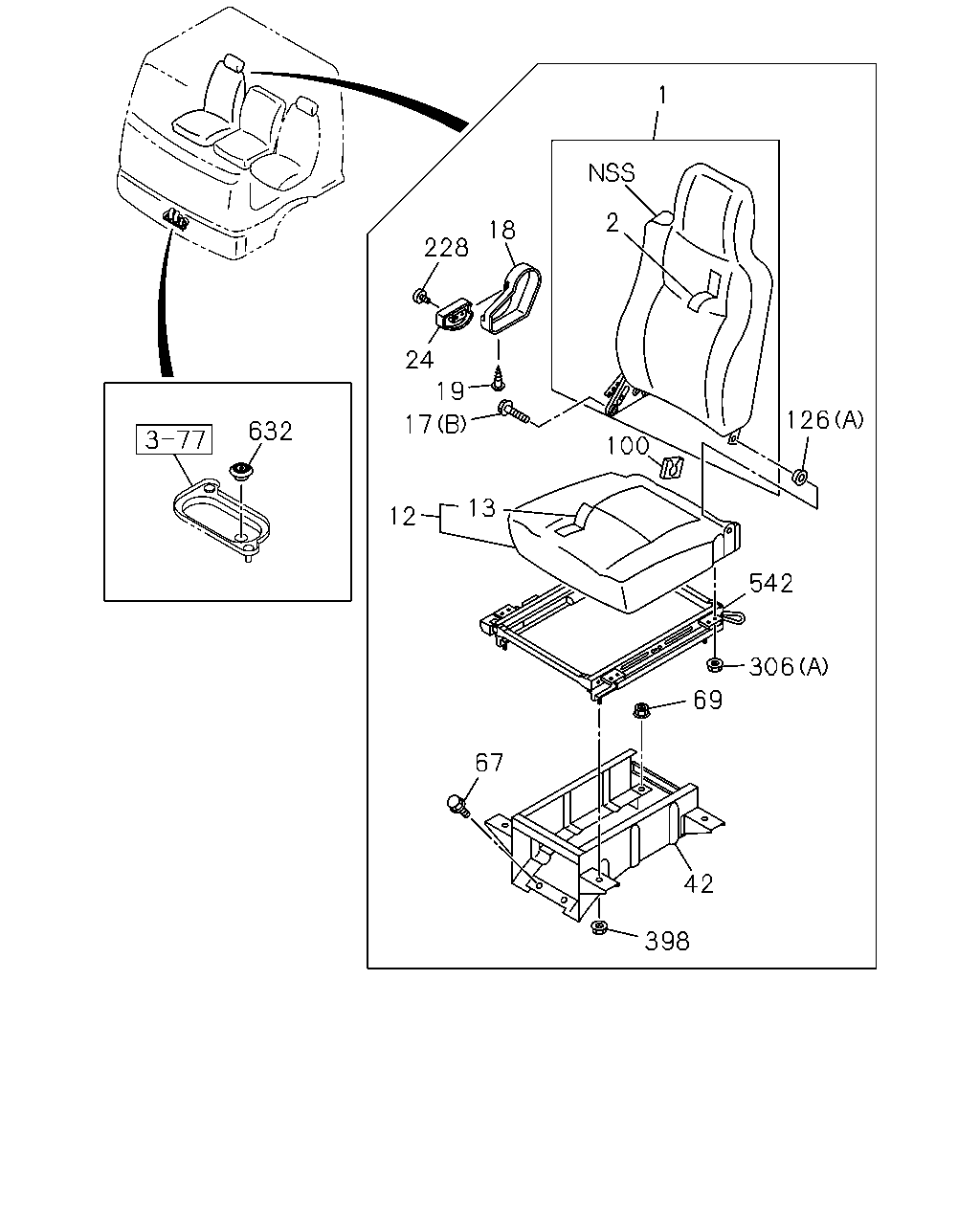

[750A] DRIVER NO.1 (23 parça)

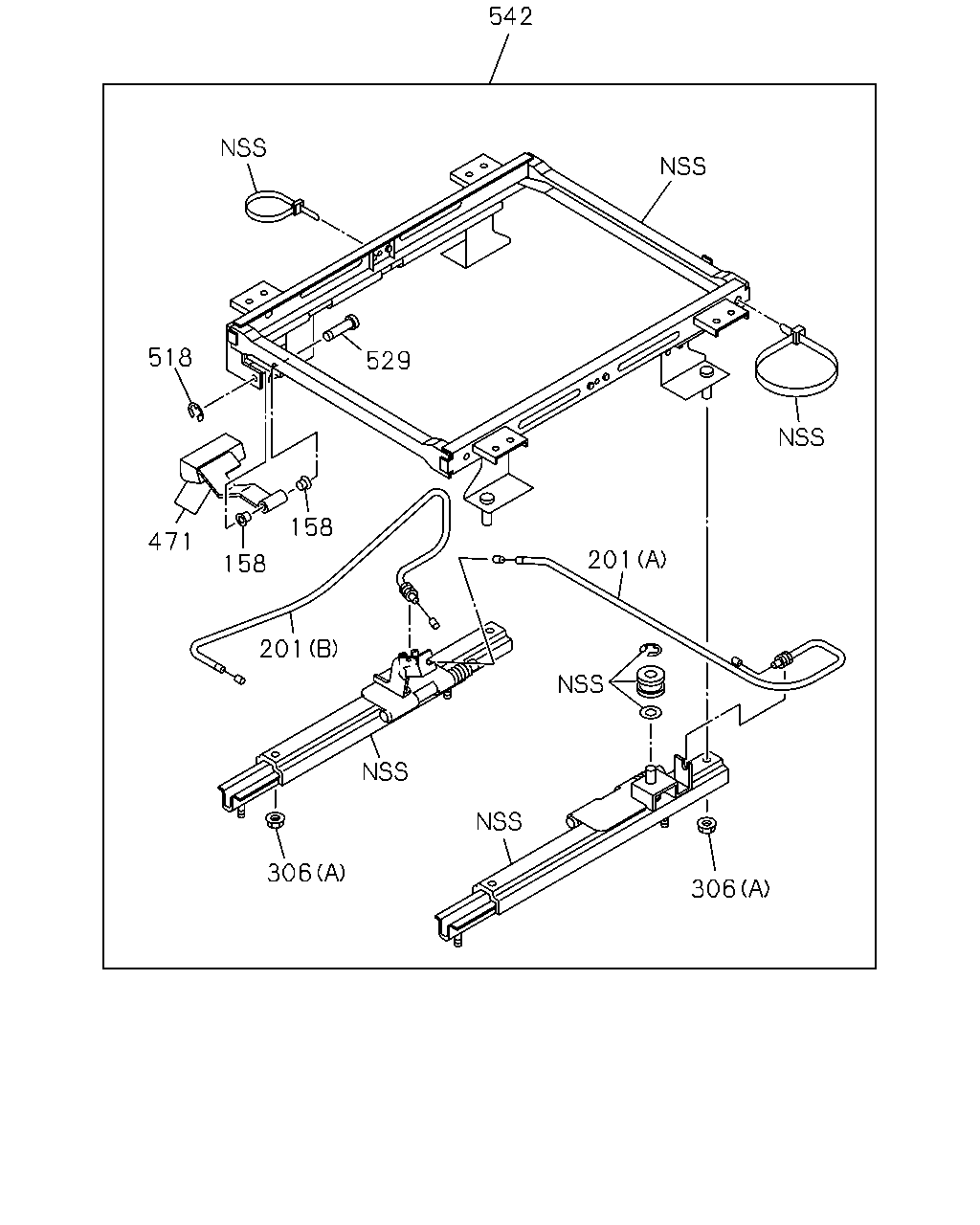

[750A] DRIVER NO.2 (10 parça)

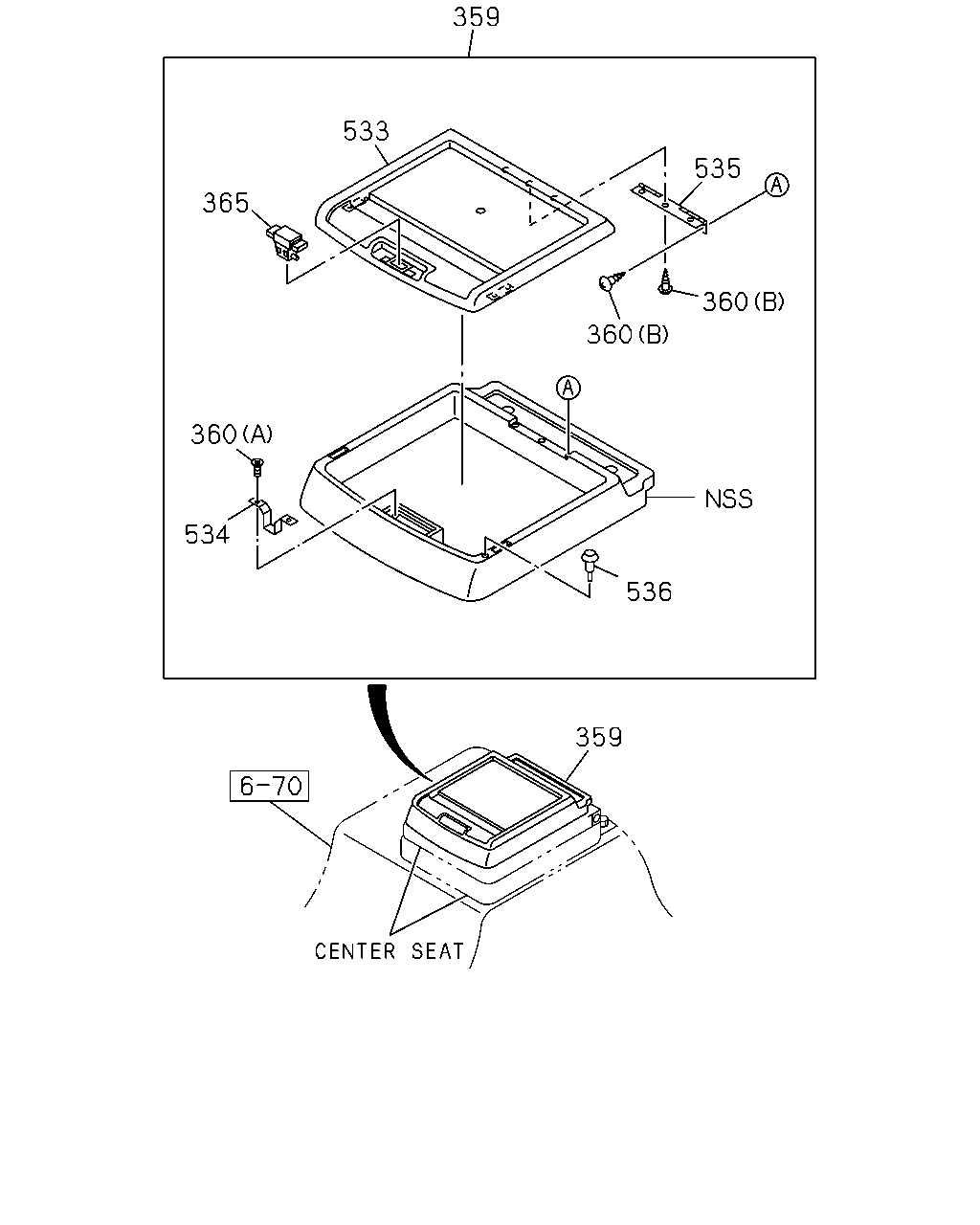

[750A] PARCEL BOX (9 parça)
▶
113
114
99
630
627
122
306
627
116
115
17
123
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
BOLT; RECLINING
(B) M10X20
8-98062-661-0
02
1
1112-
17
BOLT; RECLINING
(A) M8X20
8-98092-334-0
02
1
1112-
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
1112-
99
BUSHING; SEAT BACK
8-98112-751-0
01
1
1112-
113
BACK ASM; SEAT
DARK GRAY
8-97409-966-1
01
1
1112-
114
COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY
8-97411-916-0
01
1
1112-
115
CUSHION ASM; PASSENGER SEAT
DARK GRAY
8-97409-965-1
01
1
1112-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY
8-97411-915-0
01
1
1112-
122
COVER; ADJ,RECLINING
GRAY
8-97409-967-0
01
1
1112-
123
SCREW; COVER,RECLINING
8-98070-026-0
01
1
1112-
306
NUT; SEAT ADJ
(B) M10 FLANGE
0-91180-110-0
02
1
1112-
306
NUT; SEAT ADJ
(A) M8 FLANGE
1-75538-207-0
08
1
1112-
627
WASHER; FRT SEAT
(A)
8-98063-223-0
01
1
1112-
627
WASHER; FRT SEAT
(B)
8-98063-224-0
01
1
1112-
630
NUT; CAP
M8
8-98063-225-0
01
1
1112-
506
360
175
176
188
16
126
359
188
403
179
182
403
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC>
1-75418-062-1
01
1
1112-
126
BUSHING; HINGE,RECLINING
(A)
8-98063-218-0
01
1
1112-
126
BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B)
8-97854-900-0
01
1
1112-
175
BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY
8-97409-975-1
01
1
1112-
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY
8-97409-976-1
01
1
1112-
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY
8-97409-974-1
01
1
1112-
182
CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY
8-97409-973-3
01
1
1112-
188
BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE
1-75198-053-0
04
1
1112-
359
BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97417-261-0
01
1
1112-
360
SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5
8-98062-663-0
04
1
1112-
360
SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16
0-70040-416-0
06
1
1112-
360
SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1112-
403
NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE
0-91180-108-0
04
1
1112-
506
CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97409-980-1
02
1
1112-
1
2
18
228
24
19
126
17
632
100
13
12
542
306
69
67
42
398
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
DARK GRAY
8-97409-955-5
01
1
1112-
2
COVER; TRIM,FRT SEAT,BACK
DARK GRAY
8-97411-910-2
01
1
1112-
12
CUSHION; SEAT,FRT
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY
8-97414-123-2
01
1
1112-
12
CUSHION; SEAT,FRT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY
8-97409-954-2
01
1
1112-
13
COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY
8-97411-909-1
01
1
1112-
17
BOLT; RECLINING
(B) M10X20
8-98062-661-0
02
1
1112-
17
BOLT; RECLINING
(A) M8X20
8-98092-334-0
02
1
1112-
18
COVER; RECLINING
GRAY
8-97409-332-0
01
1
1112-
19
SCREW; COVER
M5
8-98062-663-0
01
1
1112-
24
KNOB; RECLINING,FRT,SEAT
GRAY
8-97409-333-0
01
1
1112-
42
STAND; DRIVER SEAT
1-75558-604-2
01
1
1112-
67
BOLT; FRT SEAT TO BODY
M10X20 FLANGE
0-28451-020-0
02
1
1112-
69
NUT; FRT SEAT
M10 FLANGE
0-91180-110-0
02
1
1112-
100
COVER; HINGE
8-98203-070-0
01
1
1112-
126
BUSHING; HINGE,RECLINING
(A)
8-98063-218-0
01
1
1112-
126
BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B)
8-97854-900-0
01
1
1112-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
1112-
306
NUT; SEAT ADJ
(B) M10 FLANGE
0-91180-110-0
02
1
1112-
306
NUT; SEAT ADJ
(A) M8 FLANGE
1-75538-207-0
08
1
1112-
398
NUT; STAND
M8 FLANGE
1-75538-207-0
04
1
1112-
542
ADJUSTER ASM; SEAT SLIDE
8-98093-310-0
01
1
1112-1502
542
ADJUSTER ASM; SEAT SLIDE
8-98291-653-0
01
1
1503-
632
GROMMET
OD=24
8-94119-796-0
01
1
1112-
542
518
529
158
471
201
158
201
306
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
BUSHING; LINK ARM
1-75518-209-0
02
1
1112-
201
CABLE; ADJ
(A) L=667
1-75518-288-0
01
1
1112-
201
CABLE; ADJ
(B) L=605
1-75518-289-1
01
1
1112-
306
NUT; SEAT ADJ
(B) M10 FLANGE
0-91180-110-0
02
1
1112-
306
NUT; SEAT ADJ
(A) M8 FLANGE
1-75538-207-0
08
1
1112-
471
LEVER; SEAT ADJ
8-98107-869-0
01
1
1112-
518
NUT; TILT ADJ
1-75518-263-0
01
1
1112-
529
PIN; LINK
1-75518-262-0
01
1
1112-
542
ADJUSTER ASM; SEAT SLIDE
8-98093-310-0
01
1
1112-1502
542
ADJUSTER ASM; SEAT SLIDE
8-98291-653-0
01
1
1503-
359
533
535
365
360
360
360
534
536
359
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
359
BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97417-261-0
01
1
1112-
360
SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5
8-98062-663-0
04
1
1112-
360
SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16
0-70040-416-0
06
1
1112-
360
SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1112-
365
LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC>
1-72538-312-0
01
1
1112-
533
LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY
8-97417-263-0
01
1
1112-
534
STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC>
1-72538-190-0
01
1
1112-
535
HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC>
1-72447-391-1
01
1
1112-
536
RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC>
1-72538-187-0
02
1
1112-
