6-90 — REAR BUMPER (#60235) — 45 parça

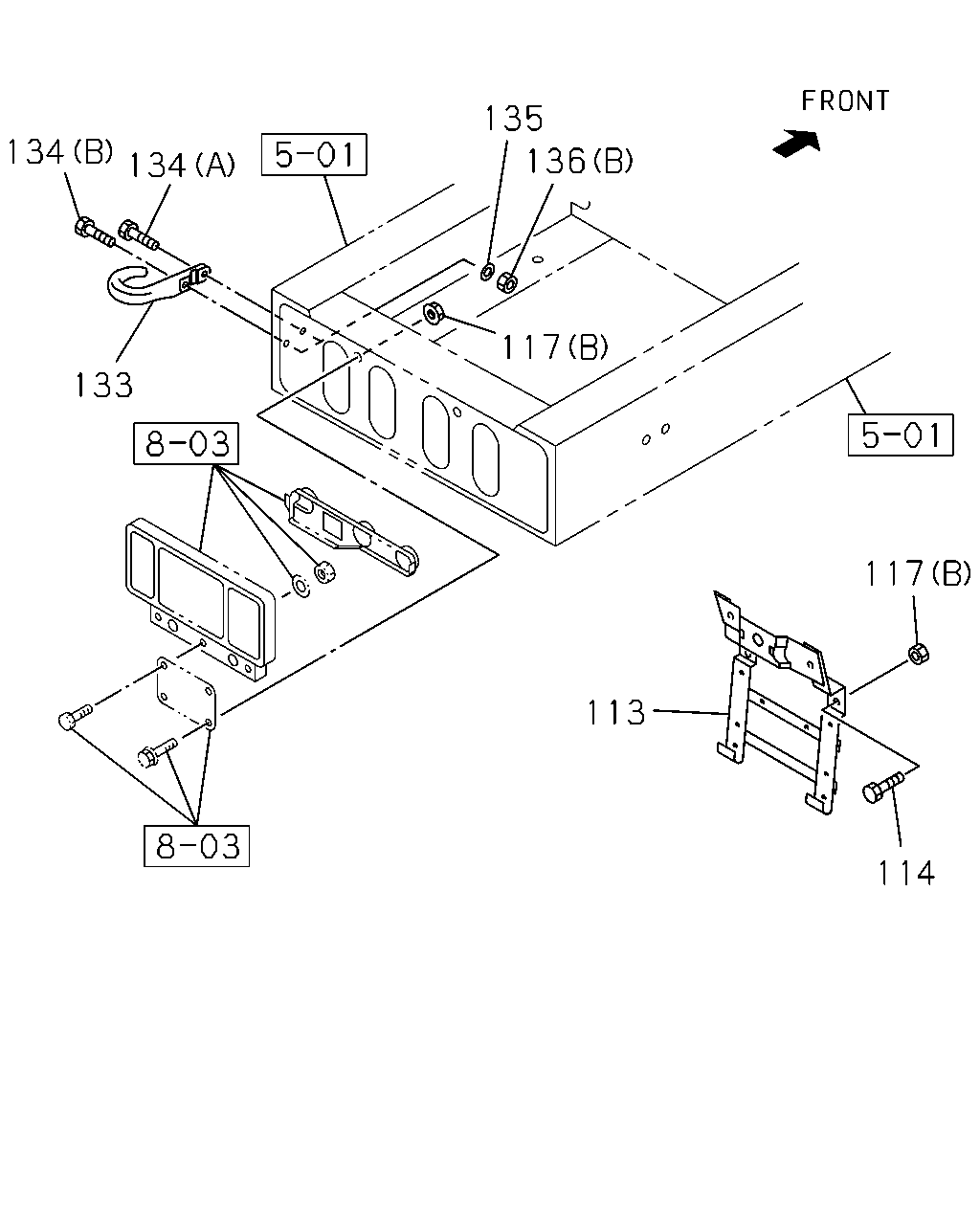

135 136 134 134 117 133 117 113 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1112-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1112-
117	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1112-
117	NUT; BRKT PINTLE HOOK<PP7> (A) M12 FLANGE	0-91180-212-0	02	1	1112-
133	HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7>	1-57181-027-1	02	1	1112-
133	HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7>	1-57181-027-1	01	1	1112-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (A) M16X50	0-20851-650-0	02	1	1112-
134	BOLT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16X60	0-20851-660-0	02	1	1112-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (A) M16X50	0-20851-650-0	01	1	1112-
134	BOLT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16X60	0-20851-660-0	01	1	1112-
135	WASHER; LK,HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> ID=16.2	0-91510-816-0	04	1	1112-
135	WASHER; LK,HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> ID=16.2	0-91510-816-0	02	1	1112-
136	NUT; HOOK PINTLE HOOK<PP7> (A)	1-09420-006-0	01	1	1112-
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16	0-91110-516-0	04	1	1112-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16	0-91110-516-0	02	1	1112-

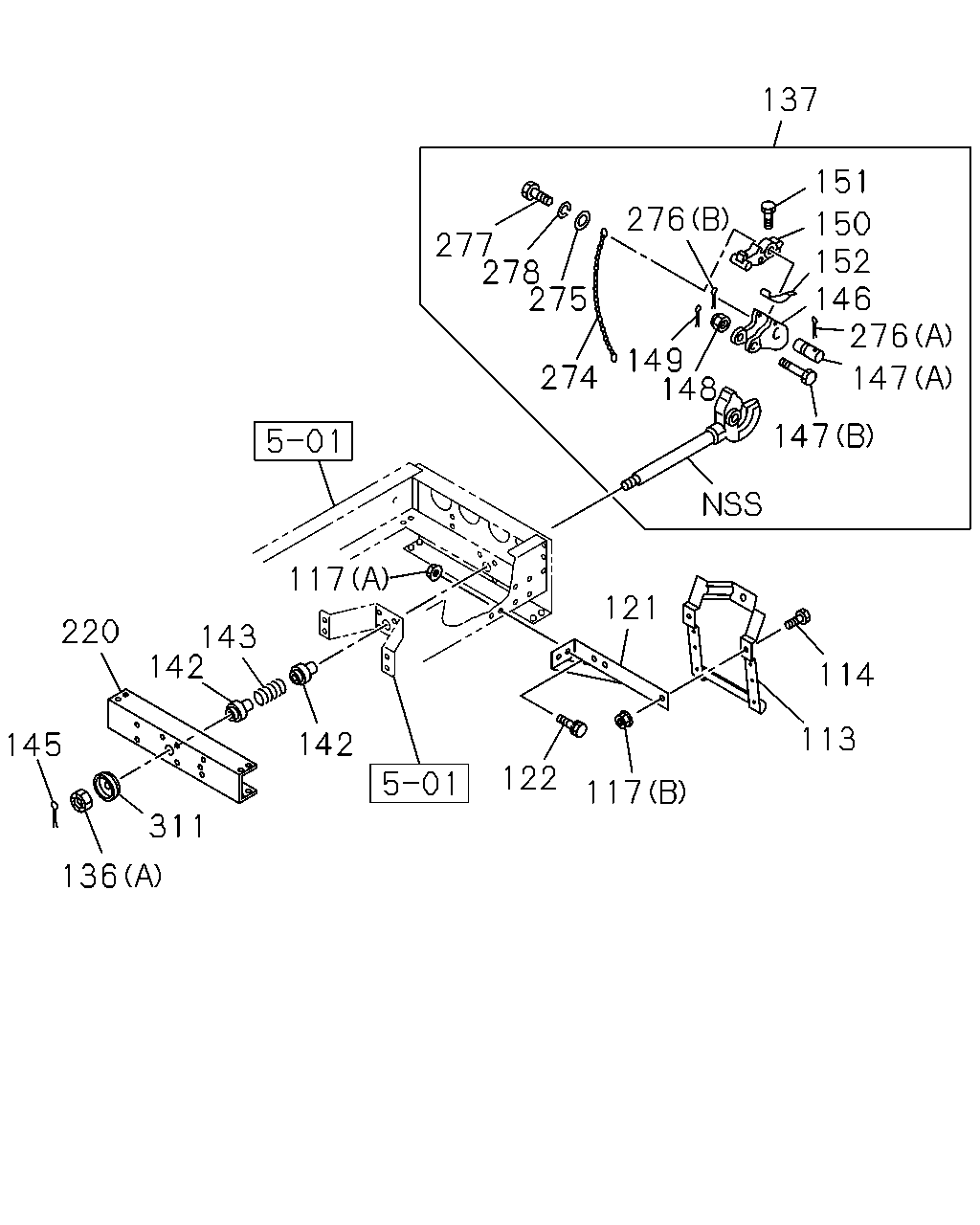

137 151 276 150 152 146 276 277 278 275 149 148 274 147 147 117 121 220 143 142 114 113 142 145 122 117 311 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
113	BRACKET; LICENSE PLATE	1-53485-074-0	01	1	1112-
114	BOLT; BRKT,LICENSE PLATE M8X25 FLANGE	0-28650-825-0	02	1	1112-
117	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	04	1	1112-
117	NUT; BRKT PINTLE HOOK<PP7> (A) M12 FLANGE	0-91180-212-0	02	1	1112-
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	1-53485-002-1	01	1	1112-1112
121	STAY; RR LICENSE PLATE BRKT PINTLE HOOK<PP7>	8-98179-582-0	01	1	1112-
122	BOLT; STAY TO FRAME PINTLE HOOK<PP7> M12X30 FLANGE	0-28651-230-0	02	1	1112-
136	NUT; HOOK PINTLE HOOK<PP7> (A)	1-09420-006-0	01	1	1112-
136	NUT; HOOK REAR DOUBLE HOOK<PM1> EXC. PINTLE HOOK<PP7> (B) M16	0-91110-516-0	04	1	1112-
136	NUT; HOOK EXC. REAR DOUBLE HOOK<PM1>,PINTLE HOOK<PP7> (B) M16	0-91110-516-0	02	1	1112-
137	HOOK ASM; PINTLE PINTLE HOOK<PP7>	1-57180-053-2	01	1	1112-
142	GUIDE; HOOK SPR PINTLE HOOK<PP7>	9-53522-001-0	02	1	1112-
143	SPRING; COIL,PINTLE HOOK PINTLE HOOK<PP7>	9-09940-078-0	01	1	1112-
145	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=5.7 L=65	0-81126-065-0	01	1	1112-
146	LEVER; LK,PINTLE HOOK PINTLE HOOK<PP7>	9-53514-001-0	01	1	1112-
147	PIN; LK LEVER PINTLE HOOK<PP7> (A)	9-53516-002-0	01	1	1112-
147	PIN; LK LEVER PINTLE HOOK<PP7> (B)	9-53516-008-0	01	1	1112-
148	NUT; LK PIN PINTLE HOOK<PP7> M24	1-09442-032-0	01	1	1112-
149	PIN; SPLIT,PINTLE HOOK PINTLE HOOK<PP7> OD=2.8 L=45	0-81123-045-0	01	1	1112-
150	RATCHET; LK LEVER,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-001-0	01	1	1112-
151	BOLT; PINTLE HOOK PINTLE HOOK<PP7> M8X32 W/LK WASHER	0-50540-832-0	01	1	1112-
152	SPRING; RATCHET,PINTLE HOOK PINTLE HOOK<PP7>	9-53515-002-0	01	1	1112-
220	MEMBER; PINTLE HOOK PINTLE HOOK<PP7>	8-97618-610-0	01	1	1112-
274	CHAIN; PINTLE HOOK PINTLE HOOK<PP7>	9-09954-001-0	01	1	1112-
275	WASHER; PL,CHAIN PINTLE HOOK<PP7> ID=6.4	0-91610-606-0	01	1	1112-
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (B)	1-57186-011-0	01	1	1112-
276	PIN; SPLIT,CHAIN PINTLE HOOK<PP7> (A)	9-08113-015-0	01	1	1112-
277	SCREW; CHAIN PINTLE HOOK<PP7> M6X12	9-03490-612-0	01	1	1112-
278	WASHER; LK,CHAIN PINTLE HOOK<PP7> ID=6.1	0-91510-506-0	01	1	1112-
311	PLATE; ADJUSTING PINTLE HOOK<PP7>	1-57184-008-0	01	1	1112-
