◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#6023) — 72 parça
çizim 8199
228
BalonParca AdiParca NoAdetTipApplied Date
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7> 		1-85877-948-0 01 1 9905-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 9812-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7> 		1-85887-935-0 01 1 9902-9904
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> 		1-85887-935-0 01 1 9905-
228 PLATE; CAUTION,AIR DRYER
CAUTIONS PORTUGUESE<NAT> AIR DRYER<PS7> 		1-85877-998-0 01 1 9905-

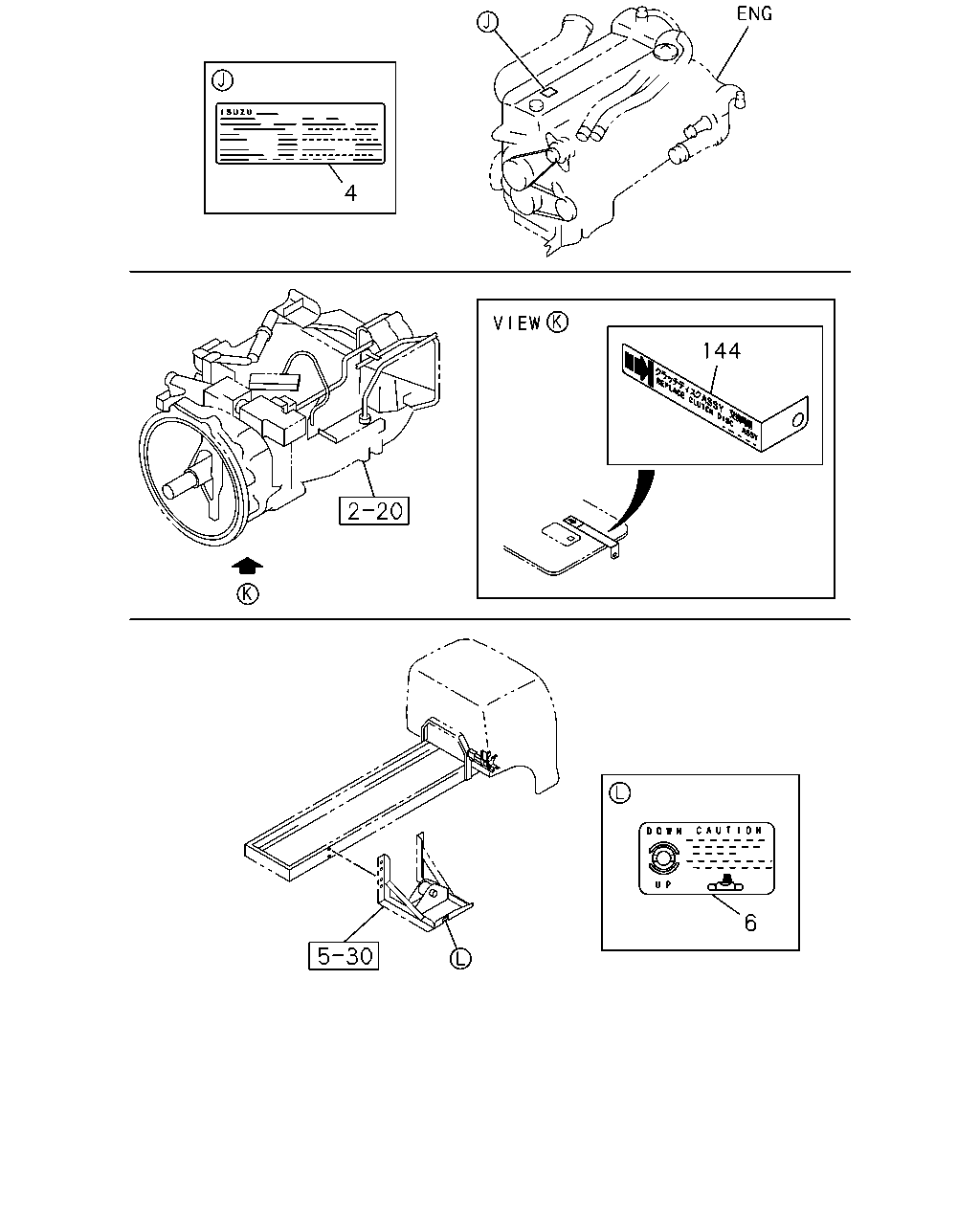

çizim 8567
4 144 6
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
6WA1 TC-C(55L) 		1-85886-840-0 01 1 9902-
4 LABEL; ENG MAINTENANCE
6WA1 TC-S(56L) 		1-85886-802-0 01 1 9905-9906
4 LABEL; ENG MAINTENANCE
6WG1 TC-C(72L) 		1-85886-863-0 01 1 9812-
4 LABEL; ENG MAINTENANCE
6WG1 TC-N(71L) 		1-85886-890-0 01 1 9902-
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-045-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53639-045-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 01 1 9812-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 01 1 9812-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 9902-9904
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> 		1-53639-005-0 01 1 9902-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> 		1-53639-005-0 01 1 9902-
144 PLATE; CAUTION,CLU 1-85888-690-0 01 1 9812-9901
144 PLATE; CAUTION,CLU
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-85888-690-0 01 1 9902-

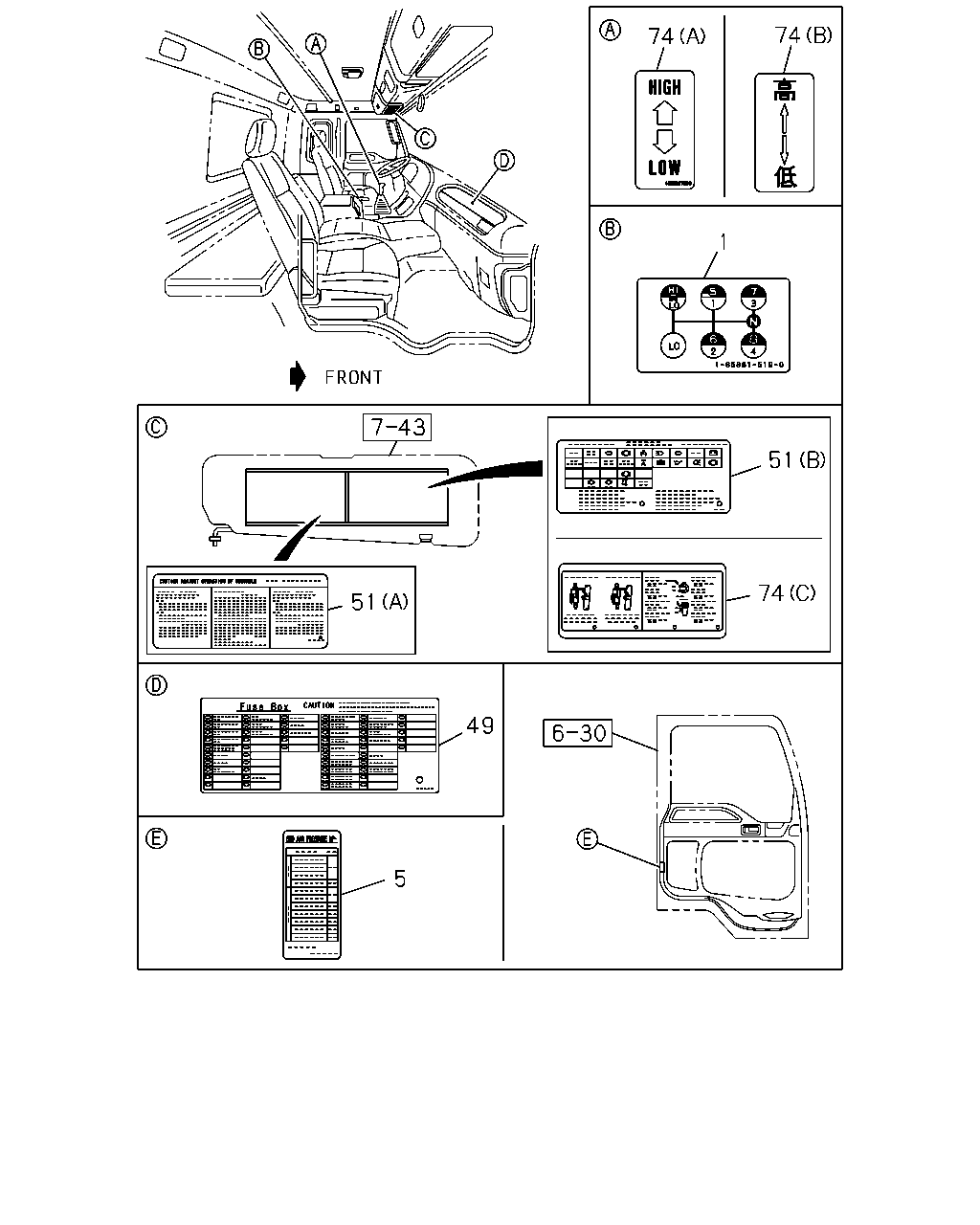

çizim 40999
74 74 1 51 74 51 49 5
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-85881-519-0 01 1 9905-
5 LABEL; TIRE AIR PRESSURE 1-85880-724-2 01 1 9812-9912
5 LABEL; TIRE AIR PRESSURE
EXC. TIRE FRT 12.00R20<72X>,RR TIRE 12.00-20<98X> 		1-85880-724-2 01 1 0001-0009
5 LABEL; TIRE AIR PRESSURE
EXC. TIRE FRT 12.00R20<72X>,RR TIRE 12.00-20<98X> 		1-85880-763-0 01 1 0010-0104
5 LABEL; TIRE AIR PRESSURE
EXC. TIRE FRT 12.00R20<72X>,RR TIRE 12.00-20<98X> 		1-85880-764-0 01 1 0105-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-071-2 01 1 9905-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-069-2 01 1 9812-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> 		1-85878-067-4 01 1 9902-9904
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85878-067-4 01 1 9905-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-070-2 01 1 9905-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS PORTUGUESE<NAT> 		1-85878-072-2 01 1 9905-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-068-2 01 1 9902-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85878-075-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-758-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		1-85878-074-0 01 1 9812-9904
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-074-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85880-727-0 01 1 9812-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7> (B) 		1-85878-073-0 01 1 9902-9904
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-073-0 01 1 9905-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7> (A) 		1-85880-725-0 01 1 9902-9904
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-725-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-726-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (B) 		1-85878-076-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		1-85880-759-0 01 1 9905-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (C) 		1-85881-617-0 01 1 9905-0103
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) 		1-85881-617-0 01 1 0104-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U) CAUTIONS CHINESE<SL7> (B) 		1-85881-666-2 01 1 9812-9901
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) CAUTIONS CHINESE<SL7> (B) 		1-85881-666-2 01 1 9902-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAUTIONS CHINESE<SL7> (A) 		1-85881-736-1 01 1 9902-

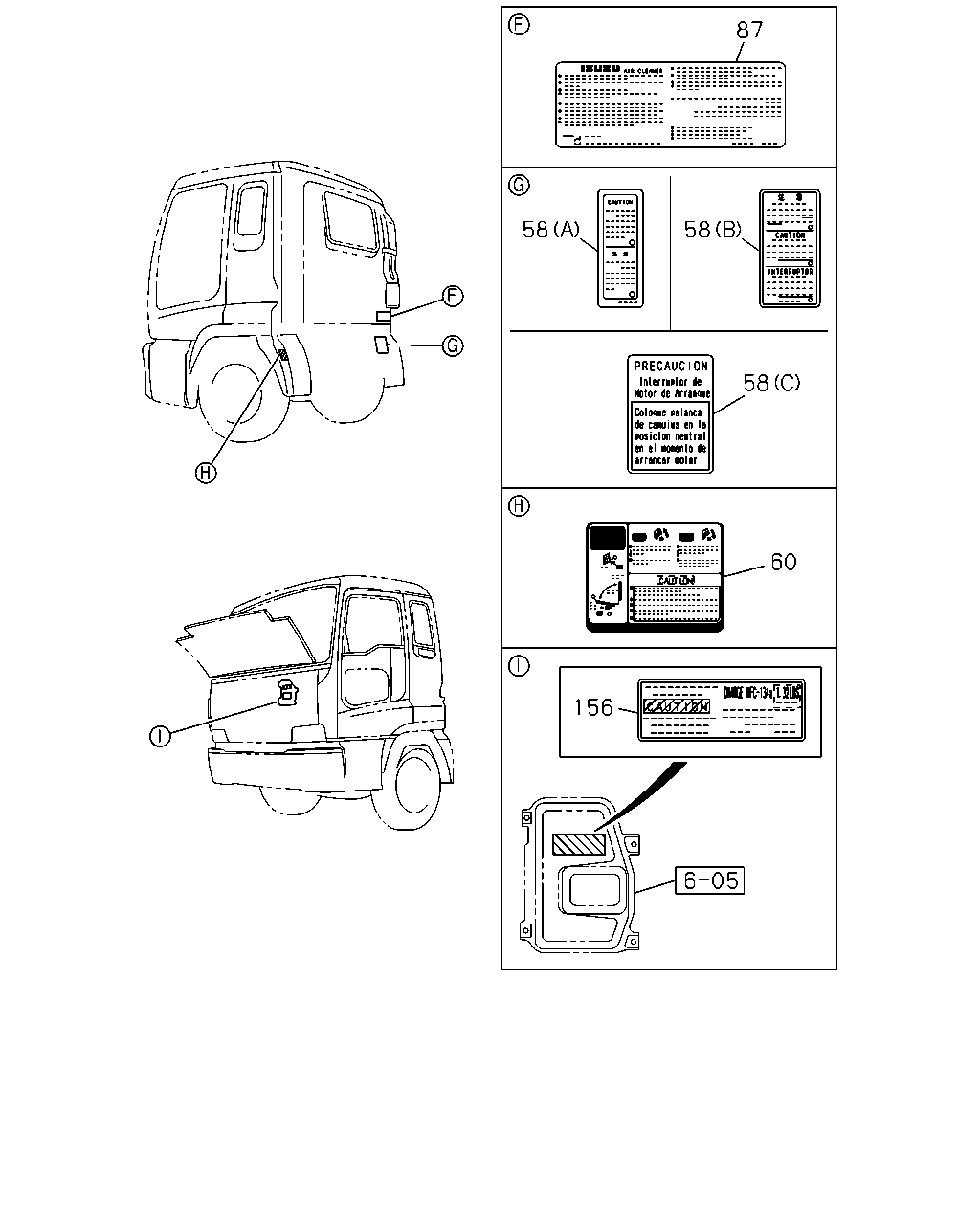

çizim 44675
87 58 58 58 60 156
BalonParca AdiParca NoAdetTipApplied Date
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> (A) 		1-85887-537-0 01 1 9905-
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (A) 		1-85887-536-0 01 1 9812-
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 9902-9904
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 9905-
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> (A) 		1-85887-535-0 01 1 9905-
58 PLATE; CAUTION,ENG START
CAUTIONS PORTUGUESE<NAT> (A) 		1-85878-007-0 01 1 9905-
58 PLATE; CAUTION,ENG START
CAUTIONS SPANISH<YN1> (C) 		9-83999-419-0 01 1 9902-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 9905-
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 9812-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 9902-9904
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 9905-
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 9905-
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> 		1-85883-182-0 01 1 9905-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 9902-
87 PLATE; CAUTION,A/C FILTER 1-85886-796-0 01 1 9812-9901
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97105-399-0 01 1 9812-9904
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS ARABIAN<WJ7> 		8-97105-399-0 01 1 9905-
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS ARABIAN<WJ7> 		1-85877-872-0 01 1 9905-
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS PORTUGUESE<NAT> 		1-85877-873-0 01 1 9905-
