6-31 — FRONT DOOR GLASS AND REGULATOR (#60221) — 77 parça

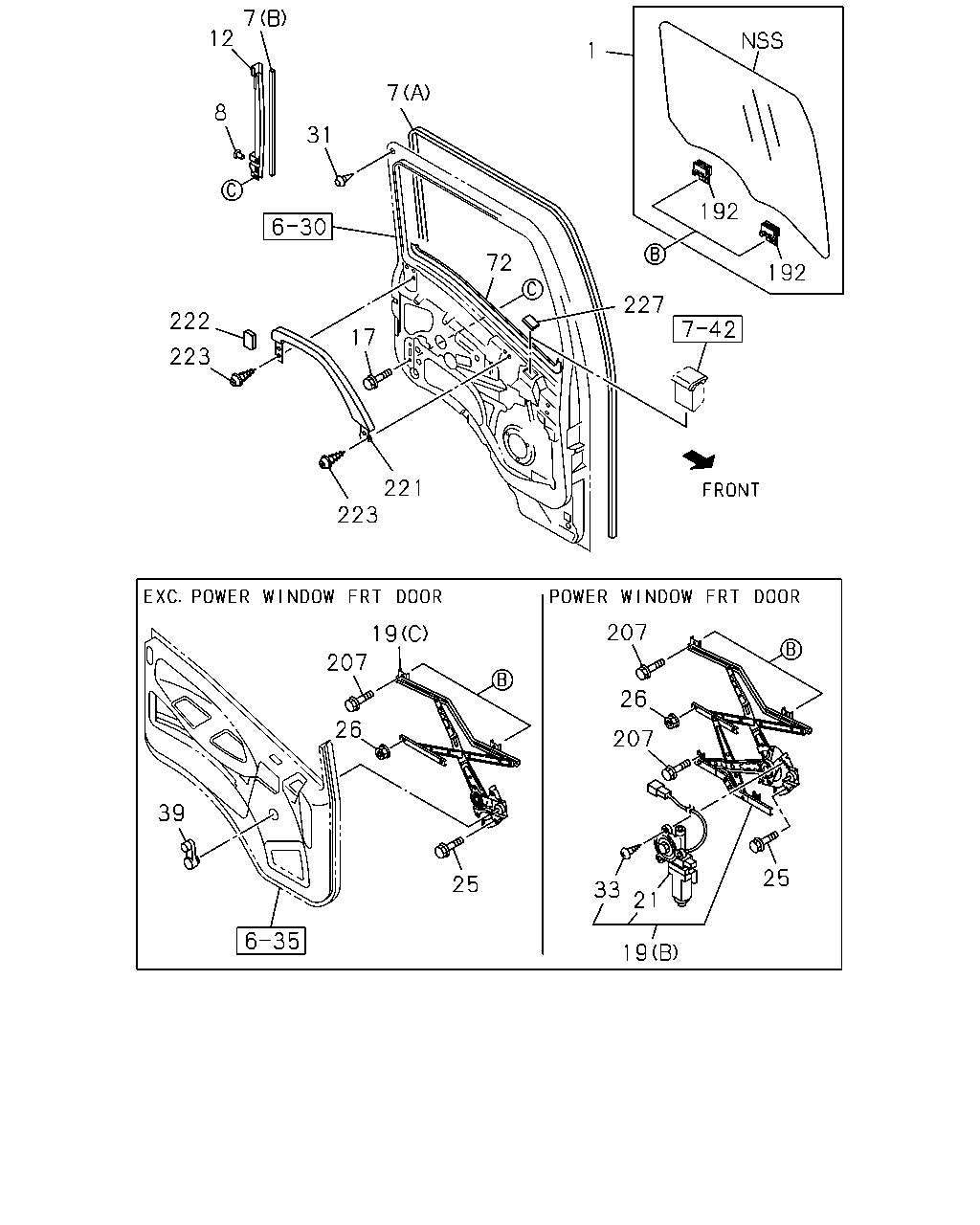

çizim 150871
7 12 1 7 8 31 192 72 192 227 222 17 223 221 223 207 19 207 26 26 207 39 25 25 33 21 19
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR 8-98029-190-1 01 1 1112-1204
1 GLASS; FRT DOOR 8-98211-765-0 01 1 1205-
1 GLASS; FRT DOOR 8-98029-189-1 01 1 1112-1204
1 GLASS; FRT DOOR 8-98211-764-0 01 1 1205-
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1112-1411
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412-
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1112-1411
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412-
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1112-1411
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412-
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1112-
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1112-1411
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412-
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1112-1411
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412-
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 1112-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 1112-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (A) 		8-98029-236-3 01 1 1112-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-234-3 01 1 1112-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-233-3 01 1 1112-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 1112-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 1112-
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1112-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 1112-
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 1112-
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 06 1 1112-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 1112-
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1112-
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1112-
192 HOLDER; DOOR GLASS 8-98041-907-0 04 1 1112-1204
192 HOLDER; DOOR GLASS 8-98211-762-0 04 1 1205-
207 SCREW; DOOR GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1112-
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 1112-
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 1112-
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1112-
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1112-
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1112-1212
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301-
227 RUBBER; SHUTTER
EXC. ASH TRAY PASSENGER DOOR<8LX> GRAY 		8-97405-321-0 01 1 1112-

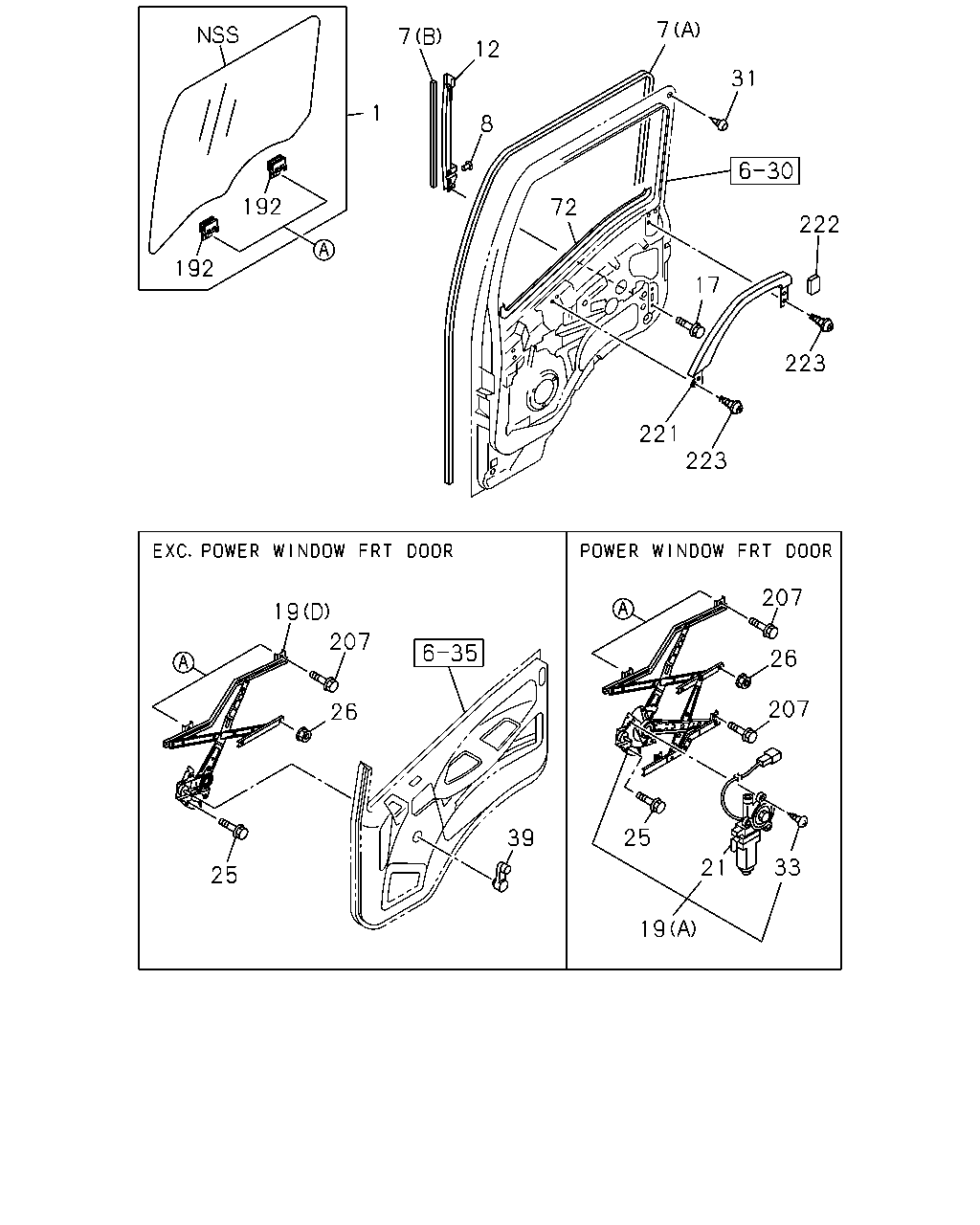

çizim 150872
7 7 12 31 1 8 192 72 222 192 17 223 221 223 207 19 207 26 207 26 25 39 33 21 25 19
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR 8-98029-190-1 01 1 1112-1204
1 GLASS; FRT DOOR 8-98211-765-0 01 1 1205-
1 GLASS; FRT DOOR 8-98029-189-1 01 1 1112-1204
1 GLASS; FRT DOOR 8-98211-764-0 01 1 1205-
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1112-1411
7 GLASS RUN; FRT DOOR
(B) 		8-98260-310-0 02 1 1412-
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1112-1411
7 GLASS RUN; FRT DOOR
(A) 		8-98260-309-0 01 1 1412-
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1112-1411
7 GLASS RUN; FRT DOOR
(A) 		8-98260-308-0 01 1 1412-
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1112-
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1112-1411
12 CHANNEL; GLASS RUN,FRT 8-98260-319-0 01 1 1412-
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1112-1411
12 CHANNEL; GLASS RUN,FRT 8-98260-318-0 01 1 1412-
17 SCREW; RR CHANNEL
BOLT M6X10 FLANGE 		0-28050-610-0 04 1 1112-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (B) 		8-98029-237-3 01 1 1112-
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT DOOR<A32> (A) 		8-98029-236-3 01 1 1112-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (C) 		8-98029-234-3 01 1 1112-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> (D) 		8-98029-233-3 01 1 1112-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-430-0 01 1 1112-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-98058-429-0 01 1 1112-
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 08 1 1112-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		0-91180-106-0 04 1 1112-
31 STOPPER; RUBBER,DOOR INNER 8-94358-581-0 04 1 1112-
33 SCREW; REG MOTOR
POWER WINDOW FRT DOOR<A32> 		8-98058-431-0 06 1 1112-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY 		8-97405-313-3 02 1 1112-
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1112-
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1112-
192 HOLDER; DOOR GLASS 8-98041-907-0 04 1 1112-1204
192 HOLDER; DOOR GLASS 8-98211-762-0 04 1 1205-
207 SCREW; DOOR GLASS
M6X10 FLANGE 		0-28050-610-0 04 1 1112-
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-317-2 01 1 1112-
221 BAR ASM; DOOR GLASS GUARD
DARK GRAY 		8-97405-316-2 01 1 1112-
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1112-
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1112-
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1112-1212
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301-
