9-01 — TOOLS (#6022) — 102 parça
çizim 40865
9 12 13 17 23 22 21 20 19 29 115 29 29 157 193 193 158 208 208 159 237 230
BalonParca AdiParca NoAdetTipApplied Date
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 9606-
9 WRENCH; WHEEL PIN
B=41X21 L=445 		8-97118-906-0 01 1 9606-9903
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9606-0203
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9606-0306
17 HAMMER 9-85121-406-0 01 1 9606-0306
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9606-9810
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9606-0306
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9606-0607
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0608-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9606-0306
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9606-0306
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 9606-0306
29 DRIVER; SCREW
(B) <-> L=190 		9-09595-726-0 01 1 9606-9810
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 9811-
29 DRIVER; SCREW
(B) <-> L=320 		9-09595-729-0 01 1 9606-9810
29 DRIVER; SCREW
(B) <-> L=285 		1-85151-004-0 01 1 9811-0306
115 PLIER 5-85171-001-0 01 1 9606-9810
115 PLIER 5-85171-002-0 01 1 9811-0306
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 9606-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9606-
159 REMOVER; RETURN SPR
ID=12.5 		9-85231-555-0 01 1 9606-
193 JACK ASM
(B) 7TON 		1-85510-017-0 01 1 9606-9810
193 JACK ASM
(A) 7TON 		1-85510-005-2 01 1 9811-
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9606-0105
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-
230 PUMP; GREASE 1-85556-007-2 01 1 9606-0306
237 BAG; TOOL 8-97130-902-0 01 1 9606-

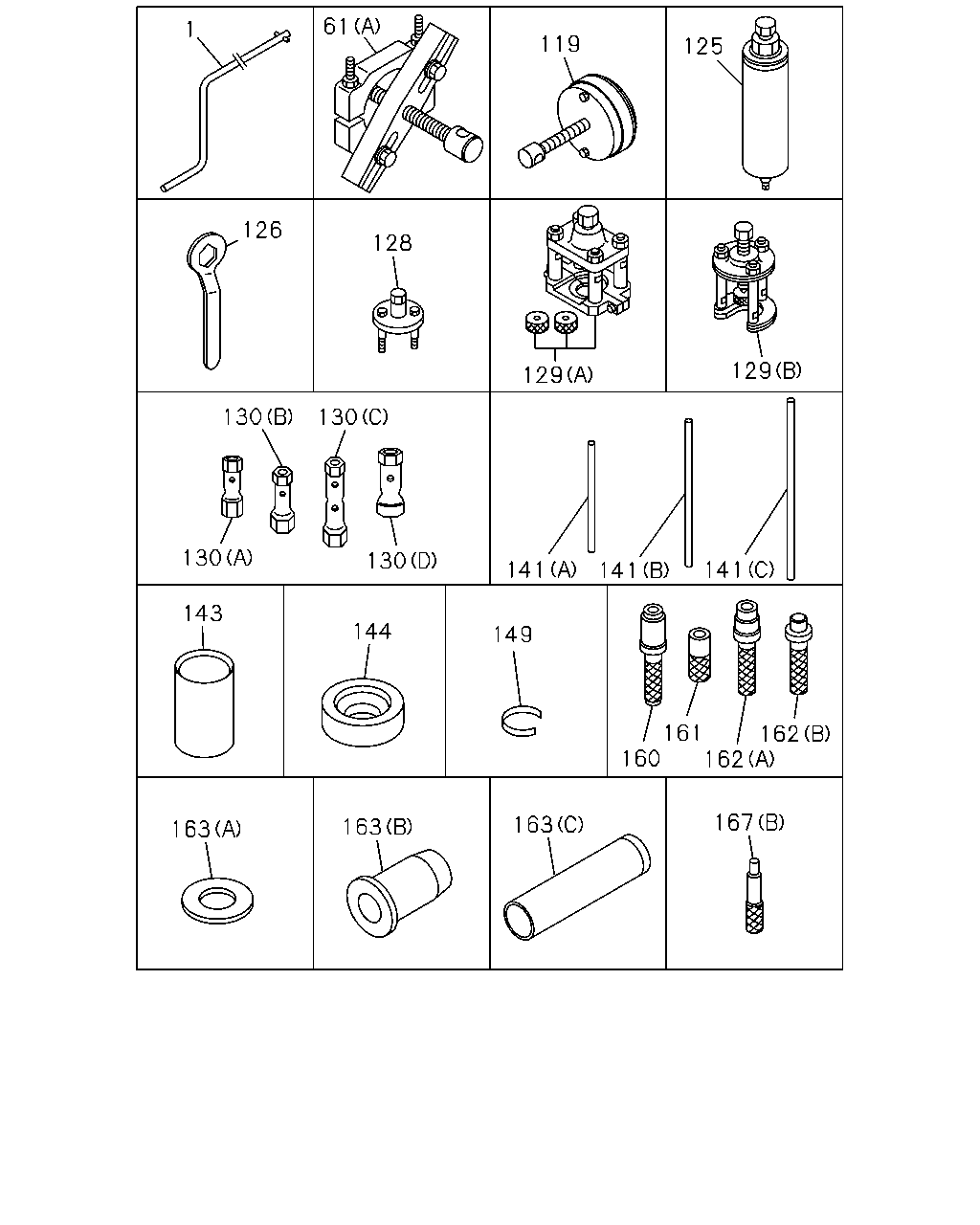

çizim 42028
61 1 119 125 126 128 129 129 130 130 130 130 141 141 141 143 144 149 161 162 160 162 167 163 163 163
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 9606-9810
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 9811-
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9606-9810
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9811-0203
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9811-
119 PULLER ASM; TOP GEAR BRG 9-85210-186-0 01 1 9811-0203
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9606-0203
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9606-9810
126 WRENCH; FRT HUB BRG NUT
L=257 B=54 		1-85111-011-0 01 1 9811-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9606-
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 9606-0203
129 PULLER ASM; PITMAN ARM
(B) 		9-85210-170-0 01 1 9811-
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9606-0203
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9606-0203
130 WRENCH; BOX
(C) B=36 & 41 L=200 		9-85112-330-0 01 1 9606-0203
130 WRENCH; BOX
(B) B=41 & 46 L=165 		9-85113-401-0 01 1 9606-0203
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9606-0203
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9606-0203
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9606-0203
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 9606-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 9606-
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 9606-0203
160 REMOVER; NEEDLE BRG
L=215 		1-85238-007-0 01 1 9606-0203
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 9606-
162 SETTING TOOL; NEEDLE BRG
(A) L=200 		1-85238-005-0 01 1 9606-0203
162 SETTING TOOL; NEEDLE BRG
(B) L=175 		1-85238-006-0 01 1 9606-0203
163 TOOL; SETTING
(A) OD=120 		1-85221-164-0 01 1 9811-0203
163 TOOL; SETTING
(B) L=150 		9-85221-248-0 01 1 9811-0203
163 TOOL; SETTING
(C) L=350 		9-85221-310-0 01 1 9811-0203
167 ALIGNER; CLU PILOT
(B) L=185 		1-85253-008-0 01 1 9606-
167 ALIGNER; CLU PILOT
(A) 		1-85253-014-0 01 1 9606-9810

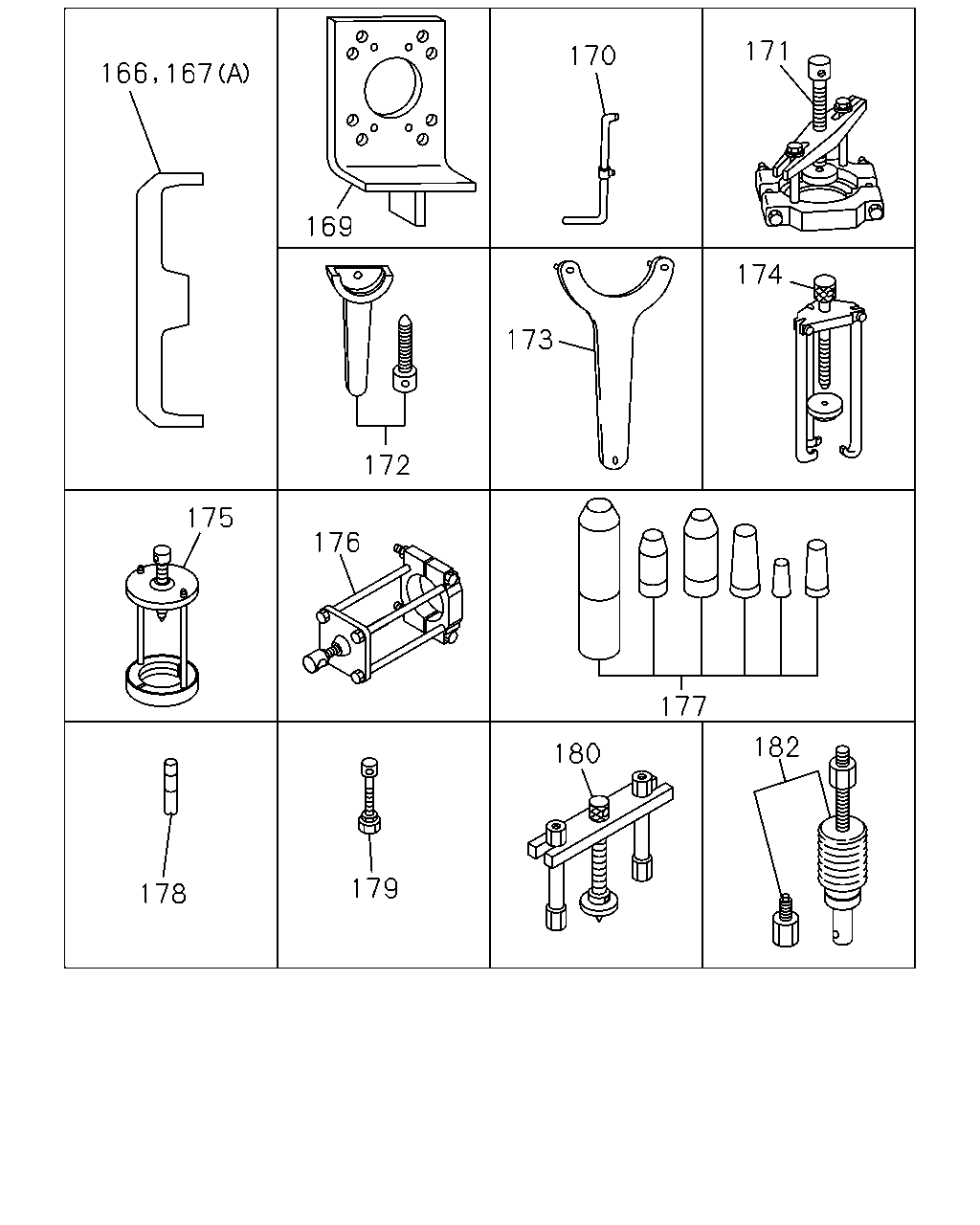

çizim 42029
171 170 169 174 173 172 175 176 177 182 180 179 178 166 167
BalonParca AdiParca NoAdetTipApplied Date
166 ALIGNER; CLU RELEASE LEVER
L=460 		9-85241-420-0 01 1 9606-9810
167 ALIGNER; CLU PILOT
(B) L=185 		1-85253-008-0 01 1 9606-
167 ALIGNER; CLU PILOT
(A) 		1-85253-014-0 01 1 9606-9810
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9606-0203
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9606-0203
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9606-0203
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9606-0203
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 9606-9810
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9606-
175 PULLER ASM; COOLER,MAINSHAFT 1-85210-038-0 01 1 9606-9810
176 PULLER ASM; COUNTER SHAFT MAIN 9-85210-169-0 01 1 9606-9810
177 SETTING TOOL KIT 9-85220-040-0 01 1 9606-0203
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9606-
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9606-0203
180 PULLER; FRT & RR HUB
M20 		9-85210-187-0 01 1 9606-0203
182 REMOVER ASM 9-85210-095-0 01 1 9606-0203

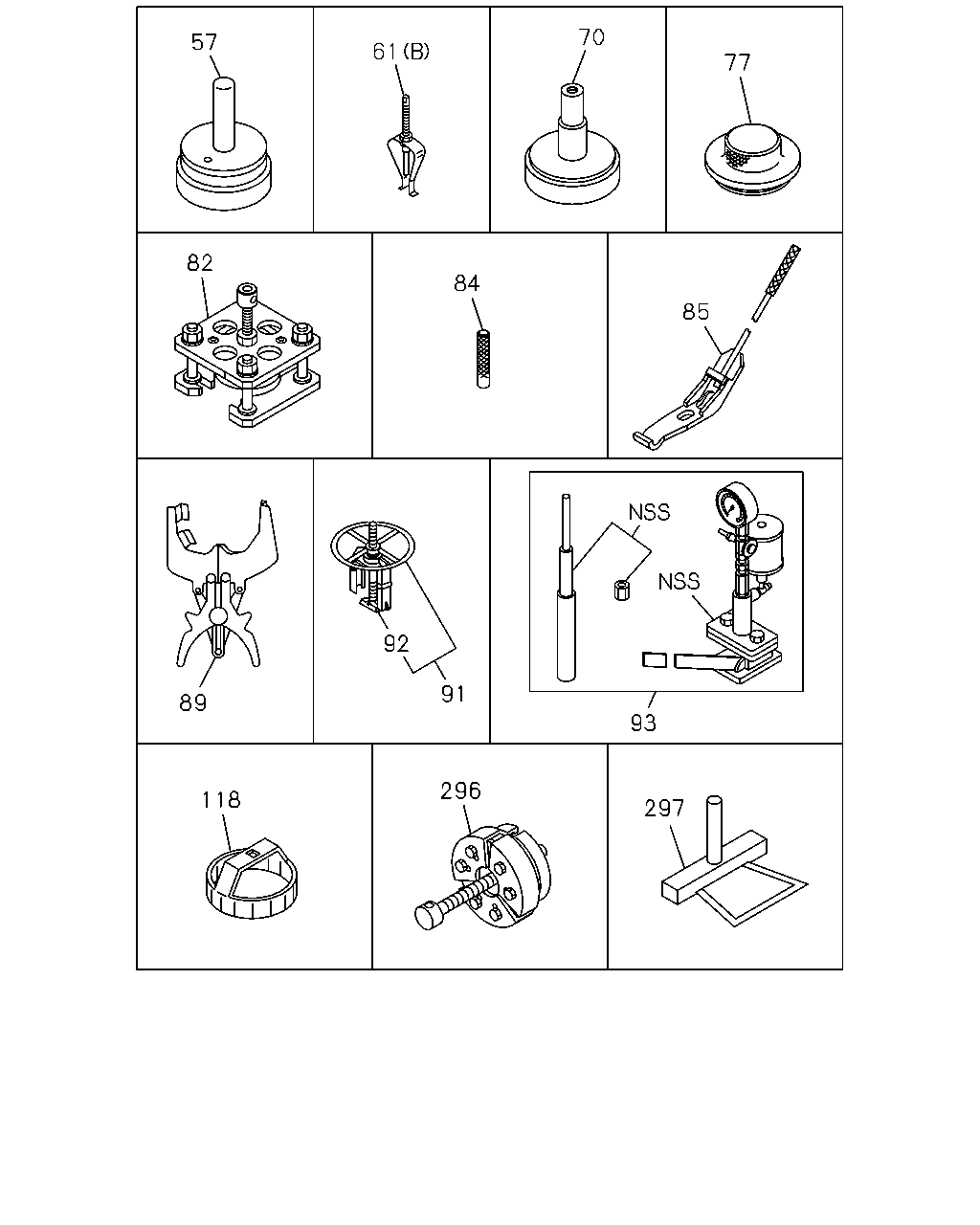

çizim 42710
70 57 61 77 82 84 85 92 91 89 93 296 118 297
BalonParca AdiParca NoAdetTipApplied Date
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9606-9810
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9811-0203
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9606-9810
61 PULLER ASM; PILOT BRG
(B) 		9-85210-157-0 01 1 9811-0203
61 PULLER ASM; PILOT BRG
(A) 		1-85210-050-0 01 1 9811-
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9606-9810
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9811-0203
77 TOOL; SETTING,CYL LINER 8-94396-816-0 01 1 9606-9810
77 TOOL; SETTING,CYL LINER 8-94396-816-0 01 1 9811-
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9606-9810
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9811-0203
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9606-9810
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9811-
85 REPLACER ASM; VALVE SPR 8-94396-861-0 01 1 9606-9810
85 REPLACER ASM; VALVE SPR 8-94396-861-0 01 1 9811-0203
89 TOOL; PISTON RING 1-85221-029-0 01 1 9606-9810
89 TOOL; PISTON RING 1-85221-029-0 01 1 9811-0203
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9606-9810
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9811-
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9606-9810
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9811-
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9606-9810
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9811-
118 WRENCH; OIL FILTER 1-85221-097-0 01 1 9811-0203
296 REPLACER; SLINGER 8-94396-858-0 01 1 9606-9810
296 REPLACER; SLINGER 8-94396-858-0 01 1 9811-0203
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9606-9810
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9811-0203
