◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11405 - FTS(RHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#60219) — 60 parça

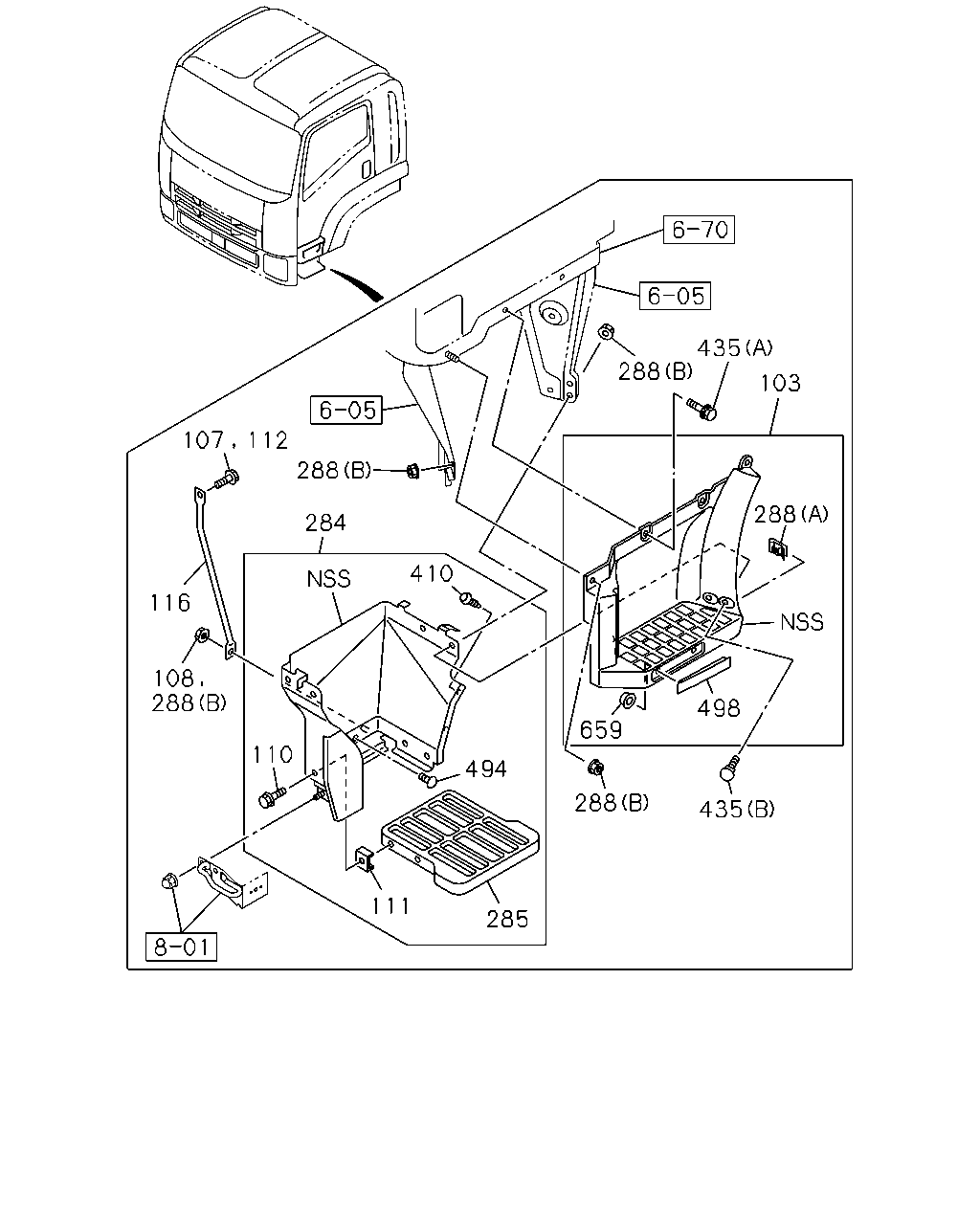

çizim 150865
107 112 288 284 116 108 288 110 410 288 435 103 288 498 435 288 659 285 111 494
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98058-319-2 01 1 1112-
103 PLATE; STEP 8-98058-318-2 01 1 1112-
107 BOLT; SIDE STEP
M8X20 FLANGE 		0-28650-820-0 02 1 1310-
108 NUT; SIDE STEP
M8 FLANGE 		0-91180-108-0 02 1 1310-
110 BOLT; 1ST STEP PLATE
M8X16 FLANGE 		0-28050-816-0 10 1 1112-
111 COVER; 1ST STEP 1-71998-153-0 10 1 1112-
112 BOLT; 1ST STEP
M8X20 FLANGE 		0-28650-820-0 02 1 1112-1309
116 STAY; 1ST STEP,FRT 8-98057-382-0 01 1 1112-
116 STAY; 1ST STEP,FRT 8-98057-381-0 01 1 1112-
284 STEP ASM; 1ST 8-98057-377-1 01 1 1112-
284 STEP ASM; 1ST 8-98057-376-1 01 1 1112-
285 PLATE; STEP,1ST STEP 1-71998-312-2 02 1 1112-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 12 1 1112-1309
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1310-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1112-
410 CLIP; COVER,STEP PLATE
OD=12 L=14.8 		8-94279-921-0 06 1 1112-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1112-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1112-
494 STUD; BRKT 8-94389-701-0 02 1 1112-
498 REFLECTOR 8-98092-734-0 01 1 1112-
498 REFLECTOR 8-98092-733-0 01 1 1112-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1112-

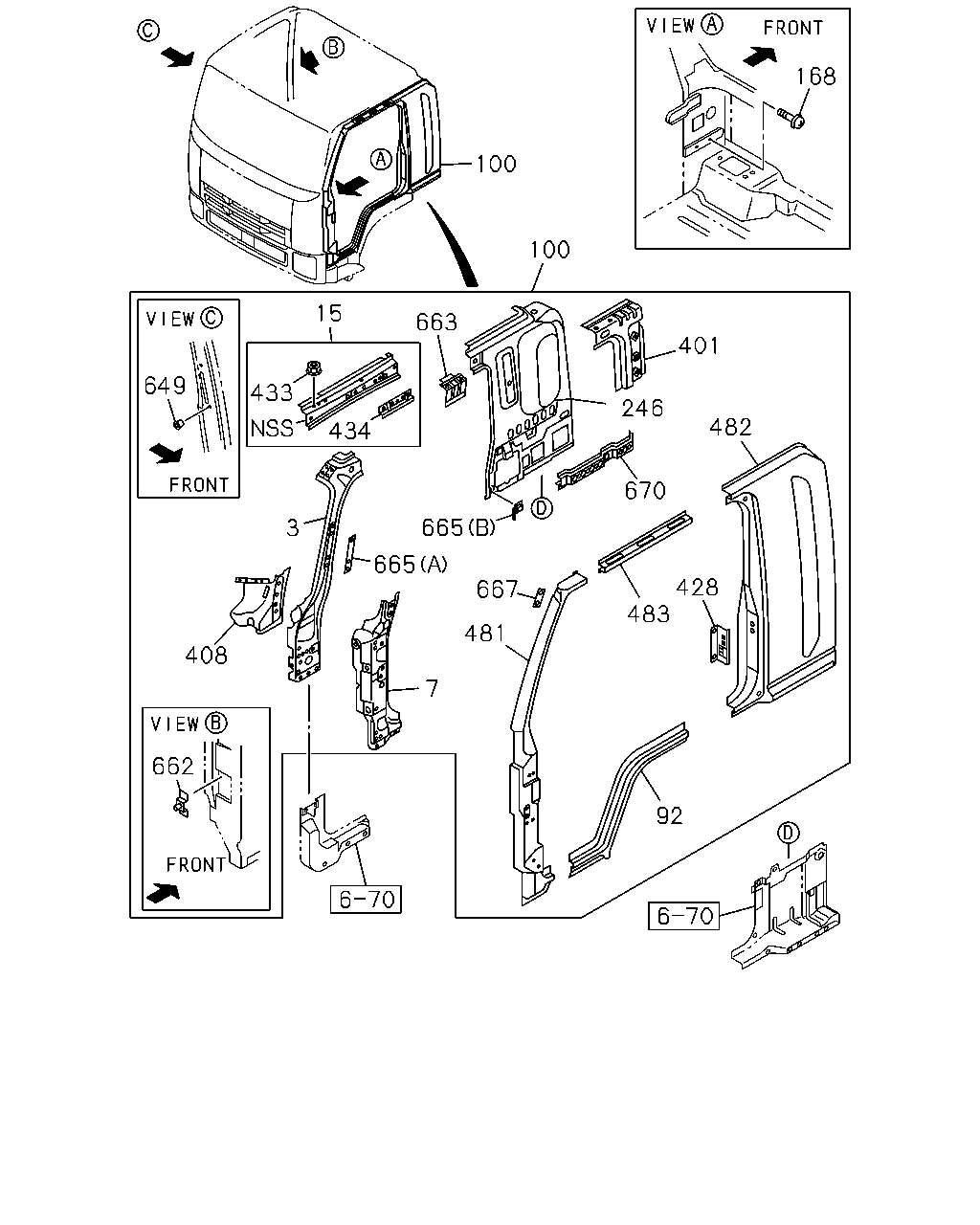

çizim 150873
168 100 100 15 663 401 649 433 246 434 482 670 665 3 665 428 483 667 481 408 7 662 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1112-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1112-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1112-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1112-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1112-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1112-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1112-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1112-
100 PANEL ASM; BODY SIDE 8-98044-544-5 01 1 1112-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-97586-073-9 01 1 1112-
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-070-6 01 1 1112-
168 BOLT; BODY SIDE PANEL
SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1112-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1112-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1112-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1112-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1112-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1112-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1112-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1112-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1112-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1112-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1112-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1112-
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1112-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98055-453-0 01 1 1112-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98055-451-0 01 1 1112-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1112-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1112-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1112-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1112-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1112-
662 BRACKET; DUCT 8-97584-611-1 01 1 1112-
663 BRACKET; AIR 8-97585-208-2 01 1 1112-
663 BRACKET; AIR 8-97585-207-2 01 1 1112-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 02 1 1112-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1112-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1112-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1112-
