◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11405 - FTS(RHD)EURO1 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#60218) — 9 parça

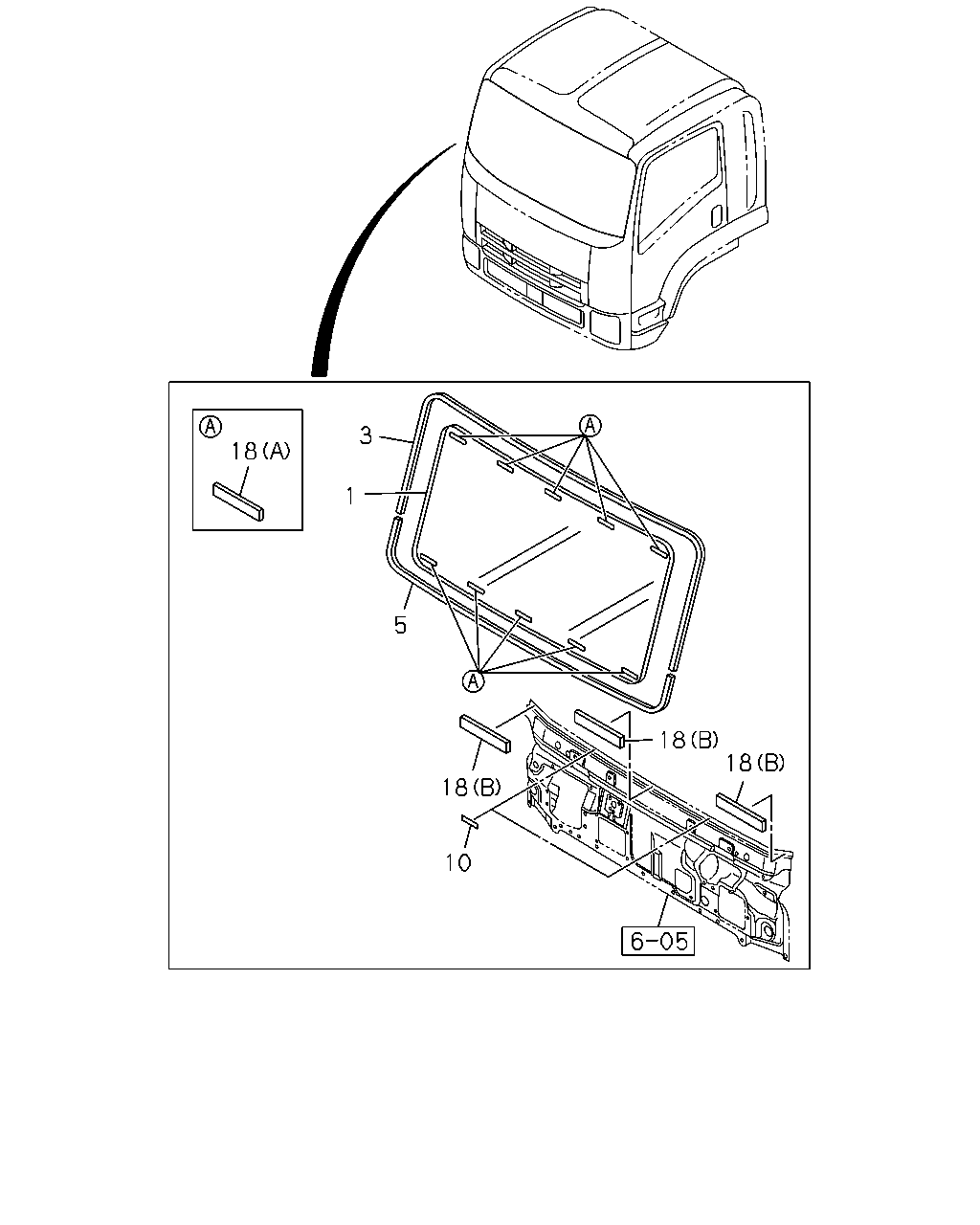

çizim 150857
3 18 1 5 18 18 18 10
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; WINDSHIELD 8-98041-647-3 01 1 1112-
3 MOLDING; WINDSHIELD 8-98041-651-3 01 1 1112-
5 MOLDING; WINDSHIELD,LWR 8-98041-654-2 01 1 1112-1209
5 MOLDING; WINDSHIELD,LWR 8-98222-159-0 01 1 1210-
10 SPACER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> L=100 B=1.5 		8-98095-044-0 02 1 1112-
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 10 1 1112-
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 10 1 1112-
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 06 1 1112-
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 06 1 1112-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
